Weslo Boomerang 850 Elliptical Manuel utilisateur

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manu-

al for future reference.

Model No. WLEVEL28840

Serial No.

QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete cus-

tomer satisfaction. If you have

questions, or if there are missing

or damaged parts, please call:

Fax: 0034 91 661 98 32

E-mail: serviciotecni-

co@bahnli.com

USERʼS MANUAL

Serial Number

Decal

0034 91 661 02 10

TABLE OF CONTENTS

MPORTANTPRECAUTONS .................................................................3

BEFOREYOUBEGN .......................................................................4

ASSEMBLY ...............................................................................5

HOWTOUSETHEELLPTCALCROSSTRANER ................................................9

MANTENANCEANDTROUBLESHOOTNG ....................................................12

CONDTONNGGUDELNES ...............................................................13

PARTLST ...............................................................................14

EXPLODEDDRAWNG .....................................................................15

HOWTOORDERREPLACEMENTPARTS..............................................BackCover

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of serious injury, read the following important precau-

tions before using the elliptical crosstrainer.

1. Read all instructions in this manual before

using the elliptical crosstrainer. Use the

elliptical crosstrainer only as described.

2. It is the responsibility of the owner to

ensure that all users of the elliptical

crosstrainer are adequately informed of all

precautions.

3. Place the elliptical crosstrainer on a level

surface, with a mat beneath it to protect the

floor or carpet. Keep the elliptical crosstrain-

er indoors, away from moisture and dust.

4. Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

5. Keep children under 12 and pets away from

the elliptical crosstrainer at all times.

6. The elliptical crosstrainer should not be

used by persons weighing more than 115 kg

(250 lbs.).

7. Wear appropriate exercise clothing when

using the elliptical crosstrainer. Always wear

athletic shoes for foot protection.

8. Always hold the handlebars when mounting,

dismounting, or using the elliptical

crosstrainer.

9. Keep your back straight when using the

elliptical crosstrainer. Do not arch your

back.

10. The pulse sensor is not a medical device.

Various factors may affect the accuracy of

heart rate readings. The pulse sensor is

intended only as an exercise aid in determin-

ing heart rate trends in general.

11. If you feel pain or dizziness at any time whilst

exercising, stop immediately and cool down.

12. When you stop exercising, allow the pedals

to slowly come to a stop.

13. The elliptical crosstrainer is intended for

home use only. Do not use the elliptical

crosstrainer in a commercial, rental, or insti-

tutional setting.

14. A warning decal has been placed on the

elliptical crosstrainer in the location shown

below. Please note that the text on the decal

is in Spanish. Find the decal in English and

place it over the Spanish decal.

If the decal is missing, or if it is not legible,

please please call our Customer Service

Department and order a free replacement

decal (see the back cover of this manual).

Apply the decal in the location shown.

WARNING: Before beginning this or any exercise program, consult your physician.

This is especially important for persons over the age of 35 or persons with pre-existing health prob-

lems. Read all instructions before using. ICON assumes no responsibility for personal injury or

property damage sustained by or through the use of this product.

BEFORE YOU BEGIN

Congratulations for selecting the new BOOMERANG

850 elliptical crosstrainer. The BOOMERANG 850

elliptical crosstrainer is an incredibly smooth exerciser

that moves your feet in a natural elliptical path, mini-

mizing the impact on your knees and ankles. And the

unique BOOMERANG 850 features adjustable resis-

tance and a simple-to-use console to help you get the

most from your exercise.

For your benefit, read this manual carefully before

using the elliptical crosstrainer. f you have ques-

tions after reading this manual, please call our

Customer Service Department at 0034 91 661 02 10.

To help us assist you, please note the product model

number and serial number before calling. The model

number is WLEVEL28840. The serial number is found

on a decal attached to the elliptical crosstrainer (see

the front cover of this manual for the location of the

decal).

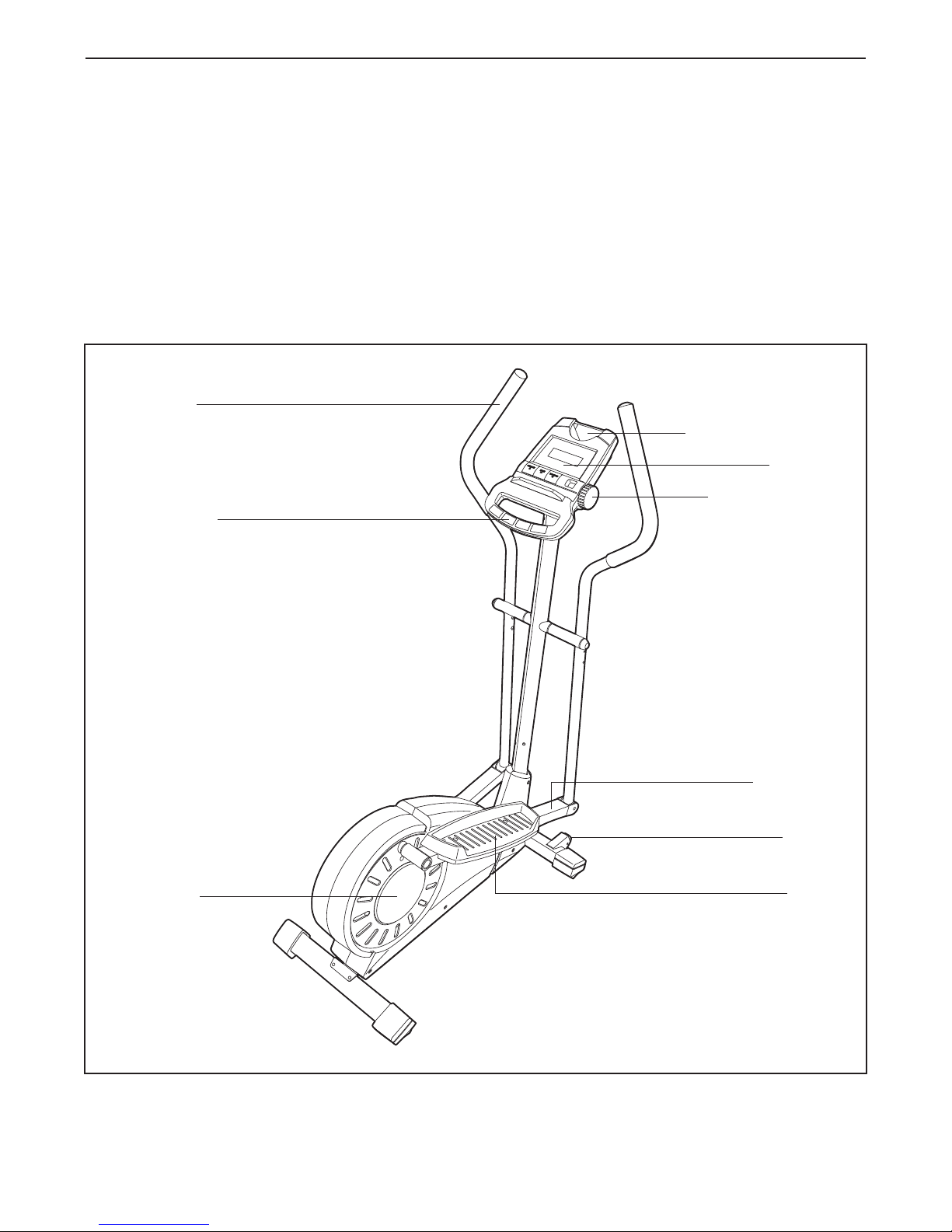

Before reading further, please familiarise yourself with

the parts that are labeled in the drawing below.

Handlebar

FRONT

BACK Pedal Arm

Pedal Disk

*No water bottle is included

Pedal

Console

Water Bottle Holder*

Pulse Sensor

Resistance Knob

Wheel

ASSEMBLY

Assembly requires two persons. Place all parts of the elliptical crosstrainer in a cleared area and remove the

packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the

included hex keys, assembly requires a phillips screwdriver , an adjustable

spanner , and a rubber mallet .

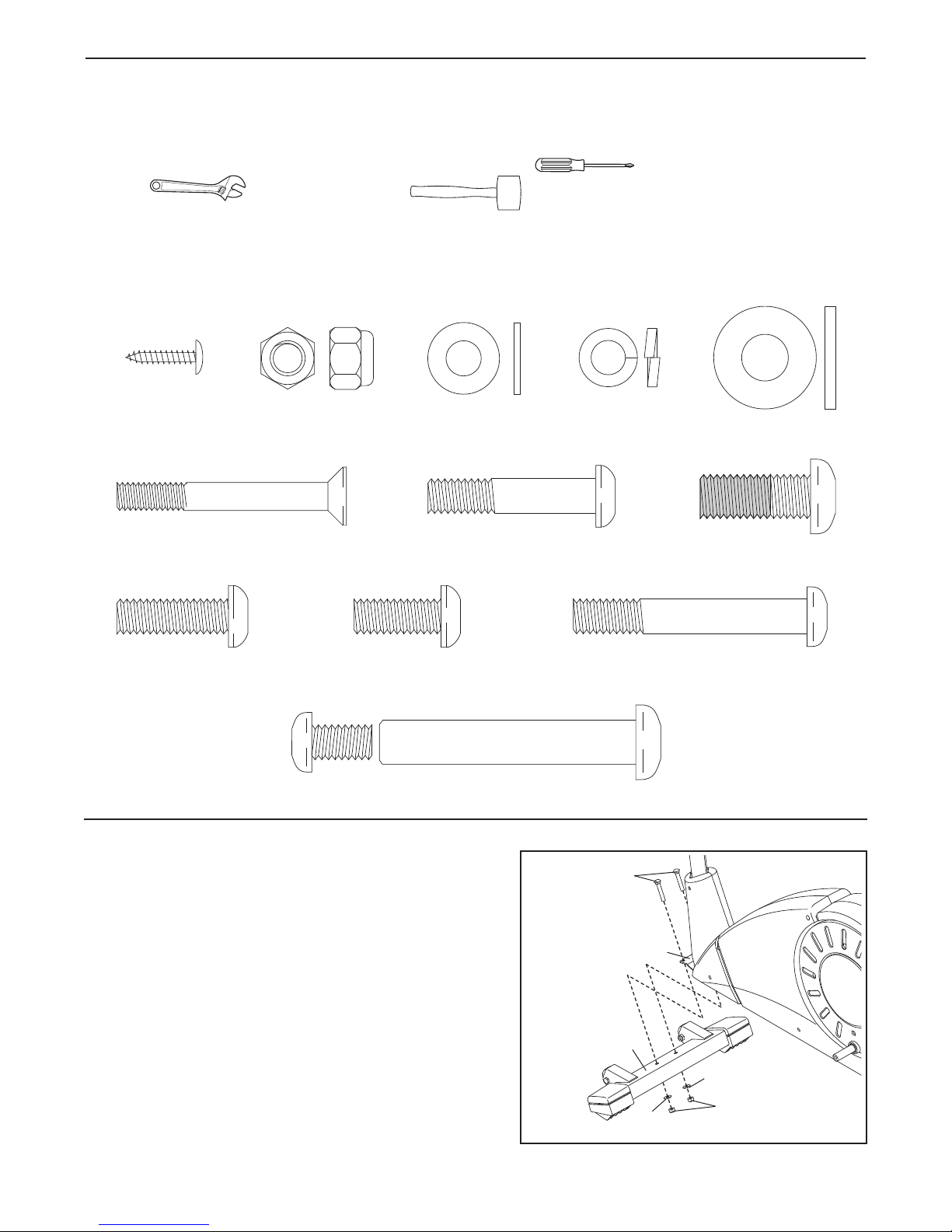

As you assemble the elliptical crosstrainer, use the drawings below to identify the small parts used in assembly.

The number in parenthesis below each drawing refers to the key number of the part, from the PART L ST on

page 14. The second number refers to the quantity used in assembly. Note: Some small parts may have been

pre-assembled for shipping. If a part is not in the parts bag, check to see if it has been pre-assembled.

Washer (48)–4

M8 Split

Washer (59)–6

M8 Nylon

Locknut (38)–8 M10

Washer (35)–2

M4 x 16mm

Screw (42)–5

M10 x 25mm

Patch Screw (22)–2

M6 x 48mm Flat Head

Screw (36)–4

Pedal Arm Bolt Set (40)–2

M8 x 38mm Button Bolt (50)–4

M8 x 25mm Button

Screw (45)–1

M8 x 19mm Button

Screw (68)–6

M8 x 53mm Button Bolt (34)–4

1. dentify the Front Stabiliser (10), which is narrower than

the Rear Stabiliser (not shown). Whilst another person

lifts the front of the Frame (1), attach the Front

Stabiliser to the Frame with two M8 x 53mm Button

Bolts (34), two M8 Washers (48), and two M8 Nylon

Locknuts (38).

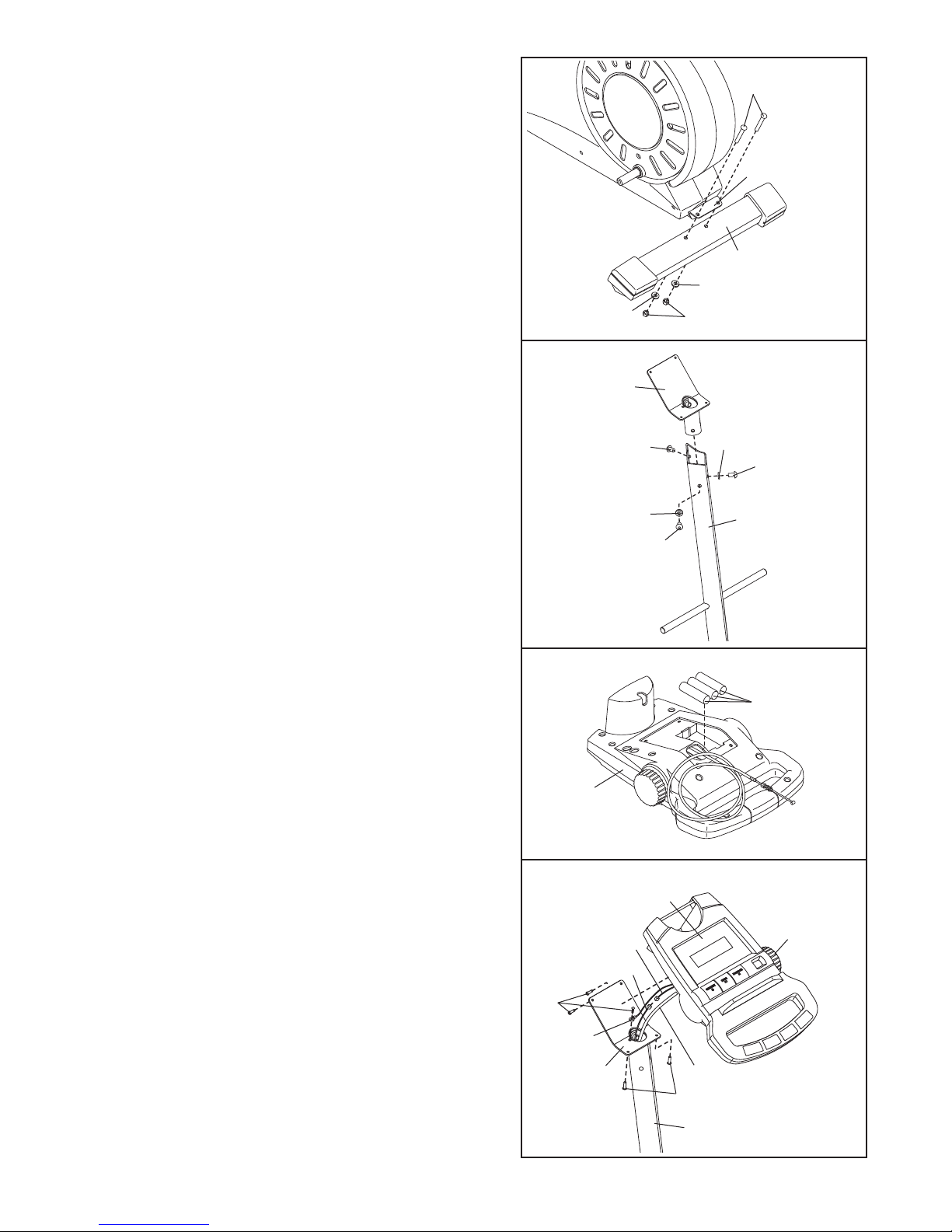

2. Whilst another person lifts the back of the Frame (1),

attach the Rear Stabiliser (28) to the Frame with two

M8 x 53mm Button Bolts (34), two M8 Washers (48),

and two M8 Nylon Locknuts (38).

3. nsert the Console Bracket (63) into the Upright (2) as

shown. Attach the Console Bracket to the Upright with

an M8 x 25mm Button Screw (45), two M8 Split

Washers (59), and two M8 x 19mm Button Screws

(68).

4. The Console (23) requires three 1.5V “AA” batteries;

alkaline batteries are recommended. nsert three bat-

teries into the battery compartment. Make sure that

the batteries are oriented as shown by the diagram

inside the battery compartment.

5. Have another person hold the Console (23) in the

position shown. nsert the control cable down through

the Upright (2). Connect the console wire to the Upper

Wire (44). Attach the ground wire to the Console

Bracket (63) with an M4 x 16mm Screw (42). Next,

insert the excess cable and wire down into the Upright.

Attach the Console (23) to the Console Bracket (63)

with four M4 x 16mm Screws (42). Be careful to

avoid pinching the cable and wires.

Make sure that the resistance knob is turned to the

lowest setting before continuing.

Batteries

Control Cable

Resistance

Knob

Console Wire

Ground

Wire

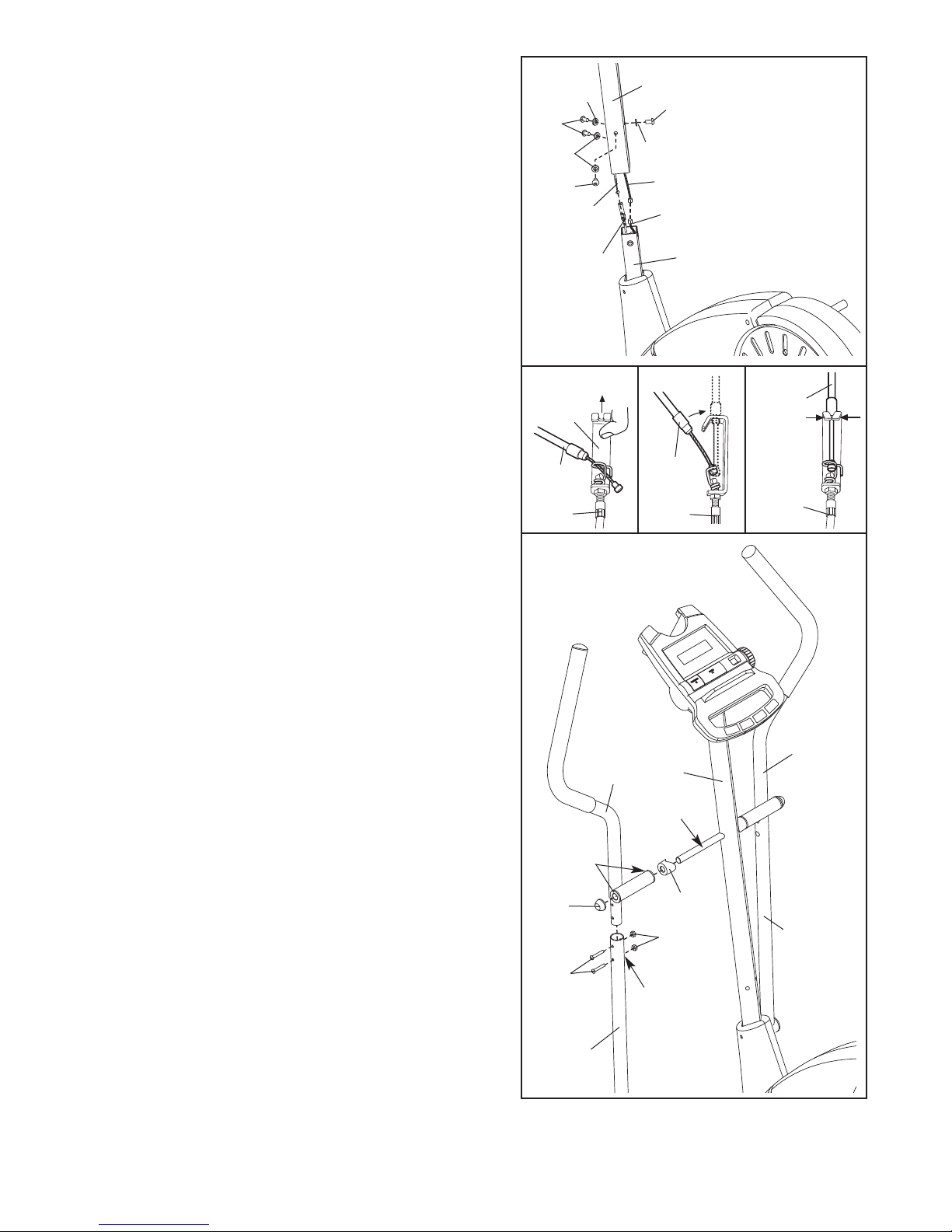

7. dentify the Left Handlebar (6), which is marked with a

sticker. nsert the Left Handlebar into one of the

Handlebar Arms (5); make sure that the Handlebar

Arm is turned so the hexagonal holes are on the

indicated side. Attach the Left Handlebar to the

Handlebar Arm with two M8 x 38mm Button Bolts (50)

and two M8 Nylon Locknuts (38). Make sure that the

Nylon Locknuts are inside of the hexagonal holes.

Do not fully tighten the Button Bolts yet.

Apply a small amount of the included grease to the left

axle on the Upright (2).

Make sure that there are two Small Handlebar

Bushings (49) in the Left Handlebar (6). Slide a

Handlebar Spacer (47) and the Left Handlebar onto the

left axle on the Upright (2) as shown. Make sure that the

Handlebar Spacer is turned so the curved side is fac-

ing the Upright. Tap an Axle Cap (14) onto the axle.

Repeat this step to assemble the Right Handlebar (8)

and the other Handlebar Arm (5).

Grease

Hexagonal

Holes

68Make sure that

the wires and

cables do not

get pinched

and damaged

during this

step.

6. Whilst another person holds the Upright (2) near the

Frame (1), connect the Upper Wire (44) to the Reed

Switch Wire (53).

Next, connect the control cable to the Lower Cable

(55) in the following way:

• See drawing A. Pull up on the metal bracket on the

Lower Cable (55), and insert the tip of the control

cable into the wire clip inside of the metal bracket.

• See drawing B. Firmly pull the control cable and

slide it into the metal bracket on the Lower Cable

(55) as shown.

• See drawing C. Using pliers, squeeze together the

prongs on the upper end of the metal bracket.

Push the excess cable and wire down into the Frame

(1). Slide the Upright (2) onto the Frame. Be careful

not to pinch the wires or cables. Attach the Upright

with four M8 x 19mm Button Screws (68) and four M8

Split Washers (59). Do not tighten the Button

Screws yet.

55 55

Metal

Bracket

Control

Cable

Control

Cable

Control

Cable

Control

Cable

10. Make sure that all parts of the elliptical crosstrainer are properly tightened. Note: Some hardware may

be left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the

elliptical crosstrainer.

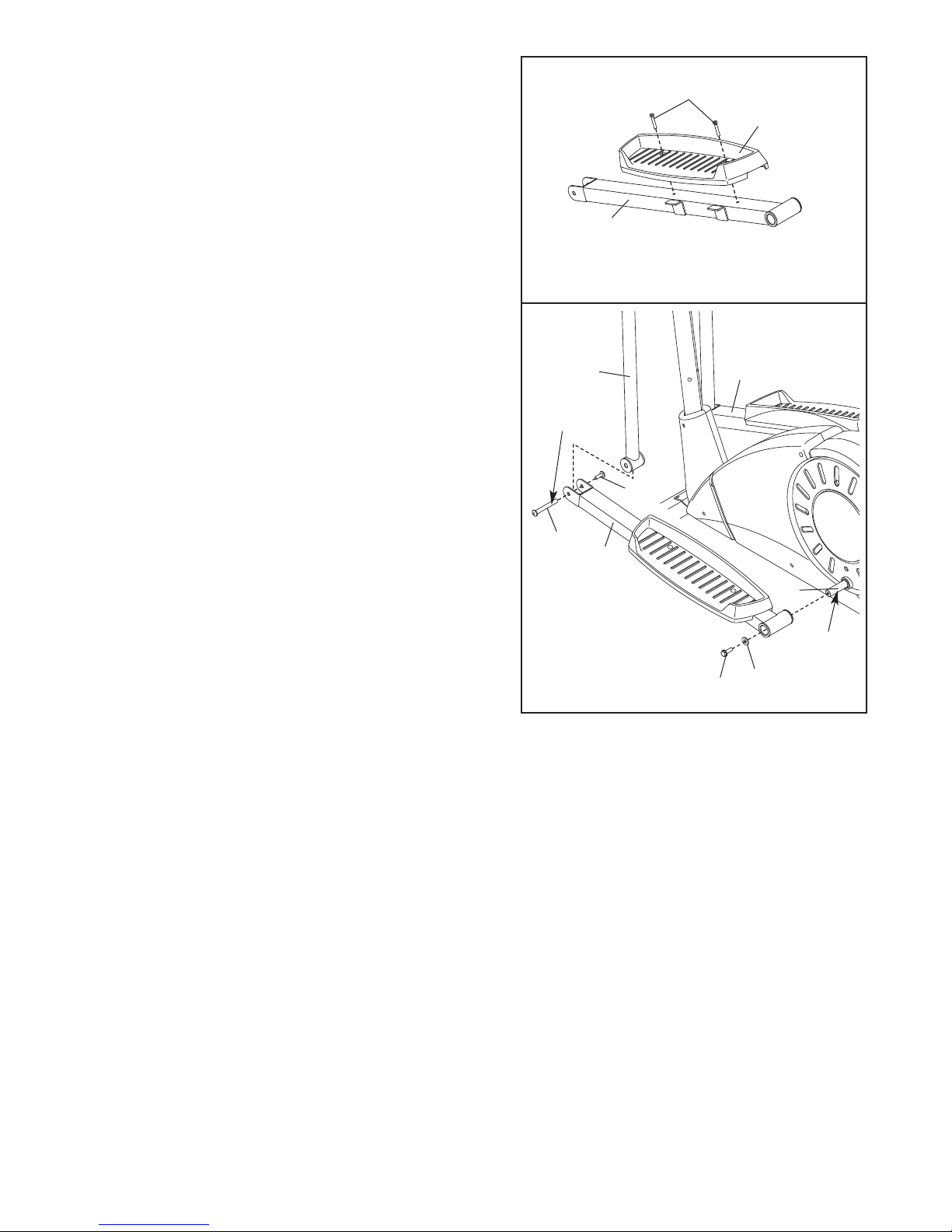

9. Apply a small amount of grease to the axle on the left

Disc Crossbar (16). Slide the Left Pedal Arm (11) onto

the axle. Slide an M10 Washer (35) onto an M10 x

25mm Patch Screw (22), and tighten the Patch Screw

into the axle.

Next, hold the lower end of the left Handlebar Arm (5)

inside of the bracket on the Left Pedal Arm (11). Apply

grease to a Pedal Arm Bolt Set (40). Attach the Left

Pedal Arm to the left Handlebar Arm with the Bolt Set.

Do not overtighten the Bolt Set; the Handlebar Arm

must pivot freely.

Attach the Right Pedal Arm (12) to the right side of the

elliptical crosstrainer in the same way.

See step 5. Tighten the M8 x 19mm Button Screws (68)

in the Upright (2).

See step 6. Tighten the M8 x 38mm Button Bolts (50)

in the Handlebar Arms (5).

Grease

22 35

8. dentify the Left Pedal Arm (11). Attach a Pedal (13) to

the Left Pedal Arm with two M6 x 48mm Flat Head

Screws (36) as shown.

Attach the other Pedal to the Right Pedal Arm (not

shown) in the same way.

Grease

HOW TO USE THE ELLIPTICAL CROSSTRAINER

HOW TO EXERCISE ON THE ELLIPTICAL

CROSSTRAINER

To mount the elliptical crosstrainer, hold the handlebars

and step onto the pedal that is in the lowest position.

Then, step onto the other pedal. Push the pedals until

they begin to move with a continuous motion. Note:

The pedal disks can turn in either direction. It is

recommended that you move the pedal disks in

the direction shown by the arrow; however, for

variety, you may turn the pedal disks in the oppo-

site direction.

To dismount the elliptical crosstrainer, wait until the

pedals come to a complete stop. Note: The elliptical

crosstrainer does not have a free wheel; the ped-

als will continue to move until the flywheel stops.

When the pedals are stationary, step off the highest

pedal first. Then, step off the lowest pedal.

HOW TO AD UST THE PEDALING RESISTANCE

As you exercise,

you can adjust the

resistance of the

pedals with the

resistance knob

on the console. To

increase the resis-

tance, turn the

knob clockwise; to

decrease the

resistance, turn the knob counterclockwise.

FEATURES OF THE CONSOLE

The easy-to-use console is designed to help you get

the most from your workouts. As you exercise, the

console will display the following modes:

Time—This mode displays the elapsed time (or the

time remaining in a pace program). Note: f you stop

pedalling, the time will begin to flash.

Distance—This mode displays the distance that you

have pedalled.

Calories—This mode displays the approximate number

of calories you have burned.

Fat calories—This mode displays the approximate

number of fat calories you have burned (see FAT

BURN NG on page 13).

Pulse—This mode displays your heart rate when you

use the pulse sensor.

Speed—This mode displays your pedalling speed.

Scan—When this mode is selected, the upper section

of the display will show both the speed mode and the

distance mode, and the lower left section of the display

will show both the calories mode and the fat calories

mode.

The console also offers four pace programs. Each pro-

gram automatically prompts you to increase or

decrease your pace as it guides you through an effec-

tive workout.

Pedal Disk

Pedal

Resistance

Knob

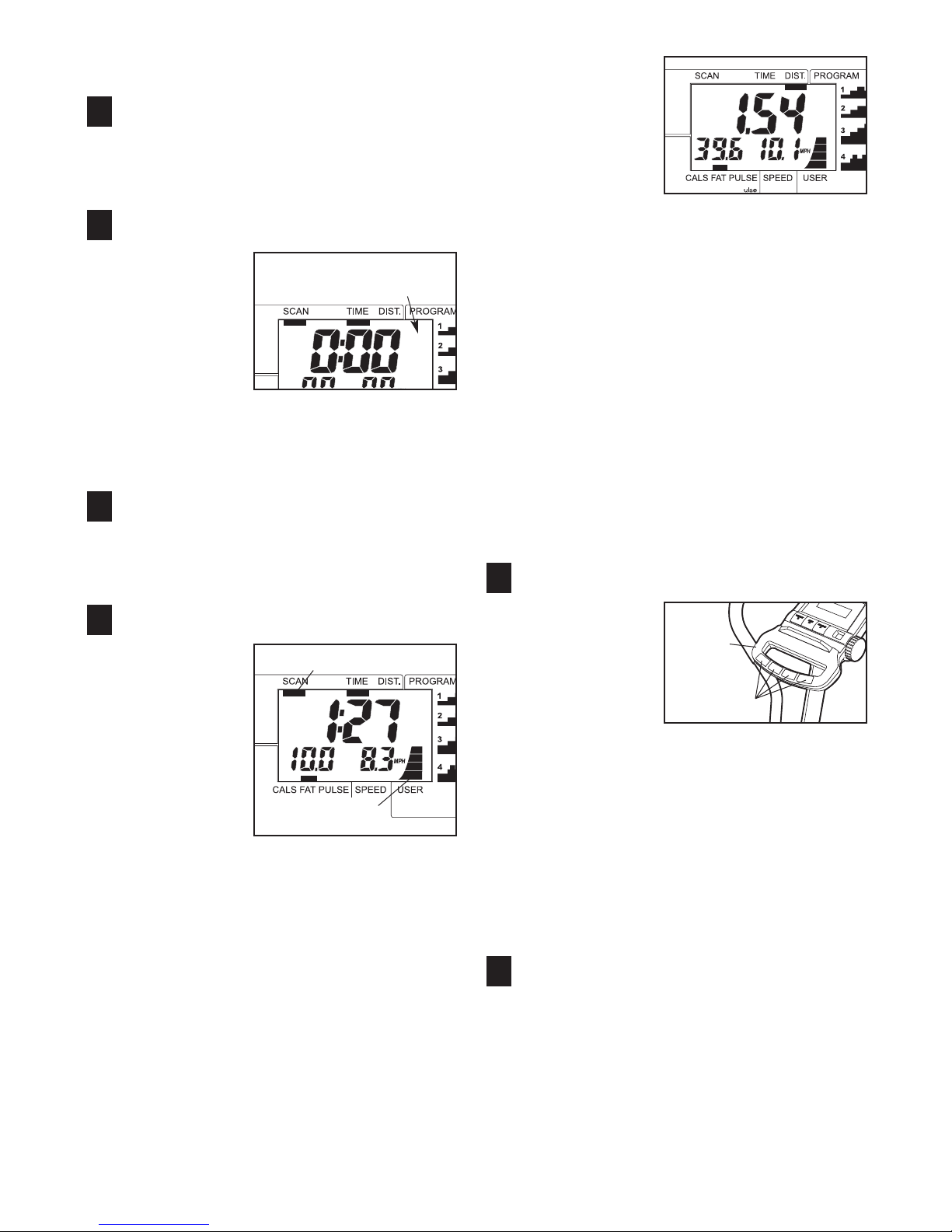

HOW TO USE THE MANUAL MODE

Turn on the console.

To turn on the console, press the On/Reset button

or begin pedalling. Note: f there is a sheet of clear

plastic on the console, remove it.

Select the manual mode.

Each time the

console is

turned on, the

manual mode

will be select-

ed. f a pace

program has

been selected,

reselect the

manual mode by pressing the Program button

repeatedly until the upper right corner of the dis-

play is blank.

Begin pedalling and adjust the resistance of

the pedals.

As you exercise, adjust the resistance of the ped-

als as desired by turning the resistance knob.

Follow your progress with the display.

When the con-

sole is turned

on, the scan

mode will be

selected, as

shown by the

mode bar

below the word

“SCAN.” As

you exercise,

the upper sec-

tion of the dis-

play will alternately show the elapsed time and the

distance that you have pedalled; the lower left

section of the display will alternately show the

number of calories you have burned and the num-

ber of fat calories you have burned; and the lower

right section will show your pedalling speed.

n addition, the pace indicator on the right side of

the display will provide a visual representation of

your pedalling pace. As you increase or decrease

your pace, the indicator will increase or decrease in

height.

To cancel the scan mode, press the Mode button.

The mode bar

below the word

“SCAN” will dis-

appear. The

upper section of

the display will

then show only

the elapsed

time, and the

lower left section of the display will show only the

number of calories you have burned. Press the

Mode button again. The upper section of the dis-

play will then show only the distance pedalled,

and the lower left section of the display will show

only the number of fat calories you have burned.

To select the scan mode again, press the Mode

button repeatedly until a mode bar appears below

the word “SCAN.”

To reset the display, press the On/Reset button.

Note: The console can show speed and dis-

tance in either miles or kilometers. To change

the unit of measurement, hold down the

On/Reset button for about six seconds. When

the batteries are replaced, it may be necessary

to reselect the desired unit of measurement.

Measure your heart rate if desired.

Note: If there

are thin sheets

of plastic on the

metal contacts

of the pulse

sensor, peel off

the plastic.

To use the pulse sensor, hold the handle on the

console, with your right palm covering the two

right contacts and your left palm covering the two

left contacts. Avoid moving your hands. When

your pulse is detected, the heart-shaped indicator

in the display will flash each time your heart beats

and two dashes (– –) will appear. After a moment,

your heart rate will be shown. For the most accu-

rate heart rate reading, continue to hold the hand-

grips for about 15 seconds.

When you are finished exercising, the console

will automatically turn off after a few minutes.

f the pedals are not moved and the console but-

tons are not pressed for a few minutes, the con-

sole will automatically turn off to conserve the

batteries.

This corner

should be blank

Pace ndicator

Mode Bar

Contacts

Handle

Ce manuel convient aux modèles suivants

Autres manuels Weslo vélo elliptique

Weslo

Weslo Pro 13.8e Elliptical Manuel utilisateur

Weslo

Weslo MOMENTUM 700 Manuel utilisateur

Weslo

Weslo WLEL45070 Manuel utilisateur

Weslo

Weslo PURSUIT E25 Manuel utilisateur

Weslo

Weslo Momentum5.0 Elliptical Manuel utilisateur

Weslo

Weslo Momentum 610 Elliptical Manuel utilisateur

Weslo

Weslo WLTL49907.0 Manuel utilisateur

Weslo

Weslo Momentum 850 Elliptical Guide de démarrage rapide

Weslo

Weslo EasyFit WLIVEL0063.1 Manuel utilisateur

Weslo

Weslo 8.25 Elliptical Manuel utilisateur

Weslo

Weslo Momentum 4.0 Elliptical Guide de démarrage rapide

Weslo

Weslo Momentum 800 Elliptical Guide de l'utilisateur

Weslo

Weslo Momentum 615 Elliptical Manuel utilisateur

Weslo

Weslo Momentum 800 Elliptical Guide de démarrage rapide

Weslo

Weslo WLEL29040 Manuel utilisateur

Weslo

Weslo Body Shop 9 Manuel utilisateur

Weslo

Weslo Momentum 850 Elliptical Manuel utilisateur

Weslo

Weslo Momentum 410 Elliptical Manuel d'utilisation et d'entretien

Weslo

Weslo Momentum 605 Elliptical Manuel utilisateur

Weslo

Weslo WLEL33408.0 Manuel utilisateur

Weslo

Weslo WLEVEL71710.0 Manuel utilisateur

Weslo

Weslo Momentum 800 Elliptical Manuel du système

Weslo

Weslo Momentum R 5.2 Elliptical Manuel utilisateur

Weslo

Weslo Momentum 745 Elliptical Manuel utilisateur

Manuels vélo elliptique populaires d'autres marques

Progear Fitness

Progear Fitness Air elliptical pro 1307 Manuel utilisateur

Torque Fitness

Torque Fitness XPLLP Manuel utilisateur

Octane Fitness

Octane Fitness PRO3700C Manuel utilisateur

Xterra

Xterra FS5.8e Manuel utilisateur

Bodyguard

Bodyguard E-40 Manuel utilisateur

Bonn Germany

Bonn Germany Concept 2.2 Manuel utilisateur

Precor

Precor Resolute RSL 620 Manuel utilisateur

NordicTrack

NordicTrack E 9.2 Elliptical Manuel utilisateur

Vision Fitness

Vision Fitness X6600iNetTV Manuel utilisateur

Matrix

Matrix MX-A5x Manuel utilisateur

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Manuel utilisateur

Sears

Sears FREE SPIRIT C249 30737 0 Manuel utilisateur

True

True FS-64 Manuel utilisateur

Sport-thieme

Sport-thieme ST 310 Manuel utilisateur

VIRTUFIT

VIRTUFIT CTR 1.1 Manuel utilisateur

Kettler

Kettler GIRO C 1 Manuel utilisateur

CIRCLE FITNESS

CIRCLE FITNESS E7 Manuel utilisateur

Reebok

Reebok 1000 Zx Elliptical Manuel utilisateur
