Industrial RFID
Operating Instructions
EN
Translation of the original operating instructions
Subject to change without notice
Available as PDF file only
Version 1.0.0
As of: 11/2/2023
www.wenglor.com
2
Table of Content
1. General.....................................................................................................................................3
1.1 Information Concerning these Instructions .............................................................................................3
1.2 Explanation of Symbols ..........................................................................................................................3
1.3 Limitation of Liability ...............................................................................................................................4
1.4 Copyrights...............................................................................................................................................4
2. For Your Safety........................................................................................................................5
2.1 Use for Intended Purpose.......................................................................................................................5
2.2 Use for Other than the Intended Purpose...............................................................................................5
2.3 Personnel Qualifications .........................................................................................................................6
2.4 Modification of Products .........................................................................................................................6
2.5 General Safety Precautions....................................................................................................................6
2.6 Approvals and Protection Class..............................................................................................................7
3. Technical Data......................................................................................................................... 8
3.1 General Data ..........................................................................................................................................8
3.2 Transponder-Specific Ranges ................................................................................................................9
3.3 Status Indicators ...................................................................................................................................10
3.4 Functions Overview ..............................................................................................................................12
3.4.1 Setting the RSSI Value ..............................................................................................................12
3.4.2 Pin Function ...............................................................................................................................14
3.4.3 Output Function..........................................................................................................................14
3.4.4 Setting the Alarm........................................................................................................................15
3.4.5 Writing, Reading and Comparing Data ......................................................................................15
3.5 Housing Dimensions.............................................................................................................................17
3.6 Complementary Products .....................................................................................................................18
3.7 Scope of Delivery..................................................................................................................................18
4. Transport and Storage..........................................................................................................19
4.1 Transport ..............................................................................................................................................19
4.2 Storage .................................................................................................................................................19
5. Installation and Electrical Connection ................................................................................20
5.1 Installation.............................................................................................................................................20
5.2 Electrical Connection ............................................................................................................................21
6. Default Settings.....................................................................................................................22
7. wTeach2CongurationSoftware ........................................................................................22
8. Maintenance Instructions.....................................................................................................22
9. Proper Disposal.....................................................................................................................22
10. Appendix................................................................................................................................22
10.1 Change Index for the Operating Instructions ......................................................................................22
10.2 Declarations of Conformity .................................................................................................................22
Table of Contents
3Industrial RFID
1. General
1.1 Information Concerning these Instructions
• These instructions apply to products designated R18A001, R30A001, and R1QA001.
• These instructions make it possible to use the product safely and efficiently.
• These instructions are an integral part of the product and must be kept on hand for the entire duration of its
service life.
• Local accident prevention regulations and national work safety regulations must be complied with as well.
• The product is subject to further technical development, and thus the information contained in these operat-
ing instructions may also be subject to change. The current version can be found at
www.wenglor.com in the product’s separate download area.
NOTE!
The operating instructions must be read carefully before using the product and must be kept
on hand for later reference.
1.2 Explanation of Symbols
• Safety precautions and warnings are emphasized by means of symbols and signal words.
• Safe use of the product is only possible if these safety precautions and warnings are adhered to.
The safety precautions and warnings are laid out in accordance with the following principle:
SIGNAL WORD!
Type and source of danger!
Possible consequences in the event that the hazard is disregarded.
• Measures for averting the hazard.
The meanings of the signal words, as well as the scope of the associated hazards, are listed below:
DANGER!
This signal word indicates a hazard with a high degree of risk which, if not avoided, results in
death or severe injury.
WARNING!
This signal word indicates a hazard with a medium degree of risk which, if not avoided, may
result in death or severe injury.
CAUTION!
This signal word indicates a hazard with a low degree of risk which, if not avoided, may result
in minor or moderate injury.
ATTENTION!
This signal word draws attention to a potentially hazardous situation which, if not avoided,
may result in property damage.
NOTE!
A note draws attention to useful tips and suggestions, as well as information regarding effi-
cient, error-free use.
4General
1.3 Limitation of Liability
• The product has been developed in consideration of the current state-of-the-art technology, as well as appli-
cable standards and guidelines. Subject to change without notice.
• A valid declaration of conformity can be accessed at www.wenglor.com in the product’s separate download
area.
• wenglor sensoric elektronische Geräte GmbH (hereinafter referred to as “wenglor”) excludes all liability in
the event of:
• Non-compliance with the instructions,
• Use of the product for purposes other than those intended,
• Use by untrained personnel,
• Use of unapproved spare parts,
• Unapproved modification of products.
• These operating instructions do not include any guarantees from wenglor with regard to the described proce-
dures or specific product characteristics.
• wenglor assumes no liability for printing errors or other inaccuracies contained in these operating instruc-
tions unless wenglor was verifiably aware of such errors at the point in time at which the operating instruc-
tions were prepared.
1.4 Copyrights
• The contents of these instructions are protected by copyright law.
• All rights are reserved by wenglor.
• Commercial reproduction or any other commercial use of the provided content and information, in particular
graphics and images, is not permitted without previous written consent from wenglor.
5Industrial RFID
2. For Your Safety
2.1 Use for Intended Purpose
These RFID readers are used to read and write RFID data carriers.
RFID stands for radio-frequency identification. The read/write devices emit an electromagnetic field, which is
received by a transponder. The exchange of energy initiates mutual communication, which allows data to be
exchanged between the transponder and the read/write device. The RFID readers listed in these instructions
have an IO-Link interface, which enables easy and fast parametrization.
This product can be used for production control and reliable traceability in the following industry
sectors:
• Special-purpose mechanical
engineering
• Logistics
• Automotive industry
• Food industry
• Packaging industry
• Clothing industry
• Plastics industry
• Consumer goods industry
• Electronics industry
• Chemicals industry
2.2 Use for Other than the Intended Purpose
• Not a safety component in accordance with 2006/42/EC (Machinery Directive).
• The product is not suitable for use in potentially explosive atmospheres.
• The product may be used only with accessories supplied or approved by wenglor, or in combination with
approved products. A list of approved accessories and combination products can be found at www.wenglor.
com on the product detail page.
DANGER!
Risk of personal injury or property damage in case of use for other than the intended
purpose!
Use for other than the intended purpose may lead to hazardous situations.
• Instructions regarding use for intended purpose must be observed.
6For Your Safety
2.3 Personnel Qualifications
• Suitable technical training is a prerequisite.
• In-house electronics training is required.
• Trained personnel who use the product must have (uninterrupted) access to the operating instruc-
tions.
DANGER!
Risk of personal injury or property damage in case of incorrect initial start-up and
maintenance!
Personal injury and damage to equipment may occur.
• Adequate training and qualification of personnel.
2.4 Modification of Products
DANGER!
Risk of personal injury or property damage if the product is modified.
Personal injury and damage to equipment may occur. Non-observance may result in loss of
the CE mark, and the guarantee may be rendered null and void.
• Modification of the product is impermissible.
2.5 General Safety Precautions
NOTE!
• These instructions are an integral part of the product and must be kept on hand for the
entire duration of its service life.
• In the event of possible changes, the respectively current version of the operating instruc-
tions can be accessed at www.wenglor.com in the product’s separate download area.
• Read the operating instructions carefully before using the product.
• Protect the sensor against contamination and mechanical influences.
7Industrial RFID
2.6 Approvals and Protection Class
IND. CONT. EQ.
11RZ
FCC Information:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause any harmful interference
(2) This device must accept all interference, including interference that may cause undesired operation
Attention! Any changes or modifications that have not been expressly approved by the institution responsible
for compliance could void the user’s authorization to operate the equipment.
FCC identifier: 2ANZQ-RFM18HF | 2ANZQ-RFM30HF | 2ANZQ-RF44HF
IC Information:
This device complies with the license-exempt RSS standards of Industry Canada. Operation is subject to the
following two conditions:
(1) This device may not cause any harmful interference
(2) This device must accept all interference, including interference that may cause undesired operation
Certificate no.: 23367-RFM18HF | 23367-RFM30HF | 23367-RFC44HF
8Technical Data
3. Technical Data
3.1 General Data
Order Number
Technical Data R18A001 R30A001 R1QA001
RFID Data
Working range * 0…34 mm 0…50 mm 0…78 mm
Carrier frequency 13.56 MHz
Installation method Non-flush
Electrical Data
Supply power with IO-Link 18…30 V DC
Supply voltage 11…32 V DC
Current consumption (supply voltage
= 24 V) < 50 mA
Transmission speed 26.5 kbit/s
Temperature range (during operation) –25…80 °C
Number of analog outputs -
Number of switching outputs 2
Switching output switching current 200 mA
Short-circuit proof Yes
Reverse polarity and overload-proof Yes
Interface IO-Link V1.1
Protection class III
Mechanical Data
Setting method IO-Link
Housing material CuZn, chrome-plated Plastic, PBT
Degree of protection IP67 IP68/IP69K
Connection type M12×1, 4/5-pin
Technical Safety Data
MTTFd (EN ISO 13849-1) 644 a
Output Functions
Output A1 Push-pull
NO
Output A2 PNP
NO
* The specified working range relates to a transponder with Ø 50 mm and RSSI ≥ 0. Depending on the transponder, the resulting working range
may vary.
9Industrial RFID
3.2 Transponder-Specific Ranges
Typical Ranges for RSSI ≥1
Transponder R18A001 R30A001 R1QA001
Smax [mm] S0[mm] D0[mm] Smax [mm] S0[mm] D0[mm] Smax [mm] S0[mm] D0[mm]
Z89Q001 19 8 23 26 11 30 40 18 44
Z89Q002 11 3.5 15 17 5.5 24 24 9 32
Z89Q003 18 8.5 22 28 13 31 40 20 44
Z89Q004 22 9 28 30 13 38 44 21 48
Z89Q005 24 6 42 46 19 54 64 32 68
Z89Q006 17 6 21 26 11.5 31 38 17 42
Z89Q007 19 5 28 34 15 38 46 23 52
Z89Q008 20 4 39 46 20 52 46 20 52
NOTE!
The ranges indicated present a selection for sample data carriers. However, the specified
RFID readers can be combined with any transponder with a transmission frequency of
13.56 MHz. Depending on the data carrier, the range may be greater or smaller than indicat-
ed here.
NOTE!
The specified transponders are not suitable for direct mounting on metallic materials. In addi-
tion, the following environments can impair the function of the RFID readers:
• Damp/wet environments
• Metallic environments
• Use of inductive sensors
10 Technical Data

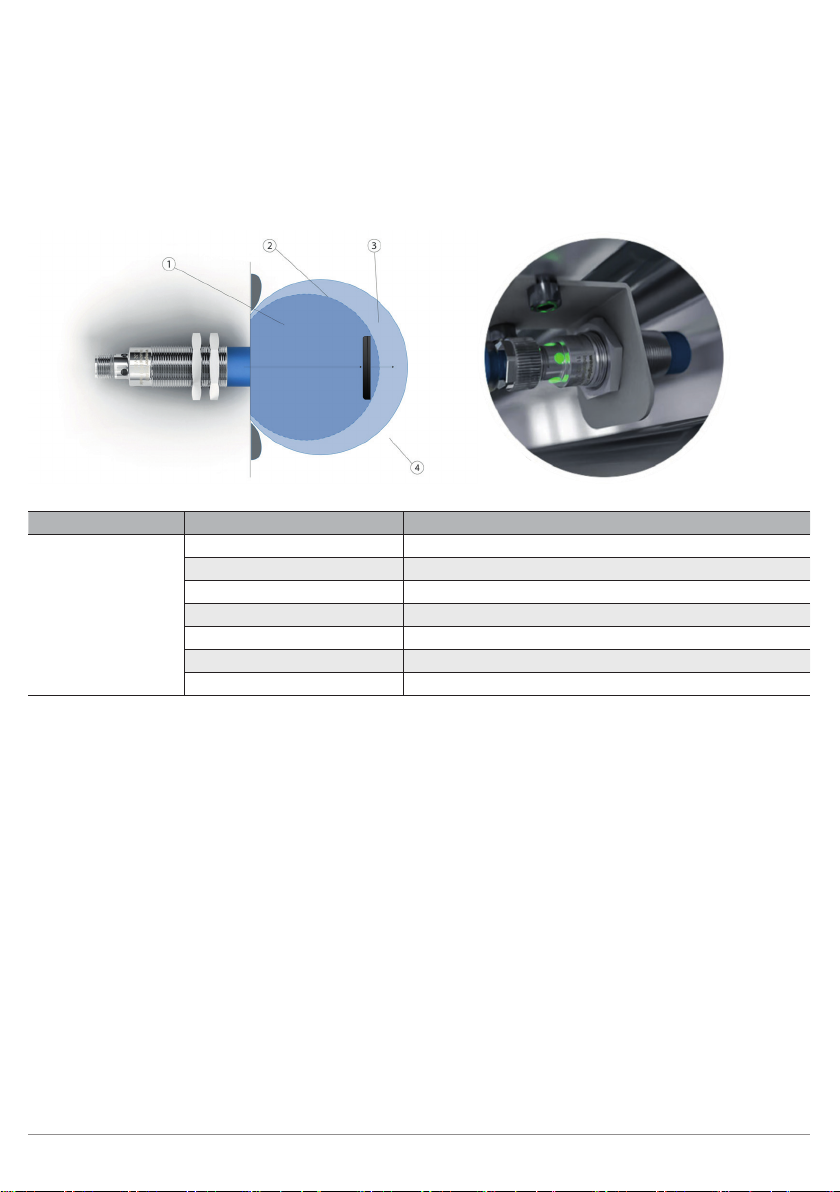

3.3 Status Indicators
Status indicators for the metric formats R18A001 and R30A001:
Affected LED Color Status
All four LEDs
Off • The device is not ready for use
Solid green • SIO mode: the RFID reader is ready for use
Flashing green (1 Hz) • IO-Link mode: the RFID reader is ready for use
Flashing yellow (1 Hz) • IO-Link mode: the transponder is in zone 1
Flashing yellow (5 Hz) • IO-Link mode: the transponder is in zone 3
Solid yellow • SIO mode: A1 is active
Flashing green/yellow (5 Hz) • SIO mode: the transponder is in zone 3
Ce manuel convient aux modèles suivants
2
Table des matières
