Wenglor P2KL Series Manuel utilisateur

Operating Instructions

Translation of the Original Operating Instruction

Subject to change without notice

Available as PDF version only

Version: 1.0.0

Status: 04.08.2021

www.wenglor.com

P2KLxxx

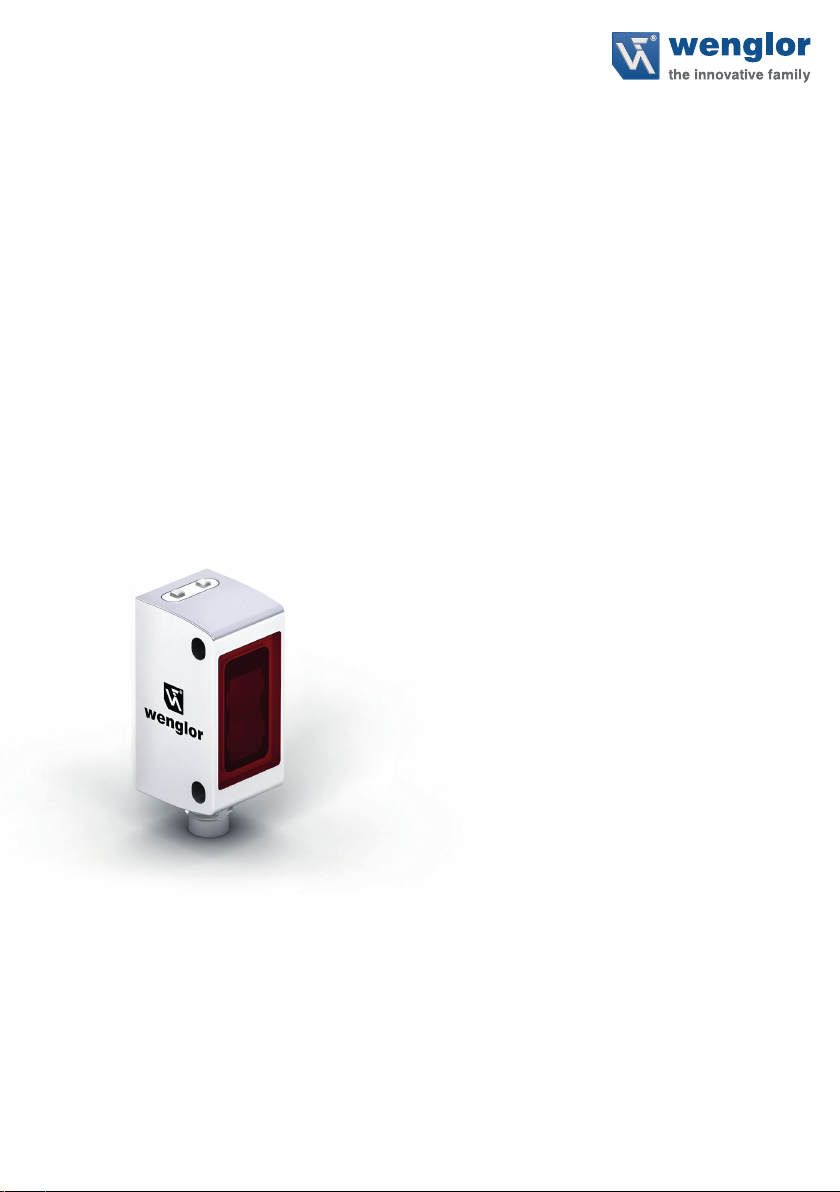

Universal Retro-Reflex Sensors

Table of Contents

1. General .................................................................................................................................. 3

1.1 Information Concerning these Instructions .............................................................................................3

1.2 Explanations of Symbols .........................................................................................................................3

1.3 Limitation of Liability.................................................................................................................................4

1.4 Copyrights................................................................................................................................................4

2. For Your Safety...................................................................................................................... 5

2.1 Use for Intended Purpose........................................................................................................................5

2.2 Use for Other than the Intended Purpose................................................................................................5

2.3 Personnel Qualiﬁcations ..........................................................................................................................6

2.4 Modiﬁcation of Products .........................................................................................................................6

2.5 General Safety Precautions .....................................................................................................................6

2.6 Laser/LED Warnings.................................................................................................................................6

2.7 Approvals and protection class ..............................................................................................................6

3. Technical Data ....................................................................................................................... 7

3.1 Technical Data..........................................................................................................................................7

3.1.1 Spot diameter ................................................................................................................................9

3.1.2 Smallest detectable part................................................................................................................9

3.1.3 Switching distance ......................................................................................................................10

3.2 Complementary Products ......................................................................................................................11

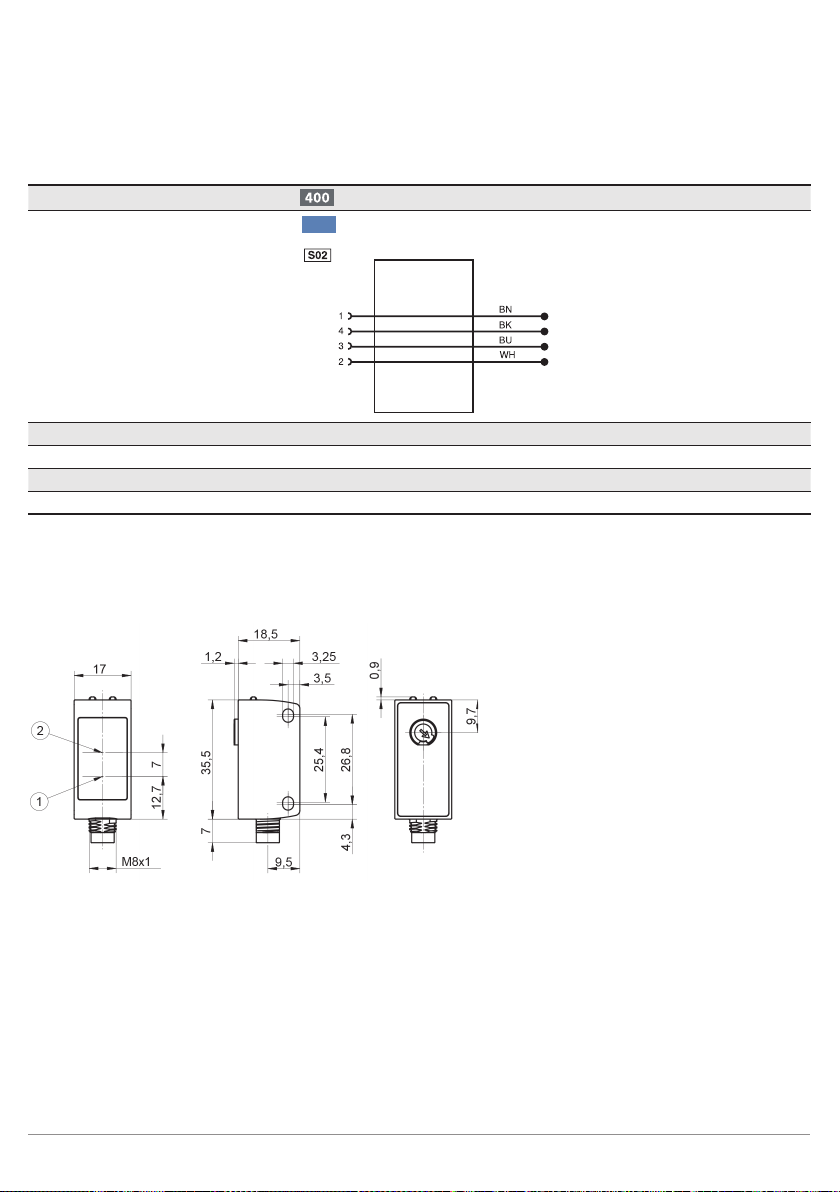

3.3 Layout.....................................................................................................................................................11

3.4 Control Panel..........................................................................................................................................12

3.5 Scope of Delivery ...................................................................................................................................12

4. Transport and Storage ........................................................................................................ 13

4.1 Transport ................................................................................................................................................13

4.2 Storage...................................................................................................................................................13

5. Installation and Electrical Connection............................................................................... 13

5.1 Installation ..............................................................................................................................................13

5.2 Electrical Connection .............................................................................................................................14

5.3 Diagnostics.............................................................................................................................................15

6. Settings................................................................................................................................ 16

7. IO-Link ................................................................................................................................. 16

8. Maintenance Instructions ................................................................................................... 17

9. Proper Disposal .................................................................................................................. 17

10. Appendix.............................................................................................................................. 17

10.1 List of Abbreviations.............................................................................................................................17

10.2 Change Index, Operating Instructions.................................................................................................17

10.3 EU Declaration of Conformity ..............................................................................................................17

Universal Retro-Reflex Sensors

1. General

1.1 Information Concerning these Instructions

• These instructions apply to the product with ID code P2KLxxx.

• They make it possible to use the product safely and efficiently.

• These instructions are an integral part of the product and must be kept on hand for the entire duration of

its service life.

• Local accident prevention regulations and national work safety regulations must be complied with as well.

• The product is subject to further technical development, and thus the information contained in

these operating instructions may also be subject to change. The current version can be found at

www.wenglor.com in the product’s separate download area.

NOTE!

The operating instructions must be read carefully before using the product and must be kept

on hand for later reference.

1.2 Explanations of Symbols

• Safety precautions and warnings are emphasized by means of symbols and attention-getting words

• Safe use of the product is only possible if these safety precautions and warnings are adhered to

The safety precautions and warnings are laid out in accordance with the following principle:

Attention-Getting Word!

Type and Source of Danger!

Possible consequences in the event that the hazard is disregarded.

• Measures for averting the hazard.

The meanings of the attention-getting words, as well as the scope of the associated hazards, are listed below.

DANGER!

This word indicates a hazard with a high degree of risk which, if not avoided, results in death

or severe injury.

WARNING!

This word indicates a hazard with a medium degree of risk which, if not avoided, may result

in death or severe injury.

CAUTION!

This word indicates a hazard with a low degree of risk which, if not avoided, may result in

minor or moderate injury.

ATTENTION!

This word draws attention to a potentially hazardous situation which, if not avoided, may

result in property damage.

NOTE!

A note draws attention to useful tips and suggestions, as well as information regarding

efﬁcient, error-free use.

4General

1.3 Limitation of Liability

• The product has been developed in consideration of the current state-of-the-art and applicable standards

and guidelines. Subject to change without notice.

• A valid declaration of conformity can be accessed at www.wenglor.com in the product’s separate

download area.

• wenglor sensoric elektronische Geräte GmbH (hereinafter referred to as “wenglor”) excludes all liability in

the event of:

• Non-compliance with the instructions

• Use of the product for purposes other than those intended

• Use by untrained personnel

• Use of unapproved replacement parts

• Unapproved modification of products

• These operating instructions do not include any guarantees from wenglor with regard to the described

procedures or specific product characteristics.

• wenglor assumes no liability for printing errors or other inaccuracies contained in these operating

instructions, unless wenglor was verifiably aware of such errors at the point in time at which the operating

instructions were prepared.

1.4 Copyrights

• The contents of these instructions are protected by copyright law.

• All rights are reserved by wenglor.

• Commercial reproduction or any other commercial use of the provided content and information, in

particular graphics and images, is not permitted without previous written consent from wenglor.

Universal Retro-Reflex Sensors

2. For Your Safety

2.1 Use for Intended Purpose

The product is based on the following functional principle:

Retro-Reflex Sensor

In retro-reﬂex sensors, the transmitter and receiver are located in a single housing.

They operate using red light, laser light and a reﬂector. The output switches if the light beam between the

sensor and reﬂector is interrupted. Even shiny, chromed or reﬂective surfaces can be reliably detected thanks

to the integrated polarization ﬁlter.

This product can be used in the following industry sectors:

• Special machinery manufacturing

• Heavy machinery manufacturing

• Logistics

• Automotive industry

• Food industry

• Packaging industry

• Pharmaceuticals industry

• Plastics industry

• Woodworking industry

• Consumer goods industry

• Paper industry

• Electronics industry

• Glass industry

• Steel industry

• Aviation industry

• Chemicals industry

• Alternative energy

• Raw materials extraction

2.2 Use for Other than the Intended Purpose

• Not a safety component in accordance with 2006/42/EC (Machinery Directive)

• The product is not suitable for use in potentially explosive atmospheres.

• The product may only be used with accessories supplied or approved by wenglor, or combined with

approved products. A list of approved accessories and combination products can be accessed at

www.wenglor.com on the product detail page.

DANGER!

Risk of personal injury or property damage in case of use for other than the intended

purpose!

Use for other than the intended purpose may lead to hazardous situations.

• Observe instructions regarding use for intended purpose.

6For Your Safety

2.3 Personnel Qualifications

• Suitable technical training is a prerequisite.

• In-house electronics training is required.

• Trained personnel must have uninterrupted access to the operating instructions.

DANGER!

Risk of personal injury or property damage in case of incorrect initial start-up and

maintenance!

Personal injury and damage to equipment may occur.

• Adequate training and qualiﬁcation of personnel.

2.4 Modification of Products

DANGER!

Risk of personal injury or property damage if the product is modified!

Personal injury and damage to equipment may occur. Non-observance may result in loss of

the CE marking and the guarantee may be rendered null and void.

• Modiﬁcation of the product is impermissible.

2.5 General Safety Precautions

NOTE!

• These instructions are an integral part of the product and must be kept on hand for the

entire duration of its service life.

• In the event of possible changes, the respectively current version of the operating

instructions can be accessed at www.wenglor.com in the product’s download area.

• Read the operating instructions carefully before using the product.

• Protect the sensor against contamination and mechanical inﬂuences.

2.6 Laser/LED Warnings

The respective laser class or LED group is listed in the product’s technical data.

LASER CLASS 1

EN 60825-1:2014

Laser Class 1 (EN 60825-1)

Applicable standards and safety regulations must be observed.

Pp = 5,4 mW, t = 2 µs, λ = 680 nm

2.7 Approvals and protection class

RoHS

Universal Retro-Reflex Sensors

3. Technical Data

3.1 Technical Data

Optical Data

Polarisation Filter Yes

Service life (ambient temp. = +25° C) 100000 h

Max. permissible ambient light 10000 Lux

Electrical Data

Supply power 10…30 V DC

IO-Link supply voltage 18…30 V DC

Switching output voltage drop < 2 V

Switching output switching current 100 mA

Switching output residual current < 50 µA

Short-circuit protection Yes

Reverse polarity protected Yes

Overload-proof Yes

Lockable Yes

Interface IO-Link

IO-Link version 1.1

Protection class III

Mechanical Data

Setting method Potentiometer

Housing material Stainless steel V4A

Degree of protection IP68/IP69K

Connection M8×1

Lens cover PMMA

ECOLAB Yes

8Technical Data

Order Number

Technical Data

P2KL

002 009 006 014

Range 5000 mm 12000 mm

Light Source Red Light Laser (red)

Opening Angle 4,5° 0,1°

Switching hysteresis < 10 % < 15 %

Laser Class (EN 60825-1) — 1

Spot Diameter see Table 1 see Table 2

Smallest detectable part see Table 3 see Table 4

Current consumption (operating voltage = 24 V) < 20 mA < 15 mA

Switching Frequency 2000 Hz 2000 Hz

Response Time 0,25 ms 0,25 ms

Temperature drift < 10 % Tu > 0 °C: < 10 %, Tu < 0 °C: < 20 %

Temperature range −40…60 °C −40…50 °C

Switching frequency (speed mode) 3500 Hz 4000 Hz

Response time (speed mode) 0,14 ms 0,125 ms

Output function

PNP x x

NPN x x

NC, NO antivalent x x x x

MTTFd (EN ISO 13849-1) 2756,38 a 2571,89 a

Connection Diagram No. 215 213 215 213

Suitable Mounting Technology No. 7 7 7 7

3.1.1 Spot diameter

Range 0,2 m 2,0 m 5,0 m

Spot diameter 30 mm 180 mm 400 mm

Table 1

Range 0,2 m 5,0 m 12,0 m

Spot diameter 4 mm 11 mm 22 mm

Table 2

3.1.2 Smallest detectable part

Distance sensor reﬂector 0,2 m 2,0 m 5,0 m

Smallest detectable part 10 mm 20 mm 30 mm

Table 3

Distance sensor reﬂector 2 m 4 m 12,0 m

Smallest detectable part 1,5 mm 1,0 mm 2,5 mm

Table 4

Universal Retro-Reflex Sensors

3.1.3 Switching distance

Achievable switching distance depends on the utilized reﬂector. Nominal switching distance is achieved with

reﬂector types RQ100BA (red light) and RE6151BM (laser). Achievable ranges for other reﬂectors are listed in

the following tables:

Red Light Laser

Reflector Range Range

RQ100BA 0,01…5,00 m 0,10…16,00 m

RE18040BA 0,01…4,50 m 0,10…12,00 m

RQ84BA 0,01...4,50 m 0,10...16,00 m

RR84BA 0,01...4,50 m 0,10...16,00 m

RE9538BA 0,01...2,00 m 0,10...4,50 m

RE6151BM 0,01...3,50 m 0,10...12,00 m

RR50KA 0,01...3,00 m 0,10...16,00 m

RE6040BA 0,01...3,50 m 0,10...15,00 m

RE8222BA 0,01...2,50 m 0,10...10,00 m

RR34_M 0,01...0,60 m 0,10...2,50 m

RE3220BM 0,01...1,50 m 0,10...7,00 m

RE6210BM 0,01...1,50 m 0,10...4,50 m

RR25_M 0,01...1,30 m 0,10...7,00 m

RR25KP 0,01...0,80 m 0,10...2,50 m

RR21_M 0,01...1,10 m 0,10...7,00 m

ZRAE02B01 0,01...2,00 m 0,10...7,00 m

ZRME01B01 0,01...0,90 m 0,10...3,00 m

ZRME03B01 0,01...1,60 m 0,10...4,50 m

ZRMR02K01 0,01...1,00 m 0,10...5,00 m

ZRMS02_01 0,01...1,00 m 0,10...7,00 m

ZRDF03K01 0,03...3,00 m 0,10...4,00 m

ZRDF10K01 0,03...3,50 m 0,10...4,00 m

RF505 0,02...1,90 m 0,10...2,00 m

RF508 0,02...1,70 m 0,10...2,00 m

RF258 0,02...1,40 m 0,10...2,00 m

10 Technical Data

3.2 Complementary Products

wenglor can provide you with suitable connection technology for your product.

Suitable mounting technology no.

Suitable connection technology no.

IO-Link master EFBL001, EFBL003, EP0L001

wTeach2 software DNNF005

Software IO-Link Device Tool DNNF019

Hygienically designed screws BEF-SET-48

3.3 Layout

P2KL002, P2KL006, P2KL009, P2KL014

1 = emitter diode

2 = receiver diode

M3 screw = 0,5 Nm

Plug M8×1 without snap-fit connection

Potentiometer = 40 Nmm

Dimensions specified in mm (1 mm = 0.03937”)

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Wenglor Accessoires

Wenglor

Wenglor YM24PAH2ABF Manuel utilisateur

Wenglor

Wenglor P1NH Series Manuel utilisateur

Wenglor

Wenglor P2KK004 Manuel utilisateur

Wenglor

Wenglor LN Series Manuel utilisateur

Wenglor

Wenglor OY2TA104P0150P Manuel utilisateur

Wenglor

Wenglor OPT2022 Manuel utilisateur

Wenglor

Wenglor P2KH002 Manuel utilisateur

Wenglor

Wenglor OPT2012 Manuel utilisateur

Wenglor

Wenglor P1PK104 Manuel utilisateur

Wenglor

Wenglor OEII403C0103 Manuel utilisateur

Wenglor

Wenglor P1PA00 Series Manuel utilisateur

Wenglor

Wenglor P1KL Series Manuel utilisateur

Wenglor

Wenglor TK55PA7 Manuel utilisateur

Wenglor

Wenglor X1TA101MHT88 Manuel utilisateur

Wenglor

Wenglor P1NL Series Manuel utilisateur

Wenglor

Wenglor OPT2041 Manuel utilisateur

Wenglor

Wenglor OPT2015 Manuel utilisateur

Wenglor

Wenglor P2KH Series Manuel utilisateur

Wenglor

Wenglor GM 04 Manuel utilisateur

Wenglor

Wenglor P1MH Series Manuel utilisateur

Wenglor

Wenglor Y1TA Series Manuel utilisateur

Wenglor

Wenglor OPT2203 Manuel utilisateur

Wenglor

Wenglor OPT2015 Manuel utilisateur

Wenglor

Wenglor ZD600 Series Manuel utilisateur

Manuels Accessoires populaires d'autres marques

Hillco

Hillco 2810 Manuel utilisateur

Siemens

Siemens QSA2700D Manuel de l'opérateur

Contours

Contours ZY024 Manuel utilisateur

Saivod

Saivod VS621 Manuel utilisateur

Virtuox

Virtuox VirtuCLEAN 2.0 Manuel utilisateur

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuel utilisateur

Z-Wave

Z-Wave HSD-200Z Manuel utilisateur

turck

turck FMX-IM-2UPLI63FX Manuel utilisateur

Decagon Devices

Decagon Devices 10HS Manuel utilisateur

UPPAbaby

UPPAbaby Cup Holder Manuel utilisateur

Elko

Elko SmartSensor Leakage Wireless Manuel utilisateur

Grizzly

Grizzly H8371 Manuel utilisateur

Panasonic

Panasonic HG-T Series Manuel utilisateur

IFM Electronic

IFM Electronic Efector 250 Series Guide de référence

DigiDesign

DigiDesign 888/24 I/O Manuel utilisateur

PROZIS

PROZIS QUAY Manuel utilisateur

patagonia

patagonia PSI Vest Manuel utilisateur

SFC Energy

SFC Energy EFOY GO! Manuel utilisateur
