IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability,

ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged,

trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use

your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

TECHSUPPOR[email protected]1-800-232-1195 (M-F 8AM-5PM CST)

For replacement parts and the most up-to-date instruction manuals, visit WENPRODUCTS.COM

WORK STATION

WITH LIGHT

Instruction Manual

MODEL WB4723, WB4723T

CONTENTS

WELCOME 3

Introduction ..................................................................................................... 3

Speciﬁcations................................................................................................... 3

SAFETY 4

General Safety Rules........................................................................................ 4

Electrical Information....................................................................................... 6

BEFORE OPERATING 7

Exploded View & Parts List...............................................................................7

Assembly & Adjustments................................................................................. 9

MAINTENANCE 15

Maintenance................................................................................................... 15

Warranty Statement ....................................................................................... 16

Model Number WB4723, WB4723T

Total Maximum Weight Capacity 514 lbs (Evenly Distributed)

Table Top Weight Capacity 220 lbs

Bottom Shelf Weight Capacity 220 lbs

Drawer Weight Capacity 25 lbs (Each)

Top Shelf Capacity 44 lbs

Table Top Dimensions 47-1/4 in. x 23-1/2 in. x 5/8 in.

Table Height 35 Inches

Drawer Dimensions 20 in. x 17-3/4 in. x 2-1/2 in.

Power Outlet Rating 3 Outlets, AC 120V, 60 Hz, 13A

Replacement Bulb 14W T5 Fluorescent

Assembled Product Dimensons 47-3/8 in. x 25 in. x 61-3/4 in.

Product Net Weight 88.5 lbs

SPECIFICATIONS

INTRODUCTION

Thanks for purchasing the WEN Work Bench. We know you are excited to put your tool to work, but ﬁrst, please

take a moment to read through the manual. Safe operation of this tool requires that you read and understand this

operator’s manual and all the labels afﬁxed to the tool. This manual provides information regarding potential safety

concerns, as well as helpful assembly and operating instructions for your tool.

NOTE: The following safety information is not meant to cover all possible conditions and situations that may occur.

WEN reserves the right to change this product and speciﬁcations at any time without prior notice.

At WEN, we are continuously improving our products. If you ﬁnd that your tool does not exactly match this manual,

please visit wenproducts.com for the most up-to-date manual or contact our customer service at 1-800-232-1195.

Keep this manual available to all users during the entire life of the tool and review it frequently to maximize

safety for both yourself and others.

SAFETY ALERT SYMBOL: Indicates danger, warning, or caution. The safety symbols and the explanations

with them deserve your careful attention and understanding. Always follow the safety precautions to reduce the

risk of ﬁre, electric shock or personal injury. However, please note that these instructions and warnings are not

substitutes for proper accident prevention measures.

GENERAL SAFETY RULES

WORK AREA SAFETY

1. Keep work area clean and well lit. Cluttered or dark

areas invite accidents.

2. Do not operate power tools in explosive atmo-

spheres, such as in the presence of ﬂammable liquids,

gases or dust. Power tools create sparks which may ig-

nite the dust or fumes.

3. Keep children and bystanders away while operating

a power tool. Distractions can cause you to lose control.

ELECTRICAL SAFETY

1. Power tool plugs must match the outlet. Never mod-

ify the plug in any way. Do not use any adapter plugs

with earthed (grounded) power tools. Unmodiﬁed plugs

and matching outlets will reduce risk of electric shock.

2. Avoid body contact with earthed or grounded surfac-

es such as pipes, radiators, ranges and refrigerators.

There is an increased risk of electric shock if your body

is earthed or grounded.

3. Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of elec-

tric shock.

4. Do not abuse the cord. Never use the cord for car-

rying, pulling or unplugging the power tool. Keep cord

away from heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the risk of electric

shock.

5. When operating a power tool outdoors, use an ex-

tension cord suitable for outdoor use. Use of a cord

suitable for outdoor use reduces the risk of electric

shock.

6. If operating a power tool in a damp location is un-

avoidable, use a ground fault circuit interrupter (GFCI)

protected supply. Use of a GFCI reduces the risk of elec-

tric shock.

PERSONAL SAFETY

1. Stay alert, watch what you are doing and use com-

mon sense when operating a power tool. Do not use a

power tool while you are tired or under the inﬂuence

of drugs, alcohol or medication. A moment of inatten-

tion while operating power tools may result in serious

personal injury.

2. Use personal protective equipment. Always wear

eye protection. Protective equipment such as a respira-

tory mask, non-skid safety shoes and hearing protection

used for appropriate conditions will reduce the risk of

personal injury.

3. Prevent unintentional starting. Ensure the switch is

in the off-position before connecting to power source

and/or battery pack, picking up or carrying the tool.

Carrying power tools with your ﬁnger on the switch or

energizing power tools that have the switch on invites

accidents.

4. Remove any adjusting key or wrench before turning

the power tool on. A wrench or a key left attached to a

rotating part of the power tool may result in personal

injury.

5. Do not overreach. Keep proper footing and balance

at all times. This enables better control of the power

tool in unexpected situations.

6. Dress properly. Do not wear loose clothing or jew-

elry. Keep your hair and clothing away from moving

parts. Loose clothes, jewelry or long hair can be caught

in moving parts.

Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool”

in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

SAVE THESE SAFETY INSTRUCTIONS.

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may

result in electric shock, ﬁre and/or serious injury.

GENERAL SAFETY RULES

7. If devices are provided for the connection of dust

extraction and collection facilities, ensure these are

connected and properly used. Use of dust collection

can reduce dust-related hazards.

POWER TOOL USE AND CARE

1. Do not force the power tool. Use the correct power

tool for your application. The correct power tool will

do the job better and safer at the rate for which it was

designed.

2. Do not use the power tool if the switch does not turn

it on and off. Any power tool that cannot be controlled

with the switch is dangerous and must be repaired.

3. Disconnect the plug from the power source and/or

the battery pack from the power tool before making

any adjustments, changing accessories, or storing

power tools. Such preventive safety measures reduce

the risk of starting the power tool accidentally.

4. Store idle power tools out of the reach of children

and do not allow persons unfamiliar with the power

tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained us-

ers.

5. Maintain power tools. Check for misalignment or

binding of moving parts, breakage of parts and any

other condition that may affect the power tool’s opera-

tion. If damaged, have the power tool repaired before

use. Many accidents are caused by poorly maintained

power tools.

6. Keep cutting tools sharp and clean. Properly main-

tained cutting tools with sharp cutting edges are less

likely to bind and are easier to control.

7. Use the power tool, accessories and tool bits, etc.

in accordance with these instructions, taking into ac-

count the working conditions and the work to be per-

formed. Use of the power tool for operations different

from those intended could result in a hazardous situa-

tion.

8. Use clamps to secure your workpiece to a stable

surface. Holding a workpiece by hand or using your

body to support it may lead to loss of control.

9. KEEP GUARDS IN PLACE and in working order.

SERVICE

1. Have your power tool serviced by a qualiﬁed repair

person using only identical replacement parts. This

will ensure that the safety of the power tool is main-

tained.

CALIFORNIA PROPOSITION 65 WARNING

Some dust created by power sanding, sawing, grinding,

drilling, and other construction activities may contain

chemicals, including lead, known to the State of Califor-

nia to cause cancer, birth defects, or other reproductive

harm. Wash hands after handling. Some examples of

these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement, and other

masonry products.

• Arsenic and chromium from chemically treated

lumber.

Your risk from these exposures varies depending on

how often you do this type of work. To reduce your ex-

posure to these chemicals, work in a well-ventilated area

with approved safety equipment such as dust masks

specially designed to ﬁlter out microscopic particles.

Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool”

in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

SAVE THESE SAFETY INSTRUCTIONS.

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may

result in electric shock, ﬁre and/or serious injury.

ELECTRICAL INFORMATION

AMPERAGE REQUIRED GAUGE FOR EXTENSION CORDS

25 ft. 50 ft. 100 ft. 150 ft.

13A 14 gauge 12 gauge Not Recommended Not Recommended

3. Check

with a licensed electrician or service personnel if you do not completely

understand the grounding instructions or whether the tool is properly grounded.

4. Use only three-wire extension cords

that have three-pronged plugs and outlets

that accept the tool’s plug. Repair or replace a damaged or worn cord immediately.

CAUTION!

In all cases, make certain the outlet in question is properly grounded. If

you are not sure, have a licensed electrician check the outlet.

GUIDELINES AND RECOMMENDATIONS FOR EXTENSION CORDS

GROUNDING INSTRUCTIONS

In the event of a malfunction or breakdown

, grounding provides the path of least resistance for an electric

current and reduces the risk of electric shock. This tool is equipped with an electric cord that has an

equipment grounding conductor and a grounding plug. The plug MUST be plugged into a matching outlet

that is properly installed and grounded in accordance with ALL local codes and ordinances.

1. Do not modify the plug provided.

If it will not ﬁt the outlet, have the proper outlet installed by a licensed

electrician.

2. Improper connection

of the equipment grounding conductor can result in electric shock. The conductor

with the green insulation (with or without yellow stripes) is the equipment grounding conductor. If repair or

replacement of the electric cord or plug is necessary, DO NOT connect the equipment grounding conductor

to a live terminal.

1. Examine extension cord before use. Make sure your extension cord is properly wired and in good condition.

Always replace a damaged extension cord or have it repaired by a qualiﬁed person before using it.

2. Do not abuse extension cord. Do not pull on cord to disconnect from receptacle; always disconnect by pulling on

plug. Disconnect the extension cord from the receptacle before disconnecting the product from the extension cord.

Protect your extension cords from sharp objects, excessive heat and damp/wet areas.

3. Use a separate electrical circuit for your tool. This circuit must not be less than a 12-gauge wire and should be

protected with a 15A time-delayed fuse. Before connecting the motor to the power line, make sure the switch is in

the OFF position and the electric current is rated the same as the current stamped on the motor nameplate. Running

at a lower voltage will damage the motor.

When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An un-

dersized cord will cause a drop in line voltage resulting in loss of power and overheating. The table below shows the

correct size to be used according to cord length and ampere rating. When in doubt, use a heavier cord. The smaller

the gauge number, the heavier the cord.

Fig. 1

EXPLODED VIEW & PARTS LIST

UNPACKING

With the help of a friend or trustworthy foe, carefully remove the work bench from the packaging. Make sure to

take out all contents and accessories. Do not discard the packaging until everything is removed. Check the parts list

below to make sure you have all of the parts and accessories. If any part is missing or broken, please contact our

customer service at 1-800-232-1195 (M-F 8-5 CST), or email [email protected].

WARNING! Do not plug in or turn on the tool until it is fully assembled according to the instructions. Failure

to follow the safety instructions may result in serious personal injury.

No. Part No. Description Qty.

1 WB4723-001 Front Post 2

2 WB4723-002 Back Post 2

3 WB4723-003 Rubber Foot 4

4 WB4723-004 Side Beam 3

4A WB4723-004A Side Beam with Power

Strip Opening 1

5 WB4723-005 Bottom Beam 2

6 WB4723-006 Top Beam 2

7F WB4723-007F Front Drawer Bracket 1

7B WB4723-007B Back Drawer Bracket 1

8 WB4723-008 Middle Drawer Mount 1

9L WB4723-009L Left Drawer Mount 1

9R WB4723-009R Right Drawer Mount 1

10L WB4723-010L Left Drawer Panel 2

10R WB4723-010R Right Drawer Panel 2

11 WB4723-011 Front Drawer Panel 2

12 WB4723-012 Back Drawer Panel 2

13 WB4723-013 Drawer Bottom 2

14 WB4723-014 Drawer Handle 2

15L WB4723-015L Left Back Upper Post 1

15R WB4723-015R Right Back Upper Post 1

16F WB4723-016F Front Shelf Beam 1

16B WB4723-016B Back Shelf Beam 1

No. Part No. Description Qty.

17L WB4723-017L Left Shelf Beam 1

17R WB4723-017R Right Shelf Beam 1

18 WB4723-018 Pegboard 1

19 WB4723-019 Bench Top 1

20 WB4723-020 Bottom Shelf 1

21 WB4723-021 Top Shelf 1

22 WB4723-022 Power Strip (not shown)

(pre-installed on part 4A) 1

23 WB4723-023 Light Fixture (not shown) 1

A WB4723-024 Bolt (M4x10), Washer,

Nut (not shown) 8

B WB4723-025 Bolt (M6x10), Washer,

Nut (not shown) 78

C WB4723-026 Bolt (M6x16), Washer,

Nut (not shown) 13

D WB4723-027 Bolt (M5x25), Washer,

Nut (not shown) 12

E WB4723-028

Screw (ST4x9.5)

(not shown)

(pre-installed on part 4A)

F WB4723-029 U Bracket (not shown)

(pre-installed on part 4A) 2

G WB4723-030

Bolt (M4x16)

(not shown)

(included with part 23)

ASSEMBLY & ADJUSTMENTS

NOTE: Assembly of the work station requires two people.

NOTE: Extensive assembly required. Assembly time can take 2-4 hours depending on skill level. We suggest

taking a break part way through to enjoy a beverage of your choice.

BEFORE ASSEMBLY: Each part is labeled with its corresponding number / letter. Organize all the parts

according to the exploded view and parts list, so you can ﬁnd the parts you need for each step. Allocate

sufﬁcient space on a ﬂat, level, hard surface for assembly.

TOOLS REQUIRED (NOT INCLUDED): Phillips head screwdriver, an adjustable wrench or 7mm, 8mm, and

10mm sockets, and a bubble level.

NOTE: Only ﬁnger tighten all fasteners during assembly to allow for adjustments. Level all components at

the end of the assembly, and then fully tighten all fasteners using the appropriate tools.

Fig. 2

Fig. 3

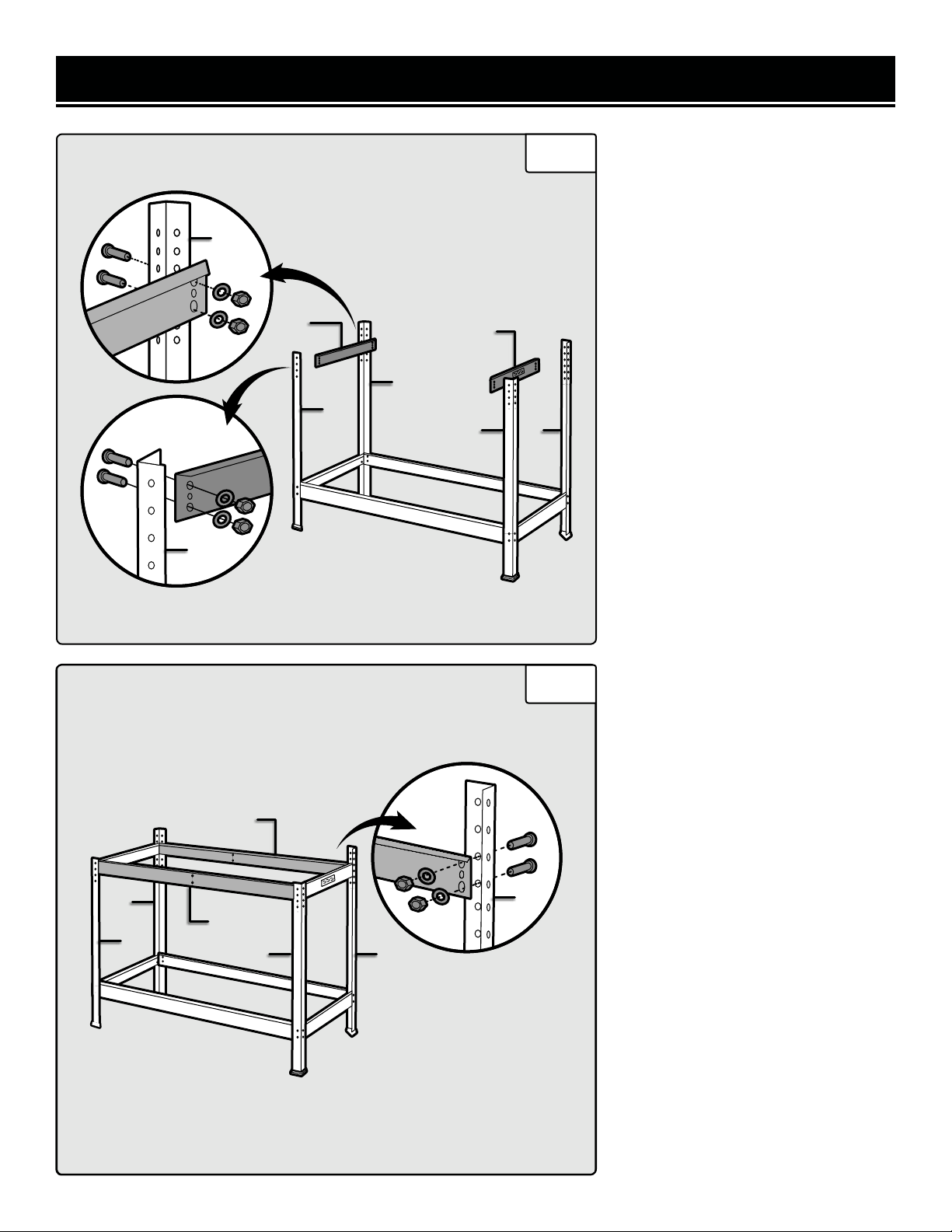

INSTALLING BOTTOM SIDE

BEAMS (1, 2, 4)

1. Attach the bottom side beams

(Fig. 2 - 4) to the inside of the front

(Fig. 2 - 1) and back posts (Fig. 2 -

2), using M6x10 bolts, washers and

nuts.

NOTE: All beams should be mounted

inside of the post. All ﬂanges on the

beams should be on the top.

ATTACHING RUBBER FEET (3)

2. Attach the rubber feet (Fig. 2 - 3)

to the bottom of all 4 posts.

INSTALLING BOTTOM FRONT

& BACK BEAMS (5)

3. Attach the bottom beams (Fig. 3 -

5) to the inside of the front and back

posts, using M6x10 bolts, washers

and nuts.

ASSEMBLY & ADJUSTMENTS

Fig. 4

Fig. 5

INSTALLING UPPER SIDE

BEAMS (4, 4A)

4. Attach one side beam (Fig. 4 - 4)

and the side beam with power strip

opening (Fig. 4 - 4A) to the top two

holes on the front posts (Fig. 4 - 1)

and middle two holes on the back

posts (Fig. 4 - 2), using M6x10 bolts,

washers, and nuts. Assemble the

beams with the ﬂanges on the top.

NOTE: The side beam with power

strip opening can be attached to ei-

ther the right or left side.

INSTALLING UPPER FRONT &

BACK BEAMS (6)

5. Attach the upper beams (Fig. 5 -

6) to the top two holes on front posts

(Fig. 5 - 1) and the middle two holes

on the back posts (Fig. 5 - 2), using

M6x10 bolt, washer, and nut. One of

the beams will have a WEN label, it

is recommended to assemble that

beam in the front of the unit.

NOTE: All beams should be mounted

inside of the posts . All ﬂanges on the

beams should be facing upwards.

1 2

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Wen Ordinateur de bureau

Wen

Wen WB4723 Manuel utilisateur

Manuels Ordinateur de bureau populaires d'autres marques

HP m9060n - Pavilion - Elite Fiche technique

Asus

Asus E210 Series Manuel utilisateur

Dell

Dell Inspiron 600m Manuel utilisateur

Dell

Dell Inspiron 3662 Manuel utilisateur

TotalFlow

TotalFlow uFLO Manuel utilisateur

HP Presario SV7000 - Desktop PC Manuel utilisateur

HP ProDesk 400 G5 Manuel

Logitech

Logitech MK320 Manuel utilisateur

Dell

Dell XPS 730 H2C Manuel utilisateur

Sony

Sony Vaio Series Manuel utilisateur

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manuel utilisateur

Alto

Alto MD 250 Manuel utilisateur

Lenovo

Lenovo ThinkCentre Edge 72 Manuel

Lenovo

Lenovo ThinkStation D20 Manuel

Arbor Technology

Arbor Technology FPC-7800 Series Manuel utilisateur

Sony

Sony VAIO VGX-TP1 Series Manuel utilisateur

Asus

Asus Eee Box B204 Manuel utilisateur

Dell

Dell Optiplex 9010 All In One Manuel utilisateur
