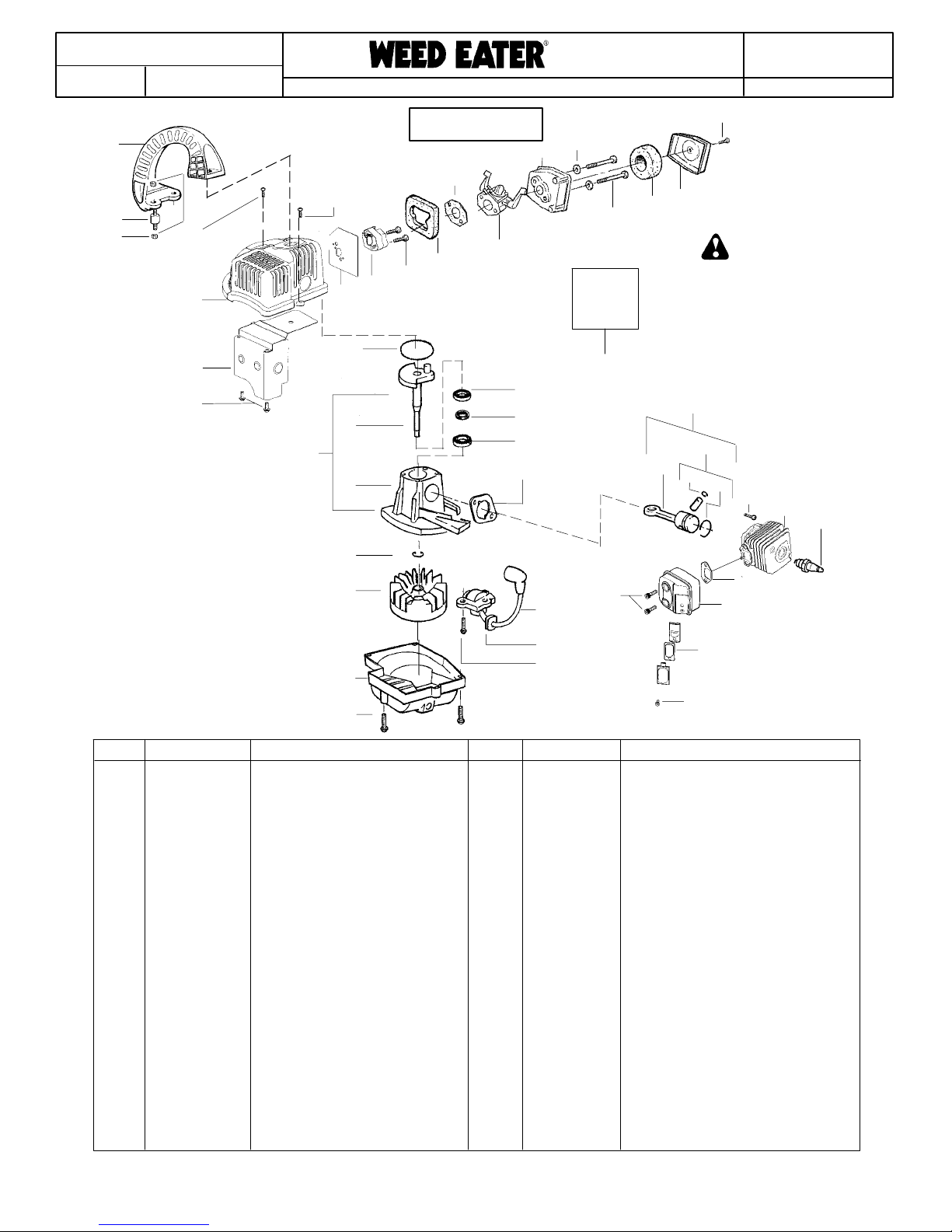

POULAN PARTS LIST

POULAN PRO PARTS LIST

PARAMOUNT PARTS LIST

PARTS LIST

REPLACES

Note: Illustration may differ from actual model due to design changes

PARTS L IST NO.

PAGE NO.

MODEL(s)

530086385 FL1500LE

DATE

3/27/09 530086385 --- 6/06/08

All repairs, adjustments and

maintenance not described in

the Operator’s Manual must be

performed by qualified service

personnel.

WARNING

1. 530054429 Handle

2. 530054432 Isolator--Handle

3. 530016316 Nut

4. 530015810 Screw

5. 530016258 Plate--Crankcase

6. 530055336 Shroud

7. 530055378 Shield--Heat

8. 530015805 Screw

9. 530015880 Screw

10. 530071472 Gasket--Carb. (Kit)

11. 530052333 Air Box

12. 530015123 Washer

13. 530015892 Screw

14. 530052332 Cover--Air Box

15. 530047932 Foam--Air Filter

16. 530016353 Screw

17. ------ Kit--Carburetor Ass’y.

530071471 (W--12

530071629 (C1U--W12A)

18. 530016014 Screw

19. 530056403 Adaptor--Carb.

20. 530071472 Gasket--Cyl/Carb. Adaptor (Kit)

21. 530071472 Gasket--C’case/Shroud (Kit)

22. 530071469 Assy.--C’case & C’shaft

(Incl. 23,24,25, & 30--33)

23. 530052344 Assy.--Crankshaft

24. 530012462 Assy.--Crankcase

(Incl. 30--33)

25. 530015941 Retainer Ring (C’shaft)

26. 530069886 Assy.--Flywheel

27. 530055335 Fan Housing

28. 530015810 Screw

29. 530071472 Kit--Gasket

(incl. 10,20,21,34)

30. 530032125 Inner Bearing

31. 530015945 Retainer Ring (C’case)

32. 530019179 Seal--Crankcase

33. 530032124 Bearing--Outer

34. 530071472 Gasket--Cylinder (Kit)

35. 530036145 Spacer--Ign. Module

36. 530039163 Ignition Module

37. 530019182 Grommet--Ign. Module

38. 530015954 Screw

39. 530069945 Kit--Connecting Rod Assy.

40. 530071357 Kit--Piston (Incl. 41 & 42)

41. 530015162 Wrist Pin Retainer

42. 530055120 Piston Ring

43. 530015953 Screw

44. 530071359 Kit--Cylinder

45. 952030249 Spark Plug (RCJ--6Y)

46. 530042088 Spring--Muffler

47. 530071470 Assy--Muffler(incl. #46)

48. 530071361 Kit--Spark Aresstor

49. 530015241 Screw

Part No. Description Ref. Part No. Description

Ref.

11 12

31 33

39 41 42

Gasket

Kit

=NEW PART NUMBER FOR THIS IPLn=REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)

TYPE 1

POULAN PARTS LIST

POULAN PRO PARTS LIST

PARAMOUNT PARTS LIST

PARTS LIST

REPLACES

Note: Illustration may differ from actual model due to design changes

PARTS L IST NO.

PAGE NO.

MODEL(s)

530086385 FL1500LE

DATE

3/27/09 530086385 --- 6/06/08

All repairs, adjustments and

maintenance not described in

the Operator’s Manual must be

performed by qualified service

personnel.

WARNING

1. 530054429 Handle

2. 530054432 Isolator--Handle

3. 530016316 Nut

4. 530015810 Screw

5. 530055336 Shroud

6. 530055378 Shield--Heat

7. 530015805 Screw

8. 530016349 Screw

9. 530071472 Gasket--Carb. (Kit)

10. 530052333 Air Box

11. 530015158 Washer

12. 530015892 Screw

13. 530052332 Cover--Air Box

14. 530047932 Foam--Air Filter

15. 530016394 Screw

16. 530071629 Kit--Carburetor Ass’y.

(C1U--W12A)

17. 530057725 Foam--Air Dam

18. 530016309 Screw

19. 530057634 Adaptor--Carb.

20. 530071472 Gasket--Cyl/Carb. Adaptor (Kit)

21. 530071472 Gasket--C’case/Shroud (Kit)

22. 530071680 Assy.--C’case & C’shaft

(Incl. 23,24,25)

23. 530052344 Assy.--Crankshaft

24. 530012510 Assy.--Crankcase

(Incl. 30--32)

25. 530015941 Retainer Ring (C’shaft)

26. 530069886 Assy.--Flywheel

27. 530055335 Fan Housing

28. 530015810 Screw

29. 530071472 Kit--Gasket

(incl. 9,20,21,33)

30. 530032125 Inner Bearing

31. 530019264 Seal--Crankcase

32. 530055728 Bearing--Outer

33. 530071472 Gasket--Cylinder (Kit)

34. 530039163 Ignition Module

35. 530019182 Grommet--Ign. Module

36. 530016357 Screw

37. 530069945 Kit--Connecting Rod Assy.

38. 530071833 Kit--Piston (Incl. 39 & 40)

39. 530015162 Wrist Pin Retainer

40. 530055120 Piston Ring

41. 530071785 Kit--Piston/Rod Assy.( Incl. 37,38)

42. 530015953 Screw

43. 530012500 Cylinder

44. 952030249 Spark Plug (RCJ--6Y)

45. 530071472 Gasket--Muffler kit)

46. 530071778 Kit--Muffler(incl. #45,47--49)

47. 530016338 Bolt--Muffler

48. 530071544 Kit--Spark Aresstor

49. 530015241 Screw

50. 530071731 Kit--Module spacer/screws

Part No. Description Ref. Part No. Description

Ref.

10 11

33 37 39 40

43 44

Gasket

Kit

=NEW PART NUMBER FOR THIS IPLn=REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)

TYPE 2,3

47 46

Module

Spacer &

Screws

Kit

POULAN PARTS LIST

POULAN PRO PARTS LIST

PARAMOUNT PARTS LIST

PARTS LIST

REPLACES

Note: Illustration may differ from actual model due to design changes

PARTS L IST NO.

PAGE NO.

MODEL(s)

530086385 FL1500LE

DATE

3/27/09 530086385 --- 6/06/08

All repairs, adjustments and

maintenance not described in

the Operator’s Manual must be

performed by qualified service

personnel.

WARNING

1. 530054429 Handle

2. 530054432 Isolator--Handle

3. 530016316 Nut

4. 530015810 Screw

5. 530055336 Shroud

6. 530055378 Shield--Heat

7. 530015805 Screw

8. 530016349 Screw

9. 530071472 Gasket--Carb. (Kit)

10. 530052333 Air Box

11. 530015158 Washer

12. 530015892 Screw

13. 530052332 Cover--Air Box

14. 530047932 Foam--Air Filter

15. 530016394 Screw

16. 530071629 Kit--Carburetor Ass’y.

(C1U--W12A)

17. 530057725 Foam--Air Dam

18. 530016309 Screw

19. 530057634 Adaptor--Carb.

20. 530071472 Gasket--Cyl/Carb. Adaptor (Kit)

21. 530071472 Gasket--C’case/Shroud (Kit)

22. 530071680 Assy.--C’case & C’shaft

(Incl. 23,24,25)

23. 530052344 Assy.--Crankshaft

24. 530012510 Assy.--Crankcase

(Incl. 30--32)

25. 530015941 Retainer Ring (C’shaft)

26. 530069886 Assy.--Flywheel

27. 530058942 Fan Housing

28. 530015810 Screw

29. 530071472 Kit--Gasket

(incl. 9,20,21,33)

30. 530032125 Inner Bearing

31. 530019264 Seal--Crankcase

32. 530055728 Bearing--Outer

33. 530071472 Gasket--Cylinder (Kit)

34. 530039163 Ignition Module

35. 530019182 Grommet--Ign. Module

36. 530016357 Screw

37. 530069945 Kit--Connecting Rod Assy.

38. 530071833 Kit--Piston (Incl. 39 & 40)

39. 530015162 Wrist Pin Retainer

40. 530055120 Piston Ring

41. 530071785 Kit--Piston/Rod Assy.( Incl. 37,38)

42. 530015953 Screw

43. 530012500 Cylinder

44. 952030249 Spark Plug (RCJ--6Y)

45. 530071472 Gasket--Muffler kit)

46. 530071778 Kit--Muffler(incl. #45,47--49)

47. 530016338 Bolt--Muffler

48. 530071544 Kit--Spark Aresstor

49. 530015241 Screw

Part No. Description Ref. Part No. Description

Ref.

10 11

33 37 39 40

43 44

Gasket

Kit

=NEW PART NUMBER FOR THIS IPLn=REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)

TYPE 4

47 46

POULAN PARTS LIST

POULAN PRO PARTS LIST

PARAMOUNT PARTS LIST

PARTS LIST

REPLACES

Note: Illustration may differ from actual model due to design changes

PARTS L IST NO.

PAGE NO.

MODEL(s)

530086385 FL1500LE

DATE

3/27/09 530086385 --- 6/06/08

All repairs, adjustments and

maintenance not described in

the Operator’s Manual must be

performed by qualified service

personnel.

WARNING

1. 530054429 Handle

2. 530054432 Isolator--Handle

3. 530016316 Nut

4. 530015810 Screw

5. 530057102 Shroud

6. 530055378 Shield--Heat

7. 530015805 Screw

8. 530016349 Screw

9. 530071472 Gasket--Carb. (Kit)

10. 530052333 Air Box

11. 530015158 Washer

12. 530015892 Screw

13. 530052332 Cover--Air Box

14. 545082301 Foam--Air Filter

15. 530016429 Screw

16. 530071629 Kit--Carburetor Ass’y.

(C1U--W12A)

17. 530057725 Foam--Air Dam

18. 530016309 Screw

19. 530057634 Adaptor--Carb.

20. 530071472 Gasket--Cyl/Carb. Adaptor (Kit)

21. 530071472 Gasket--C’case/Shroud (Kit)

22. 530071680 Assy.--C’case & C’shaft

(Incl. 23,24,25)

23. 530052344 Assy.--Crankshaft

24. 530012510 Assy.--Crankcase

(Incl. 30--32)

25. 530015941 Retainer Ring (C’shaft)

26. 530069886 Assy.--Flywheel

27. 530058942 Fan Housing

28. 530015810 Screw

29. 530071472 Kit--Gasket

(incl. 9,20,21,33)

30. 530032125 Inner Bearing

31. 530019264 Seal--Crankcase

32. 530055728 Bearing--Outer

33. 530071472 Gasket--Cylinder (Kit)

34. 530039163 Ignition Module

35. 530019182 Grommet--Ign. Module

36. 530016357 Screw

37. 530069945 Kit--Connecting Rod Assy.

38. 530071833 Kit--Piston (Incl. 39 & 40)

39. 530015162 Wrist Pin Retainer

40. 530055120 Piston Ring

41. 530071785 Kit--Piston/Rod Assy.( Incl. 37,38)

42. 530015953 Screw

43. 530012500 Cylinder

44. 952030249 Spark Plug (RCJ--6Y)

45. 530071472 Gasket--Muffler kit)

46. 530071778 Kit--Muffler(incl. #45,47--49)

47. 530016338 Bolt--Muffler

48. 530071544 Kit--Spark Aresstor

49. 530015241 Screw

Part No. Description Ref. Part No. Description

Ref.

10 11

33 37 39 40

43 44

Gasket

Kit

=NEW PART NUMBER FOR THIS IPLn=REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)

TYPE 5

47 46

POULAN PARTS LIST

POULAN PRO PARTS LIST

PARAMOUNT PARTS LIST

PARTS LIST

REPLACES

Note: Illustration may differ from actual model due to design changes

PARTS L IST NO.

PAGE NO.

MODEL(s)

530086385 FL1500LE

DATE

3/27/09 530086385 --- 6/06/08

1. 530016392 Screw

2. 530049488 Handle--Starter

3. 530069907 Kit--Rope

4. 530069952 Kit--Starter Pulley

(Incl. 1)

5. 530042086 Spring--Starter

6. 530015149 Washer

7. 530052334 Housing--Impeller (Upper)

8. 530015814 Screw

9. 530052434 Spacer--Flywheel

10. 530053237 Assy--Impeller

11. 530016260 Washer--Flat

12. 530092322 Lockwasher

13. 530626605 Nut

14. 530054181 Assy--Impeller Housing (Lower)

15. 530015886 Screw

16. 530014347 Assy--Fuel Cap

17. 530016349 Screw

18. 530069599 Kit--Fuel Line

19. 530053314 Grommet--Fuel Line

20. 530053021 Assy--Fuel Tank

(Incl. cap,filter, fuel lines)

21. 530014362 Fuel Pick--up Ass’y.

22. 530053461 Tube--Blower

530163349 Operator Manual

Part No. Description Ref. Part No. Description

Ref.

Not Shown

=NEW PART NUMBER FOR THIS IPLn=REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)

All repairs, adjustments and

maintenance not described in

the Operator’s Manual must be

performed by qualified service

personnel.

WARNING

TYPE 1,2,3

POULAN PARTS LIST

POULAN PRO PARTS LIST

PARAMOUNT PARTS LIST

PARTS LIST

REPLACES

Note: Illustration may differ from actual model due to design changes

PARTS L IST NO.

PAGE NO.

MODEL(s)

530086385 FL1500LE

DATE

3/27/09 530086385 --- 6/06/08

1. 530016392 Screw

2. 530049488 Handle--Starter

3. 530069907 Kit--Rope

4. 530071792 Kit--Starter Pulley

(Incl. 1)

5. 530042086 Spring--Starter

6. 530015149 Washer

7. 530058713 Housing--Impeller (Upper)

8. 530015814 Screw

9. 530052434 Spacer--Flywheel

10. 530053237 Assy--Impeller

11. 530016260 Washer--Flat

12. 530092322 Lockwasher

13. 530626605 Nut

14. 530054181 Assy--Impeller Housing (Lower)

15. 530015886 Screw

16. 530014347 Assy--Fuel Cap

17. 530016349 Screw

18. 530069599 Kit--Fuel Line

19. 530053314 Grommet--Fuel Line

20. 545103903 Assy--Fuel Tank

(Incl. cap,filter, fuel lines)

21. 530014362 Fuel Pick--up Ass’y.

22. 530052337 Tube--Blower

545186783 Operator Manual

522928602 Decal -- Spark Arrestor Warning

Part No. Description Ref. Part No. Description

Ref.

Not Shown

=NEW PART NUMBER FOR THIS IPLn=REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)

All repairs, adjustments and

maintenance not described in

the Operator’s Manual must be

performed by qualified service

personnel.

WARNING

TYPE 4,5

POULAN PARTS LIST

POULAN PRO PARTS LIST

PARAMOUNT PARTS LIST

PARTS LIST

REPLACES

Note: Illustration may differ from actual model due to design changes

PARTS L IST NO.

PAGE NO.

MODEL(s)

530086385 FL1500LE

DATE

3/27/09 530086385 --- 6/06/08

Ref. Part No. Description

Carb.

Repair

Kit

Gasket/

Dia.

Kit

Carburetor Assembly Part Number 530071471 (WT--12)

KIT D

KIT

KIT D

1. 530038478 Limiter Cap--Low (tan)

2. 530038479 Limiter Cap--High (brown)

3. 530071517 Carburetor Repair Kit

(KIT=CONTENTS)

4. 530071442 Gasket/Diaphragm Kit

(D=CONTENTS)

=NEW PART NUMBER FOR THIS IPLn=REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)

All repairs, adjustments and

maintenance not described in

the Operator’s Manual must be

performed by qualified service

personnel.

WARNING

Kit -- Carburetor Assy # 530071629 -- C1U--W12A

Note: No Repair kits are available for this carburetor, please order

the complete assembly part number 530--071629 ( C1U--W12A )

530071713 Kit--Throttle Lever

530071714 Kit--Choke Lever

Autres manuels pour FL1500 LE H

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Weed Eater Tondeuse

Weed Eater

Weed Eater TWIST-N-EDGE 530163454 Manuel utilisateur

Weed Eater

Weed Eater SG Series Manuel utilisateur

Weed Eater

Weed Eater 545137261 Manuel utilisateur

Weed Eater

Weed Eater FeatherLite 530163448 Manuel utilisateur

Weed Eater

Weed Eater GHT 180 LE Manuel utilisateur

Weed Eater

Weed Eater 530086928 Manuel utilisateur

Weed Eater

Weed Eater Wild Thing WT21 Manuel utilisateur

Weed Eater

Weed Eater TWIST-N-EDGE 530088895 Manuel utilisateur

Weed Eater

Weed Eater BC3100 Manuel utilisateur

Weed Eater

Weed Eater GHT 180 LE Manuel utilisateur

Weed Eater

Weed Eater 530163440 Manuel utilisateur

Weed Eater

Weed Eater TWIST-N-EDGE TE 400 LE Manuel utilisateur

Weed Eater

Weed Eater Featherlite 25 HO SST Manuel utilisateur

Weed Eater

Weed Eater TBC 57 Manuel utilisateur

Weed Eater

Weed Eater LT7000 Manuel utilisateur

Weed Eater

Weed Eater XT 600 Manuel utilisateur

Weed Eater

Weed Eater 358792410 Manuel utilisateur

Weed Eater

Weed Eater Featherlite 25 HO SST Manuel utilisateur

Weed Eater

Weed Eater 952711938 Manuel utilisateur

Weed Eater

Weed Eater 530163346 Manuel utilisateur

Weed Eater

Weed Eater GHT 195 Manuel utilisateur

Weed Eater

Weed Eater 1700 Manuel utilisateur

Weed Eater

Weed Eater GTI 15 Manuel utilisateur

Weed Eater

Weed Eater 545186796 Manuel utilisateur

Manuels Tondeuse populaires d'autres marques

MTD

MTD HT 51 E Manuel utilisateur

McCulloch

McCulloch T22 LS Manuel utilisateur

COCKRAFT

COCKRAFT PRO HL36-S Manuel utilisateur

Grizzly

Grizzly CT 1800 Li Manuel utilisateur

Peco

Peco Z Trimmer ZT-3000 Manuel utilisateur

Solo

Solo 116 Manuel utilisateur

Stiga

Stiga ST 1200 Manuel utilisateur

Echo

Echo GT-225 - 10-09 Manuel utilisateur

RedMax

RedMax BT17 Manuel utilisateur

GreenWorks

GreenWorks STA806 Manuel utilisateur

Parkside

Parkside PHSL 900 A3 Manuel utilisateur

Gardeo

Gardeo PRO GPTHT2560 Manuel utilisateur

Park

Park DT-810870 Manuel utilisateur

Worx

Worx WG209 Manuel utilisateur

Gardenline

Gardenline 43671/HTKS26 Manuel utilisateur

Makita

Makita 3710 Manuel utilisateur

Champion

Champion 100683 Manuel utilisateur

Stihl

Stihl FS 311 Manuel utilisateur
