Webasto H300 entry Manuel utilisateur

Sunroof

Schiebedach

Open dak

Toit ouvrant

Techo solar

Teto solar

xxx

Operating Instructions

Bedienungsanweisung

Bedieningshandleiding

Notice d’utilisation

Instrucciones de funcionamiento

Instruções de funcionamento

????

?? ???

xxx

H300 TABLE OF CONTENTS

Table of contents

USA ............................................................................1

English .......................................................................7

Deutsch ....................................................................12

Nederlands ...............................................................17

Français ....................................................................22

Español ....................................................................27

Português .................................................................32

H300 USER MANUAL

English

Dear Madam, Sir,

Webasto Thermo & Comfort SE wishes you a lot of pleasure when driving

with your newly installed H300 sunroof. Your sunroof is a new generation

quality product from Webasto Thermo & Comfort Benelux. This new

generation sunroof is available in 2 models, ENTRY and COMFORT.

Below you will find all you need to know about this H300 tilting and

sliding sunroof. In order to obtain the maximum enjoyment from the

sunroof, please read these instructions carefully. Wishing you happy

motoring.

SWITCH

The sunroof can be operated by a 3 button switch with self explanatory

symbols. You can either tilt, slide or close the glass panel.

The switch for the ENTRY model comes in black only. The COMFORT

model switch comes in black with a metal accent and LED illuminated

symbols.

OPERATION

Ensure that your vehicle ignition is switched ON.

SLIDE OPEN (Entry version and Comfort version)

By continuously pressing the button the glass panel will move in

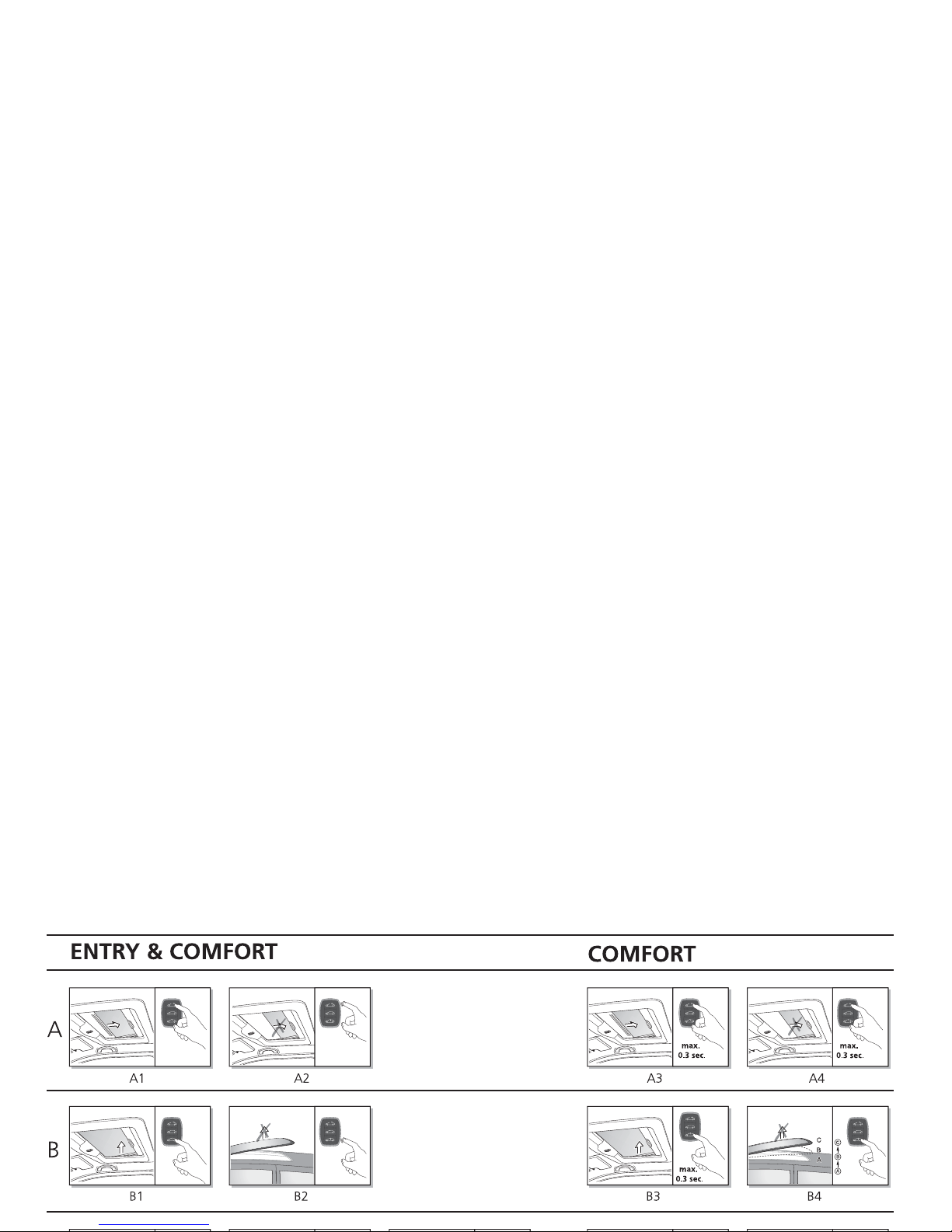

the OPEN direction (fig. A1). The movement of the panel continues as long

as the button is pressed. The panel stops when the button is released

(fig. A2) or the FULL SLIDE OPEN position is reached.

ONE TOUCH SLIDE OPEN (Comfort version only)

By pressing the button briefly (max. 0.3 seconds) the glass panel

will move automatically towards the FULL SLIDE OPEN position (fig. A3).

The panel stops when any of the buttons are pressed (fig. A4) or when the

FULL SLIDE OPEN position is reached.

TILT (Entry version only)

By continuously pressing the button the glass panel will move in

the TILT direction (fig. B1). The movement of the panel continues as long

as the button is pressed. The panel stops when the button is released

(fig. B2) or the FULL TILT position is reached.

USER MANUAL H300

English

ONE TOUCH TILT (Comfort version only)

By pressing the button briefly (max. 0.3 seconds) the glass panel

will move automatically towards FULL TILT position (fig. B3).

The panel stops when any of the buttons are pressed or when the FULL

TILT position is reached.

2 STEPS TILT (Comfort version only)

By continuously pressing the button the glass panel will move in

the TILT direction in 2 steps (fig. B4). The 2 step function allows the user

to find the most comfortable tilt position easily. The movement of the

panel continues as long as the button is pressed. The panel stops when

the button is released or the FULL TILT position is reached.

CLOSE (Entry and Comfort version)

By continuously pressing the button the glass panel will move

towards CLOSE position (fig. C1 and C2). The movement of the panel

continues as long as the button is pressed. The panel stops when the

button is released (fig. C3) or the FULL CLOSE position is reached.

ONE TOUCH CLOSE (Comfort version only)

By pressing the button briefly (max. 0.3 seconds) the glass panel

will move automatically towards the FULL CLOSE position (fig. C4 and C5).

The panel stops when any of the buttons are pressed or when the FULL

CLOSE position is reached.

NOTE

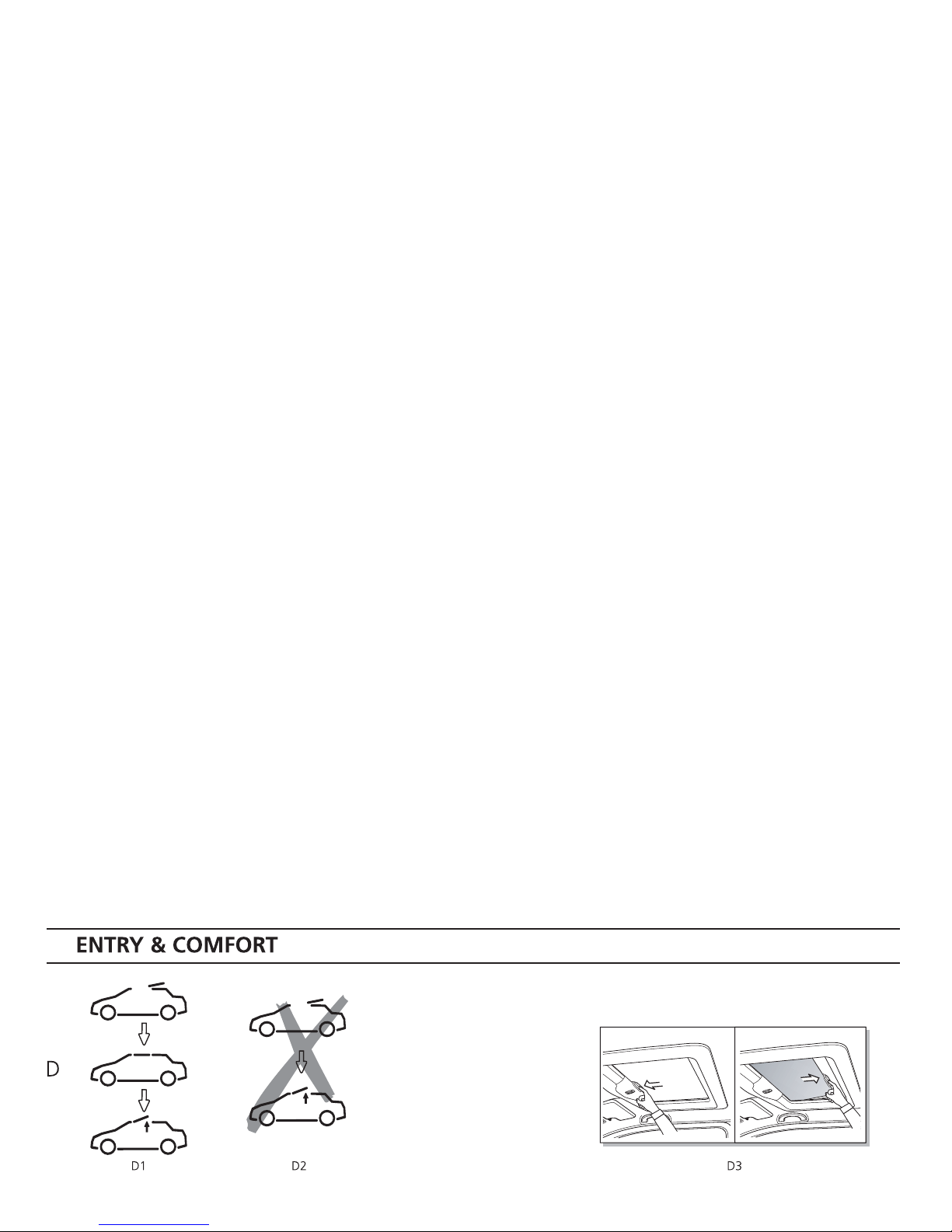

It is NOT possible to select TILT from SLIDE position directly (fig. D2). In

that case the glass panel will not move.

You should always press the button (CLOSE) first (fig. D1).

H300 USER MANUAL

English

ADDITIONAL FEATURES

JAMMING PROTECTION (Safety Feature)

Entry version:

Should the glass panel encounter an obstacle while closing from SLIDE

position, it automatically stops.

Comfort version:

The jamming protection becomes active when the sunroof is closed either

by CLOSE, ONE TOUCH CLOSE or AUTO-CLOSE.

Should the glass panel encounter an obstacle while closing, it

automatically opens again.

AUTO-CLOSE (Comfort version only)

When turning off your vehicles ignition, the AUTO-CLOSE will be

activated. After three seconds the sunroof will close automatically.

This counts only when the glass panel is in SLIDE position. In case the

panel is in TILT position, it will remain open to keep the ventilation

function.

Should you require the sunroof to stop, while closing, press any of the

buttons briefly. You can also prevent the panel from closing by pressing

any of the buttons within the three second interval.

When you switch the ignition on, the sunroof can be operated in the

normal manner.

ILLUMINATION (Comfort version only)

The switch is equipped with 4 colour LEDs (white, green, blue and red) to

allow for the best match with the factory set instrumentation colouring.

The default colour setting is white. If not already done you can ask your

installer to change the colour.

USER MANUAL H300

English

WIND DEFLECTOR (Comfort version only)

In order to reduce wind noise and buffeting the sunroof is equipped with

a wind deflector. The wind deflector will automatically pop up in SLIDE

position.

SUNROLLO (Comfort version only)

In case your roof is equipped with a sunrollo, it can be can be set by hand

to the desired position (open or closed).

When the sunrollo is closed, press the handle to release it from the frame

of the sunroof. Then, move the sunrollo backward (fig. D3).

When the sunrollo is open, move the sunrollo forward to close it. Click the

handle into the frame of the sunroof.

The sunrollo fabric is of an open mesh structure which enables a certain

level of air flow. This allows driving with the sunrollo closed for protection

against direct sunlight, while having the sunroof open to enjoy the fresh

air.

However, there is a limit to this. The air flow depends on the shape of the

vehicle and increases with the vehicle speed, while the maximum air flow

through the sunrollo is limited.

Due to this airflow the sunrollo will be lifted slightly and vibrate. This

phenomenon is normal and will become more noticeable with increasing

speed.

For this reason we recommend to open the sunrollo with the glass panel

in OPEN or TILT position, while driving at higher speeds (> 80 km/h).

Otherwise it might happen that air pressure dislocates the sunrollo.

H300 USER MANUAL

English

MAINTENANCE

Generally, no maintenance is required.

GLASS PANEL

To clean the glass panel use only a mild, non-abrasive detergent and a

brush or sponge. When starting your journey you are advised not to open

the sunroof during the first few minutes if there is moisture on the panel.

Webasto recommends first driving with the sunroof closed until all

moisture has evaporated.

WARRANTY

Webasto Thermo & Comfort SE warrants the quality and correct operation

of this H300 sunroof. The warranty covers both parts and labour and is

valid for three (3) years starting from the date of installation.

Installation, online product registration and /or service should be executed

by a Webasto Authorized Installer.

Defects caused by rough handling, incorrect use, accident and broken

glass are not covered by this warranty.

Transportation costs are at the responsibility of the owner.

Proof of original purchase and date of installation are required to receive

warranty service.

All obligations of Webasto Thermo & Comfort SE under this warranty shall

be terminated if:

• Installation and / or Service is performed by someone other than a

Webasto Authorized Installer.

• The product is modified or altered in a way not approved by Webasto.

• The owner cannot produce evidence of original purchase and

installation date.

In multilingual versions the English language is binding.

The telephone number of each country can be found in the Webasto service center leaflet or the website of the respective Webasto representative of your country.

Bei mehrsprachiger Ausführung ist Englisch verbindlich.

Die Telefonnummer des jeweiligen Landes entnehmen Sie bitte dem Webasto Servicestellenfaltblatt oder der Webseite Ihrer jeweiligen Webasto Landesvertretung.

Bij een meertalige versie is de Engelse versie bindend.

Het telefoonnummer van het betreffende land kunt u vinden op het Webasto Servicepuntenoverzicht of de website van de Webastovestiging in uw land.

Dans le cas d'une version rédigée en plusieurs langues, l'anglais est alors la langue qui fait foi.

Pour trouver le numéro de téléphone du pays concerné, veuillez consulter le dépliant des points-service Webasto ou la page web de la représentation Webasto de votre pays.

Este manual esta traducido en varios idiomas, le informamos que sólo la versión en inglés será vinculante.

Consulte el número de teléfono del país correspondiente en el folleto de los servicios autorizados Webasto, o en la página web de su representante Webasto.

Este manual está traduzido em vários idiomas, tendo o inglês como idioma padrão.

Para o número de telefone do respectivo país consulte o flyer de Serviço da Webasto ou a página web das vossas respectivas Webasto Representação.
