Wayne-Dalton 9800 Guide de démarrage rapide

TorqueMaster® - Single and Double Spring(s)

Installation Instructions and Owner’s Manual

IMPORTANT NOTICE!

Read these instructions carefully before attempting

installation. If in question about any of the proce-

dures, do not perform the work. Instead, have a

qualiﬁed door agency do the installation or repairs.

9800 Series (4 Section)

Wayne-Dalton, a Division of

Overhead Door Corporation

P.O. Box 67, Mt. Hope, OH 44660

www.Wayne-Dalton.com

Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your local

yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com

Deﬁnition of key words used in this manual:

INDICATES A POTENTIALLY HAZARDOUS

SITUATION WHICH, IF NOT AVOIDED, COULD

RESULT IN SEVERE OR FATAL INJURY.

CAUTION: PROPERTY DAMAGE OR INJURY CAN RESULT

FROM FAILURE TO FOLLOW INSTRUCTIONS.

IMPORTANT: REQUIRED STEP FOR SAFE AND PROPER

DOOR OPERATION.

NOTE: Information assuring proper installation of the door.

Table of Contents

Important Safety Instructions .................................................. 2

Package Contents ................................................................... 3

Door Section Identiﬁcation ...................................................... 4

Tools Required ........................................................................ 5

Pre-Installation ..................................................................5-10

Removing The Old Door .......................................5-9

Preparing The Opening ......................................... 10

Installation ......................................................................11-34

Optional Installations .......................................................35-37

Side Lock ............................................................. 35

DoorMasterTM Bracket ........................................... 35

Pull Rope .............................................................. 36

Trolley Operator .................................................... 37

Maintenance ....................................................................38-39

Cleaning ............................................................... 38

Painting Instructions ............................................. 39

Warranty ............................................................................... 40

Dealer Locator Information.................................................... 40

WARNING

WARNING TO AVOID POSSIBLE

INJURY, READ THESE INSTRUCTIONS

CAREFULLY BEFORE ATTEMPTING

INSTALLATION. IF IN QUESTION

ABOUT ANY OF THE PROCEDURES, DO

NOT PERFORM THE WORK. INSTEAD,

HAVE A QUALIFIED DOOR AGENCY DO

THE INSTALLATION OR REPAIRS.

1. READ AND FOLLOW ALL INSTALLATION INSTRUCTIONS.

2. Wear protective gloves during installation to avoid possible cuts

from sharp metal edges.

3. It is always recommended to wear eye protection when using

tools, otherwise eye injury could result.

4. Avoid installing your new door on windy days. Door could fall

during the installation causing severe or fatal injury.

5. Doors 12’ - 0” wide and over should be installed by two

persons, to avoid possible injury.

6. Operate door ONLY when it is properly adjusted and free from

obstructions.

7. If a door becomes hard to operate, inoperative or is damaged,

immediately have necessary adjustments and/or repairs made

by a trained door system technician using proper tools and

instructions.

8. DO NOT stand or walk under a moving door, or permit

anybody to stand or walk under an electrically operated door.

9. DO NOT place ﬁngers or hands into open section joints when

closing a door. Use lift handles/gripping points when operating

door manually.

10. DO NOT permit children to operate garage door or door controls.

Severe or fatal injury could result, should the child become

entrapped between the door and the ﬂoor.

11. Due to constant extreme spring tension, DO NOT attempt any

adjustment, repair or alteration to any part of the door, especially

to springs, spring brackets, bottom corner brackets, red colored

fasteners, cables or supports. To avoid possible severe or fatal

injury, have any such work performed by a trained door systems

technician using proper tools and instructions.

12. On electrically operated doors, pull down ropes must be

removed and locks must be removed or made inoperative in the

open (unlocked) position.

13. Top section of door may need to be reinforced when attaching

an electric opener. Check door and/or opener manufacturer’s

instructions.

14. VISUALLY inspect door and hardware monthly for worn and or

broken parts. Check to ensure door operates freely.

15. Test electric opener’s safety features monthly, following opener

manufacturer’s instructions.

16. NEVER hang tools, bicycles, hoses, clothing or anything else

from horizontal tracks. Track systems are not intended or

designed to support extra weight.

After installation is complete, fasten this manual

near garage door.

Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your local

yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com

Package Contents

(1)TORQUEMASTER® SPRING TUBE

DOOR SECTIONS (AS REQUIRED)

(2) TOP BRACKET SLIDE

1/4”-14 X 5/8” SELF TAPPING

SCREWS (AS REQUIRED)

(4) 1/4”-20 X 5/8”

CARRIAGE BOLTS

(4) 1/4”-20 X 9/16” LARGE

HEAD RIBBED TRACK BOLTS

(2) VERTICAL

TRACK RH/LH

(2) 3/8”-16 X 3/4”

TRUSS HEAD BOLTS

(1) CENTER BRACKET

ASSEMBLY

(2) QUICK INSTALL RH/LH

FLAGANGLE (AS REQUIRED)

(2) FULLY ADJUSTABLE RH/LH

FLAGANGLE (AS REQUIRED)

(2) HORIZONTAL TRACK RH/LH

NOTE: DEPENDING ON THE DOOR MODEL, SOME PARTS LISTED WILL NOT BE SUPPLIED IF NOT

NECESSARY. REAR SUPPORTS MAY OR MAY NOT BE INCLUDED WITH YOUR DOOR.

ROLLERS

(AS REQUIRED)

COUNTER COVERS

(AS REQUIRED)

IDRIVE® OPERATOR

(SOLD SEPERATELY)

(1) OPERATOR BRACKET

LUBRICATING OIL

(AS REQUIRED)

(2) HORIZONTAL ANGLE

(80” OR 94”)

(AS REQUIRED)

(2) TOP BRACKET BASE

COUNTER GEAR

(AS REQUIRED)

5/16” X 1 5/8” HEX HEAD LAG

SCREWS (AS REQUIRED)

(1) LOOSE WINDING SHAFT

(SINGLE SPRING ONLY)

RIGHT AND LEFT CABLE

DRUM ASSEMBLIES

WEATHER SEAL & NAILS

(IF INCLUDED)

RIGHT & LEFT

DRUM WRAPS

1/4”- 20 FLANGED HEX

NUTS (AS REQUIRED)

RIGHT & LEFT

END BRACKETS

Q.I. JAMB BRACKETS

(AS REQUIRED)

(2) 3/8”- 16 HEX NUTS

36 TOOTH WORM GEAR

(AS REQUIRED)

(2) #10 PHILLIPS

HEAD SCREWS

DOOR STOP & NAILS

(IF INCLUDED)

1/4”-20 X 7/8” SELF DRILLING

SCREWS (AS REQUIRED)

1/4” - 20 X 9/16” TRACK

BOLTS

PULL ROPE &

SCREW EYE

(IF INCLUDED)

F.A. JAMB BRACKETS

(AS REQUIRED)

PRE-INSTALLATION

Tools Needed:

Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your local

yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com

NOTE: This provides an alternative

method for identifying your door

sections/stacking position.

Hinges are always pre-attached at

the top of each section (except top

section) and the hinges are stamped

for identiﬁcation, #1, #2, #3, and #4 (#4

only on ﬁve section doors). See view

below. The stamp identiﬁes the stacking

sequence of the section. The sequence

is always determined by #1 being the

bottom section to #3 or #4 being the

highest intermediate section. See views

to the right. If the stamp on the end

hinge is illegible, refer to the section

side view illustration to the right.

The section side view illustration shows

the end hinge proﬁle of all the sections,

and can also be used in conjunction

with identifying each sections.

The BOTTOM SECTION can be

identiﬁed by #1 end hinges, the factory

attached bottom astragal, and by the

bottom bracket warning labels on each

end stile.

The LOCK SECTION can be identiﬁed

by a #2 end hinge.

The INTERMEDIATE SECTION can be

identiﬁed by #3 end hinges. The section

will have a warning label attached to

either the right or left hand end stile.

NOTE: #4 End hinges are used on the

fourth section of ﬁve section doors.

The TOP SECTION can be identiﬁed

with no pre-installed end or center

hinges and U-bar attached to the top

section.

SECTION SIDE VIEW

TYPICAL HINGE STAMPING LOCATION

Door Section Identification

TOP SECTION

INTERMEDIATE SECTION

LOCK SECTION

BOTTOM SECTION

BOTTOM BRACKET

WARNING LABELS

ASTRAGAL

WARNING LABEL

(MAY BE ON RIGHT OR LEFT HAND SIDE)

1 3/8” 1 1/8” 7/8”

#1 END

HINGE

#2 END

HINGE

#3 END

HINGE

ASTRAGAL

BOTTOM

BRACKET

BOT.LOCK

INT.

TOP

U-BAR

Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your local

yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com

Tools Required

POWER DRILL RATCHET WRENCH PLIERS/WIRE CUTTERS

PHILLIPS HEAD SCREWDRIVER PENCIL

1/8”, 3/16” DRILL BITS

FLAT TIP SCREWDRIVER

7/16” SOCKET DRIVER

TAPE MEASURE

NEEDLE NOSE PLIERS

STEP LADDER

7/16”, 1/2”, 9/16”

SOCKETS

3/8”, 7/16”, 1/2”, 9/16”

WRENCHES

SAFETY GLASSES

VICE GRIPS VICE CLAMPS

HAMMER SAW HORSES (PAIR)

GLOVES

PRE-INSTALLATION

IF YOUR COUNTERBALANCE SYSTEM IS OTHER THAN THOSE MENTIONED IN SECTIONS P1, P2 AND P3, DO NOT

ATTEMPT TO WORK ON IT, BUT HAVE A QUALIFIED DOOR AGENCY PERFORM THE WORK. OTHERWISE, SEVERE OR

FATAL INJURY COULD RESULT.

DISCONNECT AND REMOVE ANY ELECTRIC OPENER PRIOR TO REMOVAL OF COUNTERBALANCE SYSTEMS TO

PREVENT UNINTENDED DOOR OPERATION. OTHERWISE, SEVERE OR FATAL INJURY COULD RESULT.

COUNTERBALANCE SPRING TENSION MUST BE RELIEVED BEFORE REMOVING ANY HARDWARE. A POWERFUL

SPRING RELEASING IT’S ENERGY SUDDENLY CAN CAUSE SEVERE OR FATAL INJURY.

IF YOU HAVE BACK PROBLEMS DO NOT ATTEMPT THIS, OR SEVERE INJURY COULD RESULT

REMOVING AN EXISTING DOOR CAN BE DANGEROUS. FOLLOW INSTRUCTIONS ON PAGES 6-10 “REMOVING AN OLD

DOOR/PREPARING THE OPENING” CAREFULLY, OTHERWISE, SEVERE OR FATAL INJURY COULD RESULT.

If you have an existing door, follow the instructions to identify which counterbalance removal is necessary. The process of removing

an existing door begins by identifying it’s counterbalance system. If you are not removing an existing door, proceed to PREPARING THE

OPENING on page 10. Generally, you will ﬁnd three (3) types of counterbalance systems: Torsion spring counterbalance systems, Wayne-

Dalton® exclusive TorqueMaster® and Extension Spring counterbalance systems.

For more technical information regarding the opening preparation, installation and use of your garage door and opener, you can go to

www.dasma.com and click on Publications and then Technical Data Sheets Number 156, 161 and 164.

Removing An Old Door

WARNING

Tools Needed:

Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your local

yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com

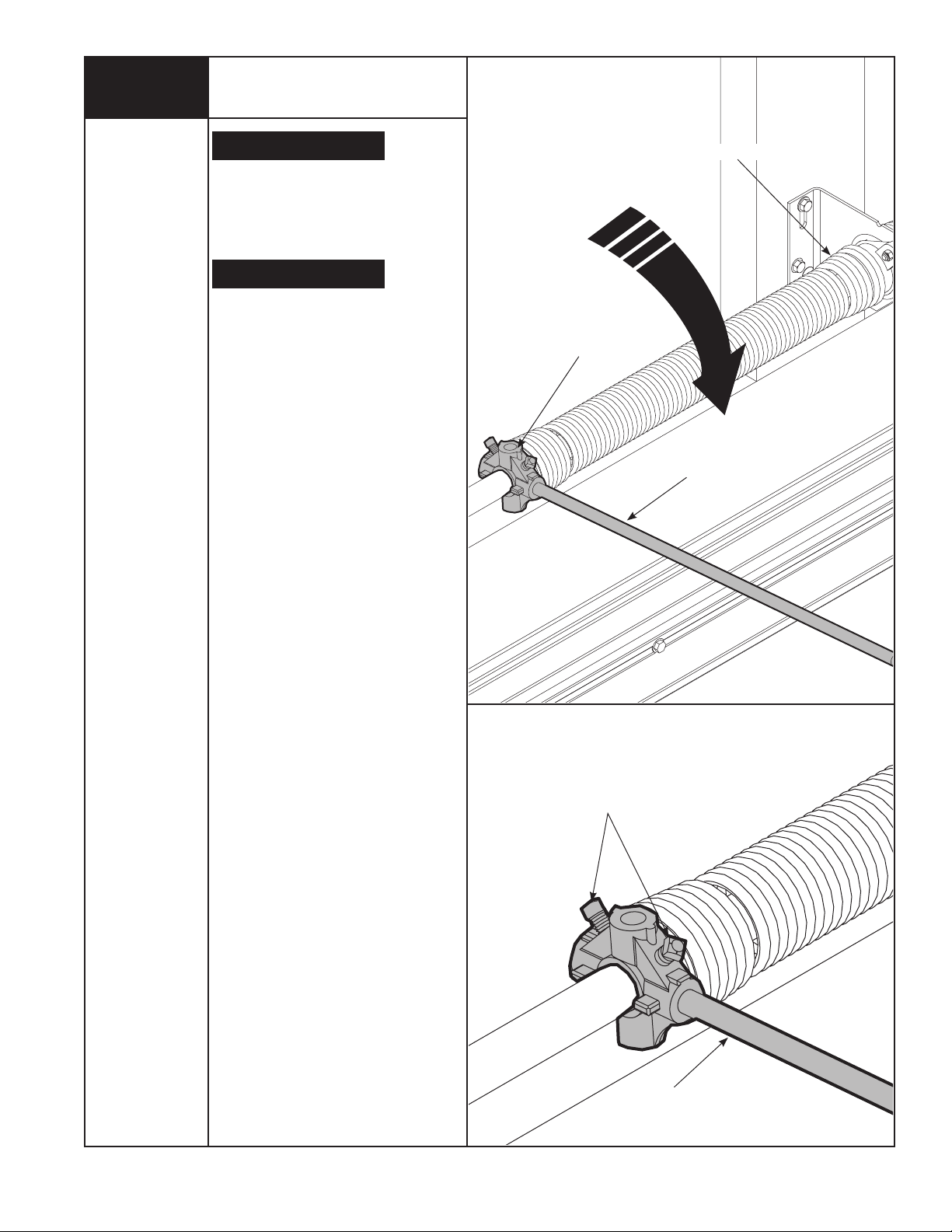

APPROVED WINDING BAR

TORSION SPRING ASSEMBLY

WINDING CONE

SET SCREWS

FIRMLY HOLD WINDING BARS AND

CAUTIOUSLY LOOSEN SET SCREWS

Approved

Winding Bars

3/8” Wrench

Vice Clamp

Recommended

tools from

page 5

FAILURE TO USE APPROVED

WINDING BARS CAN CAUSE SPRING

ENERGY TO BE RELEASED

SUDDENLY, RESULTING IN SEVERE

OR FATAL INJURY.

COUNTERBALANCE SPRING

TENSION MUST BE RELIEVED

BEFORE REMOVING ANY

HARDWARE. A POWERFUL SPRING

RELEASING IT’S ENERGY SUDDENLY

CAN CAUSE SEVERE OR FATAL

INJURY.

Do not release the torsion spring

tension unless you are qualiﬁed and

experienced door technician. Instead have

a professional door agency release the

tension.

Step 1: Close the door and place vice

clamps on the back legs of both vertical

tracks, above the third roller to prevent the

door from lifting as you unwind the springs.

Use only approved winding bars available

from your dealer. Do not use undersized

steel rods, screw drivers or anything else

to unwind the springs. Position the ladder

just off to the side of the winding cone.

The winding cone should be easy to reach

without putting your body directly in front

of it.

Step 2: Insert a winding bar into one of the

holes in the winding cone. Exert upward

pressure. Using caution, loosen the two

(2) set screws in the winding cone. Be

prepared to support the full torsional force

of the spring when the set screws are

loosened.

Step 3: Once set screws are loose, slowly

and carefully lower the winding rod until

it rests against the door. Insert other

winding bar into the upper hole. Push up

and remove lower bar. Carefully lower

upper winding bar, 1/4 turns at a time until

it rests against the door. Repeat process

until all tension is relieved. If your door

is equipped with two (2) torsion springs,

follow the same procedure to relieve

tension on the second spring.

Step 4: Remove vice clamps from tracks,

unbolt torsion shaft assembly and remove

from work area.

NOTE: Continue with “P4” on page 9 after

completing this step.

Torsion Spring Removal

For Standard Lift

WARNING

Tools Needed:

Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your local

yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com

PRE-INSTALLATION

Fig. 2

A TorqueMaster® spring system can be

identiﬁed by the end brackets. For single

spring applications, the right hand end

bracket will always have a drive gear,

counter gear, counter cover, and a winding

bolt head. The left hand end bracket will

have no gears, counter cover, or winding

bolt head. The hole for the winding bolt

head will be plugged.

For double springs, both the right hand

and left hand end brackets will always

have a drive gear, counter gear, counter

cover and a winding bolt head.

IMPORTANT: RIGHT AND LEFT HAND IS

ALWAYS DETERMINED FROM INSIDE THE

BUILDING LOOKING OUT.

Step 1: If you have a black counter cover:

Place a mark on the drive gear tooth and an

adjacent mark on the right hand end bracket

(Fig. 1). Loosen the lock nut using a 7/16”

wrench and continue with step 2.

If you have a gray counter cover: Loosen

the lock nut using a 7/16” wrench and

continue with step 2.

Step 2: Using an electric drill (High

torque / gear reduced to 1300 rpm

preferred) with a 7/16” hex head driver,

unwind the right hand winding bolt head

counterclockwise (Fig. 2) and count the

number of turns the mark on the drive

gear passes the adjacent mark on the end

bracket. Referencing the chart below, by

door height, stop unwinding the spring

once the counted turns have reached the

listed number of turns.

6’-0” Door Height = 14 turns

6’-3” Door Height = 14 1/2 turns

6’-5” Door Height = 15 turns

6’-6” Door Height = 15 turns

6’-8” Door Height = 15 1/2 turns

6’-9” Door Height = 15 1/2 turns

7’-0” Door Height = 16 turns

7’-3” Door Height = 16 1/2 turns

7’-6” Door Height = 17 turns

7’-9” Door Height = 17 1/2 turns

8’-0” Door Height = 18 turns

CAUTION:

DO NOT USE IMPACT GUN TO

UNWIND SPRINGS.

IMPORTANT: DO NOT REFERENCE THE

COUNTER COVER WHEN COUNTING THE

NUMBER OF TURNS BEING UNWOUND

ON THE SPRING, BUT FOLLOW THE

INSTRUCTIONS ABOVE.

Step 3: Verify that spring tension has been

released by pulling the counterbalance

cable on the right hand cable drum away

from the header (Fig. 3). If spring tension

has been released, the cable will be loose.

In addition, the TorqueMaster® Spring

Tube should be free to rotate in either

direction.

Fig. 1

Fig. 3

Fig. 4

RIGHT HAND

CABLE DRUM

TORQUEMASTER®

SPRING TUBE

CHECK CABLE

TENSION

LOOSEN LOCK

NUT COUNTER

GEAR/ COVER

RIGHT HAND

END BRACKET

PLACE MARK ON END BRACKET

AND DRIVE GEAR TOOTH

BEFORE UNWINDING SPRINGS

END BRACKET

RIGHT HAND

WINDING BOLT HEAD

ELECTRIC DRILL

WITH 7/16” HEX

DRIVER (DO NOT

USE IMPACT

GUN)

PRY COUNTER GEAR

AND COUNTER COVER

FROM END BRACKET

USING FLAT TIP

SCREWDRIVER

COUNTER

GEAR

COUNTER

COVER

TorqueMaster® Spring Removal

Recommended

tools from

page 5

Tools Needed:

Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your local

yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com

If the counterbalance cable is still taut and

the TorqueMaster® Spring Tube is difﬁcult

to rotate, that is an indication that spring

tension still exists on the left hand spring.

Repeat Steps 1 and 2 for releasing spring

tension on the left hand side.

Step 4: Using a ﬂat tip screwdriver, pry

the counter gear and counter cover

from the right hand end bracket (Fig. 4

on previous page). Discard the counter

gear and counter cover. On double spring

applications, repeat for left hand side.

Step 5: Remove the upper 5/16” x

1-5/8” lag screw from the right hand end

bracket (Fig. 5). Attach locking pliers to

the upper portion of the end bracket and

hold the housing steady while removing

the lower 5/16” x 1-5/8” lag screw and

#10 x 1/2” phillips head screw from the

end bracket (Fig. 6).

Step 6: Holding the right hand end

bracket steady with locking pliers,

carefully pry the end bracket and drive

gear off the winding shaft using a ﬂat tip

screwdriver (Fig. 7).

CAUTION: THE WINDING SHAFT MAY

ROTATE WHEN REMOVING THE END

BRACKET AND DRIVE GEAR.

Step 7: Repeat Step 4 for the left hand

side. Holding the left hand end bracket

steady with locking pliers, carefully pry

the end bracket off the winding shaft

using a ﬂat tip screwdriver (Fig. 7).

Step 8: Remove the two (2) lag bolts

attaching the center bracket assembly to

the header board (Fig. 8).

Step 9: Lift the right hand side of the

TorqueMaster® Spring Tube and slide the

cable drum off. Realign the groove in the

winding shaft with the radial notch in the

ﬂagangle and drape the counterbalance

cable with drum over the ﬂagangle. Lift

the left hand side of the TorqueMaster®

Spring Tube and slide the cable drum

and winding shaft off (Fig. 9). Drape the

counterbalance cable with drum over the

ﬂagangle. Lift the TorqueMaster® spring

assembly off the ﬂagangles and out of

the doorway. Unhook the counterbalance

cables from the bottom brackets and

remove all parts from the work area.

NOTE: The cable drums may be difﬁcult to

remove. If so, twist the cable drum to aid

in removal.

NOTE: Continue with “P4” on page 9 after

completing this step.

Fig. 5

Fig. 9

REMOVE TOP

LAG SCREW

Fig. 6

REMOVE

BOTTOM LAG

SCREW

USE LOCKING PLIERS

TO HOLD END BRACKET

REMOVE #10

PHILLIPS HEAD

SCREW

Fig. 7

PRY END BRACKET FROM WINDING

SHAFT USING A FLAT TIP SCREW

DRIVER AND LOCKING PLIERS

HOLD THE

END BRACKET

STEADY WITH

LOCKING PLIERS

REMOVE CABLE DRUM AND

WINDING SHAFT

DRAPE CABLE ACROSS

TOP OF FLAGANGLE

LIFT

TORQUEMASTER®

SPRING TUBE

OFF FLAGANGLE

TorqueMaster® Spring

Removal continued...

Recommended

tools from

page 5

Fig. 8

CENTER

BRACKET

ASSEMBLY

(2) 5/16” X 1-5/8”

HEX HEAD LAG

SCREWS

Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your local

yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com

Tools Needed:

PRE-INSTALLATION

Removing the Old Door

Extension Spring Removal

TOP BRACKET

HINGES

HORIZONTAL TRACK

BOTTOM SECTION

(DOOR OPEN)

CAREFULLY REMOVE “S”

HOOK AND COUNTREBALANCE

CABLE (REPEAT FOR THE

OPPOSITE SIDE)

HORIZONTAL ANGLE

REMOVE LAG SCREW

FROM SAFETY CABLE (IF

INSTALLED). REPEAT FOR

OPPOSITE SIDE.

Recommended

tools from

page 5

Recommended

tools from

page 5

Step 1: Raise the door to the fully open

position and place vice clamps to the back

legs of both vertical tracks, below the

bottom rollers to prevent the door from

falling. By opening the door you release

most of the spring tension. Carefully

unfasten the S-hook from the horizontal

angle. Remove cable, sheave and extension

spring. Repeat for the other side. If safety

cables are running through the extension

springs, remove them also. Remove parts

from work area.

Step 2: Holding door in the open position,

remove the vice clamps, be prepared

to support the entire weight of the door.

Garage doors can weigh 200-400 pounds.

With assistance, carefully lower the door, by

grasping the door ﬁrmly by it’s lift handles.

Do not place ﬁngers or hands near joints,

between sections, or between bottom of

door and ﬂoor. Otherwise, severe injury

could result.

NOTE: Continue with “P4” after completing

this step.

Having removed the counterbalance

system, the door can now be

disassembled.

Start by ﬁrst removing the top row of

hinges.

With assistance, hold the top section to

keep it from falling and remove the

top brackets. With assistance, lift the top

section out of the opening and remove

it from the work area. Repeat for all

remaining sections.

After door is disassembled, unbolt both

track assemblies from the jambs and

remove all material from the work area.

You can neatly dispose of the old door by

placing it in the carton of your new door.

Clean up area and complete “Preparing

the Opening” “P5” on page 10 before

installing the new door.

Tools Needed:

Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your local

yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com

Preparing the Opening

TRACK TYPE TorqueMaster®

15” Radius track 12-1/2” (318 mm)

Recommended

tools from

page 5

HEADROOM REQUIREMENT

BACKROOM REQUIREMENT

WEATHER SEAL

HEADROOM

BACKROOM

DOOR

WIDTH

DOOR HEIGHT

LEVEL HEADER

PLUMB JAMBS

HEADER BOARD

2” X 6” LUMBER

PREFERRED

SUITABLE MOUNTING

SURFACE 2” X 6”

LUMBER MINIMUM

HEADER

JAMB

QUICK INSTALL TRACK FULLY ADJUSTABLE TRACK

JAMB

WEATHER

SEAL

1/8” TO 1/4”

WEATHER

SEAL

JAMB

DOOR

STOP

DOOR

STOP

DOOR

SECTION

DOOR

SECTION

JAMB JAMB 1/8” TO 1/4”

DOOR HEIGHT TRACK MANUAL

LIFT

MOTOR

OPERATED

8’0” 15” Radius 110”

(2794 mm)

137”

(3479 mm)

If you just removed your existing door or you are installing a

new door, complete all steps in PREPARING THE OPENING.

To ensure secure mounting of track brackets, side

and center brackets, or steel angles to new or retro-ﬁt

construction, it is recommended to follow the procedures

outlined in DASMA Technical Data Sheets #156, #161 and

#164 at www.dasma.com.

The inside perimeter of your garage door opening should

be framed with wood jamb and header material. The jambs

and header must be securely fastened to sound framing

members. It is recommended that 2” x 6” lumber be used.

The jambs must be plumb and the header level. The jambs

should extend a minimum of 12” (305 mm) above the top of

the opening for TorqueMaster counterbalance systems. For

low headroom applications, the jambs should extend to the

ceiling height. Minimum side clearance required, from the

opening to the wall, is 3-1/2” (89 mm).

IMPORTANT: CLOSELY INSPECT JAMBS, HEADER AND

MOUNTING SURFACE. ANY WOOD FOUND NOT TO BE SOUND,

MUST BE REPLACED.

For TorqueMaster counterbalance systems, a suitable

mounting surface (2” x 4”) must be ﬁrmly attached to the

wall, above the header at the center of the opening.

NOTE: Drill a 3/16” pilot hole in the mounting surface to

avoid splitting the lumber. Do not attach the mounting

surface with nails.

Weather seal (may not be included) / Door stop:

Cut the weather seal or door stop (if necessary) to ﬁt header

and jambs.

For quick install track: Align the header seal with the inside

edge of the header and temporarily secure it to the header

with equally spaced nails. Next, ﬁt the jamb seals up tight

against the header seal and ﬂush with the inside edge of the

jamb. Temporarily secure the jamb seals with equally spaced

nails approximately 12” to 18”. This will keep the bottom

section from falling out of the opening during installation.

For fully adjustable track: Align the header seal 1/8” to

1/4” inside the header and temporarily secure it to the

header with equally spaced nails. Next, ﬁt the jamb seals

up tight against the header seal and 1/8” to 1/4” inside the

jamb. Temporarily secure the jamb seals with equally spaced

nails approximately 12” to 18”. This will keep the bottom

section from falling out of the opening during installation.

NOTE: Do not permanently attach weather seal or door stop

to the jamb at this time.

HEADROOM REQUIREMENT: Headroom is deﬁned as the

space needed above the top of the door for tracks, springs,

etc. to allow the door to open properly. If the door is to be

motor operated, 2-1/2” (64 mm) of additional headroom is

required.

NOTE: 6” LHR Conversion Kit is available for 12” Radius only.

Contact your local Wayne-Dalton dealer.

BACKROOM REQUIREMENT: Backroom is deﬁned as the

distance needed from the opening back into the garage to

allow the door to open fully.

Autres manuels pour 9800

Table des matières

Autres manuels Wayne-Dalton ouvre-porte de garage

Wayne-Dalton

Wayne-Dalton Quantum 3000 Series Guide de démarrage rapide

Wayne-Dalton

Wayne-Dalton 8000 Series Guide de démarrage rapide

Wayne-Dalton

Wayne-Dalton 9800 Guide de démarrage rapide

Wayne-Dalton

Wayne-Dalton 8000 Series Guide de démarrage rapide

Wayne-Dalton

Wayne-Dalton Prodrive 3220C Guide de démarrage rapide

Wayne-Dalton

Wayne-Dalton 9100 Guide de démarrage rapide

Wayne-Dalton

Wayne-Dalton TOROQUEMASTER PLUS Guide de démarrage rapide

Wayne-Dalton

Wayne-Dalton 800 Manuel utilisateur

Wayne-Dalton

Wayne-Dalton 7100 Series Guide de démarrage rapide

Wayne-Dalton

Wayne-Dalton 7400 Series Guide de démarrage rapide

Wayne-Dalton

Wayne-Dalton 105/110 Guide de démarrage rapide

Wayne-Dalton

Wayne-Dalton Quantum 3214 Guide de démarrage rapide

Wayne-Dalton

Wayne-Dalton 9100 Document technique

Wayne-Dalton

Wayne-Dalton Torquemaster Plus 8000 Manuel utilisateur

Wayne-Dalton

Wayne-Dalton TorqueMaster Plus 6100 Manuel utilisateur

Wayne-Dalton

Wayne-Dalton 8700 Manuel utilisateur

Wayne-Dalton

Wayne-Dalton 8100 Guide de démarrage rapide

Wayne-Dalton

Wayne-Dalton 8000 Series Guide de démarrage rapide

Wayne-Dalton

Wayne-Dalton Windload Post 9100 Manuel utilisateur

Wayne-Dalton

Wayne-Dalton 8000 Series Manuel utilisateur

Wayne-Dalton

Wayne-Dalton 8000 Series Guide de démarrage rapide

Wayne-Dalton

Wayne-Dalton 8300 Guide de démarrage rapide

Wayne-Dalton

Wayne-Dalton TORQUEMASTER 6100 Guide de démarrage rapide

Wayne-Dalton

Wayne-Dalton Torquemaster Plus Guide de démarrage rapide

Manuels ouvre-porte de garage populaires d'autres marques

Dorma

Dorma ES 90 Manuel utilisateur

Garaga

Garaga SECURITY+ 3265GCM 1HP Manuel utilisateur

Chamberlain

Chamberlain Whisper Drive SECURITY+ WD822K Series Manuel utilisateur

Chase Doors

Chase Doors DuraShield Manuel utilisateur

CSI

CSI Classic Manuel utilisateur

HATO

HATO 120 Manuel utilisateur

Chamberlain

Chamberlain Elite 3575S Manuel utilisateur

Richmond

Richmond GTR156 Manuel utilisateur

Raynor

Raynor 1280RGD Manuel utilisateur

CAME

CAME F4000 Series Manuel utilisateur

B&D

B&D Controll-A-Door 5 Manuel utilisateur

BFT

BFT PRV AA SL Manuel utilisateur

Craftsman

Craftsman 139.53924 Manuel utilisateur

Chamberlain

Chamberlain MyQ 940ESTD Manuel utilisateur

Automatic Technology

Automatic Technology GDO-9V1 SecuraLift Manuel utilisateur

Westfalia

Westfalia 19 36 07 Manuel utilisateur

Chamberlain

Chamberlain HD520EVP Manuel utilisateur

Cardin

Cardin BL Series Manuel utilisateur
