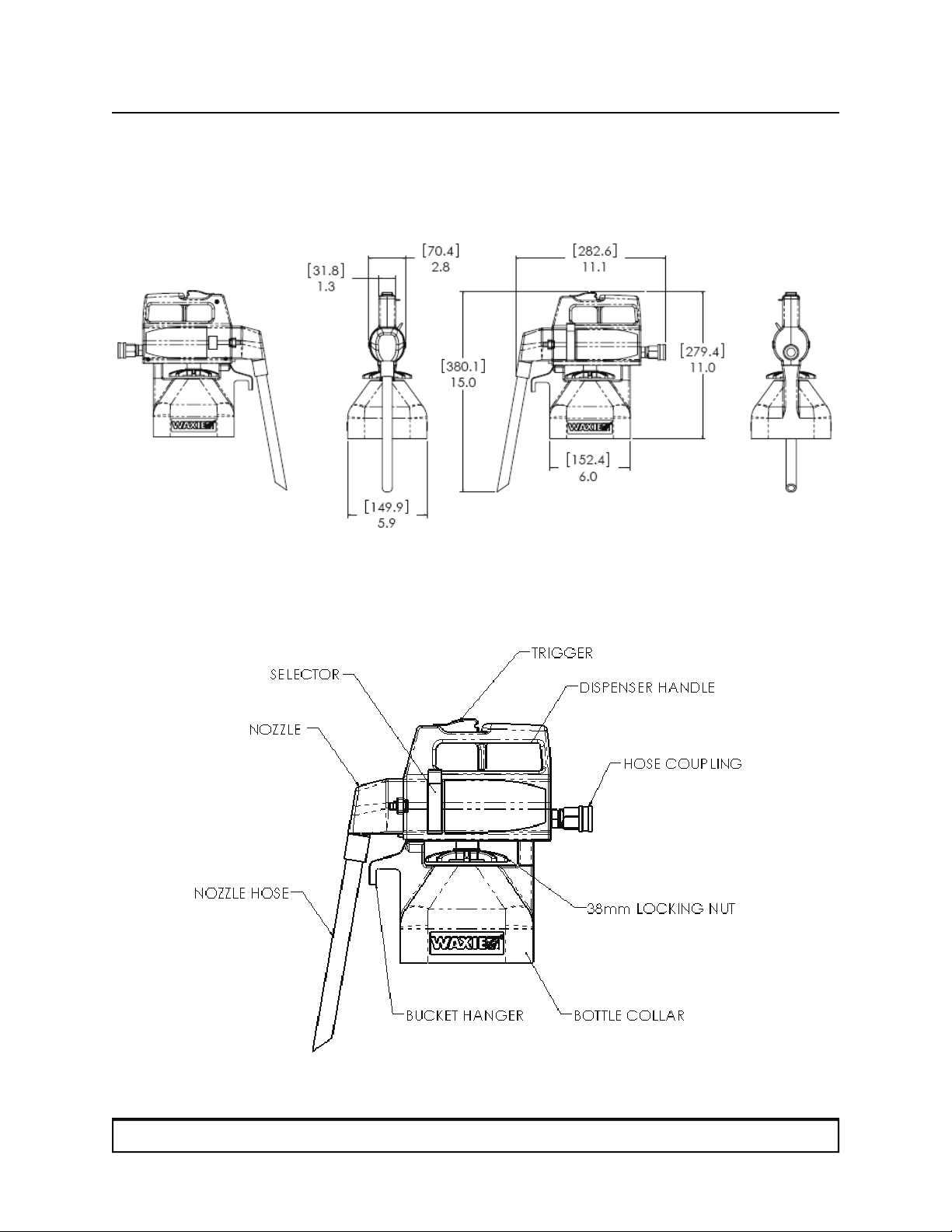

DISPENSER SET UP
(1) Set up hose and accessories as required to the spigot at the water source.
(2) Next, attach the male hose end to the female garden hose coupling end of the Dispenser. Make sure that the
coupling and the hose end are securely fastened.
(3) Turn Dispenser selector to one of the three flow positions. Make sure that the selector is positioned completely
to the bottle (1 GPM) position, the bucket (4 GPM) position, or water only position.
(4) Slowly turn water supply on. Check and correct connections if water leaks occur.
(5) While holding the handle of the dispenser, press the trigger and check for water flow out of the dispenser nozzle.
(6) If water flows, the dispenser is ready to use.
DISPENSER OPERATION
(1) Select required liquid container for use.
(2) Hold dispenser with nozzle end forward.
(3) Next, orient the liquid container with the bottle handle toward the rear side of the dispenser. (Note: Rear side of
the dispenser is the hose attachment side.)
(4) Next, press dispenser down over the container until bottleneck and dispenser locking nut engages.
(5) While pressing lightly, turn locking nut clockwise approximately 1.5 turns or until lock nut is snug. There is no
need to over tighten the locking nut.
(6) For chemical dispensing, select either the bottle (1 GPM) position or the bucket (4 GPM) position. Make sure the
selector is set to the extreme end of movement at either dispensing positions.
• Bottle dispensing
• Set selector to bottle filling position
• Insert nozzle hose of dispenser into the neck of the bottle to be filled. Make sure that the lip of
the bottleneck is never sealed so air could escape out of bottle during filling.
• Press trigger to dispense and fill bottle.
• Release trigger when bottle is filled
• Bucket dispensing
• Set selector to bucket filling position
• Place dispenser on the side of bucket using the hook to hang the dispenser. Orient dispenser
with nozzle facing inside of bucket and the bottle on the out side of bucket.
• Press trigger to dispense and fill bucket.
• For continuous flow, push the lock forward while the trigger is press. This will engage and hold
the trigger down.
• To shut off the dispenser, pull back the lock to release the trigger.
(7) Removing chemical container from dispenser
• Turn locking nut counter-clockwise approximately 1.5 turns. Pull container away from dispenser.
(8) Purging residual chemical from dispenser:
• Remove chemical container, set selector in bottle or bucket fill position, set dispenser over drain, and
press trigger to flush water through dispenser.
(9) Disconnecting the dispenser:
• Shut off water supply, press trigger to release pressure, and disconnect hose connection where
appropriate.
