Waves CA2000 Manuel utilisateur

Waves CA2000

Commercial Audio DSP Engine

Getting Started Guide

Waves CA2000 / User Guide

Waves CA2000

Waves CA2000 is designed to dramatically improve audio quality and clarity in AV installations. It integrates easily

into an audio system using Dante®audio networking.

The CA2000 can process up to 64 bidirectional (64x64) audio channels. The DSP processing engine uses the

Waves SuperRack application, which is fully integrated to run natively on the CA2000.

There are seventeen audio processing presets, each designed for professional AV installations, are included; they

address challenges of playback quality, speech intelligibility, feedback suppression, and voice processing without

loss of tonality, among others. The presets are based on over two dozen low-latency Waves premium plugins. They

can be used with their factory settings or modified and saved as user presets for quick access to your custom

settings.

Dante network audio channels are supported through the integrated Dante Virtual Soundcard driver (DVS), and

audio can be routed easily to and from the CA2000 using the Dante network controller.

The CA2000 is physically rugged and operationally robust and is designed for surface or rack-mount installations.

The hardware features include:

Intel®i5 8500 Processor

16 GB DDR4 RAM

256 GB SSD internal storage

2 HDMI ports, 1 DisplayPort

2 Ethernet ports (one EtherCON connector and one RJ45 connector)

8 USB-2/USB-3 ports, 1 USB-C port

Rack-mountable case, 2U half-rack

Waves CA2000 / User Guide

Connections and Controls

Front Panel

Power switch and light

Hold for five seconds to shut down.

Computer reset switch

Hard reset: restarts the computer.

Two USB-3 ports

These ports support any USB-3 compatible external drive. Removable

flash drives are limited to 32 GB in these ports.

Fan grill

Do not block fan grills on front or back panels.

Waves CA2000 / User Guide

Real Panel

Power connector (C13) 110–220 volt auto-switching

Four USB-3 ports

Two USB-2 ports

One USB-C port

Waves CA2000 / User Guide

Two HDMI ports

The HDMI ports and the DisplayPort can be used

interchangeably, depending on display connections

and adaptors. The ports support resolutions from

1280x768 to 1920x1080.

One DisplayPort

Gigabit Ethernet port, RJ-45

connector

RJ-45 Gb Ethernet connector. Either this port or the

EtherCON connector (see “8” below) may be used for

connection to the Dante network.

Gigabit Ethernet port, EtherCON

connector

EtherCON connector: either this port or the standard

RJ-45 connector (see “7” above) may be used for

connection to the Dante network.

Waves CA2000 / User Guide

Setup Guide

Follow these steps to prepare the CA2000 for operation in an AV installation with a Dante network audio.

HARDWARE CONNECTIONS

1. Connect the power cables to mains. For the computer and all devices use the enclosed power cables.

2. Connect the keyboard and mouse (used for CA2000 setup and configuration).

3. Connect one of the LAN Ethernet ports to the switch on the Dante audio network.

4. Connect up to two displays to the video ports. There is one HDMI port and one DisplayPort.

WAVES CA2000 SOFTWARE

The Waves CA2000 comes with the software activated and is ready to use. The following applications are

included with the Waves CA2000 system:

•Waves SuperRack

•Audinate Dante Virtual Soundcard (DVS)

Waves plugins that are used in the Waves CA preset library are installed and activated on the CA2000.

Routing Setup

All devices should be properly connected and powered on. The CA2000 will automatically load all required drivers

and software and launch SuperRack.

Channel Patching and Routing Overview

All audio channels are routed to and from the CA2000 using the Dante network. Audio channel routing is completed

using the internal rack audio patching on SuperRack and the external Dante patching, using the Dante Controller (or

another compatible routing application).

Waves CA2000 / User Guide

Routing Dante Channels to the CA2000 Using Dante Controller

The CA2000 appears on the Dante Controller application as a 64x64 channel device. The Routing View window is a

common way to create audio routes in Dante, as shown below. Refer to the Audinate website ( www.audinate.com)

for more information.

CA2000 Tx/Rx channels (64x64):

the first sixteen channels are

shown in this image.

Patches select routing between

Dante network devices

Waves CA2000 / User Guide

Routing Dante Channels to CA2000 SuperRack Channels

Now you’re ready to route the Dante channels in SuperRack. A rack must be routed to an input and an output Dante

channel. Rack input and output routing is done in the SuperRack Rack window or Overview window. In the following

example, we will route rack input from a Dante channel to a single rack in the Rack window. Use the tab at the top to

open the Rack window.

SUPERRACK CHANNEL ASSIGNMENT

Select a rack.

Click on the Input arrow. This opens the Input

Device Assignment menu.

Select an input format (e.g., mono, Stereo,

5.0).

Select an input audio channel. Note that

channels are displayed in the “Dante Virtual

Soundcard.”

Rack outputs are routed in the same manner.

Confirm the routing in the Dante Controller for the network devices that will be connected to and from the CA2000.

Waves CA2000 / User Guide

Inserting the CA2000 Presets (Plugin Chains)

Each plugin rack can support a single Waves CA preset. A preset includes several plugins, which are automatically

loaded when the preset is selected.

SUPERRACK RACK MENU

1. To insert a preset in a rack, click on the down arrow

(Rack window). This opens the drop-down menu.

2. Select “Factory Presets”, then “Waves CA Presets”.

3. Choose a preset category, then the desired preset.

Waves CA2000 / User Guide

Please refer to the Waves SuperRack user guide for comprehensive instructions about setting up and using the

Plugin rack. Download user guides for Waves plugins from the Waves Download Pages.

Waves CA Preset Descriptions (Plugin Chains)

The Waves CA Presets are arranged in four groups in SuperRack. The groups and corresponding presets are shown

below:

•Main Outs

oMain Out PA

oMain Out PA with Subs

•Master Out Streaming

oMain Out Generic

oMain Out Streaming 1

oMain Out Streaming 2

oPodcast Master

•Mic Speech Inputs

oHandheld Mic

oHead-worn Omni Mic

oLav Mic

oPodcast Chain

oQA Mic

oSpeech Mic

Autres manuels pour CA2000

Table des matières

Autres manuels Waves Équipement d'enregistrement

Waves

Waves dspro STAGERGRID 4000 Manuel utilisateur

Waves

Waves NLS Manuel utilisateur

Waves

Waves DSPro StageGrid 4000 Manuel utilisateur

Waves

Waves EMO D5 Manuel utilisateur

Waves

Waves MIDIPLUS FIT Manuel utilisateur

Waves

Waves IONIC 16 Manuel utilisateur

Waves

Waves SoundStudio STG-2412 Manuel utilisateur

Waves

Waves WSG-Y16 Manuel utilisateur

Waves

Waves CLA EFFECTS Manuel utilisateur

Waves

Waves KRAMER MPX MASTER TAPE Manuel utilisateur

Waves

Waves API 560 Manuel utilisateur

Waves

Waves Roland XI-WSG Manuel utilisateur

Waves

Waves CLA Nx Manuel utilisateur

Waves

Waves DiGoGrid IOX Manuel utilisateur

Waves

Waves DiGiGrid IOC Manuel utilisateur

Waves

Waves JJP Manuel utilisateur

Waves

Waves Abbey Road Vinyl Manuel utilisateur

Waves

Waves WSG HY128 Manuel utilisateur

Waves

Waves ABBEY ROAD J37 Manuel utilisateur

Waves

Waves Hear Back PRO SoundGrid Card Manuel utilisateur

Waves

Waves LIVE Calrec SoundGrid Manuel utilisateur

Waves

Waves ELEMENT 2.0 Manuel utilisateur

Waves

Waves BASS RIDER Manuel utilisateur

Waves

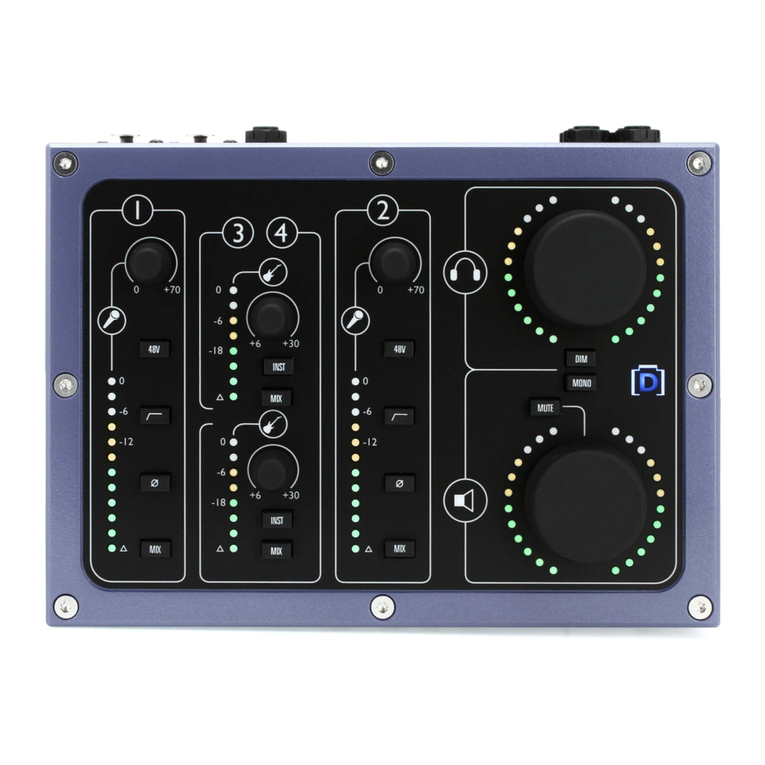

Waves DigiGrid D Manuel utilisateur
