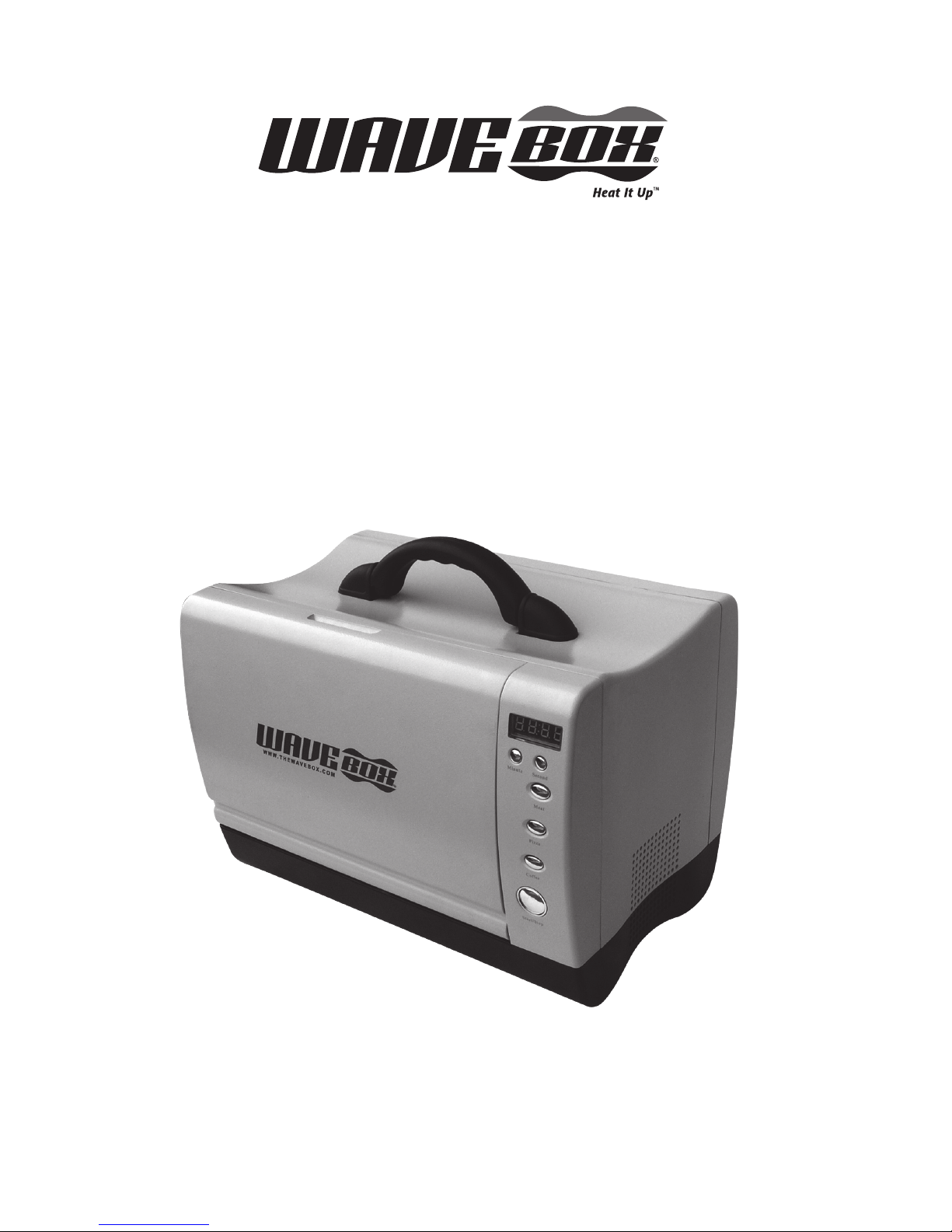

WaveBox WBP-TP-660 Manuel utilisateur

The WaveBox®

The worlds rst portable microwave oven

with removable cooler

and exclusive Tri-Power capability

Model No. WBP-TP-660

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO

EXCESSIVE MICROWAVE ENERGY

1. Do not attempt to operate this oven with the door open since

open-door operation can result in harmful exposure to

microwave energy. It is important not to defeat or tamper

with the safety interlocks.

2. Do not place any object between the oven front face and the

door or allow soil or cleaner residue to accumulate on sealing

surfaces.

3. Do not operate the oven if it is damaged. It is particularly

important that the oven door close properly and that there is

no damage to the:

a) Door (bent).

b) Hinges and latches (broken or loosened).

c) Door seals and sealing surfaces.

4. The oven should not be adjusted or repaired by anyone except

properly qualied service personnel.

DECLARATION OF CONFORMITY

The Frank Group Microwave Oven,

WaveBox® Model WBP-TP-660

This device complies with Part 18 of the FCC Rules. Operation is

subject to the following two conditions:

(1)This device may not cause harmful interference, and (2) this

device must accept any interference received, including interference

that may cause undesired operation.

RESPONSIBLE PARTY:

The Frank Group

1065 Columbine Road

Asheville, NC 28803, USA

Tel: 952-944-0001

Contents

Introduction……………………………………………………......4

Features…………………………………………………………..5

Important Safety Instructions………………………………………6

Unpacking and Accessories………………………………………7

Grounding Instructions and Installation……………………………8

Operation…………………………………………………………9

Cooking Times…………………………………………………....13

Safety…………………………………………………………….14

Care and Cleaning………………………………………………..16

Trouble Shooting……………………………………..………….17

Specifications……………………………………………………18

Warranty…………………………………………………………19

Introduction

First of all, thank you for purchasing the WaveBox®. We truly

value your business, and will do all we can to make sure you are

more than satised with your purchase.

The WaveBox® was designed by users like you to make possible

fresh hot and cold food and beverages from home in their busy

lifestyles. At work or at play, the WaveBox® enables you to pack,

keep cool, and heat things up when its time to eat.

We want you to enjoy food from home whenever you are on the go.

It’s a healthier, cheaper alternative to eating out.

Healthy food. Healthy people. Healthy world.

Enjoy, and let us know how we’re doing.

www.thewavebox.com

Warning:

Changes or modifications to this unit not expresslyapproved by the

party responsible for compliance could void the user's authority to

operate the equipment.

Features

• Lightweight, compact, and completely portable

• Powered by AC, DC direct to battery, or DC thru a power

outlet

• Built to withstand daily portability

• Removable cooler system

• Heavy duty handle system

• Removable plug-in AC cord system

• Direct to Battery DC Cable with two alligator clamps

• Power Outlet DC Cable with a cigarette lighter plug

• LED display

Rear View

Sliding Cover

DC Position AC Position

1. Read all Instructions before using this

appliance.

2. Read and follow the specic

"PRECAUTIONS TO AVOID

POSSIBLE EXPOSURE TO

EXCESSIVE MICROWAVE ENERGY"

found on page 2.

3. This appliance must be grounded.

Connect only to a properly

grounded outlet.See "GROUNDING

INSTRUCTIONS" found on page 8.

4. Install or locate this appliance only

in accordance with the provided

installation Instructions.

5. Some products such as whole eggs and

sealed containers-for example,closed

glass jars-are able to explode and should

not be heated in this oven.

6. Use this appliance only for its intended

use as described in this manual.Do not

use corrosive chemicals or vapors in this

appliance. This type of oven is specically

designed to heat,cook,or dry food.It is not

designed for industrial or laboratory use.

7. As with any appliance, close

supervision is necessary when used by

children.

8. Do not operate this appliance if it

has a damaged cord or plug,if it is not

working properly,or if it has been damaged

or dropped

9. This appliance should be serviced only

by qualied service personnel.Contact

the nearest authorized service facitity for

examination,repair or adjustment.

10.Do not cover or block any openings

or vents on this appliance.

11.Do not store this appliance outdoors.

Do not use this product near water-

for example,near a kitchen sink,in a wet

basement,near a swimming pool,or similar

locations.

12.Do not immerse cord or plug in

water.

13.Keep cord away trom heated

surfaces.

14.Do not let cord hang over edge of

table or counter.

15.When cleaning surfaces of door and

oven that comes together on closing

the door, use only mild,nonabrasive soaps

or detergents applied with a sponge or soft

cloth.

16.To reduce the risk of re in the oven

cavity:

(a) Do not overcook food.Carefully attend

appliance when paper, plastic, or other

combustible materials are placed inside the

oven to facilitate cooking.

(b) Remove wire twist-ties from paper or

plastic bags before placing bag in oven.

Do not heat Chinese food containers or foil

lined bags.

oven door closed, turn oven off,and

disconnect the power cord,or shut off

power at the fuse or circuit breaker panel.

(d) Do not use the cavity for storage

purposes.Do not leave paper

products,cooking utensils,or food in the

cavity when not in use.

17.Liquids,such as water,coffee,or tea

are able to be overheated beyond

the boiling point without appearing to

be boiling.Visible bubbling or boiling

when the container is removed from the

microwave oven is not always present.

THIS COULD RESULT IN VERY

HOT LIQUIDS SUDDENLY BOILNG

OVER WHEN THE CONTAINER

IS DISTURBED OR A SPOON OR

OTHER UTENSIL IS INSERTED INTO

THE LIQUID.

To reduce the risk of injury to persons:

(a) Do not overheat the liquid.

(b) Stir the liquid both before and halfway

through heating it.

with narrow necks.

(d) After heating,allow the container to

stand in the microwave oven for a short

time before removing the container.

(e) Use extreme care when inserting a

spoon or other utensil into the container.

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

WARNING:Changes or modifications to this unit

not expressly approved by the party responsible for

compliance could void the user's authority to operate

the equipment.

Unpacking and Accessories

Unpack all accessories from inside the cooking cavity, including:

• Cooler Insert

• AC Power Cord

• DC Direct To battery Cable

• DC Power Outlet Cable

• Plastic Cooking Rack with Ceramic Plate.

Store the 2 DC cables in a convenient location to be used with any

DC battery source. Use the cooler insert to pack food and beverage

inside the cooking cavity and keep it cold until you are ready to

heat things up. Be sure remove food from the cooler before placing

food in the oven. The included cooking rack improves cooking

performance and is especially designed for microwave popcorn.

TO REPLACE ANY OF THESE ACCESSORIES, PLEASE

VISIT:

www.thewavebox.com

NOTE: DO NOT store the AC or DC cables and in the cooler insert

as they may become soiled with use. They were placed in

the cooler insert for initial transportation purposes only.

NOTE: Use of the cooking rack in all cooking modes will enable

faster heating of items.

GROUNDING INSTRUCTIONS -A.C.MODE

This appliance must bo grounded.In the event of an electrical short circuit,

grounding reduces the risk of electric shock by providing an escape wire for the

electric current. This appliance is equipped with a cord having a grounding wire

with a grounding plug.The plug must be inserted into an outlet that is properly

installed and grounded.

WARNING:Improper use of the grounding plug can result in a risk of electric

shock.Consult a qualified electrician or service person if the

grounding instructions are not completely understood,or if doubt

exists as to whether the appliance is properly grounded.

If it is necessary to use an extension cord,use only a three wire

extension cord that has a three blade grounding plug,and three

slot receptacle that will accept the plug on the appliance.The

marked rating of the extension cord should be equal to or greater

than the electrical rating of the appliance.

INSTALLATION

1.Steady, at location: When positioning the microwave oven, it should be set on

a at, steady surface.

2.Ventilation: Do not block air vents. If they are blocked during operation, the

oven may overheat and eventually cause oven failure. For proper ventilation,

keep 3 inches of space between the oven's top, sides, rear and the areas where

the unit is to be installed.

3.Radio and TV reception: Poor television reception and radio interference may

result if the oven is located close to a TV, radio, antenna or antenna wire.

Positlon the oven as far from them as possible.

4.Power supply: A.C. Mode

•Check your local power source. This microwave oven requlres a 120V, 60Hz

power supply.

•Use a receptacle that will accept the ground prong.

A.A short power supply cord is provided to reduce the risks resulting from

becoming entangled in or tripping over a longer cord.

B.Longer cord sets or exercised cords are available and may be used if care is

exerclsed in their use.

C.If a long cord or extension cord is used. (1)the marked electrical rating of the

cord set or extension cord should be at least as great as the electrical rating

of the appliance. (2)the extension cord must be a grounding type 3 wire cord

and. (3)the longer cord should be arranged so that it will not drape over the

counter top or tabletop where it can be pulled on by children or tripped over

unintentionally.

5.Examine the oven for any damage such as:Dents, a misaligned door, broken

door or a dent in the cavity. If any of the above are visible,

DO NOT INSTALL THE UNIT.

Notify the dealer immediately.

GROUNDING INSTRUCTIONS -A.C.MODE

This appliance must bo grounded.In the event of an electrical short circuit, grounding reduces the

risk of electric shock by providing an escape wire for the electric current This appliance is equipped

with a cord having a grounding wire with a grounding plug.The plug must be inserted into an outlet

that is properly installed and grounded.

WARNING:Improper use of the grounding plug can result in a risk of electric shock.Consult a

qualiﬁed electrician or service person if the grounding instructions are not completely

understood,or if doubt exists as to whether the appliance is properly grounded.

If it is necessary to use an extension cord,use only a three wire extension cord that has

a three blade grounding plug,and three slot receptacle that will accept the plug on the

appliance.The marked rating of the extension cord should be equal to or greater than

the electrical rating of the appliance.

INSTALLATION

1.Steady, ﬂat location: When positioning the microwave oven, it should be set on a ﬂat, steady

surface.

2.Ventilation: Do not block air vents. If they are blocked during operation, the oven may overheat

and eventually cause oven failure. For proper ventilation, keep 3 inches of space between the

oven's top, sides, rear and the areas where the unit is to be installed.

3.Radio and TV reception: Poor television reception and radio interference may result if the oven

is located close to a TV, radio, antenna or antenna wire. Positlon the oven as far from them as

possible.

4.Power supply: -A-C, Mode

.Check your local power source. This microwave oven requires a 120V, 60Hz, power supply.

.Use a receptacle that will accept the ground prong.

A.A short power supply cord is provided to reduce the risks resulting trom becoming entangled in or

tripping over a longer cord.

B.Longer cord sets or exercised cords are available and may be used if care is exerclsed in their use.

C.If a long cord or extension cord is used. (1)the marked electrical rating of the cord set or extension

cord should be at least as great as the electrical rating of the appliance. (2)the extension cord

must be a grounding type 3 wire cord and. (3)the longer cord should be arranged so that it will

not drape over the counter top or tableop where it can be pulled on by children or tripped over

unintentionally.

5.Examine the oven for any damage such as:Dents, a misaligned door, broken door or a dent in the

cavity. If any of the above are visible, DO NOT INSTALL THE UNIT.

Notify the dealer immediately.

When using a 3-pronged plug

3-pronged plug

3-pronged

receptacle

Receptacle

Box Cover

When using a grounding adapter,

make sure the receptacle box is fully

grounded.

Grounding lead

Grounding

Adapter Receptacle

Box Cover

screw

receptacle

NOTE: Use of Grounding Adaptors

is prohibited in Canada

Operation

Power On

Connect the WaveBox to a single power source of your choice:

AC: Plug into any standard 120V, 60Hz grounded AC power outlet. This power source

delivers optimum performance.

-OR-

DC Battery direct connect: Use ONLY the supplied DC direct connect cable with

“alligator” clips to connect direct to any 12V automotive or marine type battery. This

power source delivers optimum performance.

-OR-

DC power outlet connect: Use ONLY the supplied DC power outlet cable to connect

thru any standard 12V power outlet(20A minimum) or “cigarette lighter connection” in

your vehicle. This power source is very convenient, but sacrices some cooking speed.

NOTE: A SPARK MAY OCCUR WHEN CONNECTING THIS MICROWAVE TO

A POWER SOURCE. THIS IS A NORMAL PHENOMENON AND DOES NOT

INDICATEA DEFECTIVE APPLIANCE.

Please only connect to a DC power outlet rated at 20amps or higher. Information on the

amp rating for all your vehicle’s power outlets can be found in the users manual under “fuse

diagram”.

The WaveBox is built to be operated with the vehicle running to reduce the risk of

unintended battery drain, and to deliver maximum cooking power.

NOTE: Do not connect the WaveBox® to more than a single power source at any given

time. It will not operate. After connecting your WaveBox® to a single power source, the

unit will beep to let you know it is ready for use, displaying zeros in the display window.

The WaveBox® is now ready for operation.

NOTE:For DC operation be sure to maintain correct polarity.The WaveBox will not

operate with reverse polarity.To rectify,simply connect using correct polarity.Red alligator

clip to positive (+)battery post,and Black alligator clip to negative(-)battery post.

Some foreign cars and trucks employ a positive ground design.The WaveBox will

not operate using a positive ground connection.If in doubt,consult with your vehicle's

dealership.

When connecting to an automobile,small truck, boat or van,the engine should be running

in order to prevent discharge of the battery to a point where the vehicle will not start.

Connect the alligator clips to the vehicle's battery,start the vehicle's engine,and then

operate the WaveBox.To disconnect the WaveBox,shut off the vehicle's engine,and remove

the alligator clips from the vehicle's battery.Do not connect or disconnect the alligator

clips with the engine running.

When connecting to large trucks,motor homes or buses the unit may be used without

running the engine.

CAUTION:NOT FOR USE IN AIRCRAFT.

MINUTE SECOND

PIZZA

COFFEE

POPCORN

START/STOP

Control Panel

COUNT DOWN

COOKING TIMER

(20 MIN.MAX.)

COOK TIME BUTTONS

PRE-SET TIME BUTTONS

FOR POPULAR FOODS

START/STOP BUTTON

CONTROLS OVEN

OPERATION AND CHILD

LOCK FEATURE

PULL FORWARD TO

OPEN OVEN DOOR

Caution: Do not place any objects on the door while it is open,

Damage to the door sealing surfaces may result.

Autres manuels pour WBP-TP-660

Table des matières

Autres manuels WaveBox Four à micro-ondes

WaveBox

WaveBox WBP-TP-660 Manuel utilisateur

Manuels Four à micro-ondes populaires d'autres marques

Daewoo

Daewoo KOG-574R0S Manuel utilisateur

LG MH7040SS Manuel utilisateur

Sharp

Sharp R-895(AL)M Manuel utilisateur

Dometic

Dometic DOTRM13W Manuel utilisateur

Sanyo

Sanyo EM-X680 Manuel utilisateur

Sharp

Sharp R-393M Manuel utilisateur

KitchenAid

KitchenAid KMCX4510 Instructions d'installation

Smeg

Smeg S45MCX1 Manuel utilisateur

Russell Hobbs

Russell Hobbs RHM2044 Manuel utilisateur

Sunbeam

Sunbeam SMW759 Manuel utilisateur

Gallet

Gallet FMOE230S Manuel utilisateur

Bosch

Bosch CEG732X.1B Manuel utilisateur

Dometic

Dometic Roadmate 230 Manuel utilisateur

Samsung

Samsung SJ0396W Manuel utilisateur

Sanyo

Sanyo EM-P494WS Manuel utilisateur

Sharp

Sharp R-240 Manuel utilisateur

Electrolux

Electrolux EMS2840 Manuel utilisateur

Daewoo

Daewoo KOC-984T2S13 Manuel utilisateur
