This is what P settings will be displayed on the LCD touch screen on the
receiver as shipped from Wave Central.
The next steps:
Prior to the sales process and subsequent purchase(s) all aspects of your
expectation of this receiver and any other Wave Central products in your
operational environment will have been fully explored. Most of the AX S
receivers are part of a system consisting of a camera transmitter(s),
camera paint and antennas. The antenna system requires the use of Block
Down Converters (BDC). ntermediate Frequencies (70-850MHz) are
specific for the operating band (5.8GHz) in this receiver as described in this
document.
This receiver is recommended to be operated in a cool dry controlled
environment where partible. t is not water proof.

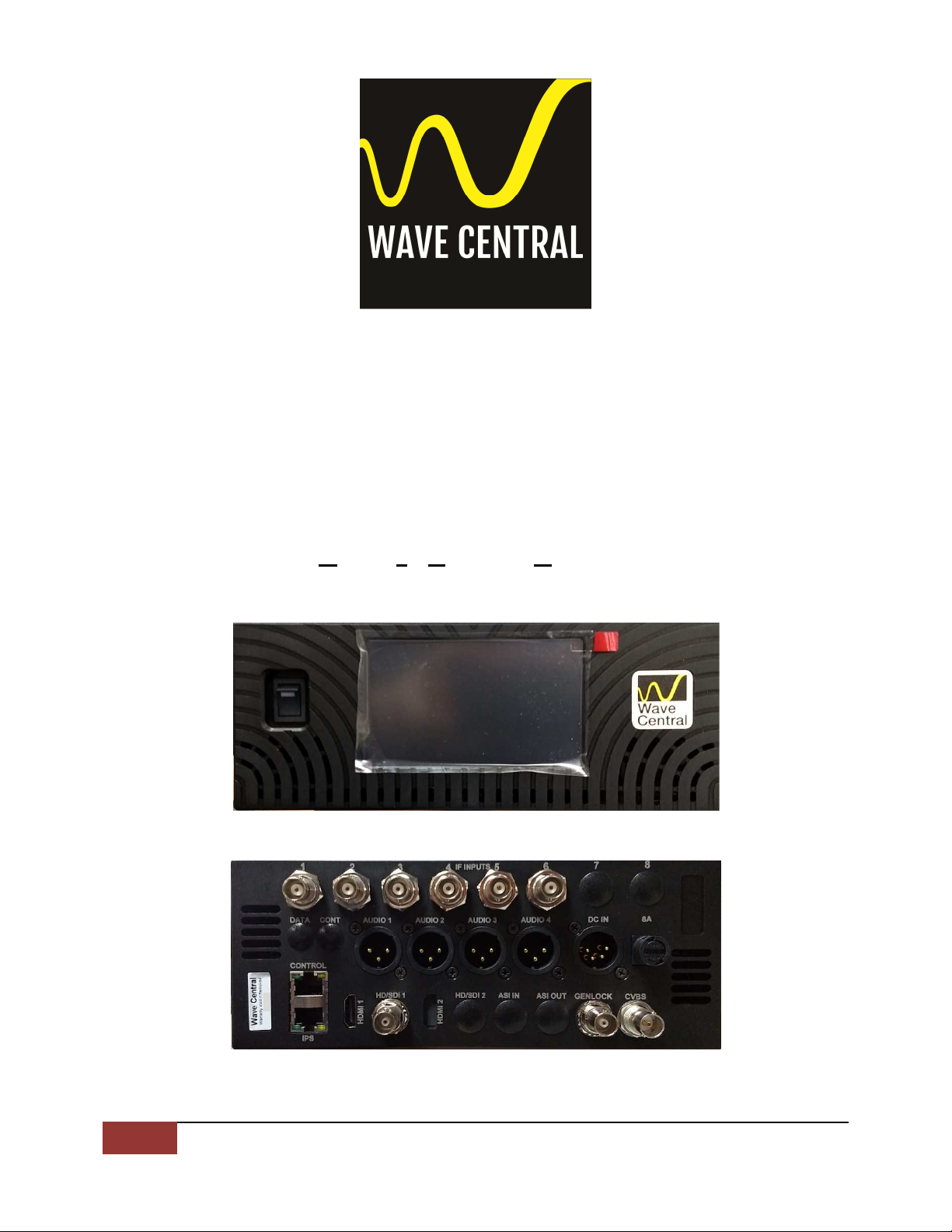

Connections to and from the receiver are via supplied external 12 VDC
power supply, Ethernet, XLR analog audio and BNC 50 Ohm female F nput
(1-8) BDC bulk head connectors. Coax cable from the BDC is cable with 50
Ohm BNC connectors. Wave Central recommends Belden 1694A. Pre-
made and tested F cables are available from Wave Central for an
additional charge.
All video in and out coax cable connectors are 75 Ohm. Particular attention
MUST be adhered to when using coax connectors. The 50 & 75 Ohm
connectors are different. Pairing a connector with the incorrect mate can
cause damage to the connector and reduce efficiency of the circuity
involved.
