Contents

Getting Started ................................................................................................................................................................4

Overview of the Wattbike monitor....................................................................................................................................... 4

Keypad...................................................................................................................................................................................... 4

Connections ............................................................................................................................................................................ 5

Main menu............................................................................................................................................................................... 5

Quick Start guide to Main Menu options............................................................................................................................. 6

Just Ride...........................................................................................................................................................................6

Default Riding Views................................................................................................................................................................................ 8

Polar Graph, Current Power & Average Power.....................................................................................................................8

Polar Graph, Peak Force Angle & Left/Right %......................................................................................................................8

Current Power, Average Power, Peak Power & Power per Kilo........................................................................................8

Kcal per Hour, Total Kcal & Kcals per Revolution.................................................................................................................9

Speed, Distance, Average Speed & Average RPM ................................................................................................................9

Pace per Kilometre, Distance & Average Pace per Kilometre...........................................................................................9

Alternate Riding Views .......................................................................................................................................................................... 10

Power.............................................................................................................................................................................................10

Energy ...........................................................................................................................................................................................10

Pace................................................................................................................................................................................................10

Speed.............................................................................................................................................................................................11

Symmetry.....................................................................................................................................................................................11

Polar ...............................................................................................................................................................................................11

Riding Screen Sub-Views...................................................................................................................................................................... 12

Speed, Distance & Pace Sub View..........................................................................................................................................12

Speed, Distance, Peak Power & Power per Kilo Sub View...............................................................................................12

Speed, Distance, Peak Power & Peak RPM...........................................................................................................................12

Speed, Distance, Average Speed & Average RPM ..............................................................................................................13

Speed, Distance & Average Pace per Kilometre.................................................................................................................13

Speed, Distance & Kcals per Revolution...............................................................................................................................13

Real Time Summary View .................................................................................................................................................................... 14

Measurement Unit Options in Just Ride.......................................................................................................................................... 15

Workouts/Tests Menu ..................................................................................................................................................16

Standard Timed Workouts.................................................................................................................................................................... 16

Standard Distance Workouts ................................................................................................................................................................17

Create New Workout.............................................................................................................................................................................. 19

Intervals – Timed .......................................................................................................................................................................19

Intervals - Distance....................................................................................................................................................................19

Intervals – Varied....................................................................................................................................................................... 20

Favourites .................................................................................................................................................................................................. 21

Tests ............................................................................................................................................................................................................ 23

Power Peak Test......................................................................................................................................................................... 24

Pedal Technique Test ............................................................................................................................................................... 24

Ramp Test.................................................................................................................................................................................... 24

Link HR Belt................................................................................................................................................................... 25

Recall.............................................................................................................................................................................. 26

Graphical View............................................................................................................................................................................31

Race Detailed View ....................................................................................................................................................................31

Users .............................................................................................................................................................................. 32

Add a User ............................................................................................................................................................................. 32

Delete a User ......................................................................................................................................................................... 32

User Log In ............................................................................................................................................................................ 33

User Log Out ......................................................................................................................................................................... 33

Using a USB stick .............................................................................................................................................................34

First Time Use ....................................................................................................................................................................... 34

Inserting a USB stick ............................................................................................................................................................ 35

User Statistics ........................................................................................................................................................................ 36

User Profile .............................................................................................................................................................................37

Profile data ...................................................................................................................................................................................37

Detailed data............................................................................................................................................................................... 38

Stored Heart Rate & Chest belt link data............................................................................................................................. 38

Race .............................................................................................................................................................................. 39

Create Race............................................................................................................................................................................ 39

Join Race ............................................................................................................................................................................... 40

Default Race View..................................................................................................................................................................41

Settings ......................................................................................................................................................................... 42

Measurement settings.......................................................................................................................................................... 42

Display settings ..................................................................................................................................................................... 42

Sound settings ...................................................................................................................................................................... 43

Device settings...................................................................................................................................................................... 43

Setting the Zero State .......................................................................................................................................................... 43

Reset all States ...................................................................................................................................................................... 44

Set Time & Date .................................................................................................................................................................... 45

Properties ..................................................................................................................................................................... 46

General................................................................................................................................................................................... 46

Bike ......................................................................................................................................................................................... 46

Memory.................................................................................................................................................................................. 46

Battery.................................................................................................................................................................................... 47

Device Usage & Care .................................................................................................................................................. 47

Battery Charging Information............................................................................................................................................. 47

Safety Information................................................................................................................................................................ 47

Heart Rate Monitor compatibility....................................................................................................................................... 47

Monitor Menu Map ..................................................................................................................................................... 48

Getting Started

Overview of the Wattbike Monitor

Keypad

ESC – One step backwards / Back / No

Arrow Keys – Up, Down, Left, Right menu & tab navigation

Enter – Select an item / Start / Done / Proceed / Yes / Delete / Log in / Switch

Menu – Open drop down options (if available)

Connections

USB Type B – Connect your WBM to your PC

Sensor – Connect your WBM to the bike

USB Type A – Connect a memory stick to your WBM

RJ45 / Ethernet – Connect your WBM to another WBM

Reset – Push button to reset the device restoring factory defaults

Charger – Connect your WBM to the supplied power adaptor

Main Menu

To power up the Wattbike computer either press the power button or start turning the pedals. After the

boot up logo you will see the MAIN MENU (ﬁg 0.1)

ﬁg 0.1

Quick Start guide to Main Menu options

Just Ride – No pre-set workouts to conﬁgure just get on enter your weight and begin riding. At the

end of a Just Ride session, your workout data will be stored.

Link HR Belt – Discover and pair a Polar, Garmin or Suunto chest belt.

Users – Log in to user proﬁle here. Add and delete user proﬁles.

Settings – Conﬁgure the Wattbike monitor measurement, display, sound and device settings to your

preferences.

Workout/Tests – Create and set up workouts for a time or distance based session, save to favourites.

Re-ride last or past workouts or perform any one of eight pre-loaded bike ﬁtness tests.

Recall – View old workout and Race data. For users who are logged, view Statistic data for that user.

Race – (This option is only available when two or more Wattbike computers are connected) Create

race for either time or distance.

Properties – View factory settings for device id and ﬁrmware version. Information for memory and

battery levels.

Just Ride

Before the start of each Just Ride session user is prompted to enter their weight (ﬁg0.2) using the UP

and DOWN arrow keys. This parameter can be turned o in Main Menu > Settings > Measurement

Settings > Use Power per kilo parameter > No.

Click RIGHT arrow for user’s weight to be input in 100g increments (ﬁg0.3).

ﬁg 0.2

ﬁg 0.3

Click MENU button for drop down menu, allowing you to change the user’s weight to be deﬁned in

imperial units of measurements (ﬁg0.4).

Once the user has entered their weight (ﬁg0.5) the session will initialise (ﬁg0.6) after clicking the

ENTER button. The session start when the user begins to pedal.

ﬁg 0.4

ﬁg 0.5

ﬁg 0.6

Default Riding Views

Use the LEFT and RIGHT arrow keys to view alternate measuring parameters (from ﬁg0.7) or the UP

and DOWN arrow keys to cycle through the following screen views.

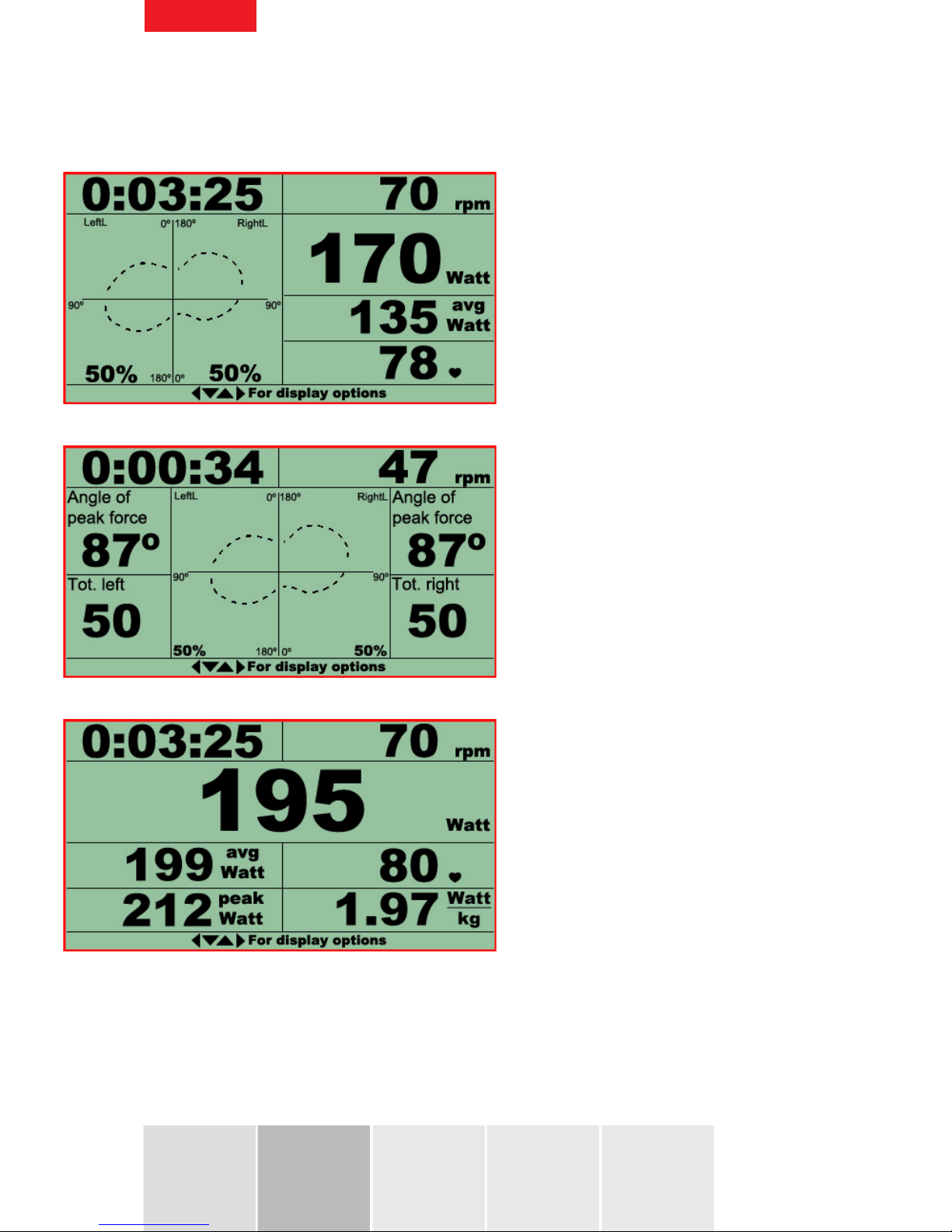

Polar Graph, Current Power & Average Power

Polar Graph, Peak Force Angle & Left/Right %

Current Power, Average Power, Peak Power & Power per Kilo

ﬁg 0.6.1

ﬁg 0.6.2

ﬁg 0.6.3

Kcal per Hour, Total Kcal, & Kcals per Revolution

Speed, Distance, Average Speed & Average RPM

Pace per Kilometre, Distance, & Average Pace per Kilometre

ﬁg 0.6.4

ﬁg 0.6.5

ﬁg 0.6.6

Alternate Riding Screen Views

During a workout there are several screen views to choose from while you ride showing various

parameters on multiple displays. Use the arrow keys to scroll between them.

Power

Energy

Pace

ﬁg 0.7

ﬁg 0.8

ﬁg 0.9
