WB-250I-IPW-2
WattBox® 250-Series Wi-Fi Surge Protector
Quick Start Guide
2

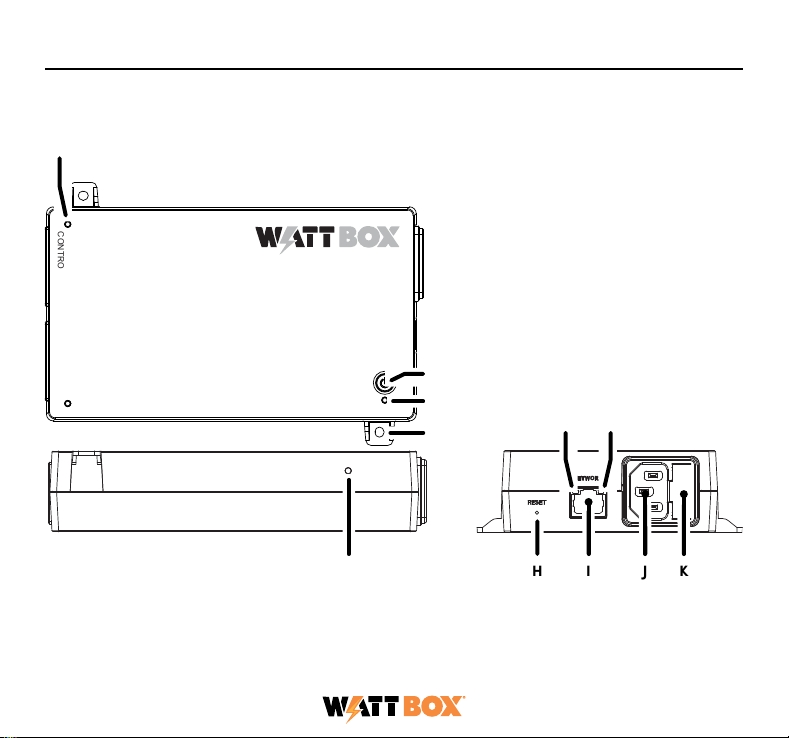

Anatomy
CONTROLLED 1 CONTROLLED 2
WB-250I-IPW-2
A
B
D
E F
G H I J K
C
3
A. Outlet LEDs: These illuminate when power to the matching outlet is on.
The outlets are switchable (IP controlled).
B. AC Power Button: Press to manually toggle the outlets on or o.
C. Power/Network LED: See “Power/Network” on page 4.
D. Mounting Eyelets.
E. Internet LED: See “Internet LED” on page 4.
F. Link/Activity LED: See “Link/Activity LED” on page 4.
G. Surge Protection LED: See “Surge Protection LED” on page 4.
H. Reset Button: Use a thin tool (paper clip, toothpick) to press this to restart
the network card (no settings are changed). Press and hold 5 seconds to
set the power strip to DHCP. Press and hold 10 seconds to reset the power
strip to factory default.
I. Network Connection: Connect to the Local Area Network (LAN) for IP
setup, control, and monitoring.
J. Power Inlet: Connect a 3-prong IEC power cord.
K. External Fuse*: May need replacement after an overload.
*Caution: For inlet fuse rating: F10AH/250VAC. Failure to replace the fuse
with the same size, type, and ratings will damage the device,
connected, and nearby equipment, resulting in an electrical shock,
fire, explosion, or injury.
4
LED Indicators
Link/Activity
LED
Blinking Green: Send/Receive Activity.
O: No data is passing on the wired connection.
Internet LED
Solid Green: All host pings successful.
Blinking Green: At least one host ping is failing.
O: All host pings timed out.
Power/
Network
Solid Amber: Unit has AC power, and a wired network connection.
Solid Green: Unit has AC power, and Wi-Fi is connected.
Blinking Amber: Unit has AC power, and is searching for Wi-Fi.
O: No AC power.
Outlet LEDS
Solid Green: Outlet is on.
O: Outlets is o.
Note: Each outlet is controllable.
Surge
Protection LED
Solid Green: The WattBox is powered on and outlets are protected.
O: The WattBox is not powered on, or the MOVs have opened, removing
power from the outlets.
5
Package Contents
• The WattBox 250I series power strip
• Removable, region-specific power cord (in over-pack box, not the PDU
carton)
• 2 wall anchors with M3 16mm screws
Mounting Instructions
This WattBox can be mounted on any flat
surface, either vertically or horizontally.
Use the screws and anchors provided to install
the unit on a wall as pictured to the right.
Use double-sided tape, hook and loop closures,
or cable ties (not provided) to attach the WattBox
to a surface.
CONTROLLED 1 CONTROLLED 2
WB-250I-IPW-2
7
OvrC Setup
1. Verify the WB-250I is connected to the internet via your router or network switch.
2. Log in to your OvrC account.
3. Add the WB-250I by entering its MAC address and service tag (ST) number.
You can now complete setup through OvrC. Ensure your firmware is up to date,
schedule automatic reboots, set up power-on delays, etc.
Logging in to the Web Interface
You must enter the username and password to access the web interface. The
default entries are below; change these to maintain proper security (and log them
below).
Default Custom
Username wattbox
Password wattbox
Note: The new password can be no longer than 15 characters.
8
Optional Steps for Wireless Operation
Note: This device only connects to Wi-Fi when it does not detect a wired
connection.
1. While still connected to the ethernet cable, open a web browser and
navigate to the IP address of the WB-250I, then log in to its local interface.
2. On the Configure page click Enable Wireless, then go to Wireless IP
Settings and click the Scan button. Follow the on-screen prompts.
3. When prompted, disconnect the ethernet cable (otherwise the WB-250I
continues to operate in wired mode). The power LED turns from solid
amber to blinking green, which means the device is connecting to Wi-Fi.
Once the wireless connection is successful, the LED turns solid green.
9
Troubleshooting
Symptom Possible Cause Remedy
A device won’t
power up when
the WattBox is
powered on.
The WattBox outlet
is switched o. Use OvrC, or the web UI, to turn the outlet on.
The device is not
powered on. Turn the device on.
WattBox is
not receiving
power.
No power is being
supplied.
Verify the AC power plug is plugged into a properly
grounded 220 - 240V (nominal) wall outlet. Some
outlets are controlled by a wall switch. Try flipping the
switches in the room, especially those near the wall
outlet. Also check the location’s circuit breakers.
Too many devices
are connected.
Check the fuse on the AC inlet. If it’s blown, reduce
the load and replace the fuse.
Surge protection
has been
consumed during a
surge event.
Replace the WattBox.
Speakers emit
a humming or
buzzing noise.
WattBox is sharing
power with gear
that is not properly
grounded.
Connect the WattBox to a dedicated outlet.
Unplug components one at a time to see if the noise
stops.
10
Specifications
Outlet Type IEC 60320 C13
Number of Outlets 2
Number of IP Controllable Outlets 2
Line Voltage 220–240VAC, 50/60Hz
AC Input Connection IEC 60320 C14
Fuse Rating 10A, 250VAC
Power Rating 1440W
Current Rating 6A
Voltage Protection Rating L–N 1.2kV, L–E 2.3kV, N–E 1.9kV
Joule Rating 1260J
Surge Component Metal Oxide Varistor (MOV)
Protection Modes L–N, L–E, N–E
Peak Impulse Current 45kA
Disconnect Circuitry Yes
Thermal Fuse Yes
