Watermark MPU7 Manuel utilisateur

MPU7 Pop-Up Lavatory Drain with Overflow

350 Dewitt Avenue, Brooklyn, NY 11207 USA T 718.257.2800 F 718.257.2144 www.watermark-designs.com Page 1

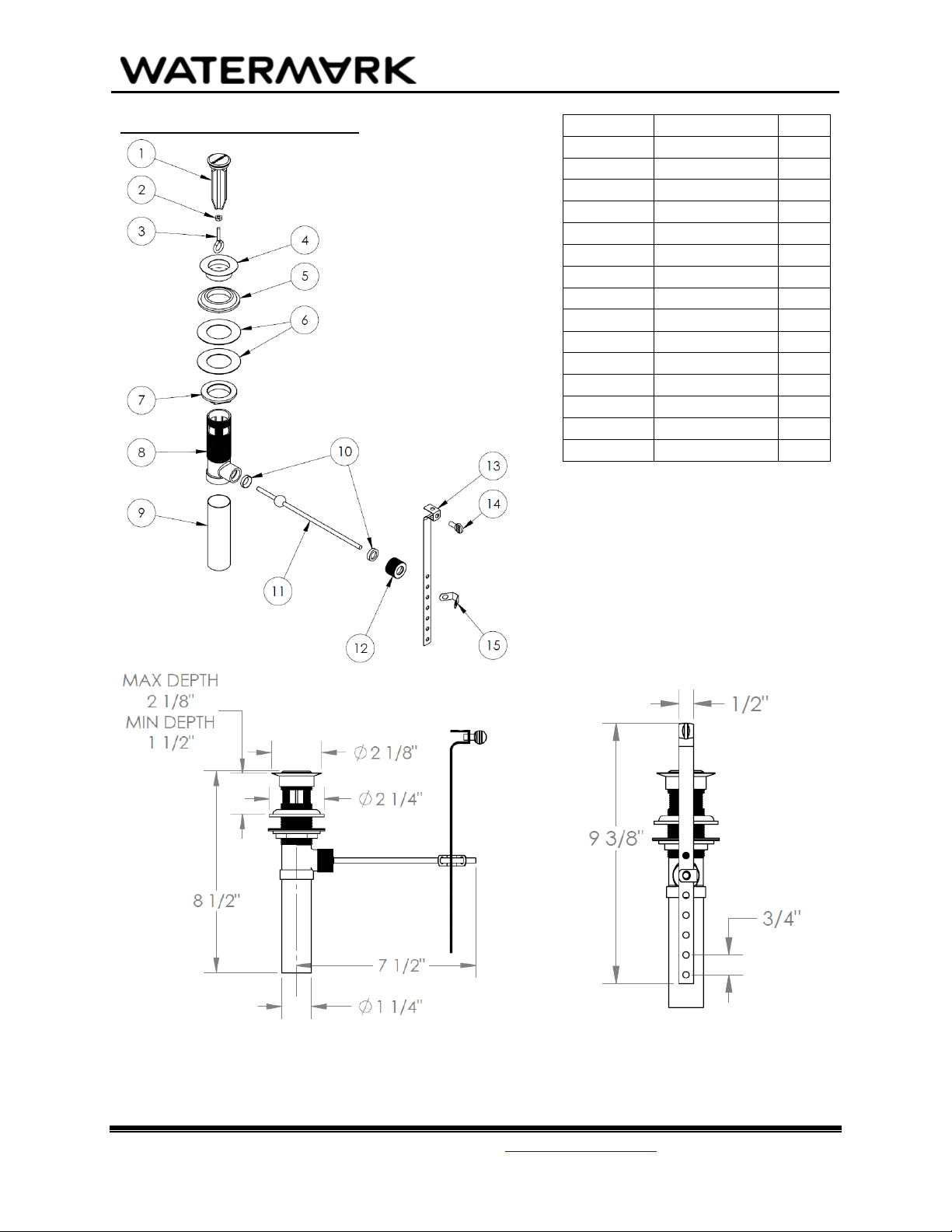

Parts Breakdown and Dimensions

ITEM NO.

DESCRIPTION

QTY.

Plug

Eyehook Nut

Eyehook

Collar

Gasket

Body Washer

Locknut

Body

Tail

Pivot Washer

Pivot Arm

Pivot Nut

Strap

Wingnut

Pivot Clip

MPU7 Pop-Up Lavatory Drain with Overflow

350 Dewitt Avenue, Brooklyn, NY 11207 USA T 718.257.2800 F 718.257.2144 www.watermark-designs.com Page 2

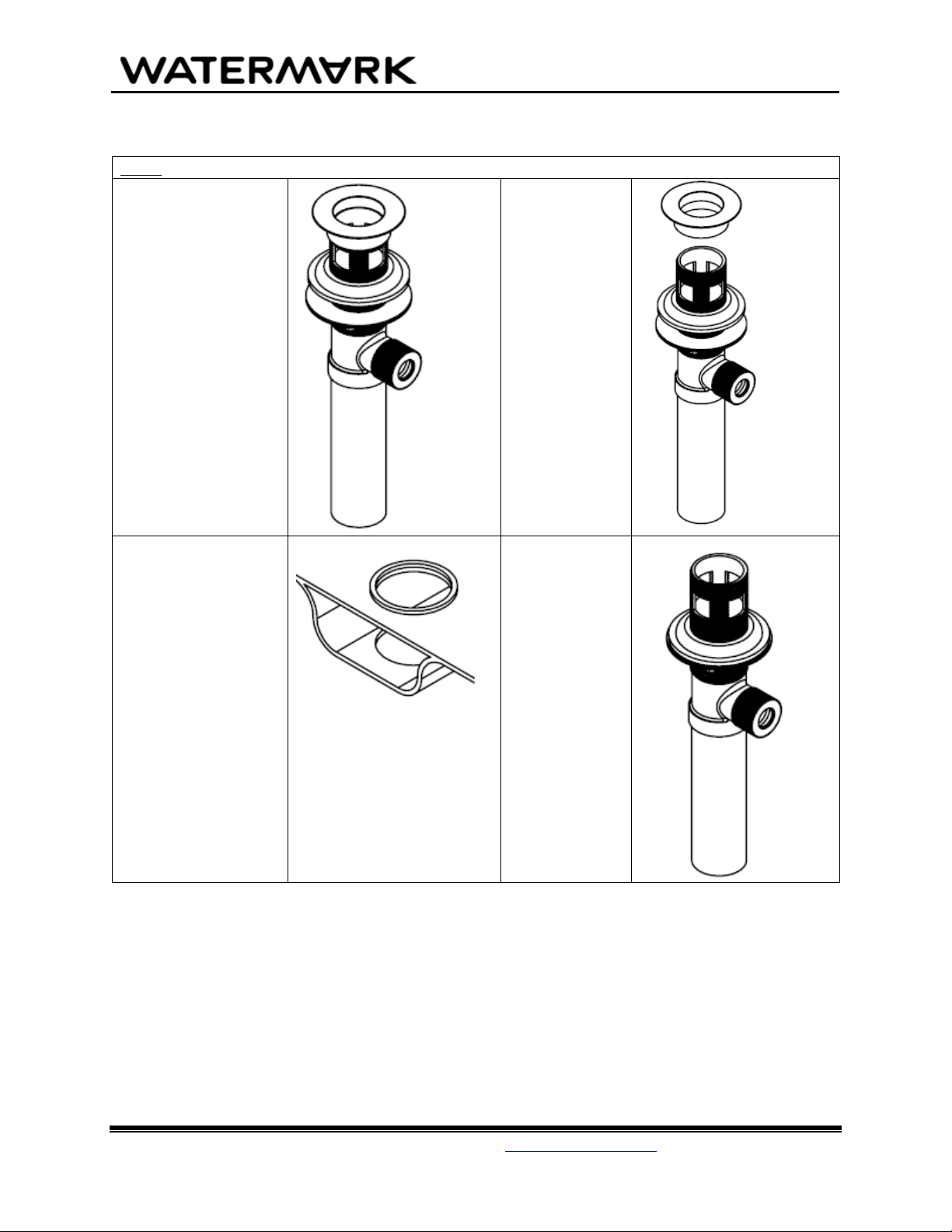

STEPS

1. Remove the plug

from the body.

2. Unscrew the

collar.

3. Apply silicon around

the top of the drain

hole.

4. Push the

gasket down to

the body

washer.

MPU7 Pop-Up Lavatory Drain with Overflow

350 Dewitt Avenue, Brooklyn, NY 11207 USA T 718.257.2800 F 718.257.2144 www.watermark-designs.com Page 3

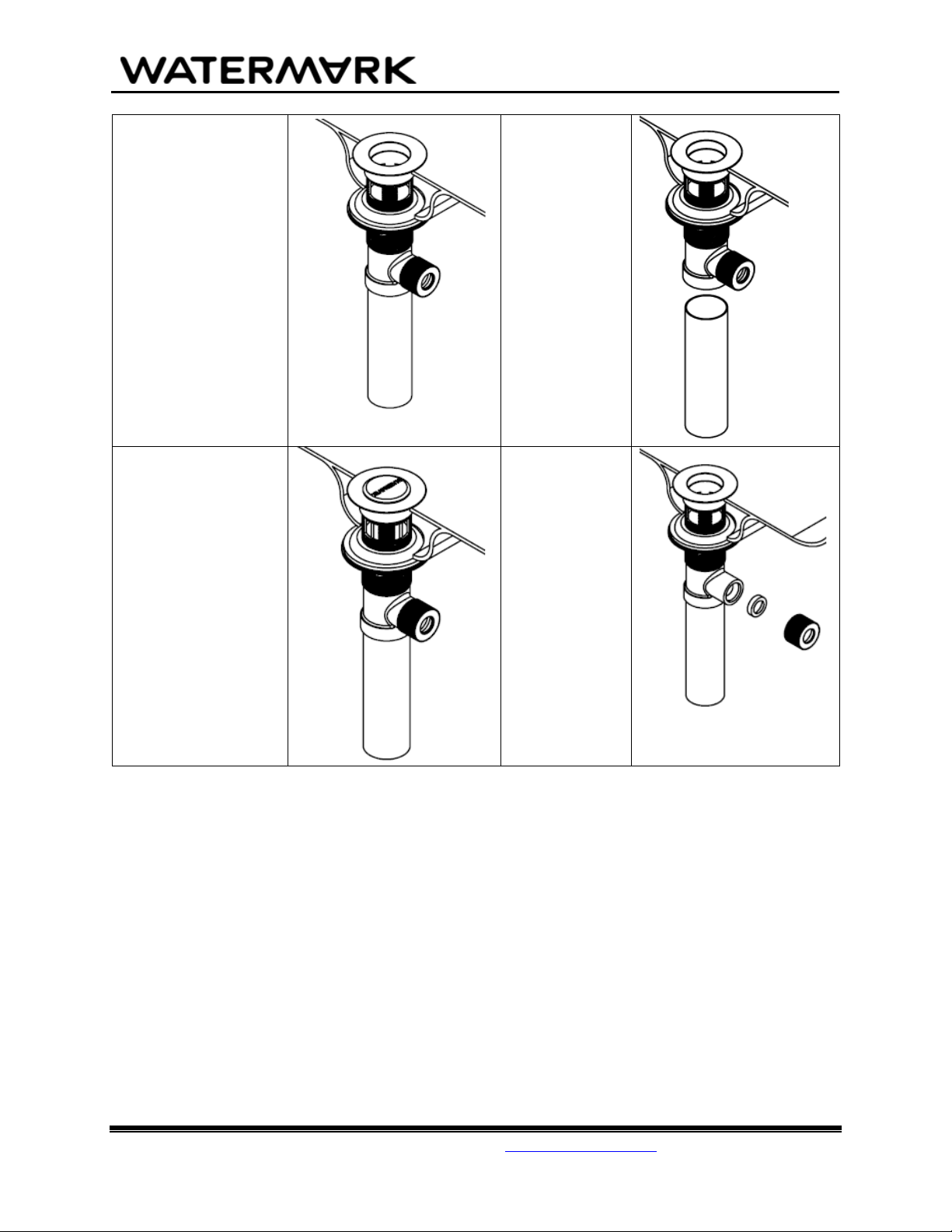

5. Put the body into

the drain hole through

the bottom of the sink

and screw the collar

back onto the body.

Make sure to push the

collar onto the silicon.

Tighten the locknut

such that it pushes the

gasket up to the

bottom of the sink. Do

not overtighten the

nut.

6. Unscrew the

tail from the

body and apply

Teflon tape to

the threads of

the tail. Thread

the tail back

onto the body.

7. Feed the plug into

the body and align it

with the logo as

desired. Remove the

plug and loosen the

eyehook and adjust

the length so that it

will accept the pivot

arm. Carefully tighten

the eyehook nut such

that the eyehook

keeps its orientation.

8. Remove the

pivot nut to

access the pivot

washer, then

remove the

pivot washer

from the pivot

nut.

MPU7 Pop-Up Lavatory Drain with Overflow

350 Dewitt Avenue, Brooklyn, NY 11207 USA T 718.257.2800 F 718.257.2144 www.watermark-designs.com Page 4

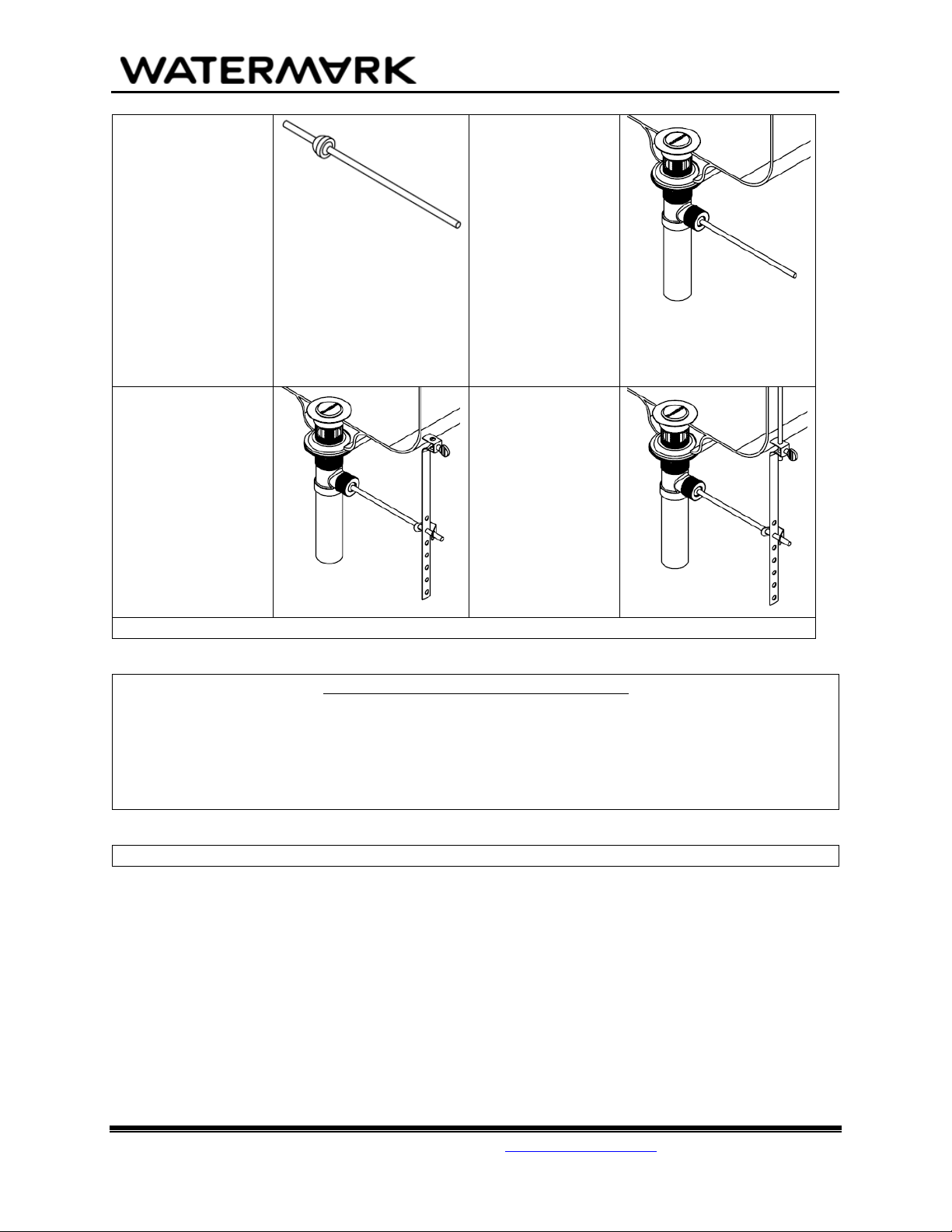

9. Remove the pivot

clip form the pivot

arm, then feed the

outer pivot washer

onto the pivot arm

up to the pivot ball.

10. Insert the short

end of the pivot

arm into the body

and make sure the

arm goes through

the hook in the

eyehook. Secure

the pivot nut onto

the body. Make

sure not to

overtighten to

prevent damage to

the pivot washers.

11.Put one end of

the clip onto the

pivot arm. Slide the

strap onto the pivot

arm at the desired

height so it can

attach to the lift

rod. Secure the

other end of the

pivot clip onto the

pivot arm.

12. Insert lift rod

into the top of the

strap and tighten

the wingnut.

13. Connect the drain to the trap and check for leaks.

IMPORTANT INSTALLATION INFORMATION

•USE TEFLON TAPE OR PIPE SEALANT FOR THREADED CONNECTIONS

•DO NOT USE PLUMBER’S PUTTY ON ANY OF THE BRASS COMPONENTS

This will cause the finish to tarnish. A non-corrosive Alkoxy Silicone is recommended.

•DRAINS ARE ONLY UNDER WARRANTY FOR MECHANICAL FAILURE, NOT FOR FINISH DEFECTS

For technical support, please call 718-257-2800
