WatchGas SST Dock Manuel utilisateur

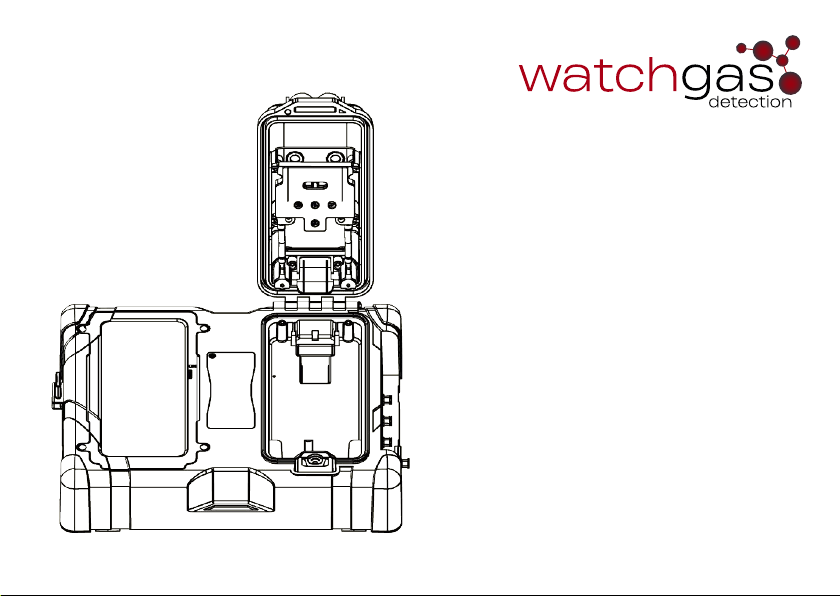

SST Dock
Quick Start Guide
SST Dock | QSG | V 1.0 | EN | 15-06-23
2
CAUTIONS & BEST PRACTICES
• If the SST Dock appears to be damaged or is not
functioning properly, please contact WatchGas or a local
WatchGas distributor.
• SST Dock uses Calibration Gas to carry out testing and
calibrations so always ensure that these tests are done in
a well-ventilated area.
• Always ensure lters are clean and replaced on a regular
basis.
• Avoid the station encountering liquids. SST Dock cannot
be mounted in an outdoor location that could be exposed
to rain or wet conditions.
• The maximum exhaust tubing length is 10 meters (30
feet).
• Always use the SST Dock in conjunction with a demand
ow regulator.
• SST Dock has no hazardous location approvals and can
only be used in a safe and non-hazardous environment
known to be free of toxic and/or ammable gas.
• Servicing can only be carried out by a WatchGas ofce or
trained service technician.
• Ensure calibration gas cylinders are the correct
concentration, within their expiration date and contain
gas. Failure to do so may result in an incorrect calibration.
• The warranty does not cover electrical surges, physical
and/or water damages.
•
WARNING
IMPORTANT SAFETY INFORMATION:
READ FIRST
• To ensure personal safety, read Safety Information and
Warnings before using the SST Dock.
• Use the SST Dock only as specied by the manufactur-
er. Failure to do so may impair the protection provided
by the SST Dock. The safety and security of any system
or network incorporating the SST Dock and its accessory
components is the responsibility of the assembler of the
system.
• Follow all required National Electric Codes (NEC) and
safety codes.
• Do not attempt to adjust, disassemble, or service the
equipment.
• Only use in a well-ventilated space, in normal
atmosphere, with 20.9% Oxygen and a non-hazardous
environment.
• Only use the supplied charging adapter, 12V 1.5A.
• Do not apply positive pressure to the gas inlets. Only use
a demand ow regulator.
3
PREPARE FOR USE
• Use only Luer PG-63 for all gas inlets/outlets.
• Tubing diameter no less than 3mm (1/8 in) internal. The tubing should be suitable for the gas
used, consult WatchGas for a proper Last-o-More tube or compatible tube.
• Only use Demand Flow Regulators from WatchGas compatible part list.
NOTE: Only connect up to 10 meters (30 feet) of tubing on the fresh air inlet and outlet.
• Ventilation – the outlet should be routed to a ventilated area.
• Adjust the fresh air purge time accordingly.
• Ensure tubing and cables are properly installed.
• Use the shortest length of tubing possible.
• Ensure a fresh air inlet lter is installed.
• If potentially harmful gas is used for calibrations, users must read the MSDS of the gas con-
nected. The SST Dock must be attached to a venting system or be used in a well-ventilated
area.
4
INTRODUCTION
The SST Dock is an automated test station that allows Bump and Calibration testing. It is compat-
ible with the full SST Range in one module. It has the capability to be connected via Wi-Fi, BLE,
or Cellular and allows for desk, wall, and hard case mounted dependent on your application. With
two inlets it allows for calibration of the standard four gases plus another gas type. With built-in
NFC it is easier than ever to assign gas cylinders to the correct gas in ports.
1

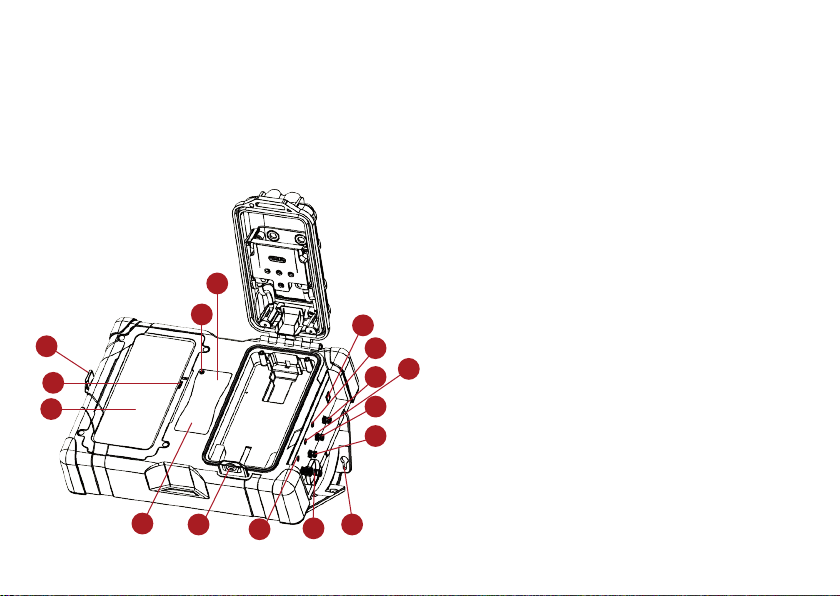

SST DOCK OVERVIEW
1. Touch screen
2. Touch screen ON / OFF
3. Status LED
4. Instruction label
5. Bottle NFC reader
6. Lid lock
7. Power supply
8. Mounting bracket table/wall mount
9. Exhaust outlet
10. Gas inlet 2
11. Gas inlet 2 pressure sensor connector
12. Gas inlet 1
13. Gas inlet 1 pressure sensor connector
14. Fresh air inlet lter
15. Fresh air inlet pressure sensor connector
16. ON / OFF key
2
3
4
56
7
8
9
10
12
11
13
16
14
15
Figure 1.
5
MOUNTING THE SST DOCK
The SST Dock can be mounted with the invertible mounting bracket at 2 different angles. Use the
extended screws and plastic spacer included in the box.
Wall mounting
The provided mounting brackets can be used to mount the SST Dock to a wall or table. Mounting
screws and plug are not provided. WatchGas recommends checking the strength of the mounting
area and selecting the proper mounting hardware before mounting the SST Dock. Mounting the SST
Dock should be performed by a qualied installation contractor.
SWITCH ON THE SST DOCK
If the SST Dock is fully discharged, please allow 5 min of charging prior to switching on the unit.
The LED will show red switching to white prior to start-up.
Connect the SST Dock to an electrical outlet (or surge protector) by means of the included power
adapter. The Status light will then turn on. Use the ON / OFF key (g 1. part 16 and part 2) to power
on the touch screen.

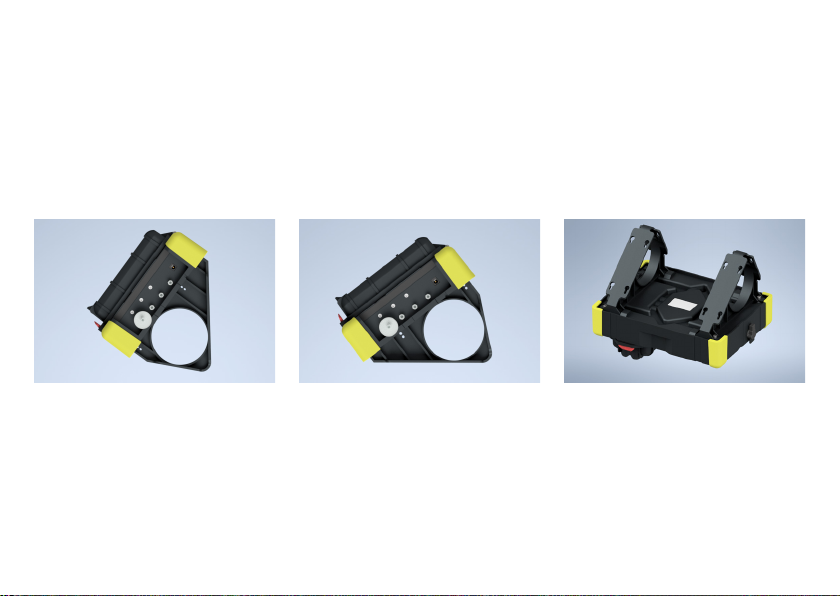

SST Dock on a wall SST Dock on a table Installing the brackets
6
ENTER SET UP
1. Use the Password “admin” to enter
the setup menu
IMPORTANT: If optional pressure sensors are
utilized these shall be activated or the SST Dock
will ignore the signal
Enter the password
2. Add calibration gas bottle in the Gas bottle list
either manually or utilizing Watch Tab enabled
bottles. It is important to ll in all data as the
Dock produces a full calibration certicate.
To add a new Calibration bottle click “Add bottle”
7
1. Assign the gas cylinder to the input port
selected (the input will light up when the
port is open during operation).
NOTE: The SST Dock will not perform any bump
or calibration if the gas does not match the
detector target gas.
2. Status LED Green normal operation and
on charge / yellow running on battery / red
fault
3. Server setup – linking to the WatchGas
compliance software the server ID must be
set up. This link will be provided upon pur-
chase of the software
USE
If the touch screen is in sleep mode – dou-
ble-tap the screen to wake up the unit. The
screen will instruct the next step.

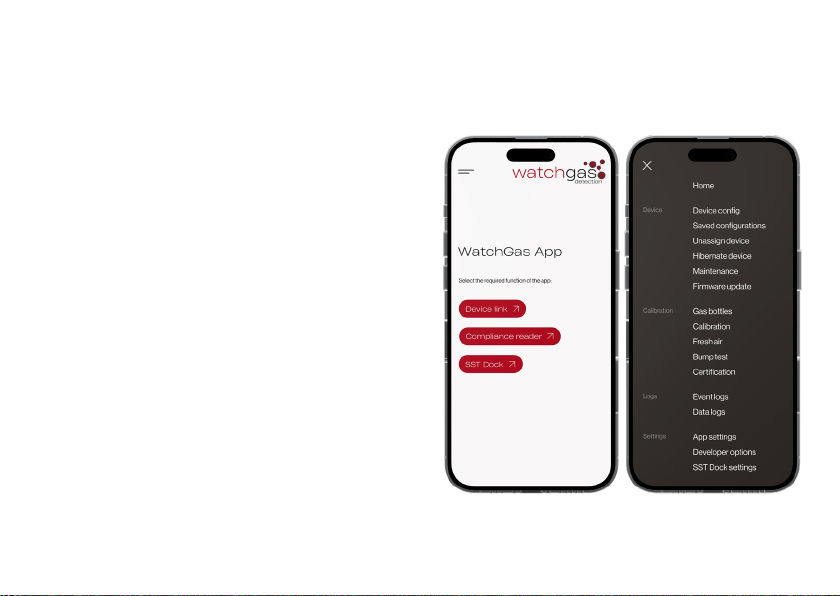

WatchGas App home screen Bump & Calibration
8
INSERTING THE DETECTOR
Step 1
Power on the gas detector if required, if it is a
2- or 3-year SST1 then the device will already be
activated. Turn on NFC.
Step 2
Lift the lid on the SST Dock by using the
two-nger guides and the red latch.
Step 3
Insert the device by locating the alligator clip
into the guide in the SST Dock.
Step 4
Close the lid until you hear the click.
Step 5
Select the function on the SST Dock display
that you want to carry out: Bump Test, Calibra-
tion, or Fresh Air calibration. The SST Dock will
then carry out the selected test.
9
SPECIFICATIONS
Dimensions (LxWxH) 28 x 21 x 10 cm (11.5 x 8.5 x 4.5 in)
Weight 1.8 kg (4 lbs)
Operating Temperature +5-40 °C (40-104°F)
Humidity 10% to 90% RH
Storage Temperature 0-50 °C (32-120°F)
Power Supply
12 V 1.5 A
L.P.S.
Real Time Clock Yes, updatable
Data Storage More than 1 year of operation
Connection capability Wi-Fi, Cellular, BLE – Connected into the Cloud and WatchGas App
Gas Inlets Fresh air inlet, 2 gas inlets and one purge
Testing Function Bump Test, Calibration (optional), Device Conguration and Data
Download. Also tests device Alarms, Visual LED’s and Vibrator
Device Compatibility One module compatible with SST Range
Warranty 2 Year warranty
10
WARNING
NO USER-SERVICEABLE PARTS INSIDE
MAINTENANCE
Periodically check that the inlet lter is free of dirt and replace it if required. SST Dock can be
cleaned with a soft, damp cloth. Do not use solvents, soaps, polishes, or immerse the SST Dock in
liquids. Completely turn off the unit and disconnect the power supply before cleaning.
WARNING
ONLY USE ORIGINAL WATCHGAS PARTS AND/OR ACCESSORIES
PARTS AND ACCESSORIES
Serviceable parts and accessories are sold separately. Please contact WatchGas or an authorized
distributor, or visit the website at www.watchgas.com or www.watchgasusa.com if in North America.
Parts list
• WatchGas Demand Flow Regulator (part number: DFR-SS)
• WatchGas Demand Flow Regulator including a pressure sensor (part number: DFR-PSV)
• PG-63 Luer (part number: SST-DOCK-LUR)
• Tubing
• Mounting brackets, spacers, and screws (part number: SST-DOCK-MB)
