Warmup HTR-4ROPO Manuel utilisateur
1
IMPORTANT!
Please read this manual
before attempting to install
your Warmup product.
Complete and submit your
warranty form online at
www.warmup.co.uk
0345 345 2288
Technical Helpline
Installation Manual
Heated Towel Rails
2
Experience MyHeating™
Download now for iOS and Android
Easy to use
Simple and secure
set up with 24/7
support
Unique to Warmup:
Natural Language Programming™
Programming that speaks your language
Please scan the QR code
for more information
The world’s best-selling floor heating brand™
Over 2 million installations in
more than 60 countries
EasySwitch™
Always on the best
tari, automatically
SmartGeo™
Smarter geo-fencing.
Reduce energy usage
by up to 25%
3
Contents
WARNING!
Your Warmup® heated towel rail has been designed so that
installation is quick and straight forward, but as with all electrical
systems, certain procedures must be strictly followed. Warmup
plc, accepts no liability, expressed or implied, for any loss or
consequential damage suered as a result of installations which in
any way contravene the instructions that follow.
It is important that before, during and aer installation that all
requirements are met and understood. If the instructions are
followed, you should have no problems. If you require help at any
stage, please contact our helpline.
You may also find a copy of this manual and other helpful information
on our website:
www.warmup.co.uk
Components Required for Installation�������������������������������������4
Do’s & Don’ts ����������������������������������������������������������������������������5
Step 1 - Electrical Supply ��������������������������������������������������������6
Step 2 - Layout Planning ��������������������������������������������������������7
Step 3 - Mounting the Rails (Ladder) ��������������������������������������8
Mounting the Rails (Single bar) �������������������������������12
Step 4 - Make Electrical Connection �������������������������������������14
Troubleshooting���������������������������������������������������������������������15
How to test the Towel Rail������������������������������������������������������16
Warranty���������������������������������������������������������������������������������17
Control Card���������������������������������������������������������������������������18
Technical Specifications ��������������������������������������������������������19
4
Components Required
for Installation
Components available from Warmup
Additional components needed as part of your Warmup heating
installation:
30 mA Residual Current Device (RCD), required as part of all
installations.
Digital Multi-meter required for testing the resistance of the
heated towel rails.
Measuring tape.
Electrical housing, back boxes and junction boxes.
Hammer.
Masking tape.
Spirit level.
Warmup Heated Towel Rail
and Components
• HTR-4ROPO • HTR-4SQPO
• HTR-6ROPO • HTR-6SQPO
• HTR-8ROPO • HTR-8SQPO
Warmup Heated Towel Rail
and Components
• HTR-1ROPO • HTR-1SQPO
• HTR-1ROBR • HTR-1SQBR
• HTR-1ROBL • HTR-1SQBL
Ladder Rails
Single Bar Rails
5
Do’s & Don’ts
Install the Warmup Heated Towel Rails in line with these
instructions� The towel rail is designed to warm towels only
and not provide primary heating�
Ensure that the control card at the back of the manual is
completed and fixed at the consumer unit along with any
plans and electrical test records as per the current edition of
BS 7671�
Install the towel rail at least 600 mm above the floor in order
to avoid a hazard for very young children�
Ensure that all electrical connections conform to the current
BS 7671 Wiring Regulations� Final connections to the main
electricity supply MUST be completed by a Part P qualified
electrician�
Ensure that the power supply to the towel rail is isolated
before any installation or maintenance�
Attempt a DIY repair if you damage the heated towel rail,
contact Warmup for assistance�
Pull on the power supply cable as it may cause damage to the
towel rail�
Attempt cleaning the towel rails using abrasive or chemical
cleaners as these will damage the surface finish over time, use
a so clean cloth and a non abrasive cleaning agent�
DO
DON’T
WARNING: This appliance can be used by children aged from 8
years and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved�
Children shall not play with the appliance� Cleaning and user
maintenance shall not be made by children without supervision�
6
Step 1 -
Electrical Supply
ZONE 0
ZONE 2 ZONE 1
ZONE 2
Z
O
N
E
2
Z
ONE2
ZO
N
E 0
ZO
N
E1
2.2
5
m
2.2
5
m
0.6m
0.6
m
0.6
m
0
.6m
0.6m
0.6m
0.6m

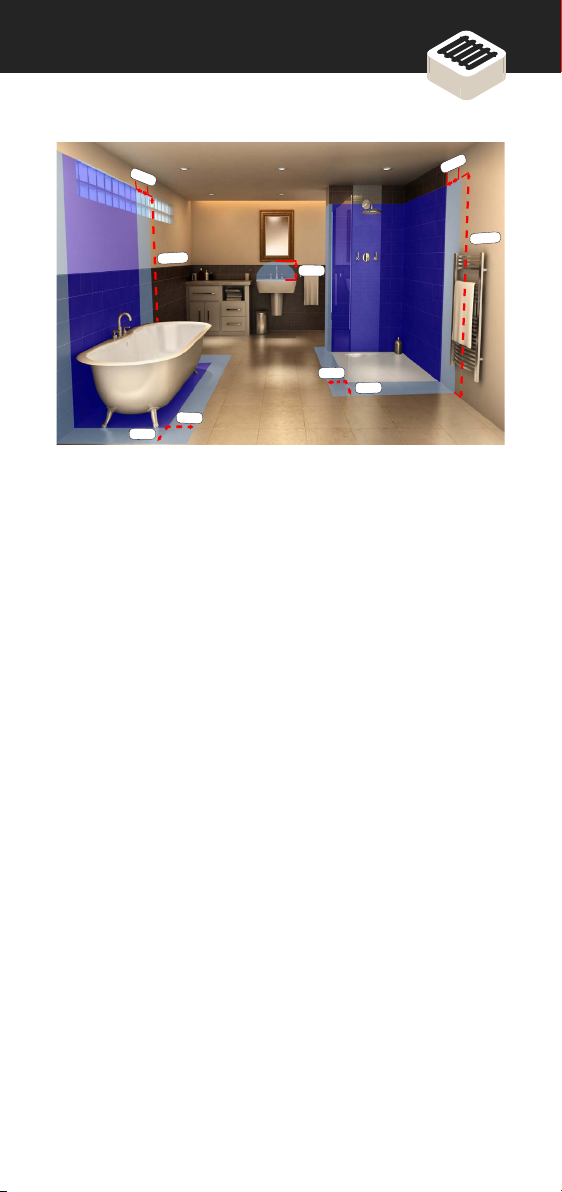

Zone Chart
Install the RCD
Install a dedicated 30 mA RCD or use an existing RCD. No more than
7.5 kW of heating may be connected to each 30 milliamp RCD. For
larger loads, use multiple RCD’s.
NOTE: In the case of bathroom installations, electrical regulations
prohibit the installation of Mains Voltage products such as
thermostats, contactors, fused spurs, isolators or junction boxes,
within Zones 0 or 1.
Warmup Heated Towel Rails have an IP rating of IP55 and are suitable
for installation within Zone 1, Zone 2, Zone 3 or outside of any Zones.
All electrical connections must conform to the current BS 7671
Wiring Regulations. Final connections to the main electricity
supply MUST be completed by a Part P qualified electrician.
7
•Ensure that the wall you
intend to mount the rails onto
is strong enough to hold the
weight of the towel rail.
• When you intend to mount
the rails to stud walls, fixings
must be made into the studs
or noggins.
•When you intend to mount the
rails to masonry walls use the
wall plugs supplied.
•Cables back boxes etc.,
will have to be chased into
masonry walls.
IMPORTANT: DO NOT mount
towel rails to plasterboard alone
as they will not provide enough
support.
Before you begin
•Mains voltage cables installed
within a wall must be fixed
at least 50 mm from the
wall surface or occupy the
horizontal and vertical safe
zones in accordance with
BS 7671.
Step 2 -
Layout Planning
In order to avoid a hazard for very young children, heated towel rails
should be installed so that the lowest heated rail is at least 600 mm
above the floor.
8
1A
Normal
Leg
x 3
1B
Exposed
Wiring Leg
x 1
1C
Concealed
Wiring Leg
x 1
5
Mounting
Screws
x 4
6
Wall
Mount
x 3
7
Concealed Wiring
Wall Mount
x 1
8
Exposed Wiring
Wall Mount
x 1
2
M5 x 4
Grub screws
x 4
3
M5 x 6
Grub screws
x 4
4
Wall plugs
x 4
9
Hex key
x 1
10
Short screws
x 4
Step 3 - Mounting the Rail
Ladder Rails
• Using a long screwdriver,
screw the short screw (10)
though the leg (1A) securing it
to the towel rail body.
NOTE: The grub screw (3)
should face the floor when the
towel rail is mounted on the
wall.
Components List
Warmup’s Ladder Towel Rails can be installed with either
concealed or exposed wiring. The instructions below
concentrate on concealed wiring.
2
•Measure and record the
resistance of the towel rails
in the “Resistance Before”
column of the control card,
supplied as part of this
installation guide.
•Stop installation immediately
and contact Warmup if its
resistance falls outside the
values set out in the resistance
table.
1
9
Step 3 - Mounting the Rail
Ladder Rails
•Use a tape measure to
measure the centre to centre
distances between the wall
mounts (6) which are secured
in each leg and concealed
(7) or exposed wiring (8) wall
mounts.
•With all 4 legs secured to the
towel rail body, install the wall
mounts (6) into each leg using
the grub screws (3).
• Install the concealed wiring
wall mount (7) or exposed
wiring wall mount (8).
•Install the remaining 2 legs
(1A) to the towel rail body as
shown in Step 2.
•Mark the measurements taken
in the previous step on the
wall of your intended towel
rail location keeping in mind
that the lowest rail should be
at least 600 mm above the
floor level.
•Ensure the markings on the
wall are level.
•Attach the final leg (1B or
1C), for exposed or concealed
wiring, to the towel rail body
using the grub screws (2) as
shown.
65
3
7
4
•Drill 3 holes in the wall for
each of the 3 x wall mounts
(6).
NOTE: For exposed wiring drill
a 4th hole of equal size.
For masonry walls gently tap
wall plugs (4) into the holes
using a hammer.
8
10
•Remove the wall mounts
x 3 (6) from the legs (1A).
•Insert the mounting screws
(5) through the wall mounts
and secure to the wall as
shown ensuring that they sit
flush with the wall.
NOTE: For exposed wiring,
install exposed wiring wall
mount (8).
•Position the rail against the
wall and insert the power
supply cable through the
concealed wiring wall mount
(7).
•Place the rail onto the wall
mounts (6) and secure by
tightening the grub screws (3)
as shown.
9
12
Step 3 - Mounting the Rail
Ladder Rails
•Conduct another resistance
test before mounting the
towel rail to ensure it has not
been damaged and record in
the control card.
11
•Drill a larger 4th hole for the
concealed wiring leg.
•Remove the concealed wiring
wall mount (7) from the leg
(1C).
• Apply grab adhesive to the
wall mount thread and press
into the drilled hole until it sits
flush with the wall.
10
