wanscam HW Series Manuel utilisateur
Wanscam
HW series IP Camera User Manual For Browser View
Version number : 20160721
Packaging list:
Installation procedures:
Note:For the first time use IP Camera, please refer to the procedures above.
Start
Connect Hardwares
One Key Wifi Setting
Login the IP Camera in Lan
Access in Browser
Login the IP Camera in PC
Client
Access By Mobile Install Search Tool
in PC
The End
1.Connect Hardwares Diagram：
Note:Connect the power supply as above.
2.One Key Wifi Setting：
APP Download
Please Download and install the E-view7 APP before you set up the
IP Camera. Search on Google Play store or APP Store for “E-view7”
One Key Setting Function (cell phone must be connected to the WiFi）
Step1.Connect the camera with power adaptor .
Step2.Launch the APP, tap on “+” to access the “Add Camera” function, then click on
“One Key Setting”, and the screen shown below will appear:
Step3.Enter the correct WiFi password, then click on “Start configuration”, like shown
in the screen below:
Step4. Wait for 60 seconds, then choose the respective device and enter the
password. If done, click on save to connect to the WiFi.
3.Install Search Tool in PC
After hardwares connection properly, run the search tool, the Camera IP Address will
be showed automatically.（Before viewing camera in IE, you must set One Key
Setting ）
Note:If the Search Tool shows subnet mask does not match,please click
Double click the camera IP address in the search tool.
In your default browser a login screen like shown below will be displayed:
Note: Both the username and password are “admin”
(Please change the account user name and password for safety later)
After entering the correct user name and password, the Login screen will be
displayed.
Note: If the OCX already has been installed you may login directly. If not, please install OCX.
A. Click “OCX” to download and Install it.
B. Refresh the webpage and login again,the camera video will be displayed as
below
Live video
.
4.Function Setting :
1)Device imformation Setting
a..Click , access the “ Device imformation” settings
b.Checking the imformation of the ip camera

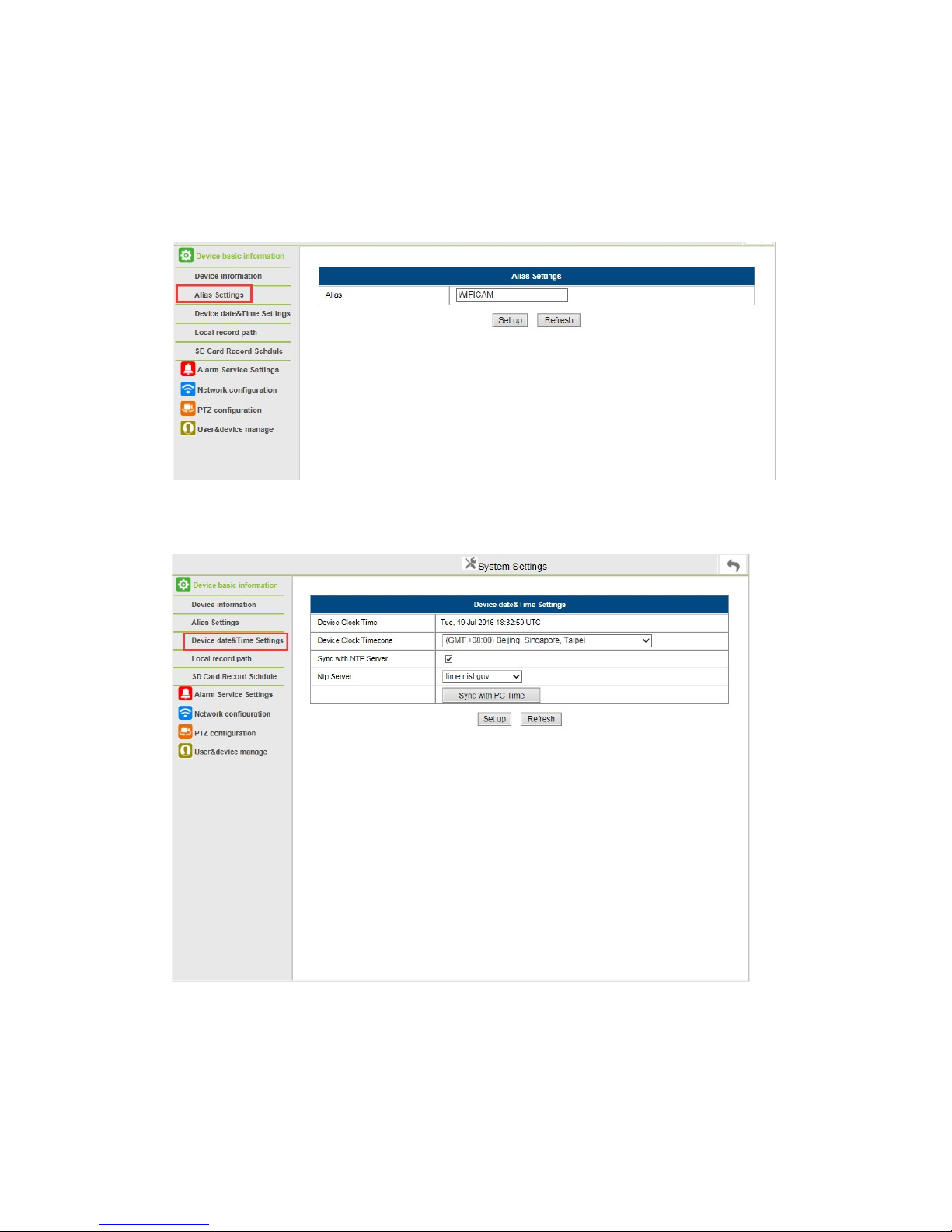

2) Alias setting
The display name of the camera
3)Device date&Time Settings
4)Local record path setting
Record & Capture Path: Where to store the files, video and photos. (If you can’t choose
this, pay attention to your PC OS and IE version, please use the IE browser.)
Record file length: At least 100MB
Record time length: At least 5 minutes.
Reserved disk space: If your pc disk space is less than 200MB, stop recording.
Record cover: Delete the old files when the disk capacity is nearly full .
Note :If you can not change the recording path, please follow these steps:
First，please open search tool,Find the camera's ip address and copy it :
Then,Run IE browser as administrator :
Finally, Paste IP address of the camera in IE browser, Click “Enter” and find the below
page then you can modify the video path :
5)SD Card Record Schedule
If the SD card has been inserted, the capacity of the card will be displayed. But at first,
