:.WA·NG

'

Digital Drum Plotter

Model: 2272

Customer Engineering

Product Maintenance

Manual

3313

741-0455

3313

PR

ff

ACE

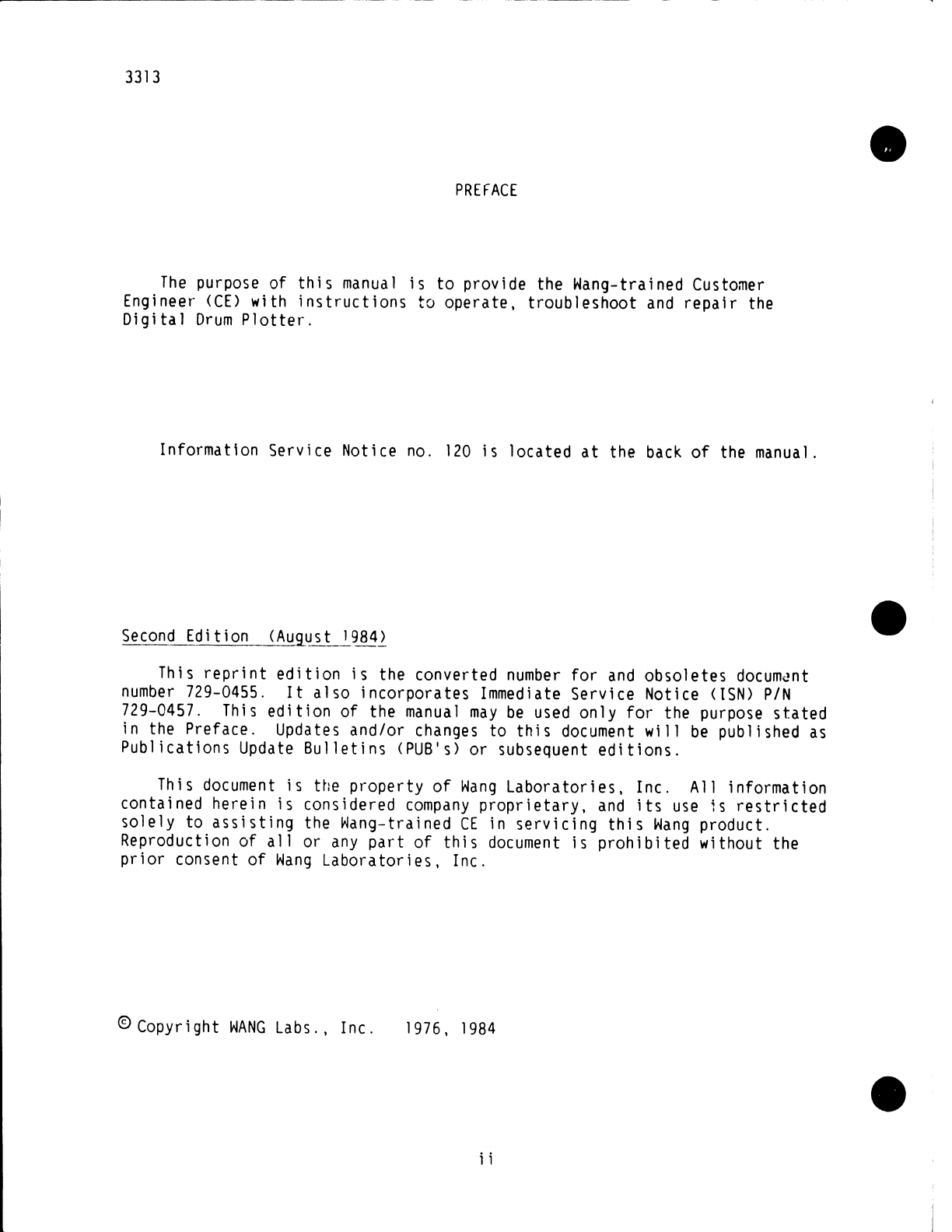

The

purpose of

this

manual

is to provide the Wang-trained

Customer

Engineer

<CE>

with

instructions

to operate, troubleshoot

and

repair the

Digital

Drum

Plotter.

Information Service Notice

no.

120

is located

at

the

back

of

the

manual

.

Second

Edition

<Aug~984l

This

reprint

edition

is

the converted

number

for

and

obsoletes

docum~nt

number

729-0455.

It

also incorporates

Immediate

Service Notice

<ISN>

P/N

729-0457.

This

edition of the

manual

may

be

used

only for the purpose

stated

in

the Preface. Updates and/or changes to

this

document

will

be

published

as

Publications

Update

Bulletins

<PUB's>

or subsequent

editions.

This

document

is the property

of

Wang

Laboratories, Inc.

All

information

contained herein is considered

company

proprietary,

and

its

use

is

restricted

solely to

assisting

the Wang-trained

CE

in

servicing

this

Wang

product.

Reproduction of

all

or

any

part

of this

document

is prohibited without the

prior consent

of

Wang

Laboratories, Inc.

©copyright

WANG

Labs., Inc.

1976,

1984

i i

L___

_________

--

- -

•

...

•

TABLE

OF

CONTENTS

SECTION

1

INTRODUCTION

1.1

SCOPE

1.

2

DESCRIPTION

1.3

MODEL

2272

TECHNICAL

CHARACTERISTICS

SECTION

2

INSTALLATION

2.1

SITE

CONSIDERATION

2.2

UNPACKING

PROCEDURE

2.3

UNIT

INSPECTION

PROCEDURE

2.4

OPERATOR

CONTROLS

AND

INDICATORS

2.4.1

CONTROL

PANEL

2.4.2

REAR

OF

UNIT

2.4.3

PLOTTER

DRUM

2.5

DYNAMIC

CHECKOUT

SECTION

3

OPERATION

3.1

CONTROL

PANEL

3.1.1

RUN

LAMP

3.1.2

PEN

Sh.£TCH

3.1.3

HOME

SWITCH

3.1.4

CLEAR

SWITCH

3.1.5

PLOT

AXIS

SELECTION

3.1.6

SET

HOME/LIMITS

MODE

SWITCH

3.1.

7

SLEW

MODE

SWITCH

3.1.8

PLOT

MODE

SWITCH

3.2

OPERATION

OF

2272

VIA

2200

CPU

3.2.1

PLOT

STATEMENT

3.2.2

2272

DIAGNOSTIC

3.2.3

SPECIAL

PLOT

CODES

3.2.3.1

Pen

Selection

HEX(El), HEX(E2),

HEX(E3)

3.2.3.2

Set

Home

HEX(E4)

3.2.3.3

Power On/Set

Home

HEX(E5)

3.2.3.4

Binary

Plot

Vector (EO),

Short

Binary

Plot

Vector

(E6)

3.2.3.5

Hex

Code

For

Pen

Up

(HEX(OE)), Pen

Down

{HEX(OF)),

Reset

(HEX(FA))

3.2.3.6

Slewing

3.2.3.7

Selection

of

Left and Right

Limits,

Home

SECTION

4

THEORY

OF

OPERATION

(INFORMATION

TO

FOLLOW)

1-1

1-4

2-1

2-2

2-4

3-1

3-2

3-4

3-5

3-6

3-7

3-8

3-9

3-10

3-14

SECTION

5

ADJUSTMENT,

REt-OVAL

AND

REPLACEMENT

PROCEDURES

5.1

IN'i'RODUCTION

5. 2

ELECTRICAL

ADJUSTMENTS

5. 3

MECHANICAL

AND

ELECTROMECHANICAL

ADJUSTMENT,

REMOVAL/

REPLACEMENT

INDEX

5.3.1

ADJUSTMENT

GUIDE

5.3.2

PAPER

GUIDE

5.3.3

PEN

AXIS

INCREMENT

ADJUSTMENT

5.3.4

PAPER

DRIVE

ASSEMBLY

5.3.5

PAPER

SPROCKET

AND

SPROCKET

C.OVER

ASSEMBLIES

5.3.6

PHOTOCELL/HOME

POSITION

ALIGNMENT

5. 3. 7

CARRIAGE

ASSEMBLY

5.3.8

CARRIAGE

DRIVE

ASSEMBLY

5.3.9

CARRIAGE

ARM

ASSEMBLY

5.3.10

PEN/SOLENOID

ASSEMBLY

5.3.11

ELECTRICAL

CHASSIS

REMOVAL/REPLACEMENT

5.3.12

SIDE

COVER

REMOVAL/REPLACEMENT

SECTION

6

MAINTENANCE

6.1

INTRODUCTION

6.2

DIAGNOSTIC

6.2.1

DIAGNOSTIC

HOME

POSITION

SETUP

6.2.2

OUTPUT

SYSTEM

DIAGNOSTIC

6.2.3

2272

DIAGNOSTIC

6.3

PREVENTIVE

MAINTENANCE

6.3.1

VISUAL

CliECKS

6.3.2

ADJUSTMENTS

6.4

TROUBLESHOOTING

SECTION

7

ELECTRICAL

SCHEMATICS

7.1

INTRODUCTION

7.2

LIST

OF

ELECTRICAL

SCHEMATICS

7.3

SIGNAL

RUN

LIST

SECTION

8

MECHANICAL

ASSEMBLY

DRAWINGS

8.1

INTROCUTION

APPENDIX

A

ASCII

CHART

OF

PLOTTER

CONTROL

CODES

APPENDIX

B

PLOTTER

MNEMONICS

5-1

5-2

5-3

5-4

5-5

5-7

5-9

5-10

5-13

5-15

5-17

5-19

5-21

6-1

6-2

7-1

8-1

A-1

B-1

•

--

-----------------------------

-

•

1.1

SCOPE

--

-

--~--------------------------

SECTION

1

INTRODUCTION

This

manual

describes

the

Model 51/53/51M/53M

Digital

Drum

Plotter

manufactured

by

Wang

Laboratories,

Inc.

General

i11formation,

detailed

theory

of

operation

and maintenance

routines

are

included

to

enable

Customer Engineering

personnel

to

ma:l.n-

tain

the

plotter.

Tite

manual

is

arranged

in

the

following

manner:

SECTION

1 -

INTRODUCTION:

Provides

the

reader

with

the

scope

of

this

manual and a

general

description

of

the

plotter.

SECTION

2 -

INSTALLATION:

Contains

unpacking and

installation

instructions

for

the

plotter.

SECTION

3 -

OPERATION:

Describes

the

function

of

all

operator

controls

and

indicators

including

the

basic

2200

CPU

operations

for

outputting

data.

SECTION

4 -

THEORY

OF

OPERATION:

Contains

descriptions

of

the

mechanical

assemblies

and

the

printed

ci~cuit

board

electronics.

SECTION

5 -

ADJUSTMENTS,

REMOVAL

AND

REPLACEMENT

PROCEDURES.

SECTION

6 -

MAINTENANCE:

Includes

di.agnostics,

preventive

main-

tenance and

troubleshooting

tables.

SECTION

7 -

ELECTRICAL

SCHEMATICS:

Contains a complete

set

of

schematics,

wiring

and

interconnection

diagrams.

SECTION

8 -

MECHANICAL

ASSEMBLY

DRAWINGS:

Allows

the

user

to

iden-

tify

any

part

of

the

plotter.

1.2

DESCRIPTION

(~EE

FIGURE

1-1)

'lbe

Digital

Drum

Plotter

is

available

in

the

following

configurations:

1-1

•

. .

•

MODEL

DESCRIPTION

MARKETED

AS

51

SINGLE

PEN

ENGLISH

UNITS

2272-1

53

TRIPLE

PEN

ENGLISH

UNITS

2272-2

SlM

SINGLE

PEN

METRIC

UNITS

2272-lM

53M

TRIPLE

PEN

METRIC

UNITS

2272-2M

Tile

Digital

Drum

Plotter

provides

point,

line

and

alphanumeric

plotting

capacity

to

any ?>bdel 2200 System

that

has

plot

capability

.

'nle drum

plotter

is

conL,olled

by an 8080

microprocessor,

which

includes

a 512

byte

RAM

memory

that

is

used

to

buffer

plot

information

sent

from

the

Model 2200

CPU.

Vectors

take

5

bytes;

alphanumeric

characters

and

plot

control

characters

are

stored

as

is.

The

manual

control

panel

on

the

Digital

Drum

Plotter

provides

a

number

of

convenient

control

functions

which

include:

manual

slewing

of

the

pen

and

paper,

four

quadrant

axis

rotation

selection,

conveniently

setable

HOME

position

(X

=

O,

Y = 0

origin)

and pen and

paper

movement

limits

to

any

position

on

the

plotting

surface,

plot

interrupt

and

automatic

return

facility,

and pen up

override

•

Plotting

is

controlled

with

the

2200

BASIC

language

PLOT

statement.

The

plotter

has

an

input

buffer

which

allows

a number

of

plot

vectors

and

alphan\DD.eric

plotting

data

to

be

stored

prior

to

plotting,

thus

providing

overlap

between

plotting

and

CPU

processing.

The

Model 2272

Plotter

has

built-in

alphanumeric

character

generation

capability

which

plots

a

standard

64

character

ASCII

set

in

15

selectable

character

sizes.

A

zero

reference

parameter

{HOME)

permits

quick

resetting

of

the

pen and

paper

position

to

any

manually

set

origin,

either

under

nanual

or

program

control.

Additional

plot

codes

are

available

to

allow

efficient

plotting

of

prestored

plot

information,

special·

lettering

and symbols

via

binary

plot

vectors

and

to

perform

plot

initialization

functions

under

program

control.

Manual

controls

permit

setting

the

home

position

coordinate

axis

to

one

of

four

orientations

acconunodating

plots

of

many

shapes.

Manual

controls

also

permH

slewing

the

pen

position

as

desired,

placing

the

pen

in

the

'up'

position

and

clearing

the

plotter

buffer.

l-3

Both

English

and

metric

versions

plot

with

interchangeable

pens;

the Model

2271-1

(-lM)

has

a

single

pen

assembly

anri

the

Model

2272-2

(-2M)

has

an

optional

three

pen

r.arria~L'

assembly.

The

16

inch (40. 6

cm)

plotting

axis

is

covered

by

a

cable

driven

pen

assembly;

the 160

inch (406

cm)

axis

is

operated

by

the

pinfeed

paper

mechanism.

The

English

version

drum

plotter

supports

approximately

3200 i,,,..remPnts

of pen movement

in

the

left-right

direction

(16

inches

x

200

steps/

inch) and 16383

increments

of

paper

movement

in

both

the

forward and

reverse

direction

if

HOME

position

is

not

reset;

there

is

no

restriction

on

paper

movement

if

HOME

position

is

reset.

The

metric

plotter

has

approximately

4064

increments

in

the

left-right

direction

and 16383

increments

of

paper

in

the

forward-reverse

direction

if

HOME

position

is

not

reset.

The

standard

plotter

(metric

or

English)

is

100%

compatible

with

the

2212

protocol

except

that

64

ASCII

plotting

characters

are

supported

instead

of

48.

Options

will

include

a

three

pen

carriage

assembly,

additional

microcode

(PROM)

chips

to

support

expanded

built-in

plotting

functions

and an

automatic

paper

roll

feed

handler

which

will

100unt

on

the

rear

of

the

plotter.

The

plotter

connector

is

designed

to

connect

to

the

2221W

1/0

controller

board

in

the

2200

chassis.

The

plotter

drum

supports

18

inch

(45.72)

wide

platen

fed

paper

[17

1/2"

(44.45

cm)

to

pin]

which

rolls

forward

and backward

over

the

drum.

1.3

MODEL

2272

TECHNICAL

CHARACTERISTICS

Plotting

Rate:

(English)

Plotting

Rate:

(Metric)

Plotting

Area:

1.5

inches/sec

to

4.5

inches/sec

vertical

or

horizontal

1.5

inches/sec

to

6.4

inches/sec

diagonal

3 cm/sec

to

9

cm/sec

vertical

or

horizontal

3 cm/sec

to

12.7

cm/sec

diagonal

16

inches

(40.6

cm)

wide

by

unlimited

length

1-4

•

AlphantDDeric

Plotting:

Programmable

Control

Codes:

Plotting

Increment:

Plotting

Accuracy:

Paper

Dimensions:

Pen:

Manual

Plotter

Controls

and

Indicators:

Dimensions:

Operating

Temperature:

Humidity:

64

UASCII

Characters,

15

Selectable

Character

Sizes

and

Variable

inter-

character

spacing

See

Append

ix

A

.005

inch

per

step

.01

cm

per

step

.01

inch

+

.1%

per

inch

of

plotting

distance

cm

+

.1%

per

cm

of

plotting

distance

Continuous

perforated

roll

paper

(18" edge

to

edge,

400

ft)

Ball

point,

fiber

tip,

technical

~nk

pens.

On

-Off

switch

Mode

Selection

-3

pushbuttons

(PLOT,

SLEW,

SET

HOME/LIMITS)

Manual Slew

Control

- 5

pushbuttons

(+,

~.

+,

HOME)

Axis

Rotation

Selection

-4

pushbuttons

Pen

Up

Override

-1

pushbutton

Clear

-1

pushbutton

Run

Indicator

Light

Height:

Width:

Depth:

10.2

inches

(26

cm)

33

inches

(84 cm)

14

inches

(36 cm)

50°

to

90°F" (10°

to

32°C)

30

to

80%

Relative,

non-condensing

1-5

Power

Source:

Weight

(Approx.):

Storage

Temperature:

Storage

Humidity:

50/60

Hz

~

1/2

cycle

115

or

230

VAC

+10%

230

WATTS

Internal

Selection

(See

Section

6)

90

lbs.

(41 kg)

-40°

to

130°F

(-40

to

55°C)

0

to

90%

Relative,

non-condensing

1-6

•

Wang 2272 Manuel utilisateur

Manuels Traceur populaires d'autres marques
