WamBam BL19101 Manuel utilisateur
WWW.WAMBAMFENCE.COM 1
ASSEMBLY
INSTRUCTIONS BL19101
BL19101
ASSEMBLY
INSTRUCTIONS
60 MIN
Approximate assembly me
Want to see a video on how to
assemble this product?
Scan the QR code
NANTUCKET
VINYL PICKET FENCE
WITH POST AND
ANCHOR KIT
WWW.WAMBAMFENCE.COM VER. 043021
WWW.WAMBAMFENCE.COM
2
ASSEMBLY
INSTRUCTIONS
BL19101
kCheck the inside of the larger pieces in your box for other
materials packed inside.
kWhen assembling components, place on a non-abrasive
surface (i.e. shipping box) to avoid scratching.
k
unobstructed assembling.
kYou should not need to use excessive force when assembling
components.
VISIT OUR WEBSITE FIRST,
SO WE CAN HELP YOU RIGHT AWAY!
Although great care has been taken to ensure proper packaging
and handling of this product, occasionally problems occur. If you
our website to order replacement parts. If you experience any
further trouble with your product, please contact our customer
service department.
parts.nychbrands.com
hmmm@wambamfence.com
704-892-5222 /877-778-5733
Customer service agents are available to take calls weekdays from 9am-
5pm EST. If you call outside of business hours, please leave a voicemail.
To help you quickly and accurately, please have reference item
number BL19101
listed on the inside of the box.
this product, we are happy to assist you with the process, so
please give us a call at 704-892-5222 / 877-778-5733.
If for some reason you need to return this product, please
return the product, you will need to iniate the return from the
company you originally purchased from.
GENERAL
INFORMATION
MISSING
OR
DAMAGED
PARTS?
NEED
ASSEMBLY
HELP?
NEED TO
RETURN?
IMPORTANT
WWW.WAMBAMFENCE.COM 3
ASSEMBLY
INSTRUCTIONS BL19101
TIPS
1.
2.
inside gear to the next pipe anchor.
3.
remove the posts to create an unobstructed string line.
4.

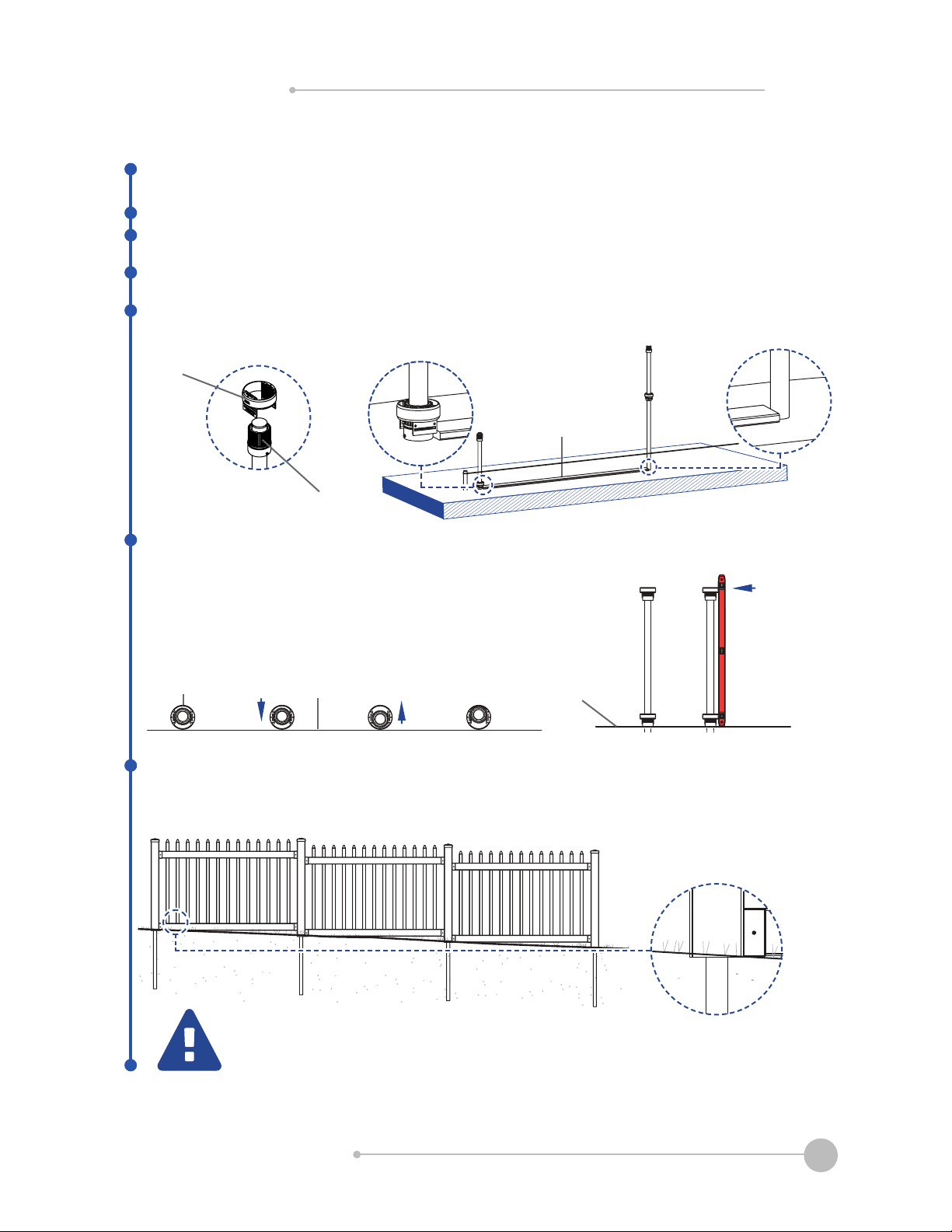

5. Once the pipe anchors are set, you can use your string line to adjust your lower donuts to make a
straight fence line (Figure A). Then use a level to adjust the top donuts to ensure each post is level to
(Figure B).
6.
pitched or is very uneven, you may need to stair step your panels as illustrated below. Post heights
can be trimmed down as necessary.
Figure A
(View From Top)
Pipe Anchor String Line
Donut
Wood Spacer
Adjust top
donut to level
Figure B
(View From Front)
Note: The boom of the rail bracket
on the higher side of the fence
should sit ush to the top of the
ground.
WARNING!
long enough to accommodate this slope.
WWW.WAMBAMFENCE.COM
4
ASSEMBLY
INSTRUCTIONS
BL19101
AVOID THESE
PITFALLS!
HAVE YOU CONTACTED
YOUR LOCAL UTILITIES?
HAVE YOU CHECKED YOUR
LOCAL ZONING LAWS?
ARE YOU ABSOLUTELY SURE
WHERE YOUR PROPERTY
LINE IS?
HAVE YOU TALKED TO YOUR
NEIGHBORS?
IMPORTANT!
UNSTABLE GROUND OR
ROCK?
1
2
3
4
5
your fence to avoid puncturing any unseen underground
is made easy for you.
Local zoning laws and Home Owners Associations may regulate
the height, style, and placement of your fence. Some locations
may even require a permit.
line limits.
Your fence will become part of their yard too, and you'll have
sides. Besides, you may get lucky if they decide to share the
cost with you.
If you encounter rock or unstable ground, you can concrete
kSimply call 811 in the US or visit www.call811.com.
kIn Canada, visit www.transcanada.com/contactus.html
for a list of phone numbers by province.
WWW.WAMBAMFENCE.COM 5
ASSEMBLY
INSTRUCTIONS BL19101

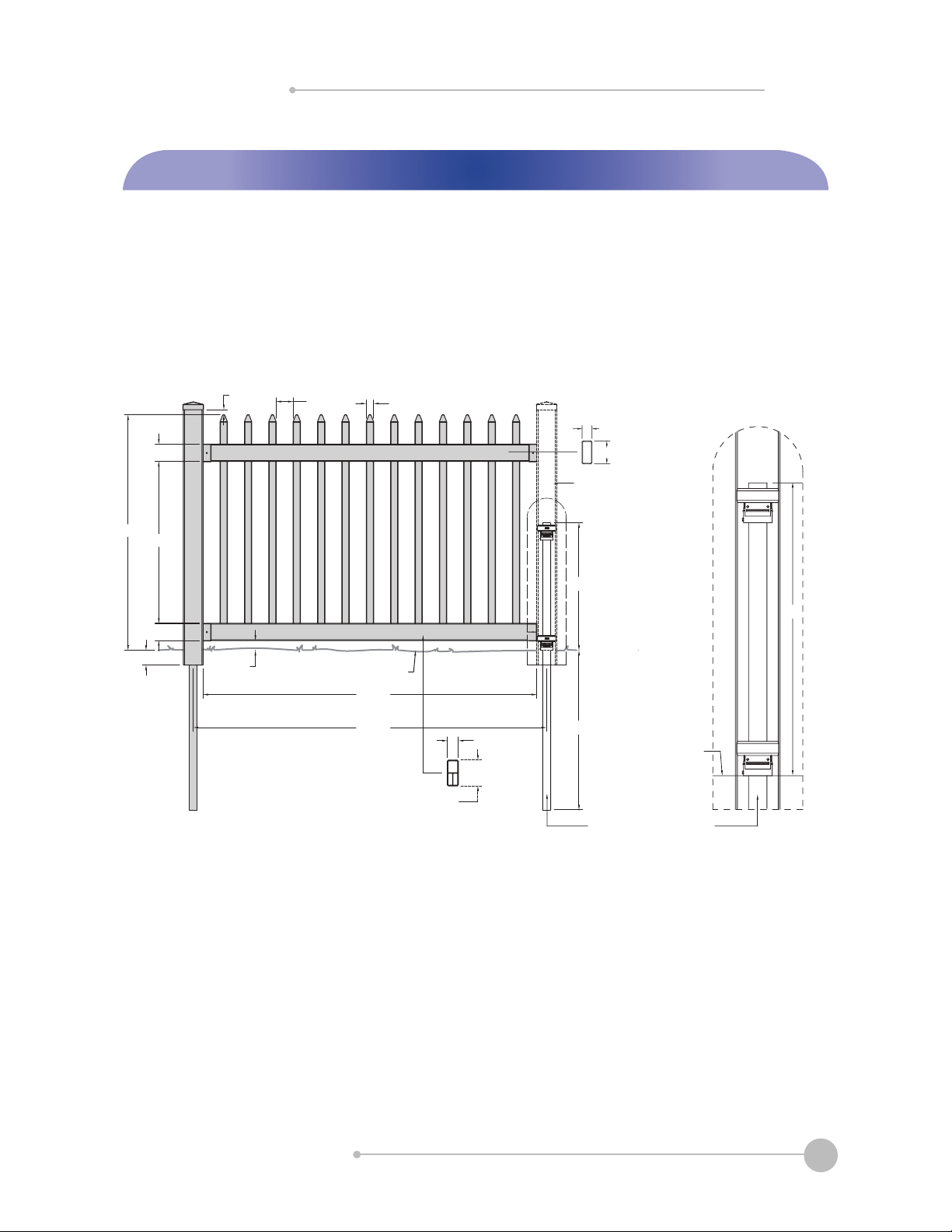

DETAILED PRODUCT DIMENSIONS AND SPECIFICATIONS
.090 in. Wall Thickness
Ground
3.5 in
1.5 in
72 in
68 in
3 to 4 in 2 in
3.5 in
33 in
3.5 in
48 in
1 in 3.46 in 1.5 in
26 in
32.5 in
3.5 in.
1.5 in.
4in x 4in Post
1 5/8in Galvanized Pipe
Pipe Anchor Detail
26in.
Ground
WWW.WAMBAMFENCE.COM
6
ASSEMBLY
INSTRUCTIONS
BL19101

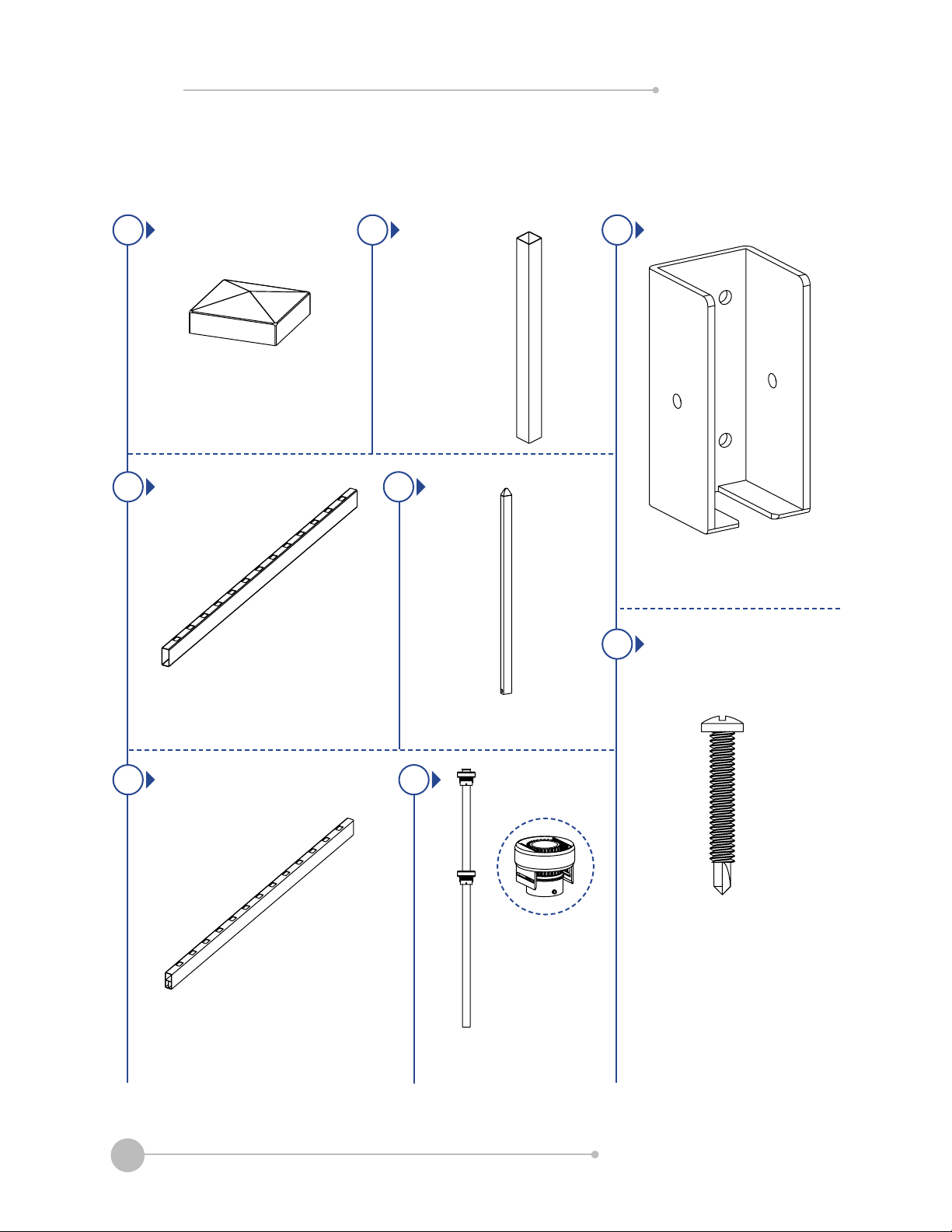

STEP 1:
LAY OUT MATERIALS
A B
C
E F
D
G
H
Post Cap (1) Post (1)
Bracket
1” Self-Drilling Stainless
Steel Screw
Top Rail (1)
Boom Rail (1)
Pipe Anchor (1)
Picket
Donut and gear
WWW.WAMBAMFENCE.COM 7
ASSEMBLY
INSTRUCTIONS BL19101

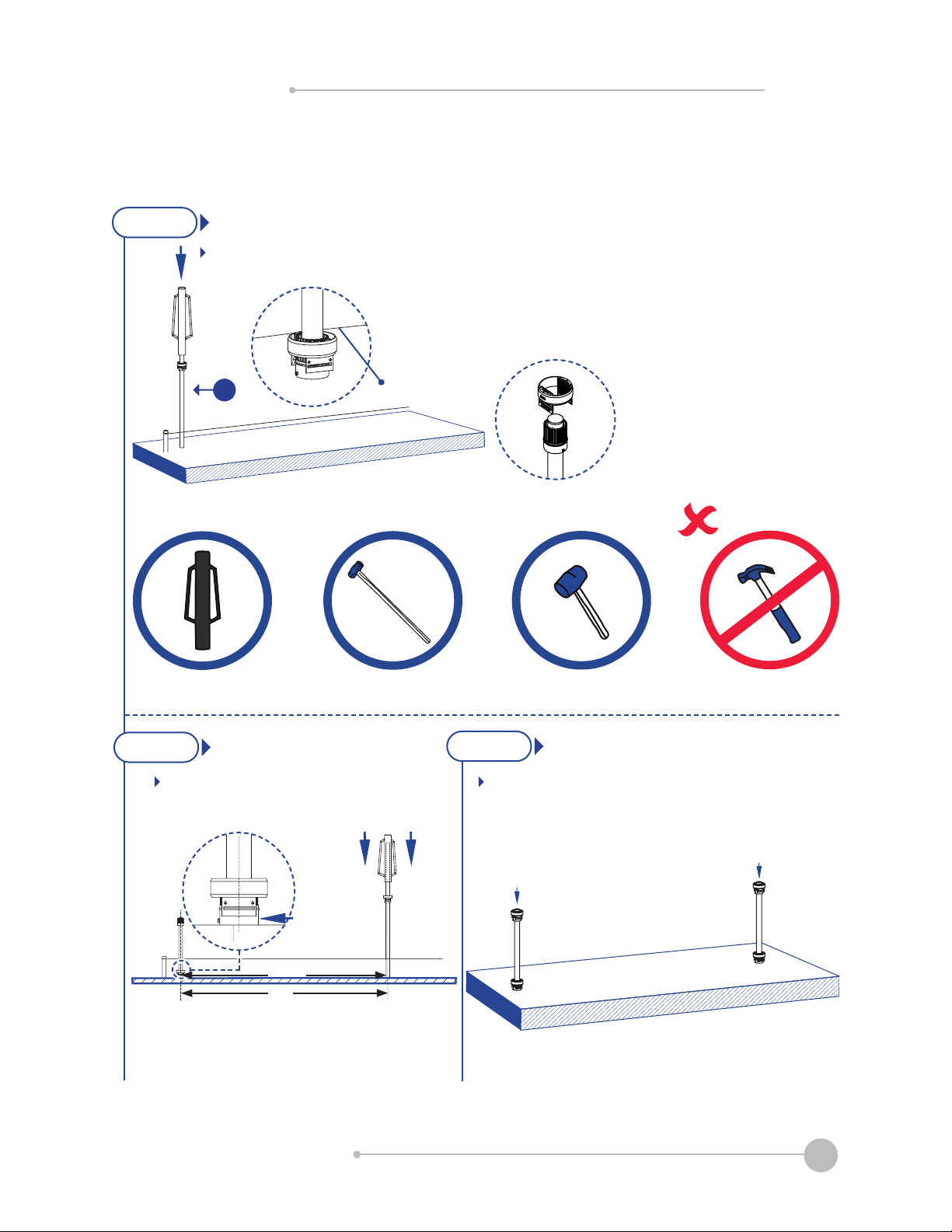

STEP 2:
INSTALL PIPE ANCHORS AND POSTS
Note: Try to drive the pipe anchor as level as possible. Check level
about every 12”. Aer about 18” the trajectory of the pipe anchor is
usually established and you cannot manually pull it level (donut will
not compensate for a severely crooked pipe).
Note: If you are using a post
pounder, remove the top donut
and slide it up over the pipe. Your
post pounder barrel cannot be
longer than 24”.
BEST BETTER GOOD DO NOT USE
F
(F)
pipe anchor and drive it into the ground.
If you removed the upper donut,
slide it back down over the inner
gear.
Post Pounder 10lb Sledgehammer 5lb Sledgehammer Hammer
STEP 2.2 STEP 2.3
Note: The distance between the
inner plasc gears (not donuts) to
the pipe should be 70⅜” (or center
to center of pipe at 72”).
72”
STEP 2.1
70⅜”
String line
WWW.WAMBAMFENCE.COM
8
ASSEMBLY
INSTRUCTIONS
BL19101
STEP 3:
INSTALL BRACKETS AND BOTTOM RAILS
Note: The ground can be dug out about
3” to 4” to allow post booms to sit below
the ground if necessary.
to compensate for a crooked pipe
anchor.

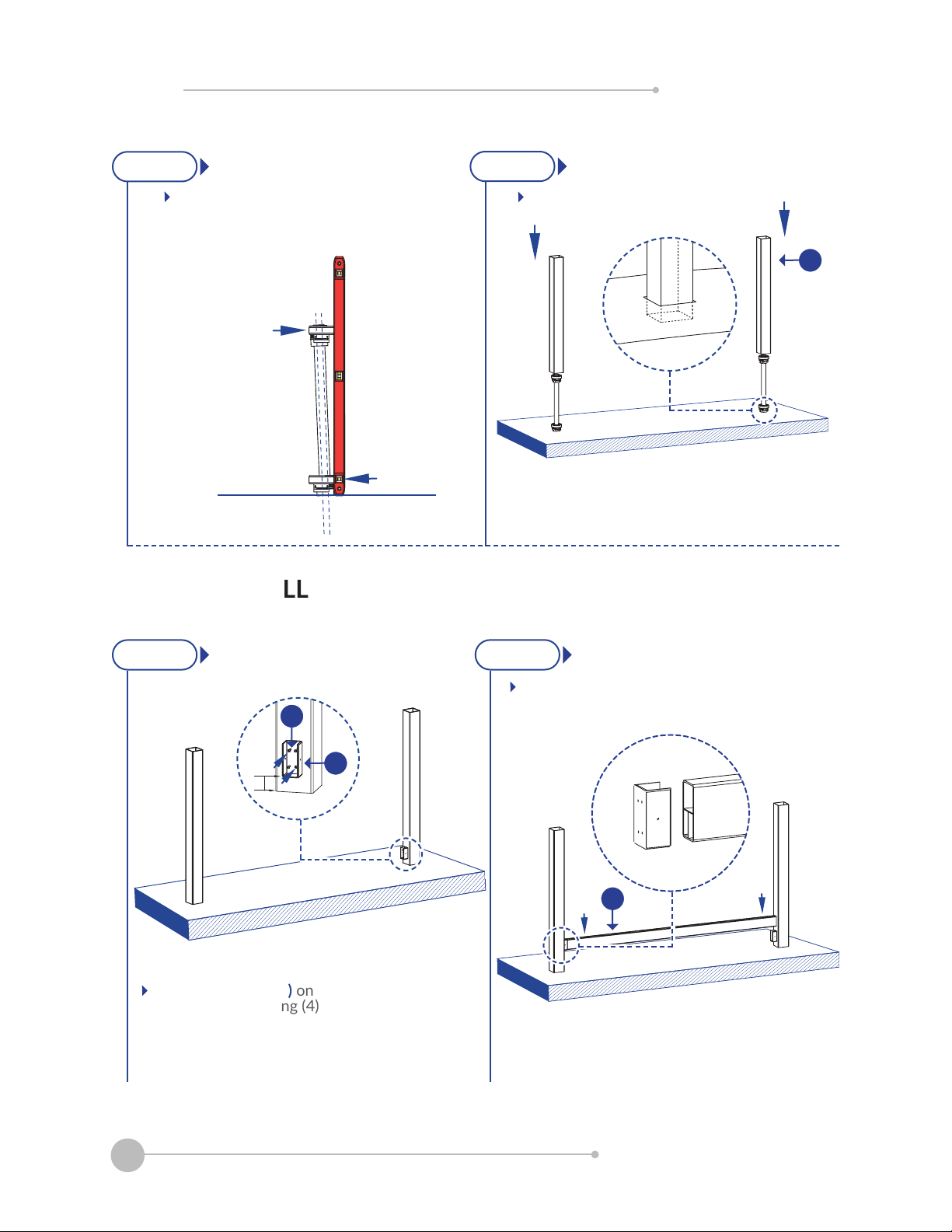

Install (1) Bracket (G) on the post approximately
-
less Steel Screws (H).
Place the second bracket over the opposite
(E) and slide the rail
down into the bracket on the opposing side.
Note: There could be a slight conict between
the head of the exposed screw and the end of the
rail in a ght ng applicaon. The end of the rail
can be notched to accommodate.
Slide the Posts (B) down over the
donuts.
STEP 2.4
STEP 3.1 STEP 3.2
STEP 2.5
B
G
E
H
2”
WWW.WAMBAMFENCE.COM 9
ASSEMBLY
INSTRUCTIONS BL19101

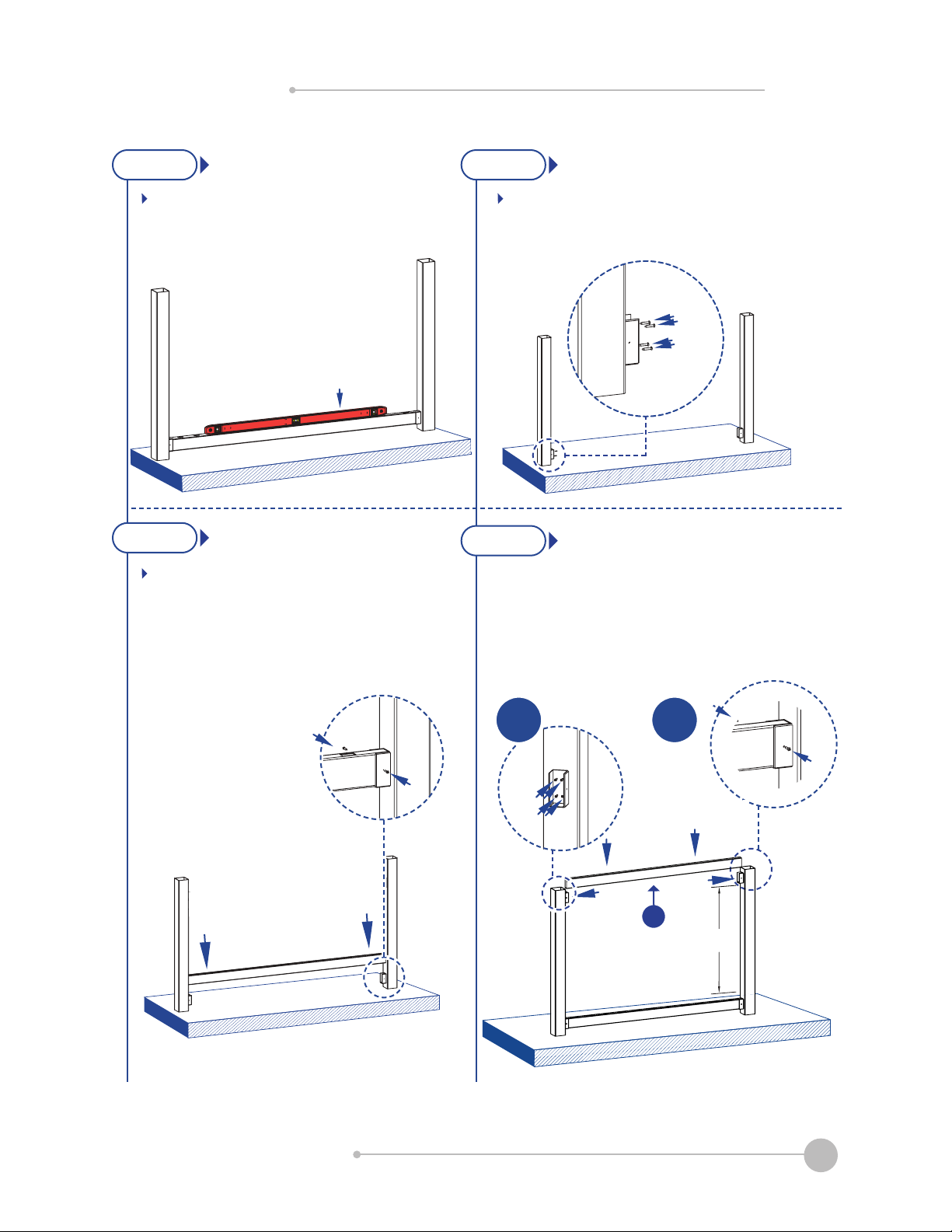

33”
STEP 3.3 STEP 3.4
-
self-drilling stainless steel screws.
STEP 3.5 STEP 3.6
to determine the height of the opposing
Temporarily remove the bottom rail and
install the lower brackets using (4) total 1”
self-drilling stainless steel screws.
Step 1:
stainless steel screws.
Step 2: Slide the Top Rail (C)
down into the brackets. Secure the brackets with
1 2
C
WWW.WAMBAMFENCE.COM
10
ASSEMBLY
INSTRUCTIONS
BL19101

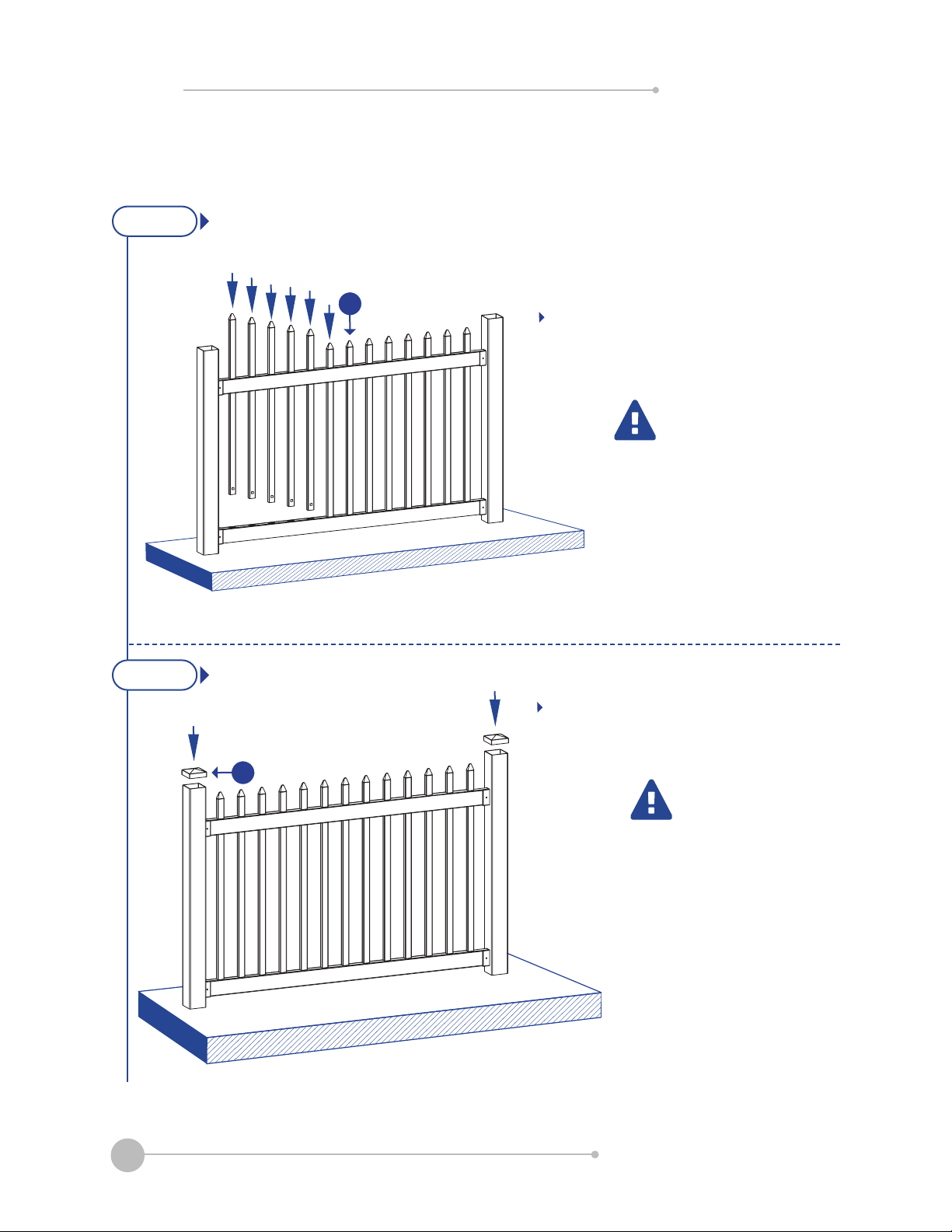

STEP 4.1
Install the Pickets (D)
through the top rail and locking them
Trim down the tops of the posts if neces-
sary, and install the Post Caps (A). Use PVC
glue (not included) to secure permanently.
D
A
STEP 4:
INSTALL PICKETS AND POST CAPS
Note: Pickets cannot be removed
once inserted.
INSTALL ONE COMPLETE PANEL OF
FENCE FIRST. Then proceed to install
only one or two pipe anchors at a me,
unl you fully understand the funda-
mentals. This will help you to avoid
repeve mistakes.
STEP 4.2
