Walker Edison BWTOTCOT Manuel utilisateur

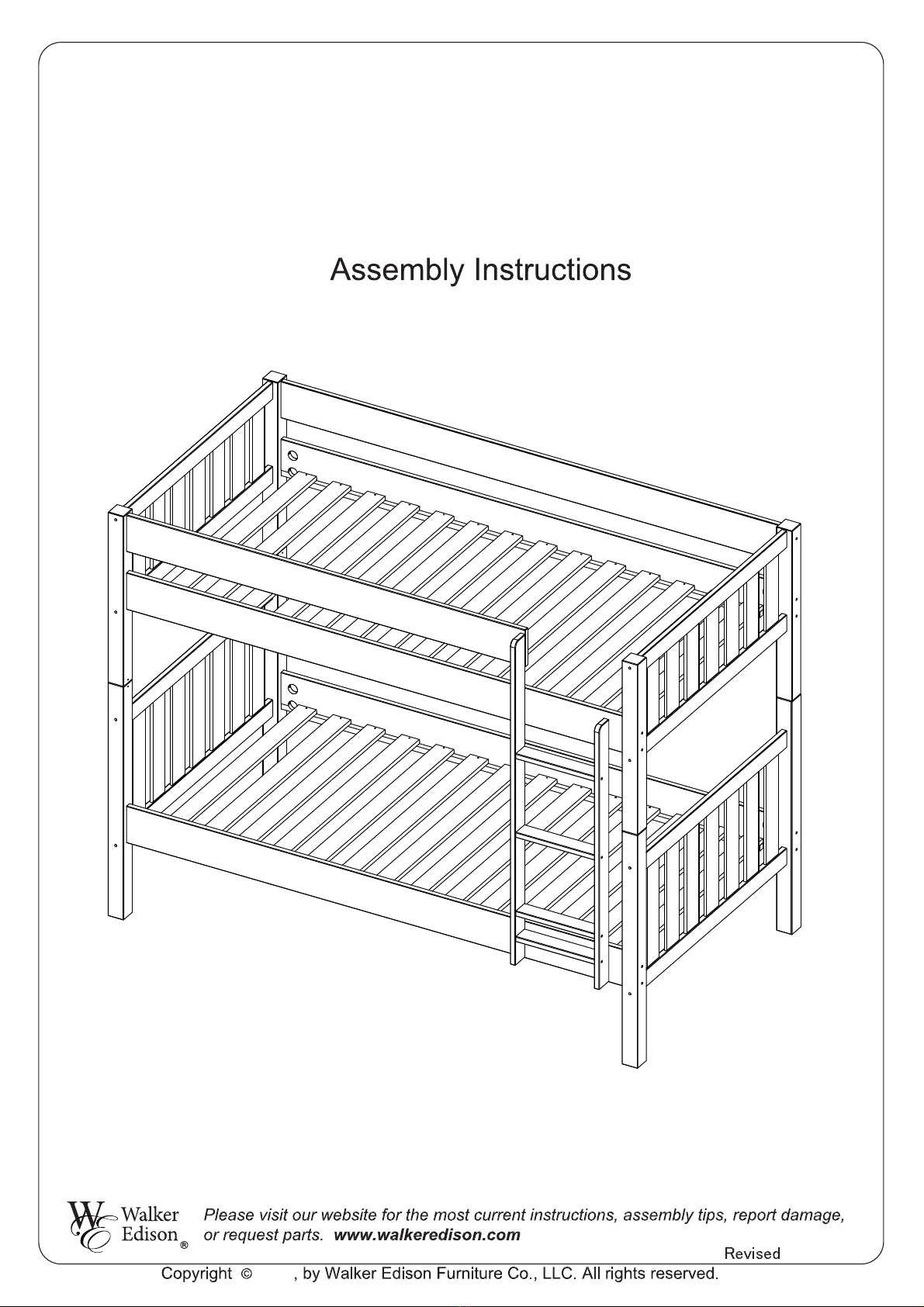

P.1

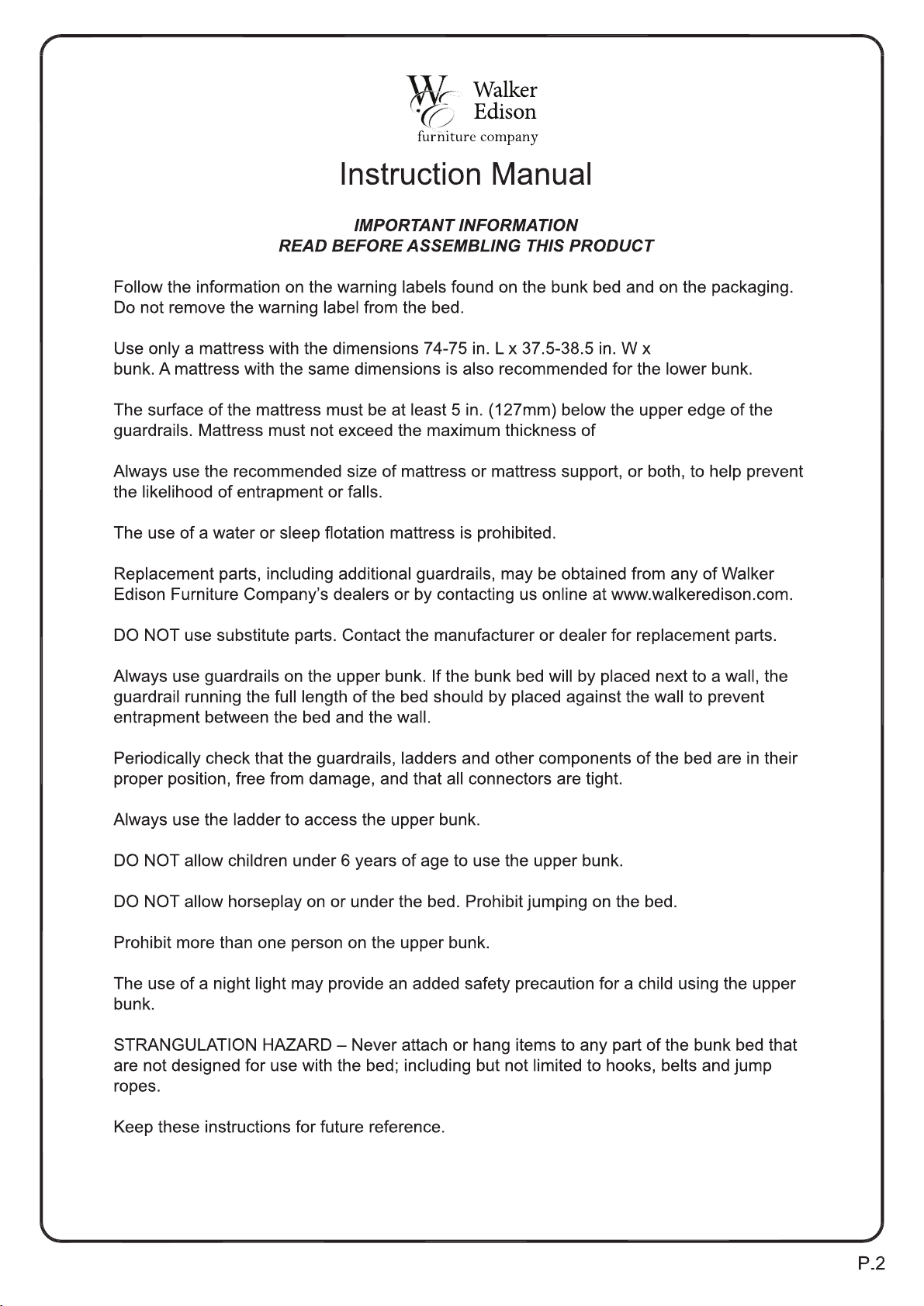

Item #:

BWTOTCOT

09/2018

2018

7.5 in. H on the upper

7 in.

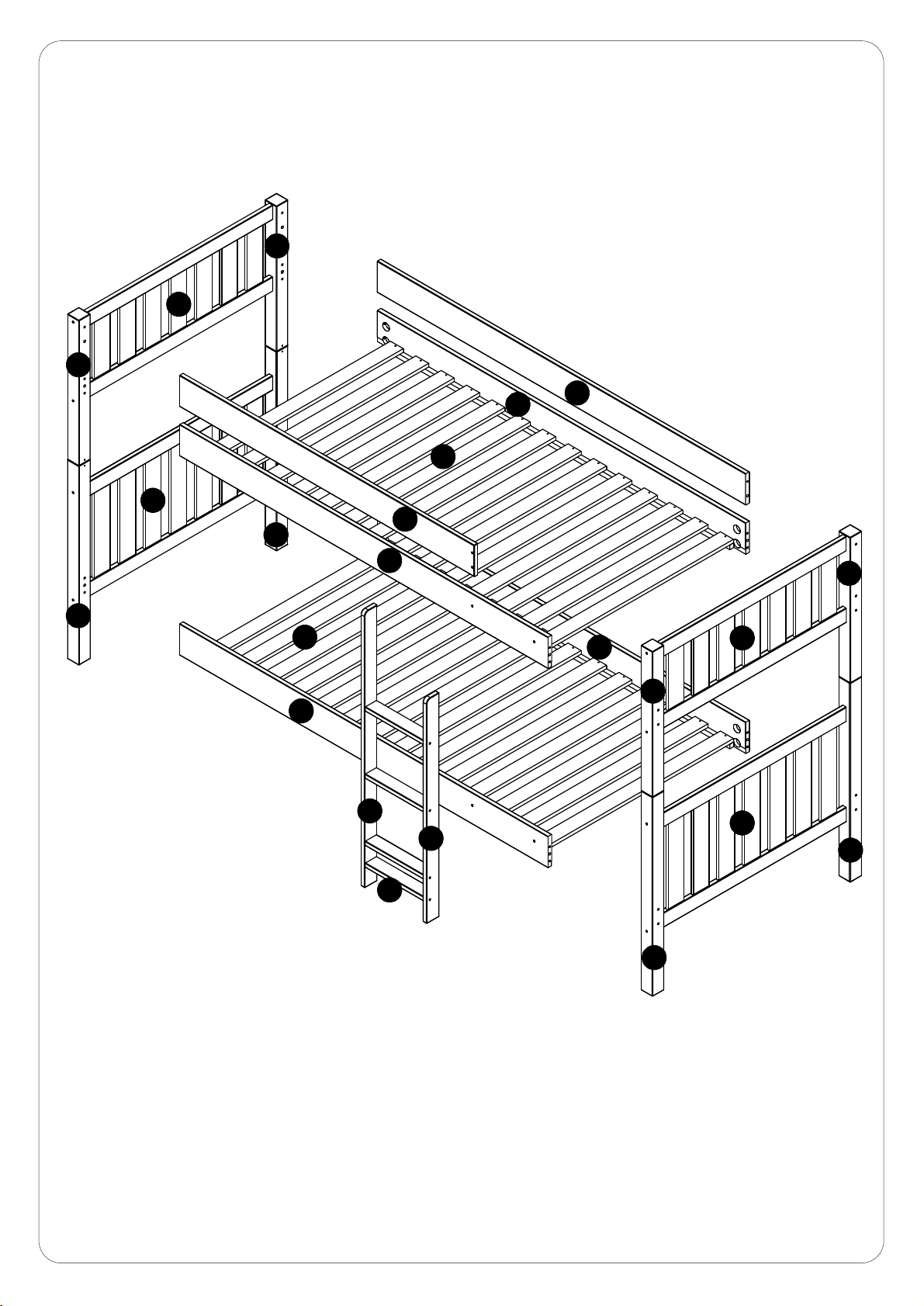

Parts List

P.3

03

05

02

01

10

11

04

05

11

10

15

15

08

07

09

06

07

06

14

13

12

01

04

P.4

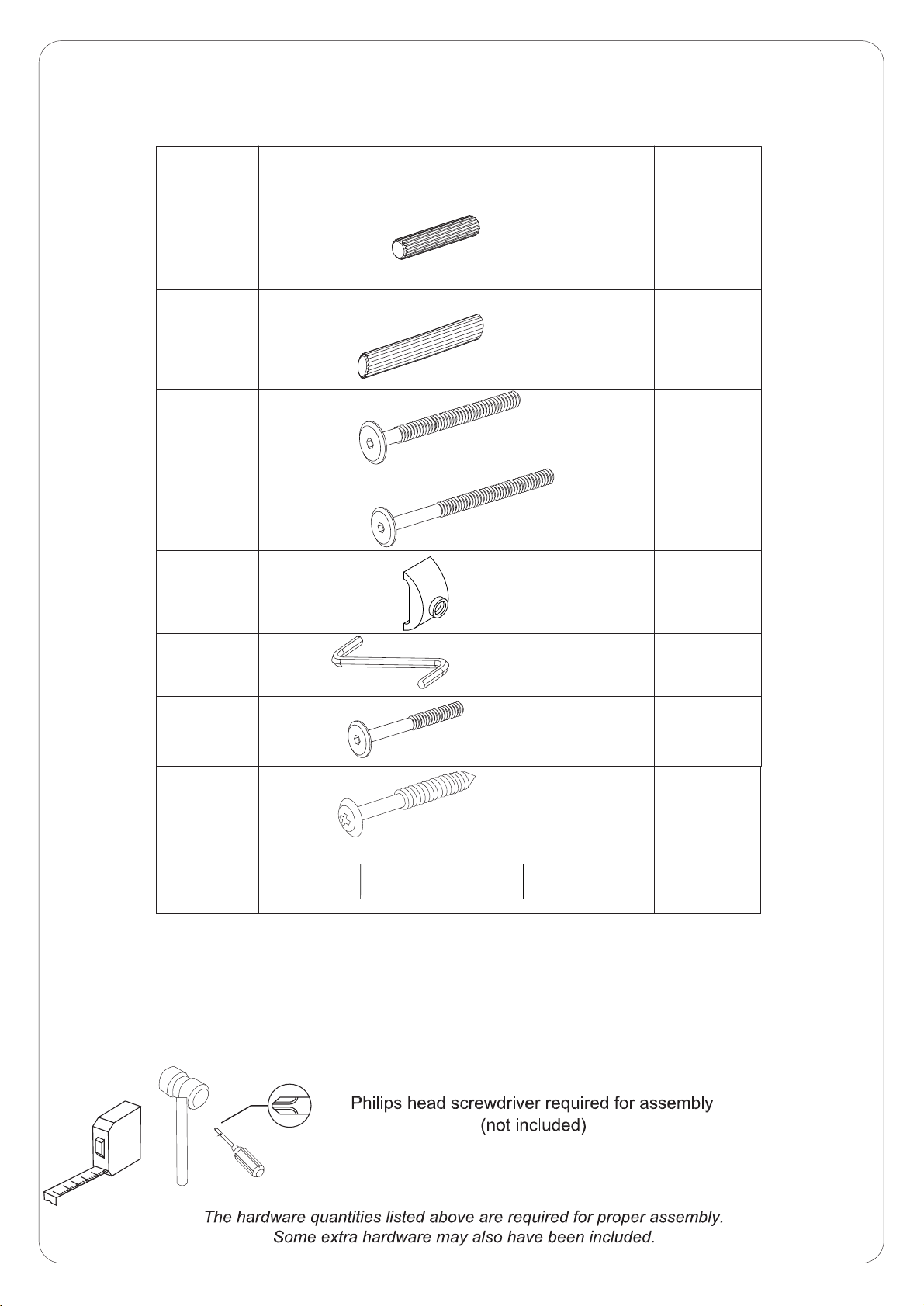

Hardware List

Ref.

A

B

C

D

E

04

19

35

02

16

16

F

G

H

K

01

14

64

14x60mm

10x40mm

Hex Key

Qty.

7x100mm

1/4x110mm

1/4

7x50mm

4x35mm

62mm Spacer

Hammer required for assembly

Step 1

Step 2

A

08

09

07

06

2x

2x

2x

2x

35x

10

11

01

02

03

04

05

10

11

10

01

05

04

11

16x

C

c

c

c

c

c

cc

c

c

c

c

c

c

c

c

c

1x

F

C

F

4x 12

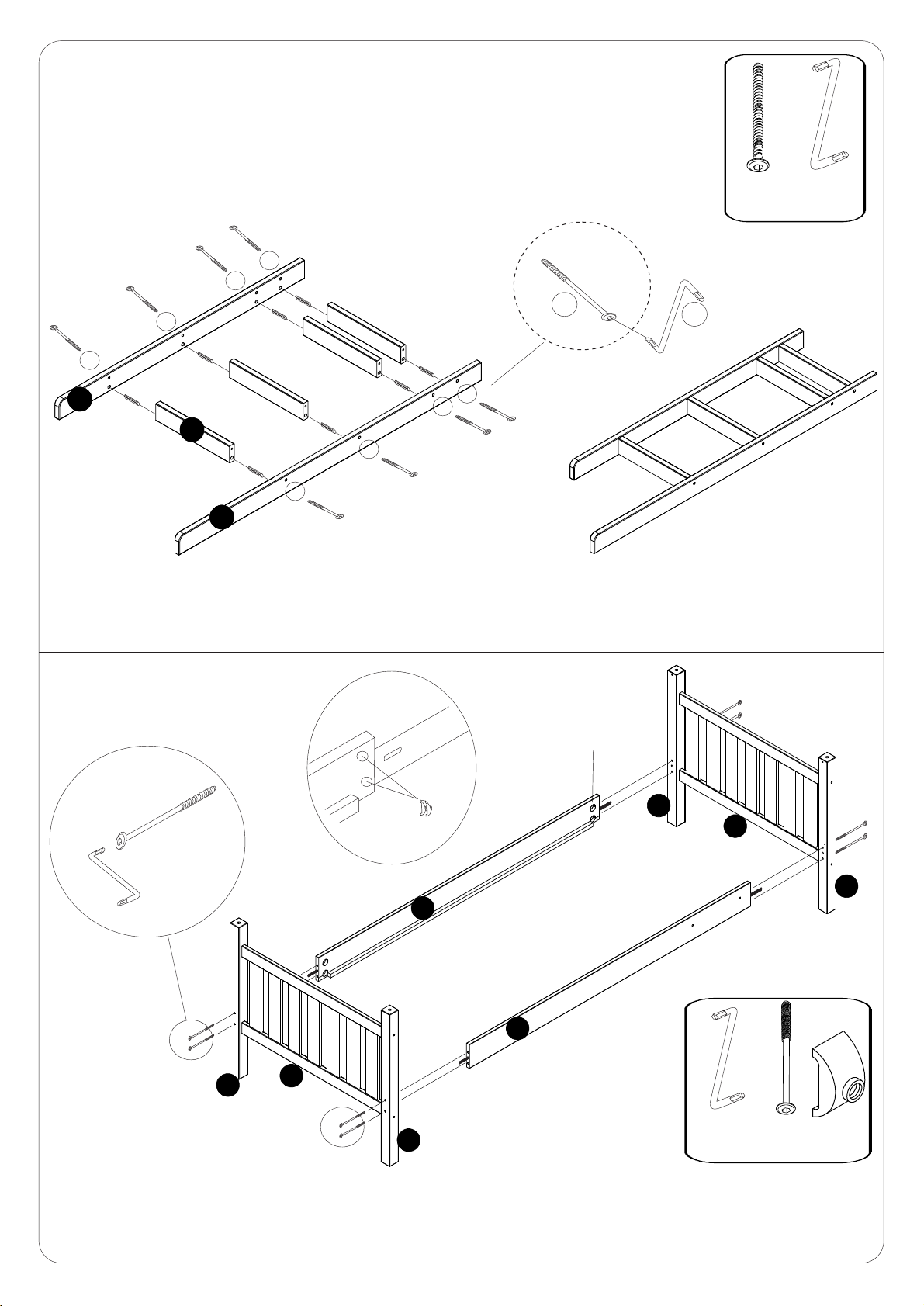

Insert wood dowels (A) into guardrails (6, 7, 8, 9, 10, 11,12).

Attach posts(1) and(2) to grid(10) using wood joint connectors (C).

Attach posts(3) and(1) to grid(10) using wood joint connectors (C).

Attach posts(4) and(5) to grid(1) using wood joint connectors (C). 2x

This up Arrow

Step 3

Step 4

P.6

GF

G

G

G

G

8x

G

1x

F

14

12

13

G

G

GG

D

F

8x

D

E

8x

E

D

D

D

D

06

07

11

11

05

04

05

04

1x

F

Attach ladder rungs (12) to ladder legs (13, 14) using wood joint

connectors (G).

Insert barrel nut (E) into pre-drilled holes on guardrails (6, 7). Attach

guardrails (6, 7) to end rails (11) using wood joint connector (D). Wood

joint connector (D) will screw into barrel nut (E).

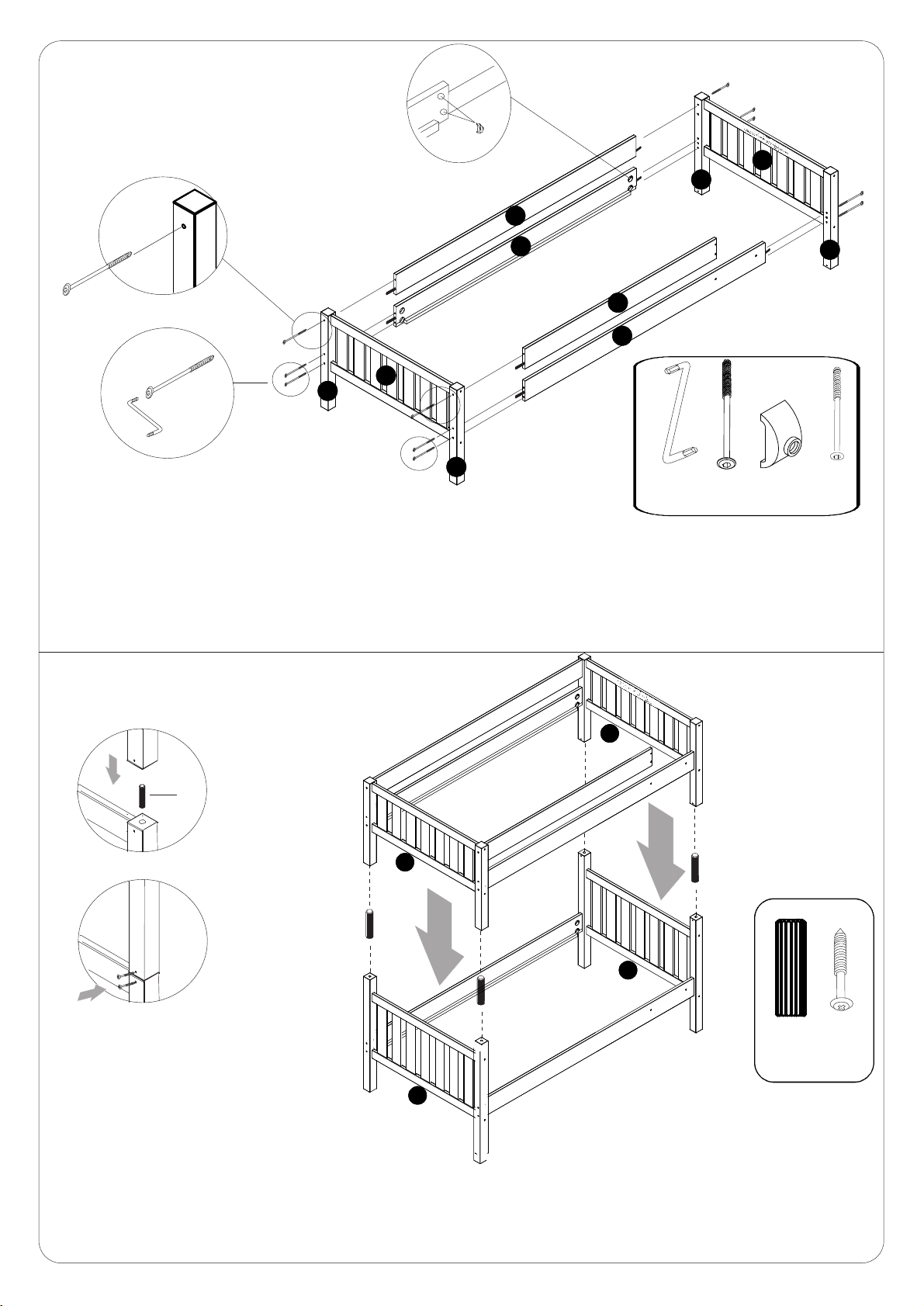

Step 5

P.7

Step 6

D

F

D

C

D

C

E

C

D

D

06

09

08

07

10

01

03

02

01

10

C

8x

D

8x

E

3x

C

4x

B

8x

H

B

H

11

11

10

10

1x

F

H

1st

2nd

Insert barrel nut (E) into pre-drilled holes on guardrails (6, 7). Attach

guardrails (6, 7, 8, 9) to end rails (10) using wood joint connector (C)and

Wood joint connector (D) will screw into barrel nut (E).

Insert wood dowels (B) into pre-drilled holes on end rail (11) posts.

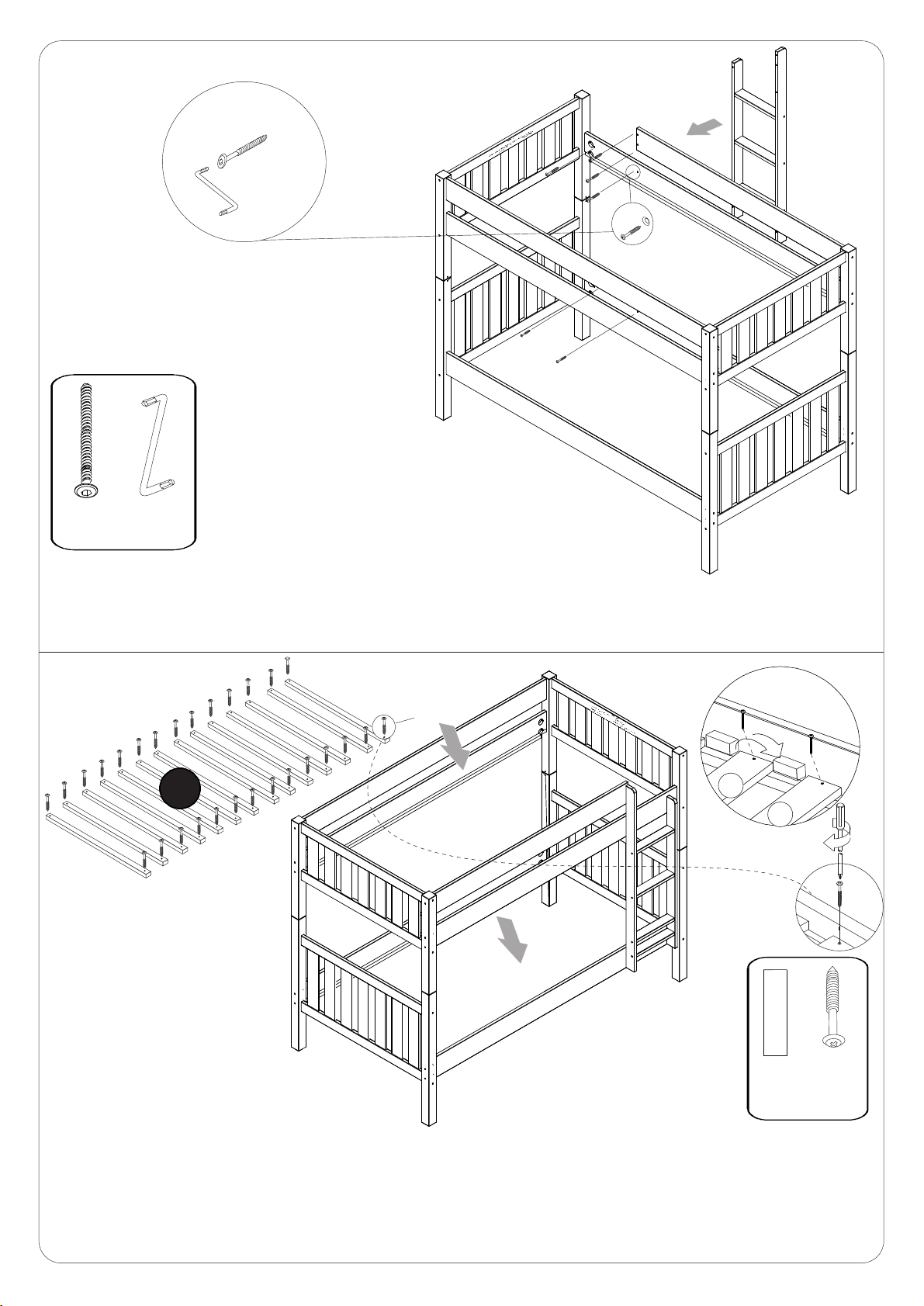

Carefully lift and place the upper bunk assembly onto the lower bunk

assembly using wood dowels (B) as guides. Once in place, secure the

upper and lower assemblies using wood joint connectors H).

P.8

Step 7

6x

G

G

G

G

G

G

56x

H

2x

15

H

HH

K

K

19

19

G

F

1x

F

Attach ladder to upper and lower bunk assembly using wood joint

connectors (G).

Attach wood slat (15) to guardrails on upper and lower bunk assembly

using wood joint connector (H). Use wood spacer (K) to ensure proper

spacing.

62mm Spacer

2x

K

Step 8

P.9

Step 1

Step 2

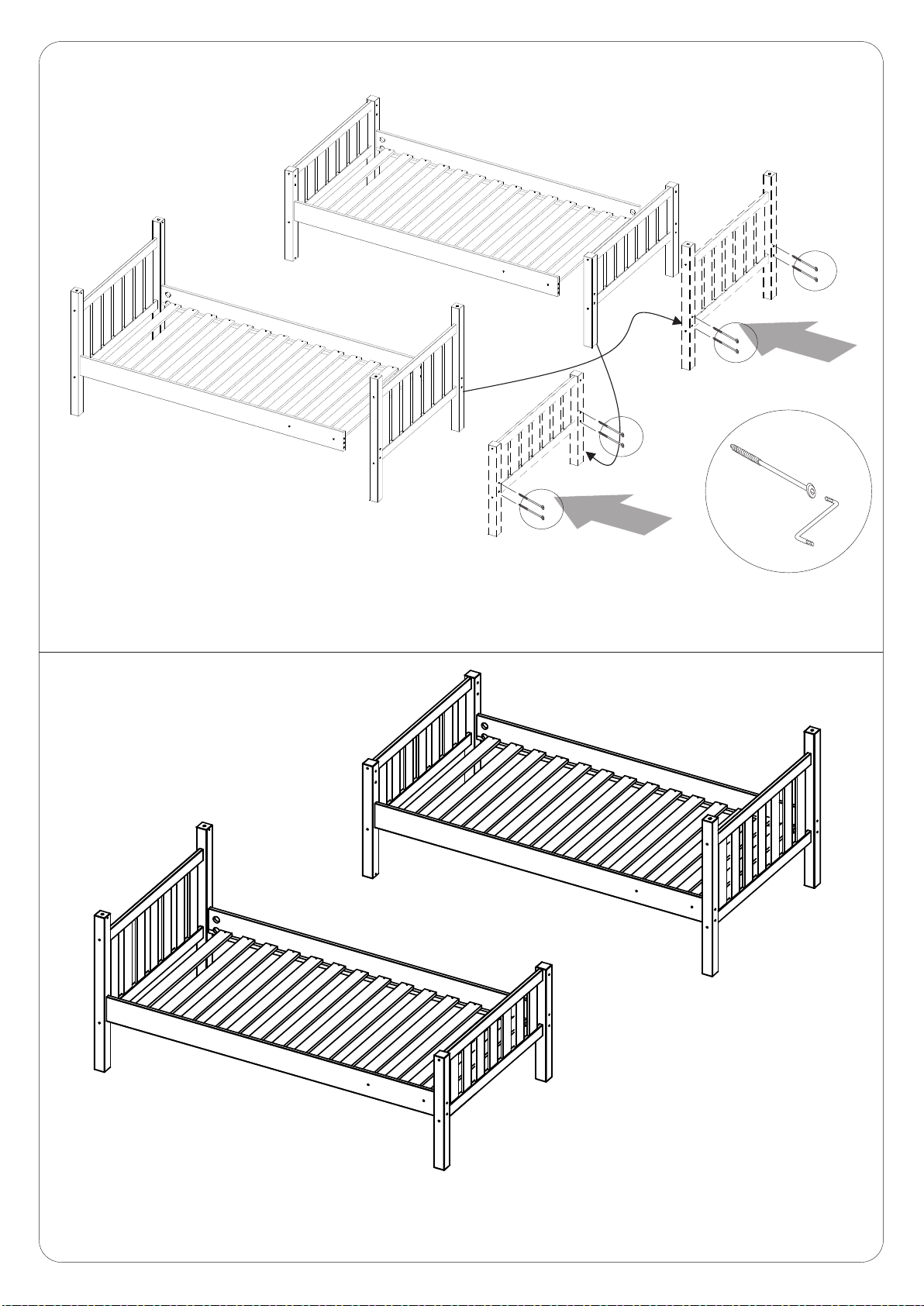

Disassembly Instructions

Undo steps 6 and 7 of this instruction set.

Place the separate beds on the ﬂoor as pictured.

F

Remove the parts indicated by the arrow.

P.10

Step 3

Step 4

Reverse the parts according to the image.

Reassemble the parts.

Congratulations! This bunk was transformed into two beds with

headboards and footboards.

F
