Walker Edison BWTOD Manuel utilisateur

Item #: BWTOD

Assembly Instructions

For our most current instructions, to request missing, lost or broken parts, or for any other Customer

Service issues, please visit our website at www.walkeredison.com or call us at 877-207-5906.

Revised 11/2010

Instruction Manual

IMPORTANT INFORMATION

READ BEFORE ASSEMBLING THIS PRODUCT

Follow the information on the warning labels found on the bunk bed and on the packaging. Do not

remove the warning label from the bed.

Use only a mattress with the dimensions 74-75 in.L x 37.5-38.5 in.W x 9 in.H on the upper bunk.

The surface of the mattress must be at least 5 in. (127mm) below the upper edge of the guardrails.

Mattress must not exceed the maximum thickness of 9 in.

Always use the recommended size of mattress or mattress support, or both, to help prevent the

likelihood of entrapment or falls.

The use of a water or sleep flotation mattress is prohibited.

Replacement parts, including additional guardrails, may be obtained from any of Walker Edison

Furniture Company’s dealers or by contacting us online at www.walkeredison.com.

DO NOT use substitute parts. Contact the manufacturer or dealer for replacement parts.

Always use guardrails on the upper bunk. If the bunk bed will by placed next to a wall, the guardrail

running the full length of the bed should by placed against the wall to prevent entrapment between

the bed and the wall.

Periodically check that the guardrails, ladders and other components of the bed are in their proper

position, free from damage, and that all connectors are tight.

Always use the ladder to access the upper bunk.

DO NOT allow children under 6 years of age to use the upper bunk.

DO NOT allow horseplay on or under the bed. Prohibit jumping on the bed.

Prohibit more than one person on the upper bunk.

The use of a night light may provide an added safety precaution for a child using the upper bunk.

STRANGULATION HAZARD – Never attach or hang items to any part of the bunk bed that are not

designed for use with the bed; including but not limited to hooks, belts and jump ropes.

Keep these instructions for future reference.

Parts List

Large screw

Extra-large screw

Medium screw

Small bolt

Large joint connector

Large bolt

Wrench

Small joint connector

Small screw

Support bracket

Wood dowel

Barrel nut

Connector

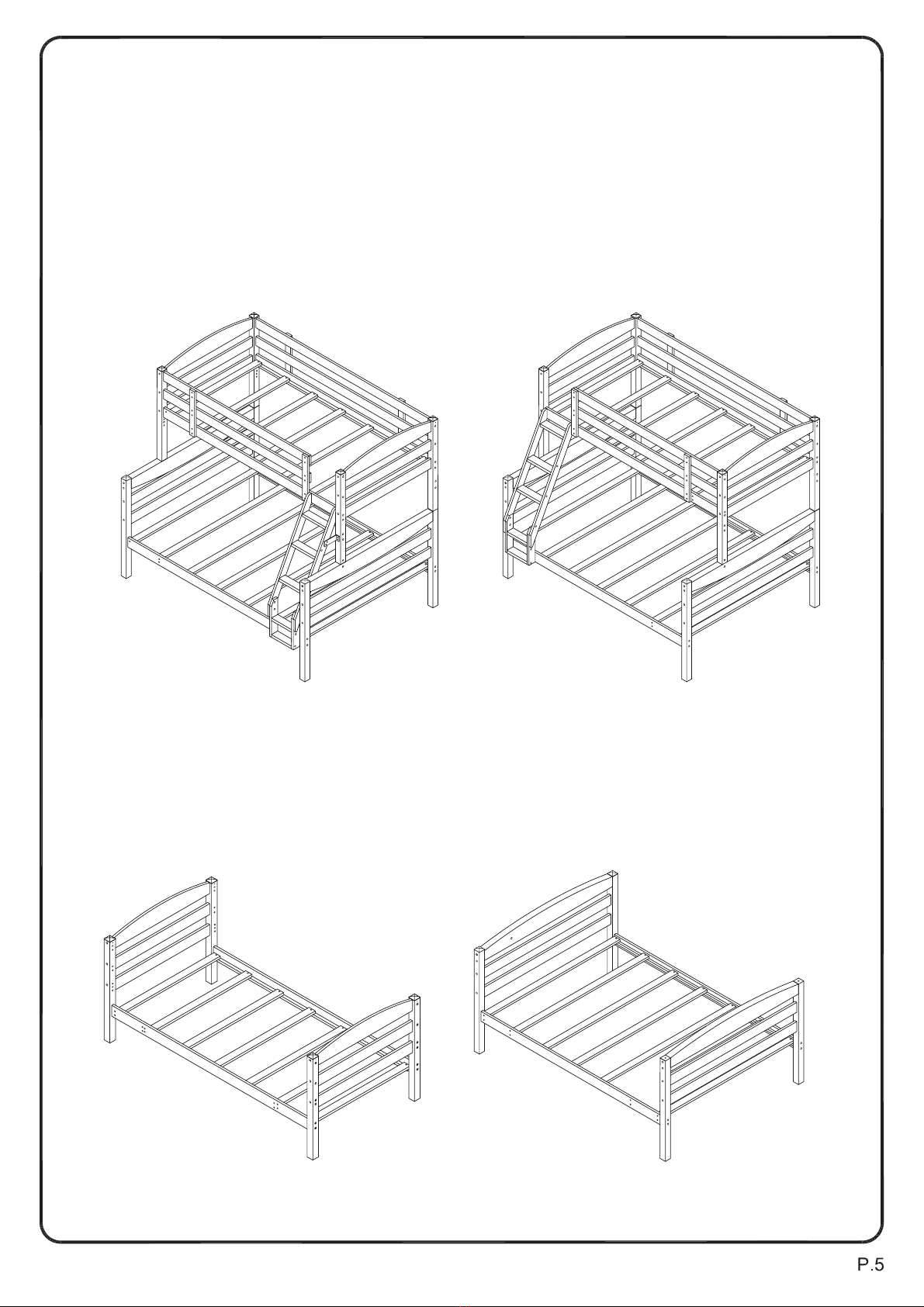

Assembly Options

Option A

(Ladder Right)

To build this option, follow steps 1 through 10,

then 11A through 20A.

Option B

(Ladder Left)

To build this option, follow steps 1 through 10,

then 11B through 20B.

Option C

This option shows how to separate the bunk

bed in order to have two individual beds.

Follow steps 21 through 33.

Insert dowels (A) into slats (1,2,3,4,5).

Insert dowels (A) into crossbeams (6,7,8,9), guardrails (10,11) and ladder rungs (27,28).

Attach legs (16,17) to slats (1,2) using dowels as guides. Secure legs (16,17) using extra-large screws (E).

Attach legs (18,19) to slats (1,2) using dowels as guides. Secure legs (18,19) using extra-large screws (E).

Attach legs (12,13) to slats (3,5) using dowels as guides. Secure slats (5) to legs (12,13) using extra-large

screws (E). Insert connectors (C) into of leg (13) and slat (3). Secure slat (3) to legs (12,13) using small joint

connectors (L). Note that small joint connectors (L) at leg (13) will go through connector (C). Secure connector

Attach legs (14,15) to slats (4,5) using dowels as guides. Secure slats (5) to legs (14,15) using extra-large

screws (E). Insert connectors (C) into leg (15) and slat (4). Secure slat (4) to legs (14,15) using small joint

connectors (L). Note that small joint connectors (L) at leg (15) will go through connector (C). Secure connector

To build the lower ladder assembly, attach ladder rungs (28) to ladder legs (25,26) and secure using large

screws (D).

To build the upper ladder assembly, attach ladder rungs (27) to ladder side rails (23,24) and secure using large

screws (D). Attach lower ladder assembly to upper ladder assembly using small bolts (H).

Secure crossbeams (8,9) to the leg (12,13) assembly using large joint connectors (I) and barrel nuts (B).

Note the small diagram above for proper large joint connector/barrel nut assembly.

Secure the opposite ends of crossbeams (8,9) to the leg (14,15) assembly using large joint connectors (I)

and barrel nuts (B). Note the small diagram above for proper large joint connector/barrel nut assembly.
