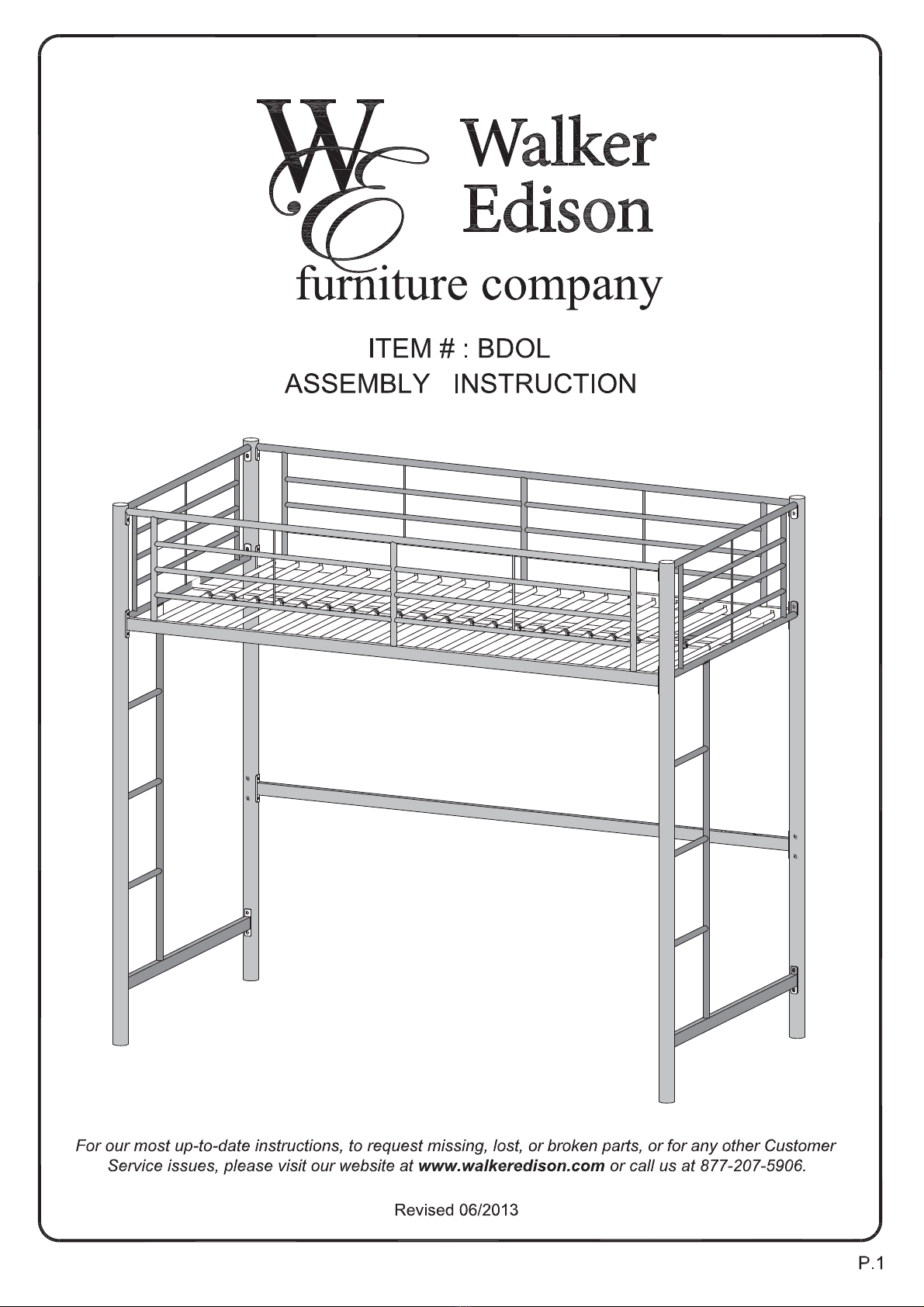

Instruction Manual

IMPORTANT INFORMATION

READ BEFORE ASSEMBLING THIS PRODUCT

Follow the information on the warning labels found on the bunk bed and on the packaging.

Do not remove the warning label from the bed.

Use only a mattress with the dimensions 74-75 in.L x 51.5-52.5 in.W x 9 in.H on the upper

bunk.

The surface of the mattress must be at least 5 in. (127mm) below the upper edge of the

guardrails. Mattress must not exceed the maximum thickness of 9 in.

Always use the recommended size of mattress or mattress support, or both, to help prevent

the likelihood of entrapment or falls.

The use of a water or sleep flotation mattress is prohibited.

Replacement parts, including additional guardrails, may be obtained from any of Walker

Edison Furniture Company’s dealers or by contacting us online at www.walkeredison.com.

DO NOT use substitute parts. Contact the manufacturer or dealer for replacement parts.

Always use guardrails on the upper bunk. If the bunk bed will by placed next to a wall, the

guardrail running the full length of the bed should by placed against the wall to prevent

entrapment between the bed and the wall.

Periodically check that the guardrails, ladders and other components of the bed are in their

proper position, free from damage, and that all connectors are tight.

Always use the ladder to access the upper bunk.

DO NOT allow children under 6 years of age to use the upper bunk.

DO NOT allow horseplay on or under the bed. Prohibit jumping on the bed.

Prohibit more than one person on the upper bunk.

The use of a night light may provide an added safety precaution for a child using the upper

bunk.

STRANGULATION HAZARD – Never attach or hang items to any part of the bunk bed that

are not designed for use with the bed; including but not limited to hooks, belts and jump

ropes.

Keep these instructions for future reference.

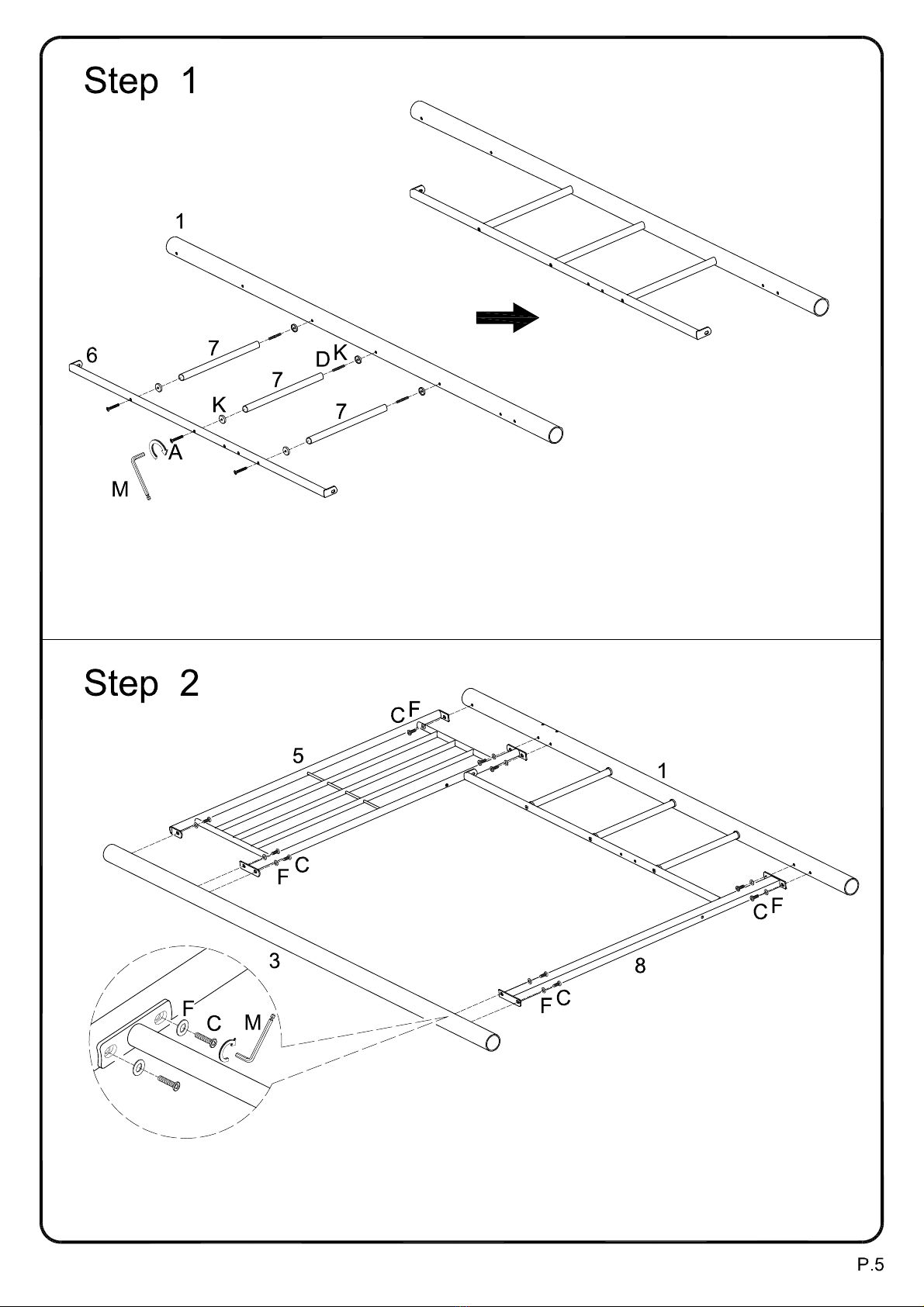

Attach post (1) to the left side of ladder rungs (7) using double-ended screws (D) and rounded

washers (K). Attach ladder rail (6) to the right side of ladder rungs (7) using medium bolts (A)

and rounded washers (K). Tighten medium bolts (A) with small wrench (M).

Attach guardrail (5) and crossbar (8) to post (1) using small bolts (C) and small washers (F) .

Attach post (3) to guardrail (5) and crossbar (8) using small bolts (C) and small washers (F).

Tighten small bolts (C) with small wrench (M).

Secure ladder rail (6) to guardrail (5) using samll bolt (C) and samll washer F). Secure ladder

rail (6) to crossbar (8) using large bolt (B) and large washer (E) .Tighten samll washer (F) with

samll wrench (M) and large bolt (B) with large wrench (L).

Attach post (2) to the right side of ladder rungs (7) using double-ended screws (D) and rounded

washers (K). Attach ladder rail (6) to the left side of ladder rungs (7) using medium bolts (A)

and rounded washers (K). Tighten medium bolts (A) with small wrench (M).

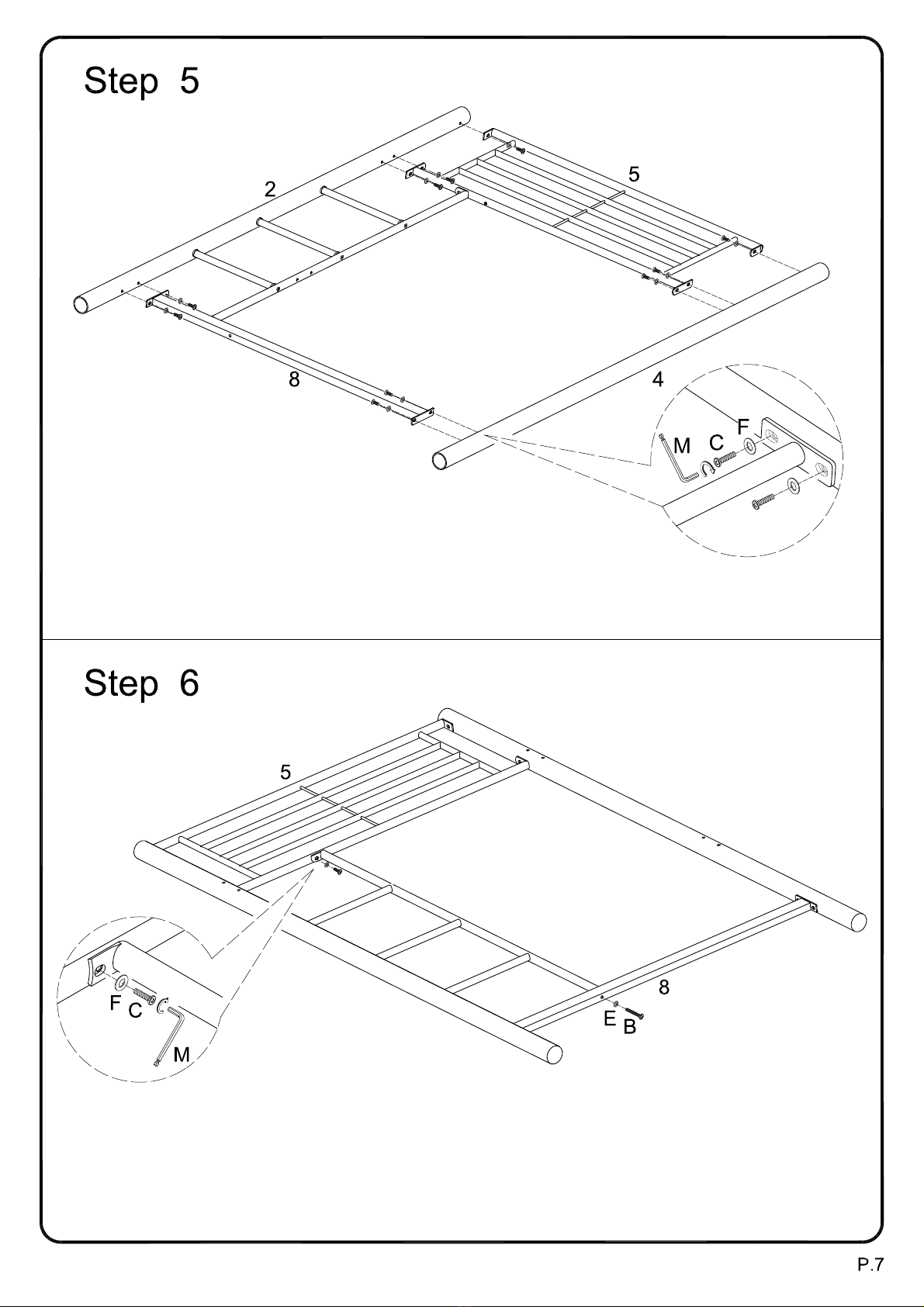

Attach guardrail (5) and crossbar (8) to post (2) using small bolts (C) and small washers (F) .

Attach post (4) to guardrail (5) and crossbar (8) using small bolts (C) and small washers (F).

Tighten small bolts (C) with small wrench (M).

Secure ladder rail (6) to guardrail (5) using samll bolt (C) and samll washer F). Secure ladder

rail (6) to crossbar (8) using large bolt (B) and large washer (E) .Tighten samll washer (F) with

samll wrench (M) and large bolt (B) with large wrench (L).

Attach crossbars (10,11,12,14) to the assembly from Step 3 using small bolts (C) and small

washers (F) .Tighten samll bolts (C) with samll wrench (M).

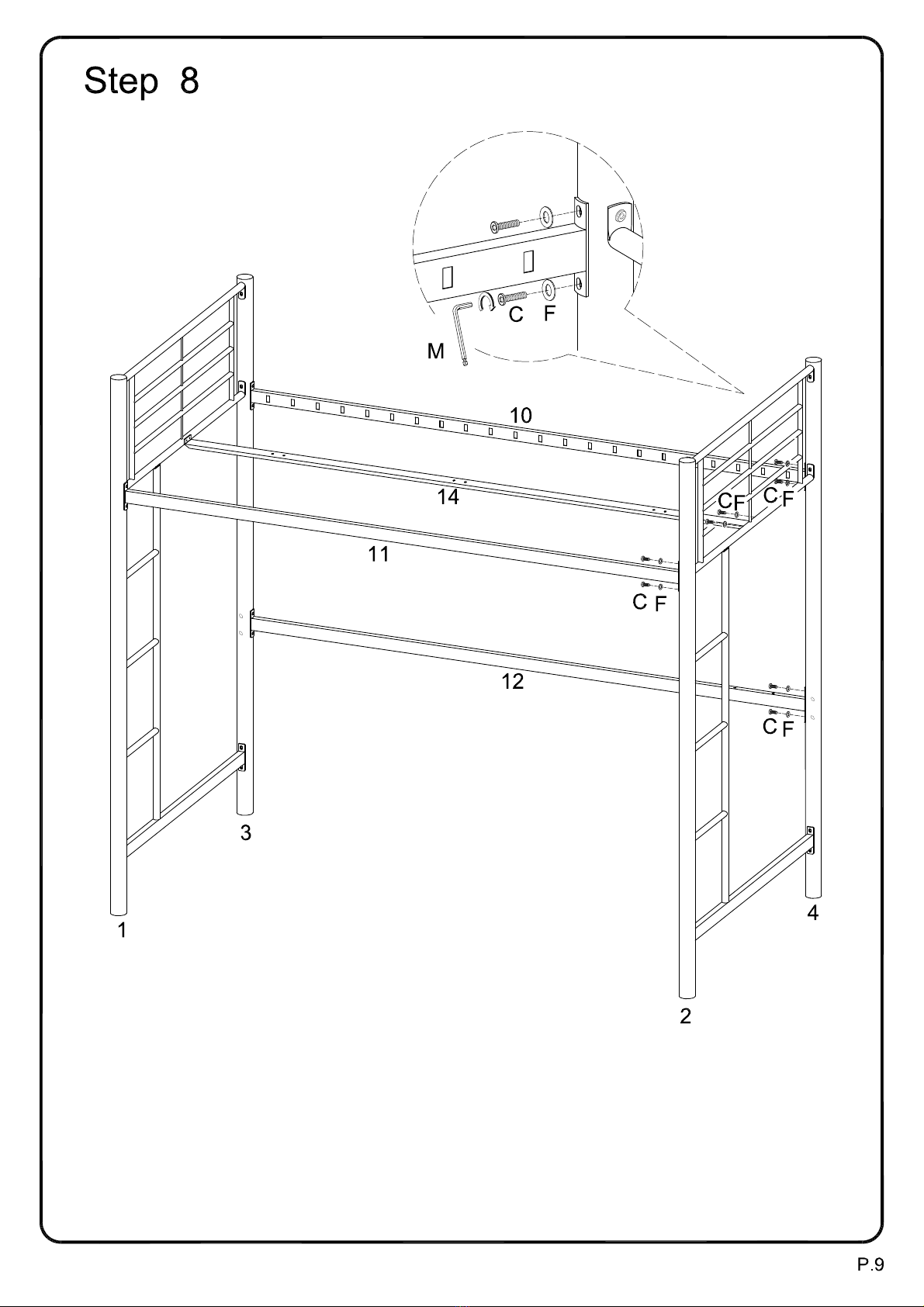

Attach crossbars (10,11,12,14) to the assembly from Step 6 using small bolts (C) and small

washers (F) .Tighten samll bolts (C) with samll wrench (M).

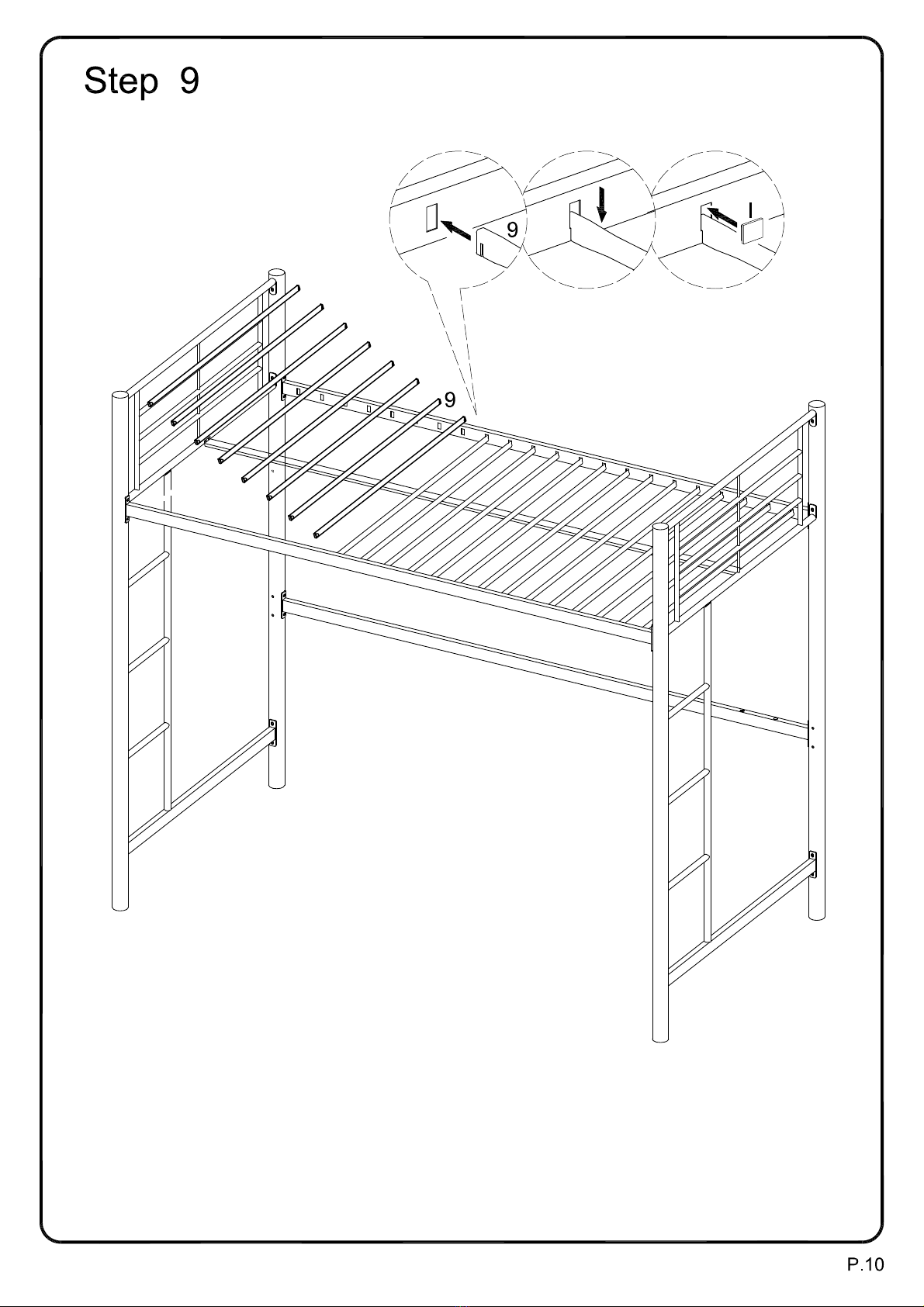

Insert mattress support bars (9) into the provoded slots of crossbars (10,11).Secure mattress

support bars (9) by snapping plastic tab locks (I) into the provided slots of crossbars (10,11).

Note that it may be necessary to apply more pressure to some plastic tab locks than others.
