Walker Edison B48CLY Manuel utilisateur

P.1

AssemblyInstructions

Item# : B48CLY

Revised 10/07/2019 (E)

201

Walker Edison Furniture Co., LLC. All rightsreserved.

Please visit our websitefor the most current instructions, assemblytips, report damage,

or request parts. .alkeredison.com

alker Edison

P.2

General Assembly Guidelines

I. Ensure that all parts and hardware are available before beginning assembly.

II. Follow each step carefully to ensure the proper assembly of this product.

III. Two people are recommended for ease in the assembly of this product.

IV. The three main types of hardware used to assemble this product are: wood

dowels, screws and bolts.

V. The provided glue is to secure wood dowels in place. When first inserting dowels,

locate the appropriate hole for the dowel, place a small amount of glue in the hole

and insert the dowel. Wipe away excess glue immediately.

In future assembly steps when dowels are necessary to attach assembly parts

together, place a small amount of glue on the end of the dowel before attaching

parts together. Wipe away excess glue immediately.

VI. A Phillips head screwdriver is required for the assembly of this product.

VII. Power tools should not be used to assemble this product.

VIII. Drill may be needed for securing product to wall.

P.3

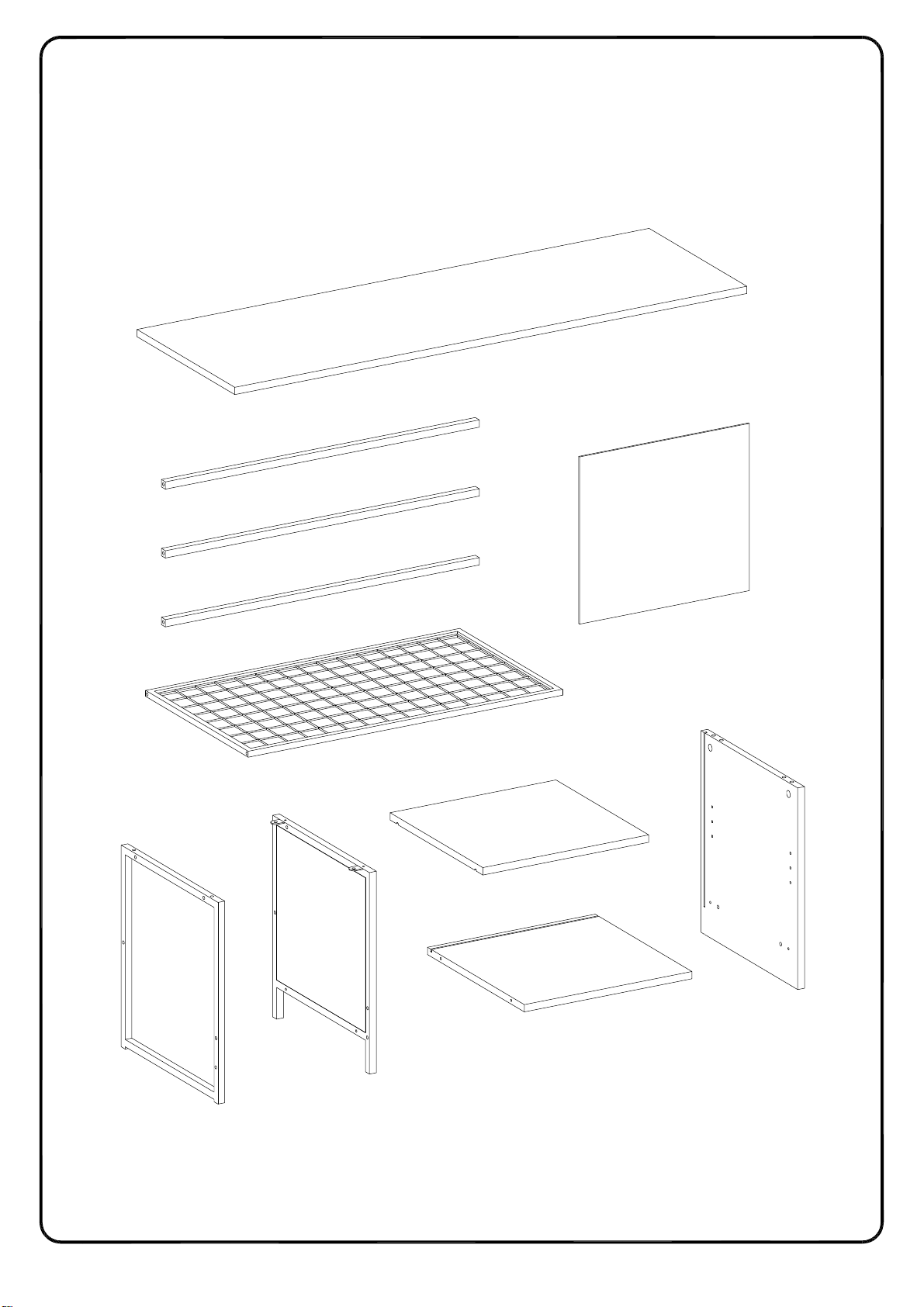

PartsList

201

Walker Edison Furniture Co., LLC. All rightsreserved.

pcs

4pcs

Wooden dowel

8x30mm

6x35mm Cambolt 4

pcs

Plastic wedge 3

Screw

3x17mm

M4 HexKey

HardwareList

The hardware quantities listed above are required for proper assembly.

Someextrahardware may also have been included.

Philipshead screwdriverrequired forassembly

(not included)

P.4

pcs

Camlock

15x11mm 4

pcs

30mm 4

Sticker

pcs

6x12mm 2

Bolt

201

Walker Edison Furniture Co., LLC. All rightsreserved.

pcs

Shelf support pin

1pc

Glue tube

pcs

6x25mm 12

Bolt

pcs

Screw

4x38mm 2

P.5

2019

Walker Edison Furniture Co., LLC. All rightsreserved.

Step 1

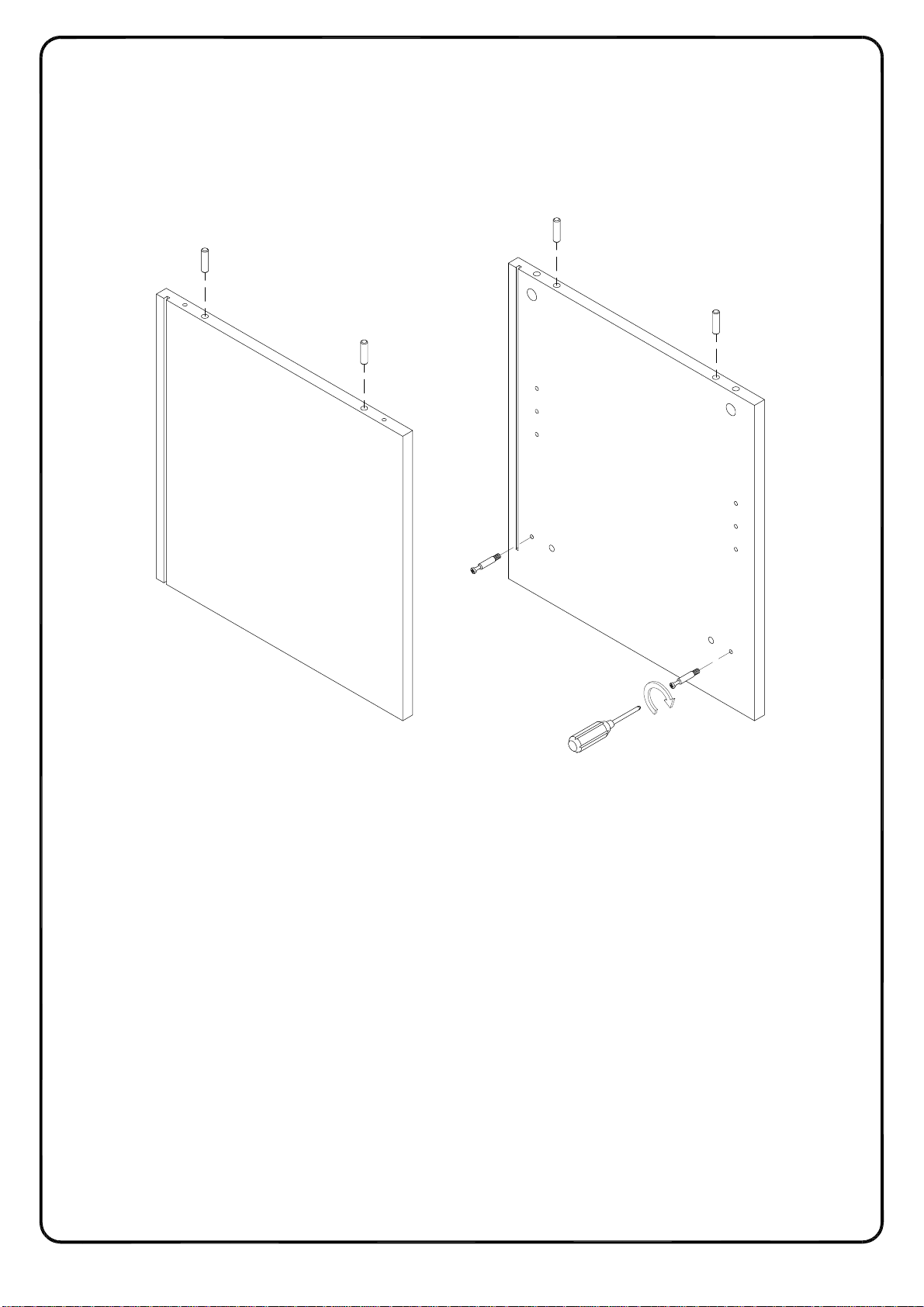

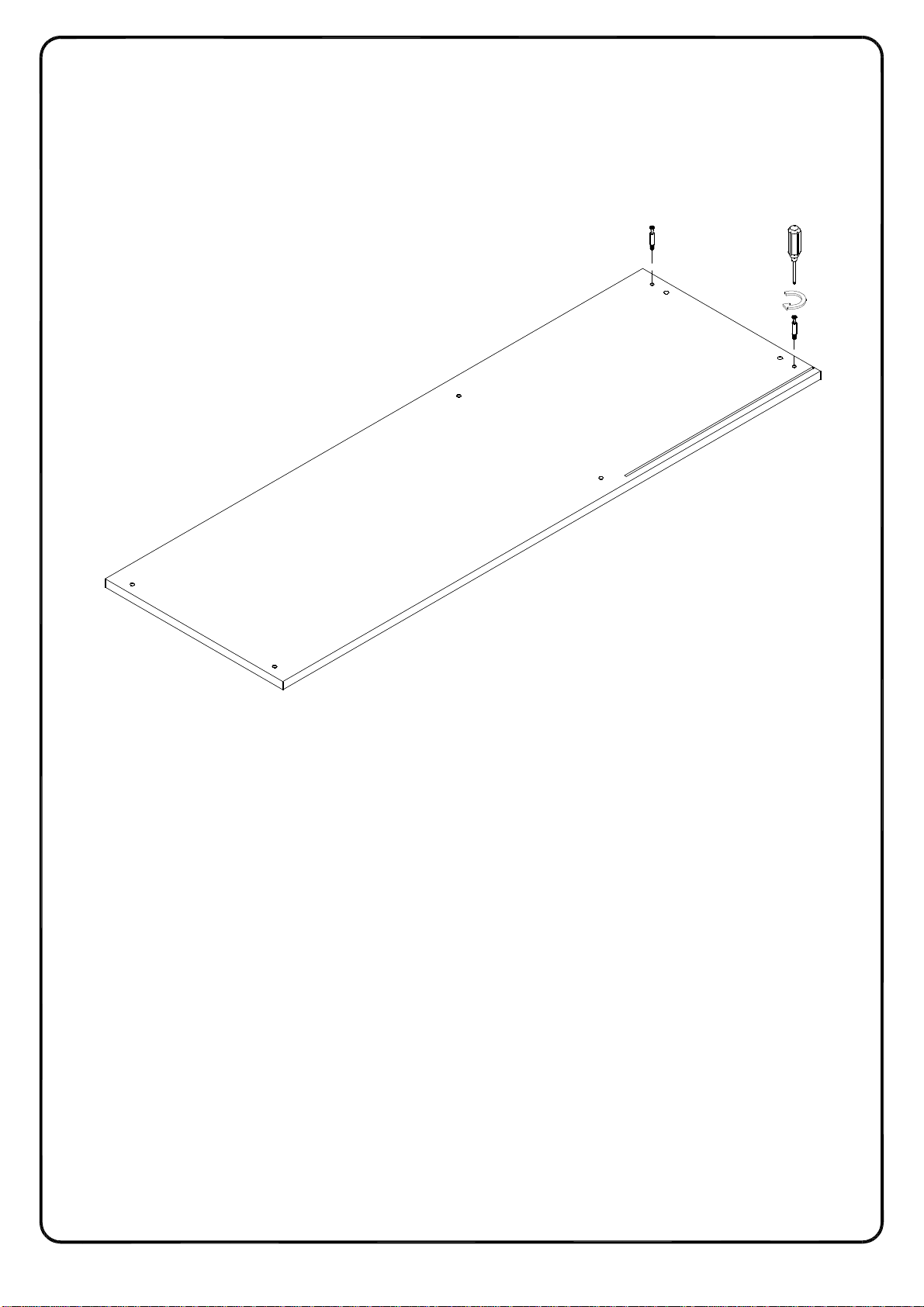

Using cam bolt (C) secure part (1) with Philips head screwdriver as per diagram.

P.6

2019

Walker Edison Furniture Co., LLC. All rightsreserved.

Step 2

Insert wooden dowel (A) into parts (6,8) and screw cam bolt (C) into designated hole on the

side panel as per diagram.

Step 3

P.7

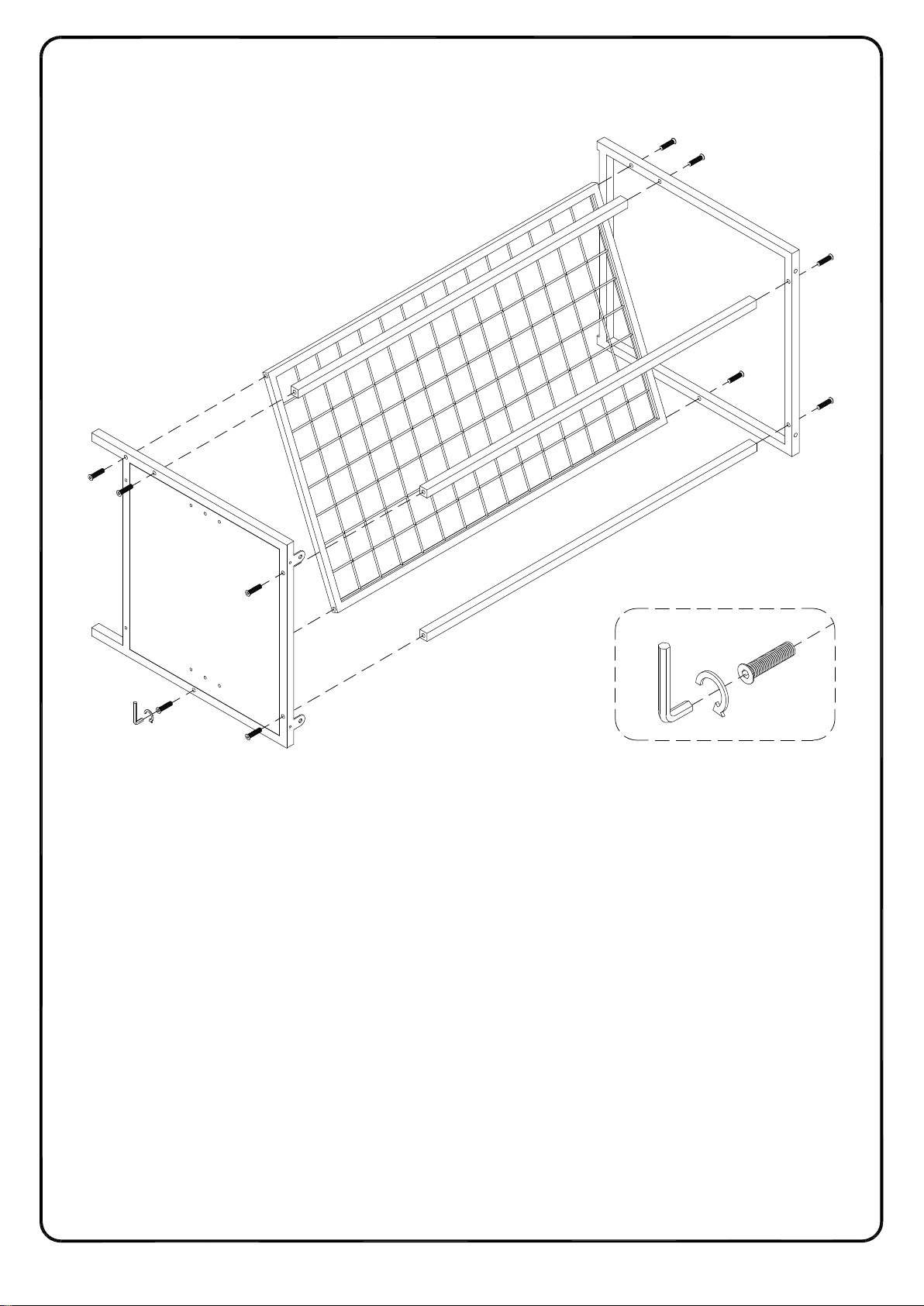

Using bolt (G) secure parts (4,5) into parts (2,3,10 ) with hex key (E) as per diagram.

Step 4

P.8

2019

Walker Edison Furniture Co., LLC. All rightsreserved.

21 3

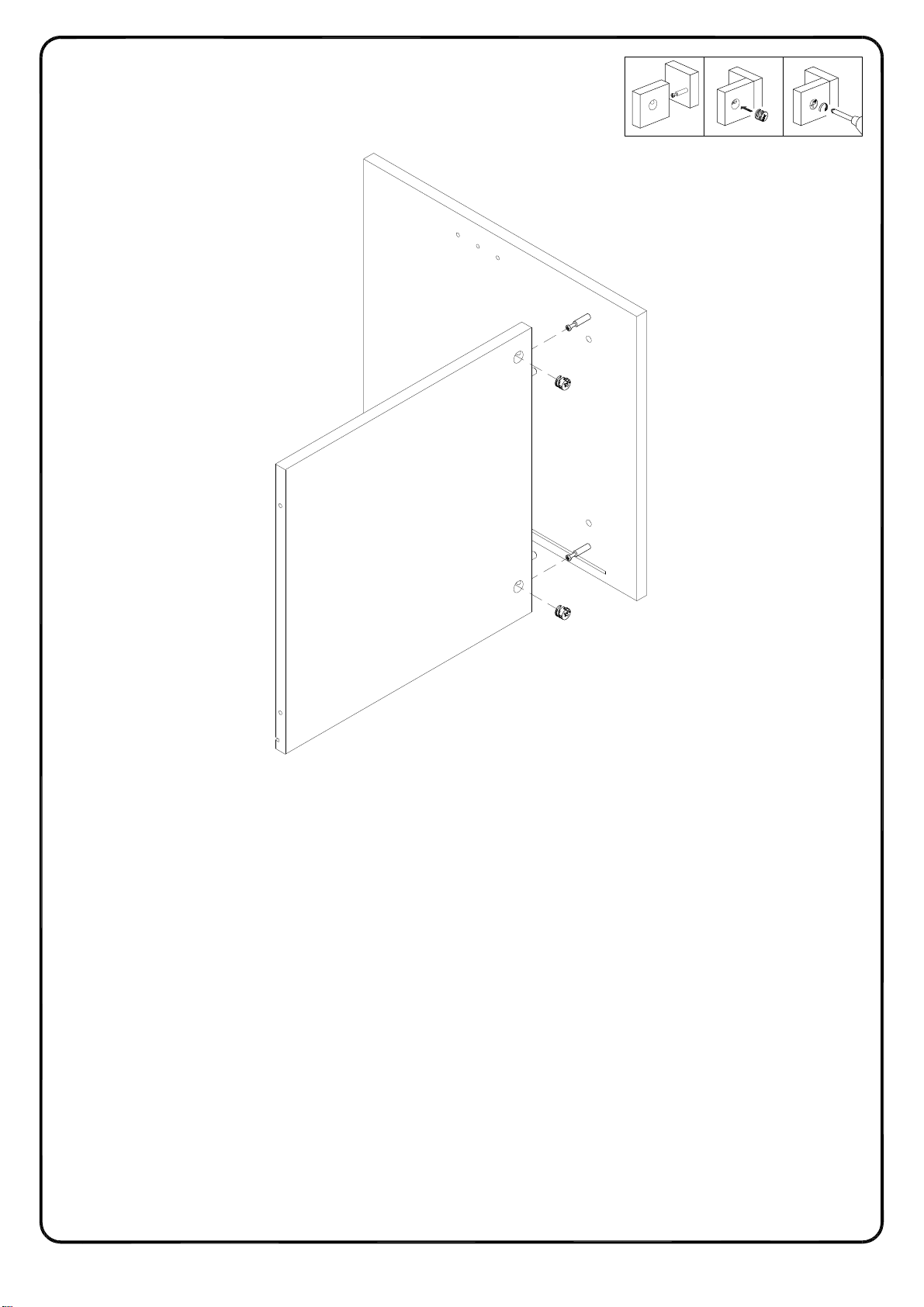

Attach and align the bottom panel (8) to side panel (6) using cam lock (B).

P.9

2019

Walker Edison Furniture Co., LLC. All rightsreserved.

Step 5

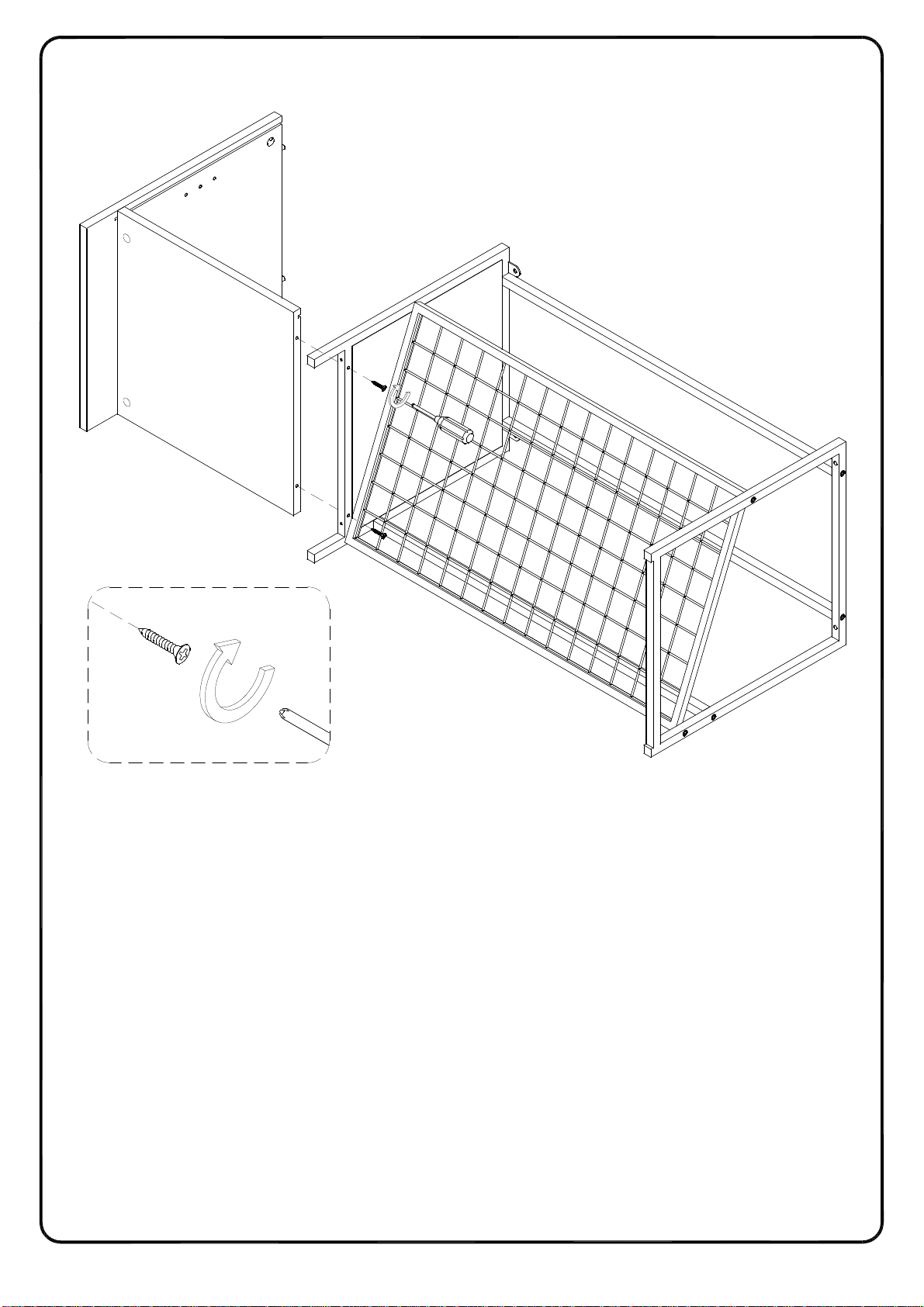

Using screw (K) secure part (5) into part (8) with Philips head screwdriver as per diagram.

P.10

2019

Walker Edison Furniture Co., LLC. All rightsreserved.

Step 6

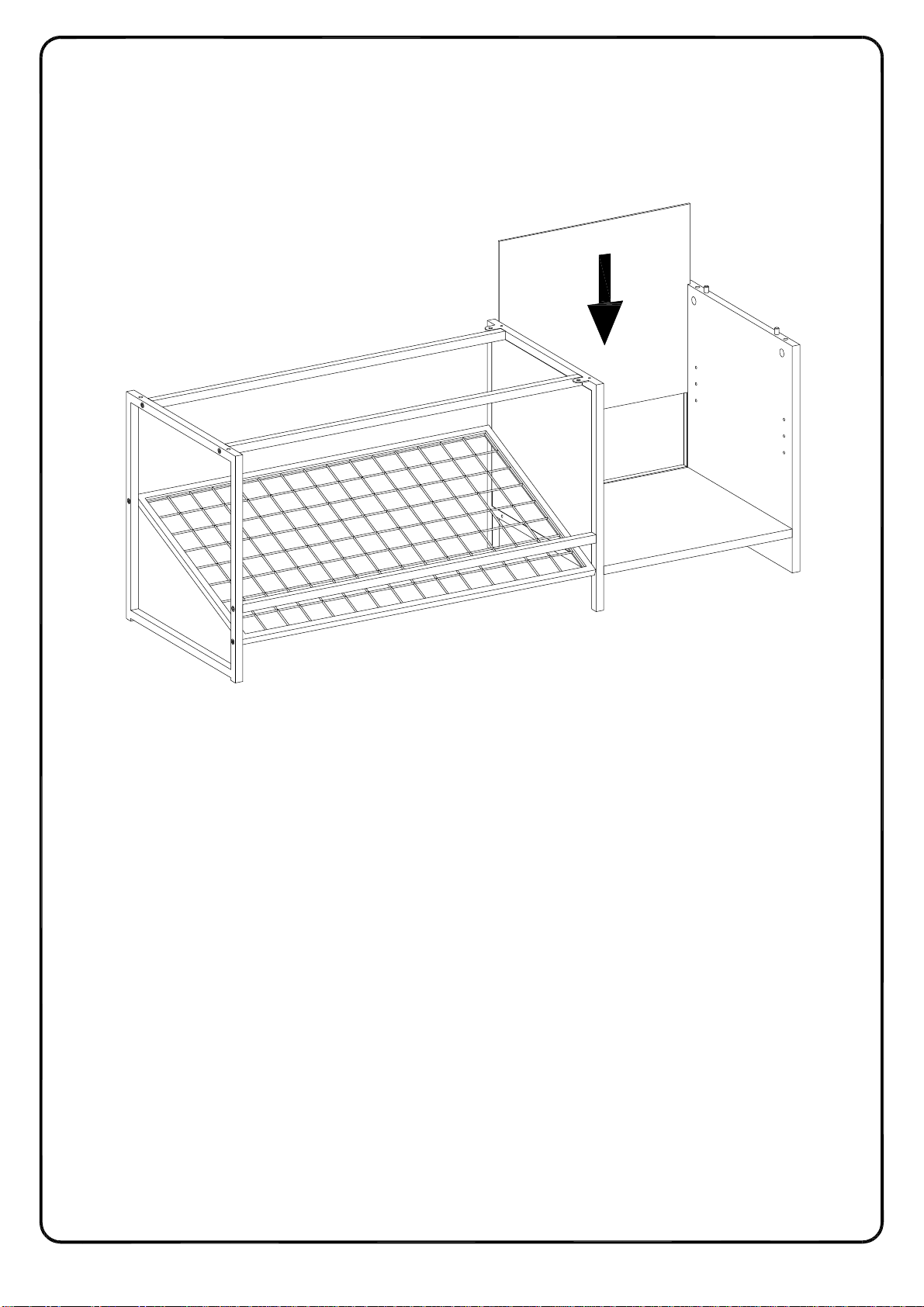

Put part (9) into parts (5,6,8) as per diagram.
