Walker Edison B46MCMSB Manuel utilisateur

P.1

202

Walker Edison Furniture Co., LLC. All rightsreserved.

Please visit our websitefor the most current instructions, assemblytips, report damage,

or request parts. www.walkeredison.com

Revised 26/05/2020 (I)

Walker Edison

AssemblyInstructions

Item#: B46MCMSB

GeneralAssembly Guidelines

I. Ensure thatallpartsandhardware are available beforebeginning assembly.

II.Followeachstepcarefullytoensure theproper assembly of this product.

III.Twopeoplearerecommendedfor easeintheassembly of this product.

IV.Thethreemain typesofhardware usedtoassemblethis product are: wood

dowels,screwsandbolts.

V.Theprovidedglueistosecurewooddowelsin place.Whenfirst inserting dowels,

locatetheappropriatehole forthedowel,placeasmallamount of glue inthe hole

andinsertthedowel.Wipeawayexcessglueimmediately.

Infutureassemblystepswhendowelsarenecessary toattachassembly parts

together,placeasmallamountofglueonthe endofthedowelbeforeattaching

partstogether.Wipeawayexcessglueimmediately.

VI.APhillipsheadscrewdriverisrequiredfortheassemblyofthis product .

VII. Power toolsshould notbeusedtoassemblethis product.

2020

, by Walker Edison Furniture Co., LLC. All rightsreserved.

P.2

P.3

Parts List

2020

Walker Edison Furniture Co., LLC. All rightsreserved.

P.4

2020

Walker Edison Furniture Co., LLC. All rightsreserved.

HardwareList

The hardware quantities listed above are required for proper assembly.

Someextrahardware may also have been included.

Philipsheadscrewdriverrequiredforassembly

(notincluded)

Ø8x30mm WoodendowelA 18 pcs

Ø6x35mm CamboltB 12 pcs

Ø15x11mm CamlockC 12 pcs

Ø30mm StickerD 12 pcs

Ø4x38mm Screw

6pcs

Ø6x12mm Bolt

16 pcs

M4 Hexkey

1 pc

Hinge

3pcs

Ø4x12mm Screw

32 pcs

Handle 4 pcs

Ø4x22mm HandleBolt 4 pcs

Hinge 1 pc

Gluetube 1 pcP

P.5

2020

Walker Edison Furniture Co., LLC. All rightsreserved.

Step 1

Insert wooden dowel (A) into parts (7,8), then using Handle bolt (F) secure Handle (E) into part (8) with Philips

head Screwdriver as per diagram.

P.6

2020

Walker Edison Furniture Co., LLC. All rightsreserved.

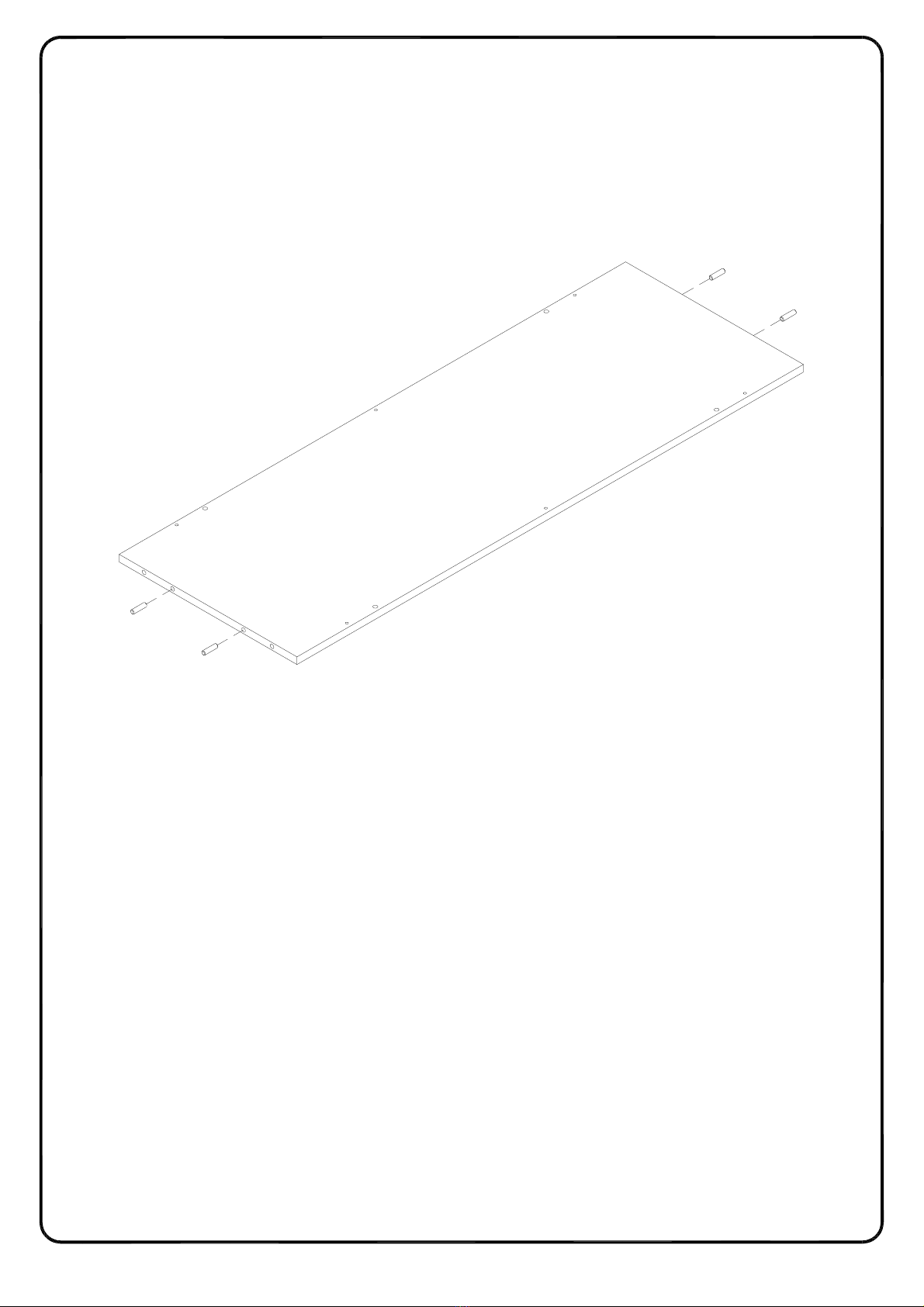

Step 2

Insert wooden dowel (A) into part (4) as per diagram.

Step 3

P.7

2020

Walker Edison Furniture Co., LLC. All rightsreserved.

5 6

Secure Cam bolt (B) into parts (5,6) with Philips head screwdriver as per diagram.

Step 4

P.8

2020

Walker Edison Furniture Co., LLC. All rightsreserved.

Using screw (G) attach part (4) into parts (7,8) with Philips head screwdriver as per diagram.

P.9

2020

Walker Edison Furniture Co., LLC. All rightsreserved.

Step 5 21 3

Using cam lock(C) secure part (5) to parts (4,7,8) with Philips head screwdriver as per diagram.

P.10

2020

Walker Edison Furniture Co., LLC. All rightsreserved.

Step 6 21 3

Repeat the last step as per diagram.

Table des matières

Autres manuels Walker Edison Mobilier d'intérieur

Walker Edison

Walker Edison WQ44CS Manuel utilisateur

Walker Edison

Walker Edison CHW2 Manuel utilisateur

Walker Edison

Walker Edison PRKU4O Manuel utilisateur

Walker Edison

Walker Edison BS64LAN1D Manuel utilisateur

Walker Edison

Walker Edison W56VSD Manuel utilisateur

Walker Edison

Walker Edison W70CSP Manuel utilisateur

Walker Edison

Walker Edison B40WIL3DR Manuel utilisateur

Walker Edison

Walker Edison BU52CON Manuel utilisateur

Walker Edison

Walker Edison HBQAW Manuel utilisateur

Walker Edison

Walker Edison BR3DBENNS Manuel utilisateur

Walker Edison

Walker Edison BS68VON Manuel utilisateur

Walker Edison

Walker Edison W60MX2D Manuel utilisateur

Walker Edison

Walker Edison BU62LAU4D Manuel utilisateur

Walker Edison

Walker Edison BTOT Manuel utilisateur

Walker Edison

Walker Edison AF48CYET Manuel utilisateur

Walker Edison

Walker Edison W58CSTBV2D Manuel utilisateur

Walker Edison

Walker Edison PDBMIALG Manuel utilisateur

Walker Edison

Walker Edison BTOT Manuel utilisateur

Walker Edison

Walker Edison AF18NAOST Manuel utilisateur

Walker Edison

Walker Edison BU70KCSB Manuel utilisateur

Walker Edison

Walker Edison EVO43CT Manuel utilisateur

Walker Edison

Walker Edison W60UBCT Manuel utilisateur

Walker Edison

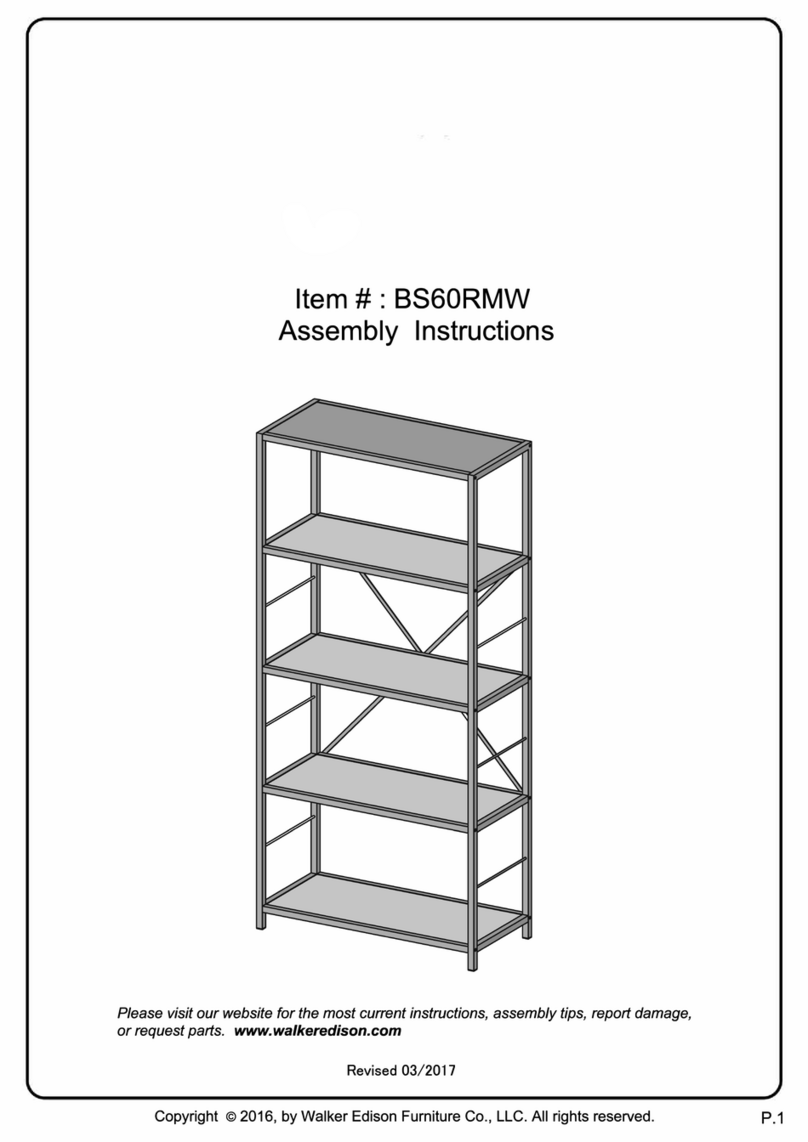

Walker Edison BS60RMW Manuel utilisateur
