Walker Bay Genesis Console 310 Guide d'installation
ASSEMBLING INSTRUCTIONS
For Customer Service or Technical Support visit www.walkerbay.com
Genesis Console
310 & 340
2
INTRODUCTION
The Genesis Center Console package is a modular retrofit system which allows
you to upgrade the 310 and 340 model Genesis RIB’s as either a Deluxe
Genesis Console RIB or as a scaled down Light Genesis Console runabout/
tender. This package provides the first fully integrated injection molded center
console to the market, and is designed specifically for Walker Bay’s award
winning Genesis line.
Space and storage were two of the primary attributes Walker Bay took into
account when designing these packages. The console’s ergonomic design
provides the driver with more foot room, creating a more comfortable riding
position, and the integrated seat storage compartments make efficient use of
space. The center console has two compartments, one designed to take a
battery and the other for gear. The console itself is sold as a Basic Console Kit.
In addition to the standard Basic Console Kit (P/N 925100), two deluxe kits can
be purchased which add additional comfort, storage and lighting:
The Deluxe Tender Kit (P/N: 925140) comes with a deluxe driving seat and
several cushions for added comfort. The seat has an integrated, hinged
backrest that lifts to reveal two large water resistant storage compartments
underneath, one of which has a secure ventilated area designed to hold a 3-
gallon gas tank in place.
The Electrical & Lighting Kit (P/N: 925180) provides dual color directional lights
and a customer wiring harness which attaches to the center console itself. This
kit also comes equipped with a 360orear light which attaches to the back of
the rear seat frame.
The Basic Console Kit is meant to be installed with the Genesis 310FTL, where-
as the Basic Console Kit, Deluxe Tender Kit and Electrical Kit can be purchased
as a package, with either the Genesis 310FTD or Genesis 340FTD. These three
kits, when combined with Walker Bay’s larger Deluxe boats, create a truly
deluxe package at a very competitive price.
Please visit www.walkerbay.com if you need more information of the Genesis
Console boats, or call 1 - 888 - 449 2553.
Assembling Instruction
for Genesis Console 310 & 340
Rev Date: TH.05.26.08
P/N 925225
3
CONTENTS
Introduction ...................................................... 2
Boating Safety Signs & Symbols ............................. 4
Completed Boats ................................................. 5
925100 Basic Console Kit ............................... 6 - 12
Steering Wheel .................................................. 7
Console and Seat ......................................... 7 - 12
925180 Electrial/Lighting Kit ............................... 13
Side Lights ....................................................... 14
Switch Panel ..................................................... 15
Pole Light ......................................................... 16
925140 Deluxe Tender Kit .................................. 17
4
BOATING SAFETY SIGNS AND SYMBOLS
This is the safety alert symbol. It is used to alert you to potential personal
injury hazards. Obey all safety messages that follow this symbol to avoid
possible injury or death.
DANGER
Indicates an imminently hazardous situation which, if not avoided, will result in death or
serious injury or substantial property damage.
WARNING
Indicates an imminently hazardous situation which, if not avoided, could result in death
or serious injury or property damage.
CAUTION
Indicates an imminently hazardous situation which, if not avoided, may result in
property damage.
CAUTION
Used without the safety alert symbol indicates a potentially hazardous situation,
which, if not avoided, may result in property damage.
NOTICE
Indicates installation, operation or maintenance information which is important but not
hazard related.
5
Completed Boats:
Left View:
Right View:
Front View:
6
925100 Basic Console Kit (Remote Steering Kit)
The followings will cover the installation of the Console Kit.
The Console Kit have the following parts:
A. The Console and Seat Assembly
B. Components
n
o
q
p
r
s
t
u
v
nConsole and Seat Assembly with Steering Cable
oDeluxe Seat Tray (white)
pRatchet Seat Clip Adapters with release straps
qConsole Seat Cap (black)
rAccessory Holder (white)
sSteering Wheel Cap
tSteering Wheel
uRatchet Seat Clips
vCable Sheathing
wSeat Box lock-down screws
w
CAUTION
zBefore proceeding to install the console, read this manual carefully, and check whether you have
received all components as shown in the pictures above.
zDo not lock the seat into the ratcheting adapters until you are completely satisfied with your
installations of all the cables (steering, electrical, fuel, etc.) and have tested the functioning of them.
Also cover the cables with the white cable sheathing provided.
Pushing and locking down the seats should be the final step of assembling.
zIf you have any questions during assembling, call Walker Bay at 1-888-44 WALKER.
w
7
STEP ONE: INSTALLING THE STEERING WHEEL
1. Remove the nut and washer from the steering
shaft, slide the steering wheel down on the shaft,
put the washer and nut back and tighten with a 3/4”
deep-well socket wrench.
2. Install the steering wheel cap by firstly loosen-
ing the small bolt on the side of the steering wheel
housing with a small flat screwdriver, insert the cap
into place, and re-tighten the bolt.
STEP TWO: INSTALLING THE CONSOLE & SEAT ASSEMBLY
1. Inflate the tubes of the boat to full air pressure.
Prepare a bottle of clear soap water (note: do not
use colored soap).
2. Spray soap water into the front seat patches
where the console will be mounted. Spray all 4
patches.
8
3. Insert the ratchet clip adapter into the seat
patches from below. The pull strap should face
down and the opening of the adapter should face
up.
5. Install the other pair of adapters on the other
side of the tube in the same way. 6. Open the lid of the console and the seat,
and find the slots on the edges to insert the
rachet clips.
7. Note that the rachet clips should be inserted
that they align with the curve of the inflated
tubes. Pull down until they lock.
8. Position the console & seat above the
opening of the adapters, and guide the ra-
chet clips into the adapter.
4. Push the adapter all the way up until it sits
firmly inside the seat patch. Repeat this with the
other adapter, also with the strap facing down.
9
CAUTION
zDo not lock down the console until you are satisfied with the set-up of the entire boat. Complete the
installation of all other controls, gauges, cables and wires first.
zThe seat racheting system is designed to hold the seat firmly in place. It could be difficult to remove
it from the tube once locked down.
9. Do not push down on one side first. Work
on both sides until all 4 ratchet clips are fully
inserted and lock into place.
10. Open the console and drop the black tray
in. The tray is to separate the battery com-
partment from the lower seat box.
11. Slide the Console Accessory Holder down
along the rib on the opening. 12. It will fit firmly in place. This tray is for
small accessories such as sun glasses.
10
13. The next step is to further secure the seat
box to the floor. Look for the 2 sets of drywall
screws, small screws and washers in the box.
14. Open the seat lid, and look for the two
rounded spots at the center of the bottom of the
seat box. They are the positions for the screws.
15. Use a #2 Philips screwdriver to drill the dry-
wall screw down into the hole. Drill slowly until
the screw stops.
16. Place the washer on top of the drywall
screw head, and drill the smaller screw right
into the head of the drywall screw. Drill slowly
until it stops.
WARNING
Use the 2 pre-set positions for drilling only.
Do not drill on the other places on the floor or near the tube, or you could drill a hole through
the hull and cause permanent damage and cause the boat to leak.
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels Walker Bay Bateau
Walker Bay
Walker Bay Genesis Mode d’emploi
Walker Bay
Walker Bay RID 275H Manuel utilisateur
Walker Bay
Walker Bay Airis Sport Mode d’emploi
Walker Bay
Walker Bay 275R Manuel utilisateur
Walker Bay
Walker Bay 310 FTD Mode d’emploi
Walker Bay
Walker Bay AIRIS Mode d’emploi
Walker Bay

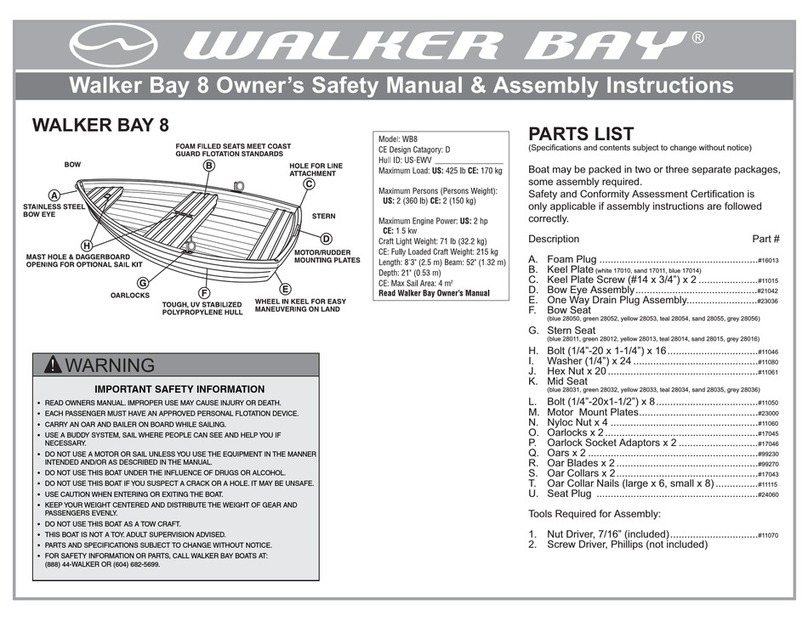

Walker Bay 8 Manuel utilisateur
