Installation and Operation Manual
Gas Bratt Pan
BP8080G BPL8080G BPB8080G BPLB8080G
BP8080GE BPL8080GE BPB8080GE BPLB8080GE
BP8120G BPL8120G BPB8120G BPLB8120G
BP8120GE BPL8120GE BPB8120GE BPLB8120GE
Date Purchased
Serial Number
Dealer
Service Provider
228688-17
For use in GB & IE
The reproduction or copying of any part of this manual by any means whatsoever is strictly forbidden unless authorized previously in
writing by the manufacturer.
In line with policy to continually develop and improve its products, Moffat Ltd. reserves the right to change the specifications and
design without prior notice.
© Copyright Moffat Ltd. November 2014.
MANUFACTURED BY
Moffat Limited
Rolleston 7675
New Zealand
INTERNATIONAL CONTACTS
AUSTRALIA
Moffat Pty Limited
Web: www.moffat.com.au
E.Mail: [email protected]
Main Office: (tel) +61 (03) 9518 3888
(fax) +61 (03) 9518 3833
Service: (tel): 1800 622 216
Spares: (tel): 1800 337 963
Customer Service: (tel): 1800 335 315
(fax): 1800 350 281
CANADA
Serve Canada
Web: www.servecanada.com
E.Mail: [email protected]
Sales: (tel): 800 551 8795 (Toll Free)
Service: (tel): 800 263 1455 (Toll Free)
NEW ZEALAND
Moffat Limited
Web: www.moffat.co.nz
E.Mail: [email protected]
Main Office: (tel): 0800 663328
UNITED KINGDOM
Blue Seal
Web: www.blue-seal.co.uk
E.Mail: [email protected]
Sales: (tel): +44 121 327 5575
(fax): +44 121 327 9711
Spares: (tel): +44 121 322 6640
(fax): +44 121 327 9201
Service: (tel): +44 121 322 6644
(fax): +44 121 327 6257
UNITED STATES
Moffat
Web: www.moffat.com
Sales: (tel): 800 551 8795 (Toll Free)
(tel): +1 336 661 1556
(fax): +1 336 661 9546
Service: (tel): 800 858 4477 (Toll Free)
(tel): +1 336 661 1556
(fax): +1 336 661 1660
REST OF WORLD
Moffat Limited
Web: www.moffat.co.nz
E.Mail: [email protected]
Contents
Waldorf Gas Bratt Pan
BP(L)(B)8080G BRATT PAN MANUAL TILT (80 ltr)
BP(L)(B)8080GE BRATT PAN ELECTRIC TILT (80 ltr)
BP(L)(B)8120G BRATT PAN MANUAL TILT (120 ltr)
BP(L)(B)8120GE BRATT PAN ELECTRIC TILT (120 ltr)
Introduction ............................................................................................. 2
Specifications ........................................................................................... 3
Model Numbers Covered in this Specification
General
Gas Supply Requirements
Gas Connection
Electrical Supply Requirements
Water Supply Requirements
Dimensions ............................................................................................... 6
Installation ............................................................................................. 10
Installation Requirements
Unpacking
Location
Clearances
Assembly
Gas Connection
Electrical Connection
Water Connection
Commissioning
Operation................................................................................................ 14
Operation Guide
Description of Controls
Lighting Pilot Burner
Lighting Main Burner
Setting the Temperature
Operating Water Supply Valve
Tilting the Pan - BP8080G / BP8120G
Tilting the Pan - BP8080GE / BP8120GE
Turning Off the Bratt Pan (G & GE Models)
Cleaning and Maintenance ..................................................................... 18
General
After Each Use
Daily Cleaning
Weekly Cleaning
Periodic Maintenance
Fault Finding........................................................................................... 20
Wiring Schematic ................................................................................... 22
Gas Conversion and Specifications ........................................................ 24
Conversion Procedure
Gas Specifications
Replacement Parts List .......................................................................... 28
2
Introduction
We are confident that you will be delighted with your WALDORF BRATT PAN, and it will become a most
valued appliance in your commercial kitchen.
To ensure you receive the utmost benefit from your new Waldorf appliance, there are two important things
you can do.
Firstly:
Please read the instruction book carefully and follow directions given. The time taken will be well spent.
Secondly:
If you are unsure of any aspect of the installation, instructions or performance of your appliance,
contact your WALDORF dealer promptly. In many cases a phone call could answer your question.
CE Only:
These instructions are only valid if the country code appears on appliance. If code does not appear on
appliance, refer to supplier of this appliance to obtain technical instructions for adapting appliance to
conditions for use in that country.
GREAT CARE MUST BE TAKEN BY THE OPERATOR TO USE THE EQUIPMENT SAFELY TO GUARD IT AGAINST RISK OF
FIRE.
APPLIANCE MUST NOT BE LEFT ON UNATTENDED.
ITIS RECOMMENDED THAT AREGULAR INSPECTION IS MADE BY ACOMPETENT SERVICE PERSON TO
ENSURE CORRECT AND SAFE OPERATION OF YOUR APPLIANCE IS MAINTAINED.
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPOURS OR LIQUIDS IN THE VICINITY OF
THIS OR ANY OTHER APPLIANCE.
DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN OPERATION.
Warning
This appliance is not suitable for shallow and deep frying use.
This appliance is for professional use and is only to be used by qualified
persons.
Only authorised service persons are to carry out installation, servicing or gas
conversion operations.
Components having adjustments protected (e.g. paint sealed) by the
manufacturer should not be adjusted by user / operator.
DO NOT operate appliance without the legs supplied fitted.
Caution
IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR MAINTENANCE CAN CAUSE PROPERTY
DAMAGE, INJURY OR DEATH. READ THE INSTALLATION, OPERATING AND MAINTENANCE INSTRUCTIONS
THOROUGHLY BEFORE INSTALLING OR SERVICING THIS APPLIANCE.
Warning
INSTRUCTIONS TO BE FOLLOWED IN THE EVENT THE USER SMELLS GAS ARE TO BE POSTED IN APROMINENT
LOCATION. THIS INFORMATION SHALL BE OBTAINED BY CONSULTING THE LOCAL GAS SUPPLIER.
Warning
3
Specifications
Model Numbers Covered in this Specification
BP[1]8080G / GE - Gas Bratt Pan, Manual / Electric Tilt - 900 mm wide (80ltr).
BP[1]8120G / GE - Gas Bratt Pan, Manual / Electric Tilt - 1200 mm wide (120ltr).
NOTE:
[1]: - Model Options;
- - Standard.
L - Low Back.
B - Bold Front.
LB - Low Back and Bold Front.
General
BP8080G / GE (80 ltr) Gas Bratt Pan.
A commercial heavy duty, gas fired Bratt Pan fitted with an 80 ltr capacity pan, of full stainless steel pan
construction, with a single 6 bar chrome plated steel gas burner and electric piezo ignition giving even
heat distribution. This appliance features an electric thermostat burner control and over temperature
safety cut-out.
Created for compact modular kitchens, it is fitted with manually (or optional electric power) operated
tilting mechanism with a burner cut-out when the pan is tilted.
BP8120G / GE (120 ltr) Gas Bratt Pan.
A commercial heavy duty, gas fired Bratt Pan fitted with an 120ltr capacity pan, of full stainless steel
pan construction, with a single 8 bar chrome plated steel gas burner and electric piezo ignition giving
even heat distribution. This appliance features an electric thermostat burner control and over
temperature safety cut-out.
Created for compact modular kitchens, it is fitted with manually (or optional electric power) operated
tilting mechanism fitted with a burner cut-out when the pan is tilted.
4
Specifications
Gas Supply Requirements
- Australia:
- New Zealand:
- UK Only:
Category: II2H3P.
Flue Type: A1.
- All Other Markets:
NOTE:
* - Measure burner operating pressure at the gas control outlet test point with burner
operating at ‘High’ setting. Operating pressure is ex-factory set through appliance
regulator and is not to be adjusted, apart from when carrying out gas conversion, if
required. (Refer to ‘Gas Conversion’ section for details).
Natural Gas LP Gas
BP8080G / GE BP8120G / GE BP8080G / GE BP8120G / GE
Input Rating (N.H.G.C.) 72MJ/hr 90MJ/hr 72MJ/hr 90MJ/hr
Supply Pressure 1.13 - 3.40kPa 2.75 - 4.50kPa
Burner Operating Pressure (*) 0.76kPa 0.60kPa 2.4kPa 2.5kPa
Gas Connection ¾” BSP Male
Natural Gas (G20) Propane (G31)
BP8080G / GE BP8120G / GE BP8080G / GE BP8120G / GE
Heat Input (nett) Nominal 18.5kW 23kW 18.5kW 23kW
Pilot 190W 140W
Gas Rate (nett) Nominal 1.96m3/hr 2.43m3/hr 1.44kg/hr 1.79kg/hr
Pilot 0.02m3/hr
Supply Pressure 20mbar 37mbar
Burner Operating Pressure (*) 7.5mbar (*) 6.0mbar (*) 25.7mbar (*) 25.5mbar (*)
Gas Connection 3/4” BSP Male
0.01kg/hr
Natural Gas LP Gas (Propane)
BP8080G / GE BP8120G / GE BP8080G / GE BP8120G / GE
Input Rating (N.H.G.C.) 72MJ/hr 90MJ/hr 72MJ/hr 90MJ/hr
Supply Pressure 1.13 - 3.40kPa 2.75 - 4.50kPa
Burner Operating Pressure (*) 0.76kPa 0.60kPa 2.4kPa 2.5kPa
Gas Connection ¾” BSP Male
Natural Gas LP Gas (Propane) Butane
BP8080G / GE BP8120G / GE BP8080G / GE BP8120G / GE BP8080G / GE BP8120G / GE
Input Rating (N.H.G.C.) 72 MJ/hr 90 MJ/hr 72 MJ/hr 90 MJ/hr 72 MJ/hr 90 MJ/hr
Supply Pressure 1.13 - 3.40 kPa 2.75 - 4.50 kPa 2.75 - 4.50 kPa
Burner Operating Pressure (*) 0.76 kPa 0.60 kPa 2.4 kPa 2.5 kPa 2.4 kPa 2.5 kPa
Gas Connection ¾” BSP Male
5
Specifications
Gas Connection
Gas supply connection point is located at rear of appliance, approximately 60mm from left hand side,
305mm from rear, 125mm from floor and is reached from beneath appliance. (Refer to ‘Dimensions’
section).
Connection is ¾" BSP male thread.
Electrical Supply Requirements
Electrical supply connection point is located at rear of appliance, approximately 74mm from left hand
side, 574mm from rear of appliance and 290mm from floor.
BP8080G / BP8120G - 220-240V a.c, 50 / 60Hz, 0.1kW, 1P+N+E.
BP8080GE /BP8120GE - 220-240V a.c, 50 / 60Hz, 0.35kW, 1P+N+E.
Water Supply Requirements
Cold water connection is 1/2" tube connection via 15mm crox fitting located 280mm from LH side, 574mm
from rear and 240mm from floor.
Water supply must be protected by an 'In-Line' sediment filter / strainer, which should be fitted into
pipeline prior to Bratt Pan water connection.
Maximum water supply pressure 550kPa (80psi).
Maximum water inlet temperature - 80°C.
6

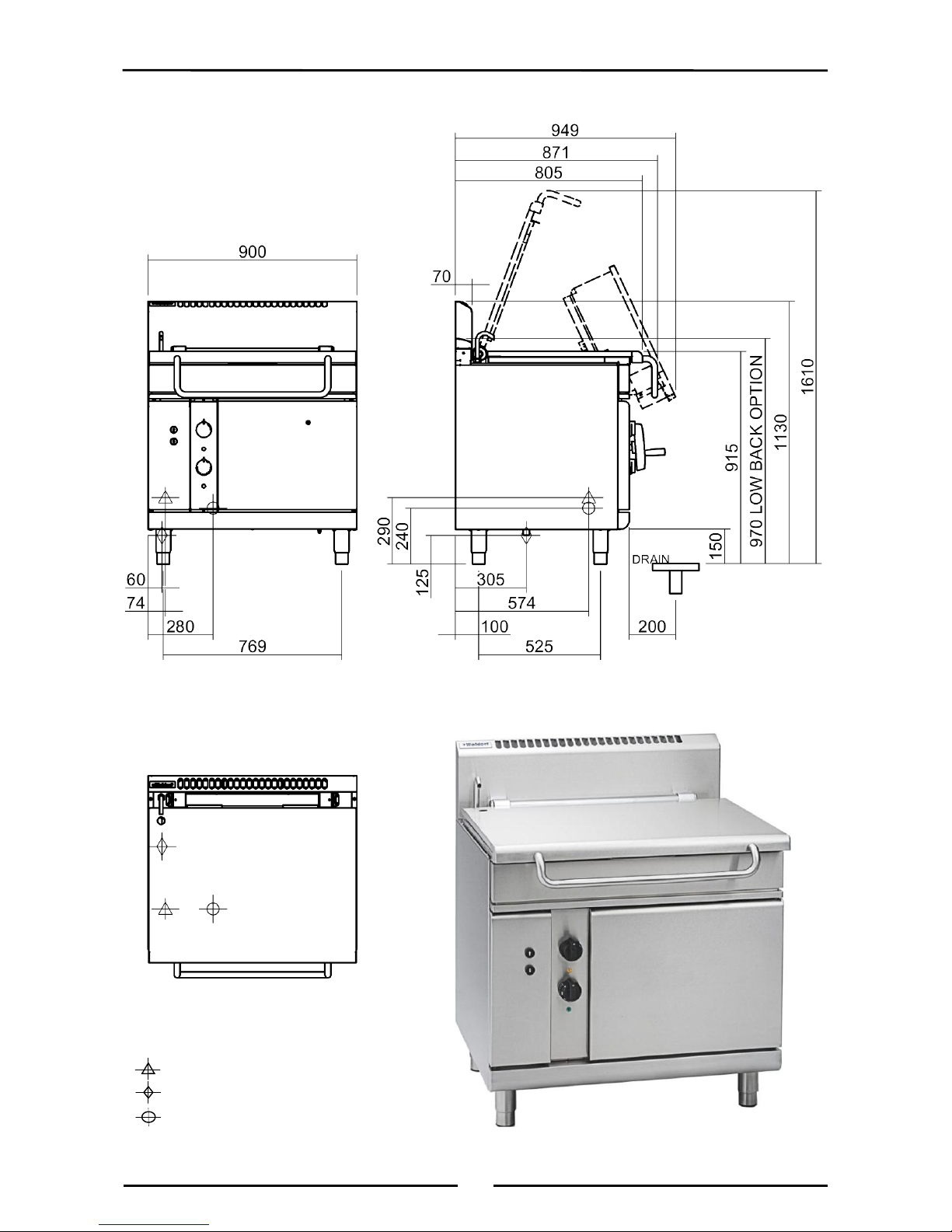

Dimensions
Dimensions BP
(L)
8080G
7

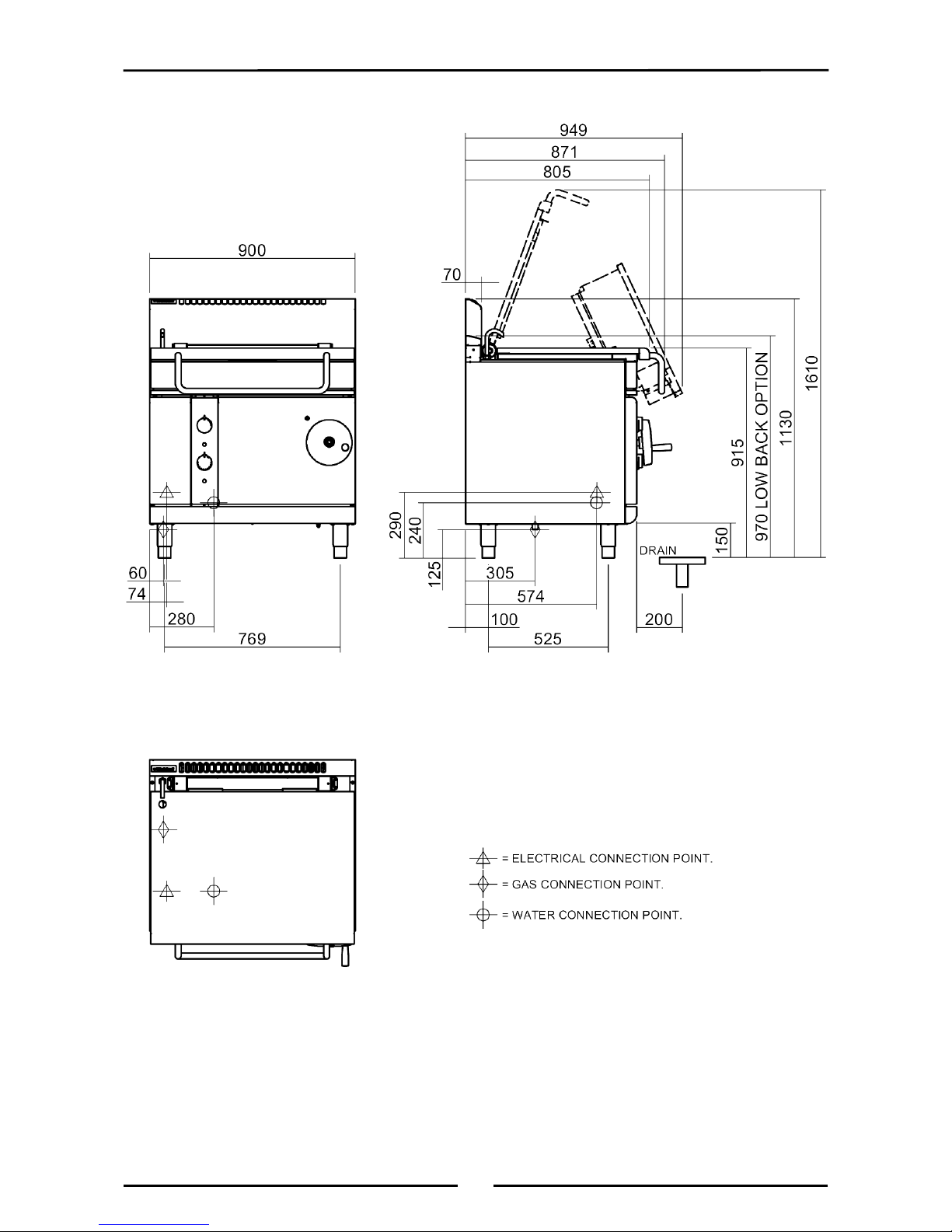

Dimensions
Dimensions BP
(L)
8080GE
Electrical Connection Point.
Gas Connection Point.
Water Connection Point.
8

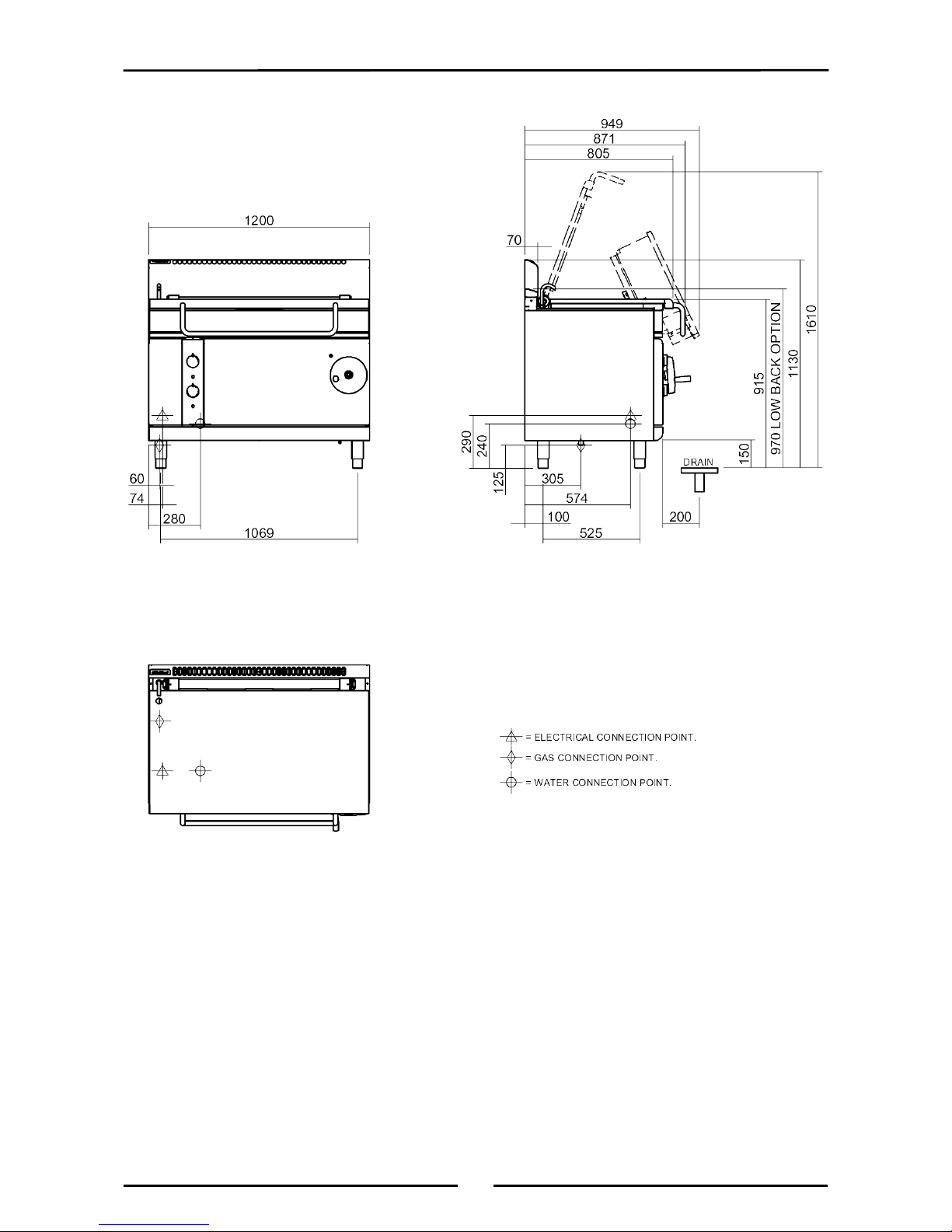

Dimensions
Dimensions BP
(L)
8120G
