Wacom Cintiq Pro 24 Pen Manuel utilisateur

USER'S MANUAL
DTK-2420
About the Wacom Cintiq Pro
Features of your Wacom Cintiq Pro
Set up your device
Get started with your creative pen display
Work with your pen
Customize your device in Wacom Tablet Properties
Use On-Screen Controls as shortcuts
Access application-specific settings
Wacom Desktop Center
Customize Wacom Display Settings
Care for your device
Technical Support
About this Document

2
5
5
6
6
6
7
8
10
11
12
12
13
13
14
15
17
18
18
18
19
19
19
20
21
21
21
23
24
24
24
25
26
27
27
27
28
29
30
Table of Contents
Table of Contents
About the Wacom Cintiq Pro
Included with your Wacom Cintiq Pro
About the Wacom Cintiq Pro Engine
Included with your Wacom Cintiq Pro Engine
Finding more information
Features of your Wacom Cintiq Pro
Features of your Wacom Cintiq Pro Engine
Use Touch Keys as shortcuts
Set up your device
Install the driver
Update the driver
Get started with your creative pen display
Access user help
Connect to your computer
Install Your Wacom Cintiq Pro Engine to Create the Wacom Cintiq Pro Studio
Calibration
Work with your pen
Personalize your pen with a color ring
Specialty pens
Use your pen
Pen tip and eraser
Pen buttons
Store your pen
Customize your pen functions
Assign settings to the pen button and pen tip
Customize other pen properties
Eraser
Replace the pen nib
Where to find replacement nibs
Where to find the nib replacement tool
Use your pen with Windows Ink
Advanced pen and eraser
Customize your device in Wacom Tablet Properties
What can I customize in Wacom Tablet Properties?
Where can I access settings and other options in Wacom Tablet Properties?
Open Wacom Tablet Properties
Assign settings in Wacom Tablet Properties
Example of assigning a setting in Wacom Tablet Properties
User's Manual 2
2

31
35
36
37
38
39
41
42
42
42
44
46
47
48
49
50
52
52
52
53
54
54
54
54
54
55
55
55
55
55
56
58
60
61
62
63
64
64
66
68
69
What settings can I assign?
Assign keystrokes
ExpressKeys™
Touch Ring
Settings View
Display Toggle
Customize user options
Use On-Screen Controls as shortcuts
How to create and use an On-Screen Control
On-Screen Control layouts
Create On-Screen Controls
Assign settings to Radial Menus and Screen Keys
Assign settings to Keypads
Assign On-Screen Controls
Access application-specific settings
Application-specific settings assigned by you
Settings assigned by applications
How do I know what setting is assigned?
Settings assignments work differently for different customizable components
Imported settings assigned by applications
Wacom Desktop Center
Customizing your device
Running the Setup Wizard
Redeeming Software
Backing up your settings
Backing up your files
Updating your tablet
Getting apps and products
Getting Support for Wacom products
Logging in with your Wacom ID
Customize Wacom Display Settings
Customize advanced Wacom Display Settings
Wacom Display Settings - Set Color
Care for your device
Technical Support
Test the creative pen display
Test the pen
Diagnose issues using Wacom Tablet Properties
Glossary
Order parts and accessories
Privacy
User's Manual 3
3

About This Document

Things to Know About User Help

Device Features in User Help

Trademarks

User's Manual 4

About the Wacom Cintiq Pro

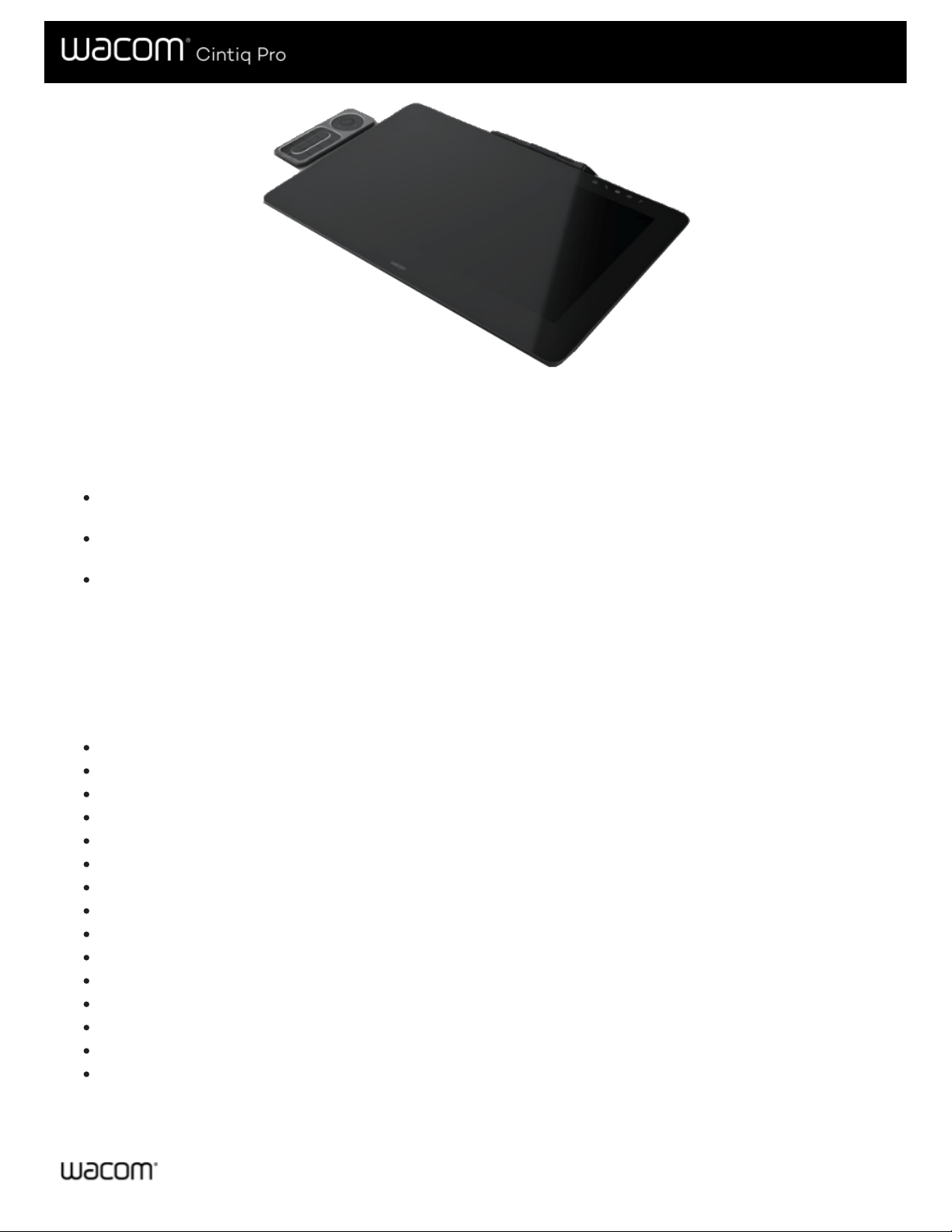

Your Cintiq Pro creative pen display helps you express yourself by allowing you to create directly on your screen.

Draw, paint, or design with the Pen included with your Cintiq Pro, or use other Wacom Pens and tools compatible with the

Cintiq Pro.

Use the included ExpressKey Remote, which gives you 17 customizable ExpressKeys™ and a convenient Touch Ring, to

quickly access your most-used functions.

Visit the Wacom Store to find more accessories that can help you work with the Cintiq Pro, such as a display stand or

Color Manager.

Review the features of your Wacom Cintiq Pro and learn how to get started with your creative pen display.

Included with your Wacom Cintiq Pro

After unpacking your Cintiq Pro, make sure that you have the following items:

Cintiq Pro creative pen display

ExpressKey Remote with charging cable and wireless connection dongle

Wacom Pro Pen 2

Pen stand with extra nibs

Pen holder

Pen color rings

Quick Start Guide (booklet in Wacom Cintiq Pro box)

USB-A cable

USB-C cable

DisplayPort cable

HDMI cable

DisplayPort to Mini DisplayPort adapter

AC power adapter

Power cable(s)

Cleaning cloth

User's Manual 5

About the Wacom Cintiq Pro Engine

The Cintiq Pro Engine is a creative PC module that combines with your Cintiq Pro. The result is the Cintiq Pro Studio: an all-in-

one solution for creative professionals.

The Cintiq Pro and the Cintiq Pro Engine fit together easily and securely, providing fast and reliable installation.

Enjoy the Cintiq Pro Studio's sleek and compact industrial design, which gives you a minimalist workspace, free of cords

and clutter.

Windows 10 Pro is pre-installed on the Cintiq Pro Studio.

The Cintiq Pro Engine is available in two performance models, giving you the option to use the model that fits your needs

best.

Included with your Wacom Cintiq Pro Engine

Before assembling your Cintiq Pro Studio, make sure that you have the following items:

Cintiq Pro Engine creative PC module

Quick Start Guide (booklet in Cintiq Pro Engine box)

AC power adapter

Power cable

Panel screws (x2)

Screw tool

Finding more information

Access FAQS and other product information on the Wacom Cintiq Pro Getting Started page, or the Wacom Cintiq Pro

Engine Getting Started page of the Wacom website.

Review the Important Product Information, which describes safety precautions, specifications, warranties, and the license

agreement for your device, on the Wacom Desktop Center.

User's Manual 6

Features of your Wacom Cintiq Pro

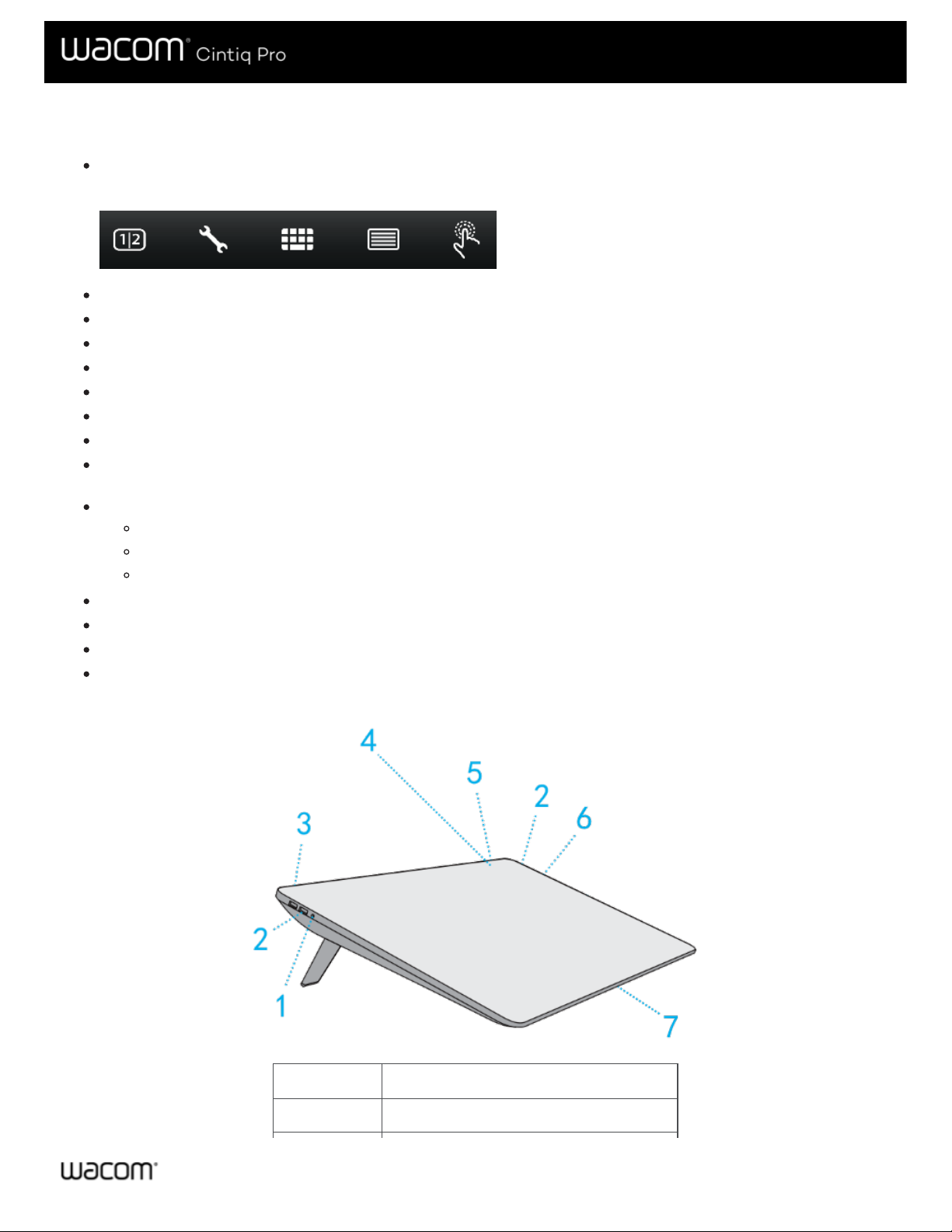

Touch Keys: Buttons on the display which light up when you turn on the Cintiq Pro. The Touch Keys are shortcuts to

commonly used utilities and functions.

USB-C port: You can use this port to attach both video and pen/touch.

DisplayPort: You can use this port to attach video.

HDMI port: You can also use this port to attach video.

Back USB-A ports: You can use these ports to attach pen/touch and your ExpressKey Remote.

Side USB-A ports: You can use these ports to attach other devices.

Headphone jack: This jack can be used to attach your headphones.

Built-in Microphone: This microphone can be used communicate and record.

Folding legs: You can unfold the legs to prop up the creative pen display at an angle for easier use. Fold in the legs for a

lower angle.

Power LED: The Power LED indicates the current power state of the creative pen display.

The LED is blue when the creative pen display has full power.

The LED is orange when the creative pen display is in standby.

The LED is off when the creative pen display is off.

Power button: Press the power button to turn the device on and off.

Status LED: The Status LED lights when the Cintiq Pro has power and is communicating with the attached computer.

SD Card reader: You can insert an external SD card to transfer files.

Kensington Security Slot: This slot can be used to attach a locking cable to secure your creative pen display to a

specific location, like your desk.

Number Item

1 Headphone jack

User's Manual 7

2 USB-A ports

3 Kensington Security Slot

4 Touch Keys

5 Power button and Power/Status LEDs

6 SD Card reader

7 Built-in Microphone

Number Item

1 USB-C port

2 Power connection

3 USB-A port for computer connection

4 DisplayPort

5 HDMI port

6 USB-A port for ExpressKey Remote

7 Folding legs

Features of your Wacom Cintiq Pro Engine

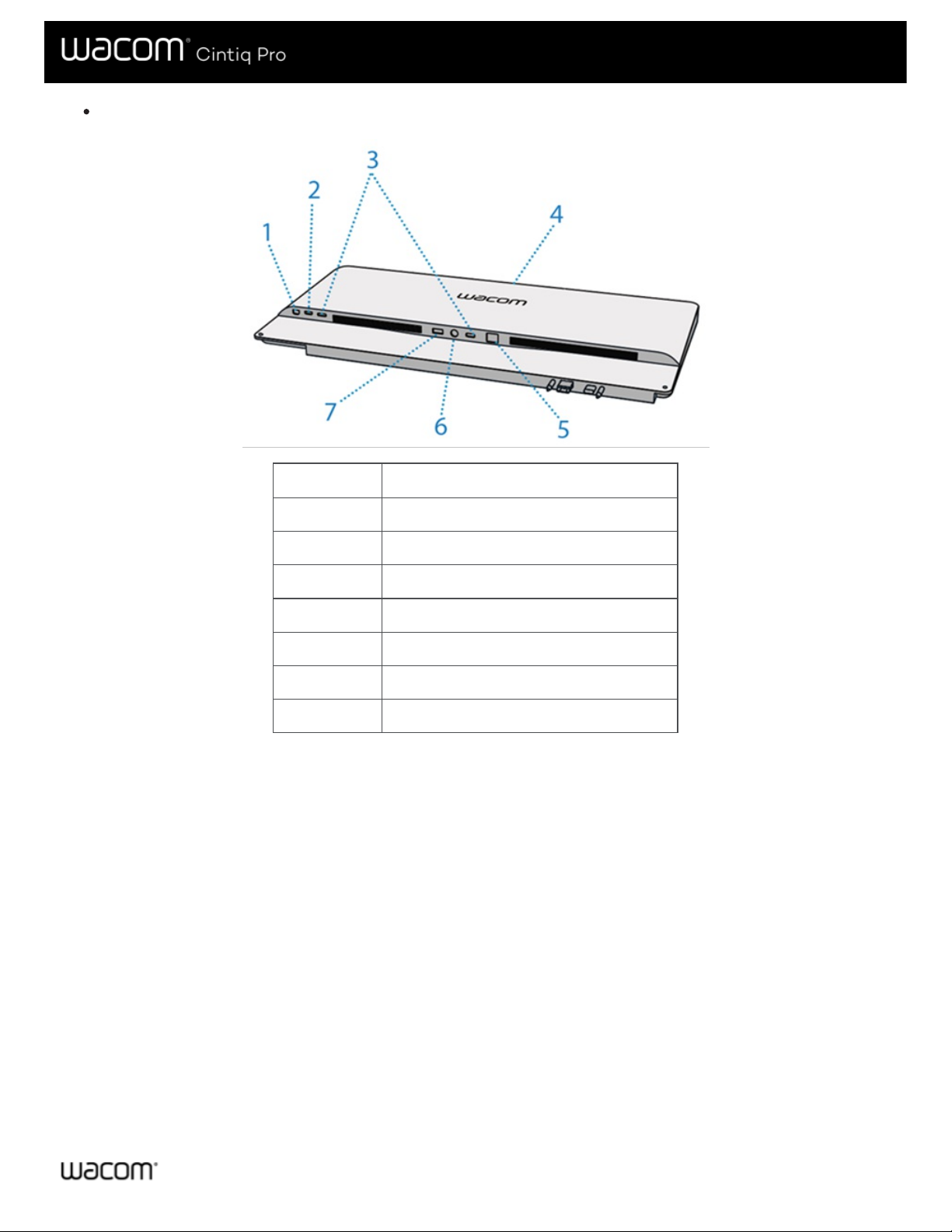

The following features and connections are found on the back of your Cintiq Pro Engine. These features remain available when

you install the Cintiq Pro Engine into your Cintiq Pro to create the Cintiq Pro Studio.

Two USB-C ports: You can use these ports to attach additional displays or other devices.

Mini HDMI port: You can use this port to attach additional displays.

Mini Display port: You can use this port to attach additional displays.

LAN/Ethernet: You can use this port for a wired network connection.

User's Manual 8

Power button: Press the power button to turn the device on and off.

Number Item

1 Mini DisplayPort

2 Mini HDMI port

3 USB-C port

4 Power button and Power/Status LEDs

5 LAN/Ethernet port

6 Cintiq Pro Engine power connection

7 Cintiq Pro power connection

User's Manual 9

Use Touch Keys as shortcuts

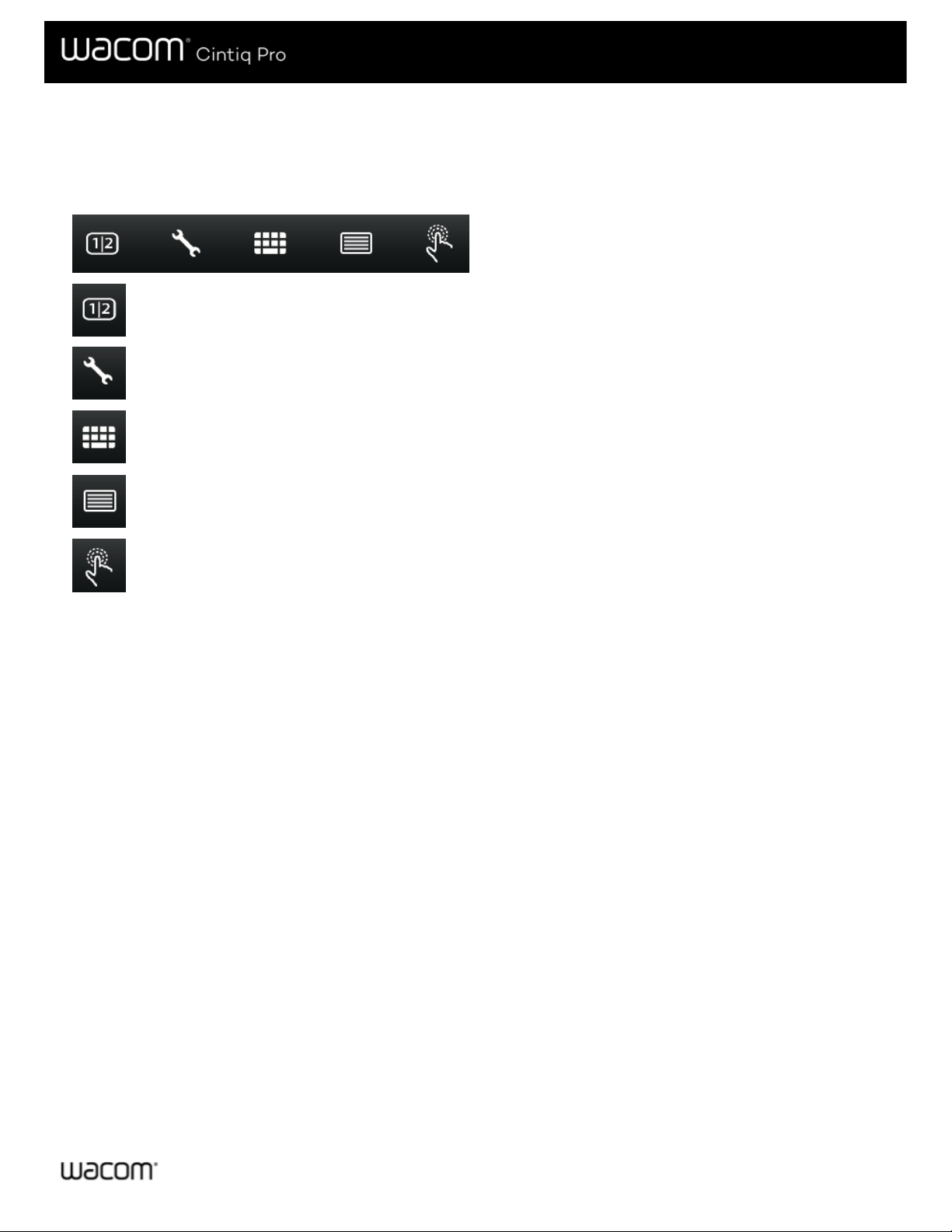

You can tap the Touch Keys to use them as shortcuts to specific functions. The Touch Keys light up across the top of the creative

pen display when you turn it on.

Video Input Source:

Tap to switch between the display inputs attached to your creative pen display.

Wacom Desktop Center:

Tap to open the Wacom Desktop Center to customize and manage your device. Tap it again to close it.

Toggle Keyboard:

Tap to display the on-screen keyboard. Tap it again to close it.

Wacom Display Settings:

Tap to open Wacom Display Settings to adjust display settings such as brightness and sharpness. Tap it again to

close it.

Touch On/Off:

Tap to turn on touch. Tap it again to turn touch off. Pen-only models do not have this touch key.

User's Manual 10
