Wacom DTU-1141 Manuel utilisateur

USER’S MANUAL

Interactive Pen Display

Model:

DTU-1141 and DTU-1031X Interactive Pen Display

IndexContents

Index

Contents

Installation

Using the pen

Using and customizing the Radial Menu

Customizing the ExpressKeys

Application-specific settings

Troubleshooting

Technical support options

Contents

Interactive pen display

Index

Contents

Interactive pen display

User’s Manual

Version 2.0, K1014

Wacom reserves the right to revise this publication without obligation to provide notification of such changes.

Wacom does its best to provide current and accurate information in this manual. However, Wacom reserves the right

to change any specifications and product configurations at its discretion, without prior notice and without obligation

to include such changes in this manual.

The above year indicates when this manual was prepared. However, the date of release to the users of the manual is

simultaneous with the introduction into the market of the applicable Wacom product.

Wacom is a registered trademark of Wacom Co., Ltd.

Adobe and Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United

States and/or other countries. Microsoft, Windows, and Vista are either registered trademarks or trademarks of

Microsoft Corporation in the United States and/or other countries. Apple, the Apple logo, and Macintosh are

trademarks of Apple Computer, Inc., registered in the U.S. and other countries.

Any additional company and product names mentioned in this documentation may be trademarked and/or registered

as trademarks. Mention of third-party products is for informational purposes only and constitutes neither an

endorsement nor a recommendation. Wacom assumes no responsibility with regard to the performance or use of

these products.

Interactive pen display

Index

Contents

CONTENTS

ABOUT THE MANUAL 4

Navigating the manual 5

YOUR INTERACTIVE PEN DISPLAY 6

Pen display features 6

Front view 7

Rear view 8

Pen display incline 9

Pen features 10

Pen Tether 10

INSTALLATION 11

System requirements 11

Step 1: Pen display installation 12

Step 2: Pen tablet installation 13

USB cable installation 13

Adding other display devices 14

WORKING WITH THE INTERACTIVE PEN DISPLAY 15

Ergonomics 15

Pen display orientation 15

Using the pen 16

Holding the pen 16

Positioning 16

Clicking 17

Dragging 17

Using the pen switch 18

Working with pressure sensitivity 18

Working with multiple monitors 18

Using the ExpressKeys 19

CUSTOMIZING 20

Opening the control panel 20

Control panel overview 21

Calibrating and adjusting the pen display 23

Customizing the pen 24

Adjusting tip feel and double-click 24

Advanced tip pressure settings 25

Customizing Pen mode and options 26

Customizing the ExpressKeys 27

Function settings 28

Using and customizing the Radial Menu 32

Working with Display Toggle 33

Application-specific settings 34

Creating an application-specific setting 35

Changing application-specific settings 36

Removing application-specific settings 36

TROUBLESHOOTING 37

Testing the interactive pen display 38

Testing your pen 39

Display troubleshooting 40

General display problems 40

Pen tablet troubleshooting 41

General problems 41

Windows-specific problems 44

Macintosh-specific problems 45

Technical support options 47

Obtaining driver downloads 48

APPENDIX 49

Caring for the interactive pen display 49

Replacing the pen tip 50

Using an alternate mount or stand 51

Uninstalling the interactive pen display 52

Managing preferences 53

Installing multiple tablets 54

Pen and digital ink capabilities in Windows 55

About the Windows Tablet PC Input Panel 56

Product information 57

Warranty Service 57

GLOSSARY 58

INDEX 60

Interactive pen display

Index

Contents

ABOUT THE MANUAL

This document provides quick access to information about your interactive pen display. Click on a

navigation button or highlighted word to move through the document. The information is common to

Windows and Macintosh computers. Windows screen captures are shown, unless otherwise noted.

If you are new to electronic documentation, read navigating the manual.

• Go directly to Contents or Index topics by clicking on them.

•S

MALL CAPITAL LETTERS identify the names of keyboard keys, dialog boxes, and Control Panel options.

• You can use your viewer zoom-in tool to increase the size of the page on your display screen.

• The following information is not included with this product: information about your specific computer

hardware or operating system, or information about your application software. Your best source for this

information is the set of manuals and discs that came with your hardware, operating system, or

application.

• Many applications have built-in support for pen display features (such as pressure sensitivity).

Visit Wacom’s web site to find a listing of applications that support these features (see product

information).

• For information on how best to use pen display features within a specific application, see the

instructions in that application’s manuals.

Wacom’s philosophy is to continually improve all of its products. As a result, engineering changes and

improvements are made from time to time. Therefore, some changes, modifications, and improvements

may not be covered in this document.

Interactive pen display

Index

Contents

NAVIGATING THE MANUAL

Use the navigation controls to move through the manual:

Go to front page.

Go to table of contents.

Go to index.

Go back to previous view.

Page back, or page forward.

Adobe®Reader®provides additional tools for using and printing the manual. See the Adobe Reader help

for more information.

Contents

Index

Interactive pen display

Index

Contents

YOUR INTERACTIVE PEN DISPLAY

This manual describes the installation and use of interactive pen display DTU-1141 or DTU-1031X.

The Wacom Control Panel enables you to customize your pen and pen display settings. To learn more, see

customizing.

Pen display features

Pen display incline

Pen features

The following information is not included with this product: information about your specific computer

hardware or operating system, or information about your application software. Your best source for this

information is the set of manuals and discs that came with your hardware, operating system, or application.

Note: Not all product models are available in all regions.

For illustrations of the items included with your pen display, see the Quick Start Guide included in the

product box.

PEN DISPLAY FEATURES

Familiarize yourself with the features and components of your product.

Interactive pen display

Index

Contents

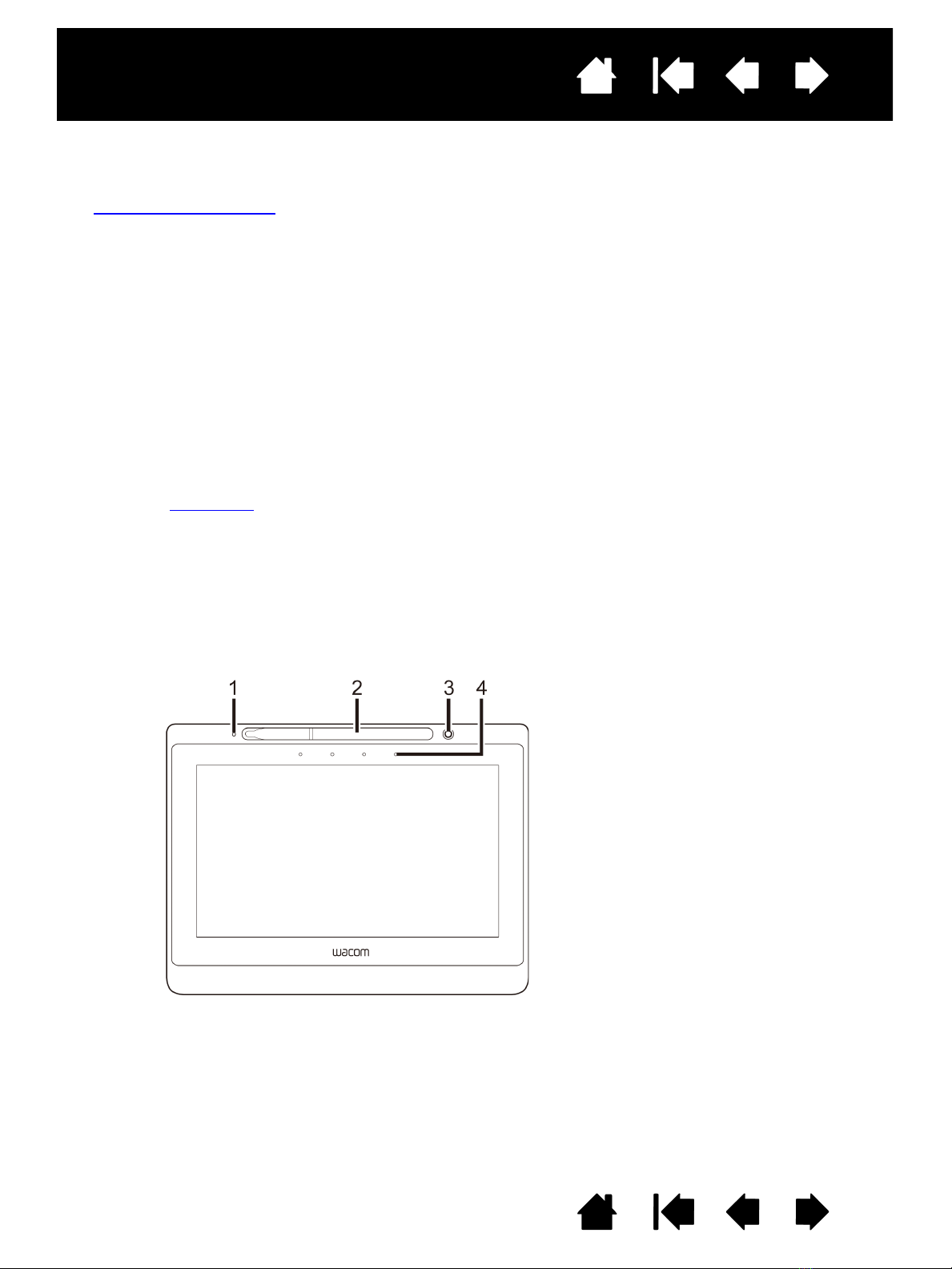

FRONT VIEW

Pen Display Features

1 - Status LED

2 - Pen storage compartment

3 - Pen stand

4 - ExpressKeys

DTU-1141 ExpressKeys are shown as 1

through 4, from left to right (standard

Landscape mode)

The features of the DTU-1141 pen display are illustrated below and listed in the Pen Display Features box.

See Using the ExpressKeys for descriptions and a table of default ExpressKey functions.

Note: The DTU-1031X does not have ExpressKeys.

Place the pen into the storage compartment by inserting the nib end of the pen into the left side of the

compartment with the side switch up. Gently press the pen into the compartment. Take care not to damage

the pen nib.

Note: The DTU-1141 pen has a side switch, and the DTU-1031X pen does not. The DTU-1141 pen can be

used with the DTU-1031X. To obtain a DTU-1141 pen, please contact your Wacom representative.

To place the cover on the pen compartment, position the cover with the pen nib outline facing to the left.

Align the cover with the top of the pen compartment and press the cover into place.

Remove the pen by pressing on the pen tip side near the top notch to eject the opposite end from the

compartment, being careful not to damage the pen nib. Grasp the pen and remove.

The pen can also be placed upright in the pen stand, or secured to the pen display with the pen tether

provided (see Pen Tether).

Pen Display Orientation Options

• Landscape (shown) - ExpressKeys top

• Landscape Flip - ExpressKeys bottom

• Portrait - ExpressKeys right

• Portrait Flip - ExpressKeys left

Interactive pen display

Index

Contents

REAR VIEW

The features of your DTU-1141 are illustrated below and listed in the Pen Display Features box.

You can connect a security cable to the Security slot to prevent theft.

The pen can be secured to the pen display through the pen tether holes with the pen tether provided (see

Pen Tether).

The USB port is used to connect the pen display to your computer. See Step 2: Pen tablet installation.

The leg stand can be used to incline the pen display. See Pen display incline.

The pen display can be mounted to articulated arms or other third-party stands meeting the VESA

specification for display stands. For details, see Using an alternate mount or stand.

DTU-1141 Pen Display Features

5 - Security lock slot

6 - Pen tether holes

7 - USB port

8 - Rubber foot

9 - Leg stand

10 - VESA mount holes

Note: Both the DTU-1141 and the DTU-

1031X have a single leg stand

Interactive pen display

Index

Contents

PEN DISPLAY INCLINE

You may want to place the pen display flat on your desk while you work. However, the leg stand on

the back allows you to adjust your pen display to a different angle for working and viewing. Both the

DTU-1031X and the DTU-1141 have a single leg stand. The diagram shows the leg stand for the

DTU-1141.

Interactive pen display

Index

Contents

PEN FEATURES

Notes:

When not in use, place the pen in the pen storage compartment or the pen stand, or lay it flat on

your desk. To maintain the sensitivity of your pen, do not store it in a position where it will rest on its

tip.

Place the pen into the storage compartment by inserting the nib end of the pen into the left side of

the compartment with the side switch up. Gently press the pen into the compartment. Take care not

to damage the pen nib.

Important: Use only a pen specified for use with your pen display. Other pens may not function properly.

Also, the pen tip is specifically designed for use with the pen display. If your pen display has a

coated surface, the tips on other pens could damage the pen display screen.

PEN TETHER

A pen tether to secure the pen to the pen display is provided. The pen is secured by threading the tether

through the hole at the end of the pen and one of the tether holes at the top of the pen display. The

attachment holes for the tether are shown in the Rear view.

Pen switch): Be sure the pen’s programmable switch is in a

convenient location where you can toggle it with your thumb

or forefinger but not accidentally press it while using the pen.

You can use the switch whenever the pen tip is within

proximity of the display screen surface; you do not need to

touch the pen tip to the display surface.

Note: The DTU-1141 pen has a side switch, and the DTU-

1031X pen does not. The DTU-1141 pen can be used with the

DTU-1031X. To obtain a DTU-1141 pen, please contact your

Wacom representative.

Pen tip (replaceable nib): The pen is activated as soon as it is

brought within proximity (5 mm/.2 inch) of the pen display

screen. This allows you to position the screen cursor without

touching the pen tip to the display screen.

When pressure is applied to the pen tip, the pen simulates a

primary mouse button click. Tip click pressure can be adjusted

in the Wacom Control Panel.
