Thanks for choosing Ninebyfour.
Since we’ve pre-assembled the lamps,
installing them is done in a few simple steps.
Design by Waarmakers
4
Conform European guidelines:
2014/35/EU - Low voltage directive
2014/30/EU - Electromagnetic compatibility
2011/65/EU - RoHS
Product : LED Tubelight luminary
Model / Type : NinebyFour / Johannes Verhulst st
Power : 220V
Production year : 2017
A++
A+
A
B
C
D
E
kWh/1000h
Y IJA
IE IA
A++
waarmakers T8-900-12W
12
Notice: If you encounter anything unusual during
the installation, or if the item differs from the
description in this manual, we recommend to stop
the installation process and contact us directly.
Company Waarmakers V.O.F.
Keerpunt 10
1013 DK Amsterdam
The Netherlands
+31 20 261 76 68
store.waarmakers.nl
5
L N
THIS SIDE
TO POWER
DO NOT
CONNECT
A.
A.
B.
B.
SAFETY INSTRUCTIONS
As you unpack and prepare for assembly,
place the contents on a carpeted or padded
area to protect them from damage.
Note: 2 people are required to safely install
this product.
IMPORTANT:
Installation of this wall mounted lamp
should be performed by a licensed
electrician. Plugs and screws for mounting
the lamp are not included.
CAUTION! Always connect the side with
printed info to power. Look for the sticker
with L + N sign.
DO NOT insert the other end of the LED
tube in the tting connected to power.
IP20 [this lamp is not moisture or water
resistant].
Use a damp cloth, never a strong cleaning
agent. Do not immerse in water.
To maintain the wood in best condition, oil
once every 5 years, or whenever the wood
looks particularly dry
WARNING: TO AVOID THE RISK OF
SUFFOCATION, KEEP THE CORK OUT
OF REACH OF SMALL CHILDREN AND
ANIMALS.
6
30
6
3 3
8 8
4737
43
45
90
950
650
overall dimensions 950x90x40mm
black cloth wire 2m
cord length 4m
Dimensions
7
Items included
Eye-bolts (screw in hooks) M4 2x
Lamp stopper 1x conical cork
32.5x28.5x27mm
Cable + plug 1x cloth wire + 1x plug
Stopper Cork
Light source T8 LED tube
Height adjusting system Wooden Spindle
82x10x12mm
Cord 2mm waxed cotton
Pendant cord kit
8
650
1. 2.
C.
B.
A.
D. 3.
30
6
3 3
8 8
4737
43
45
90
950
650
BEFORE STARTING,
TURN OFF MAIN POWER.

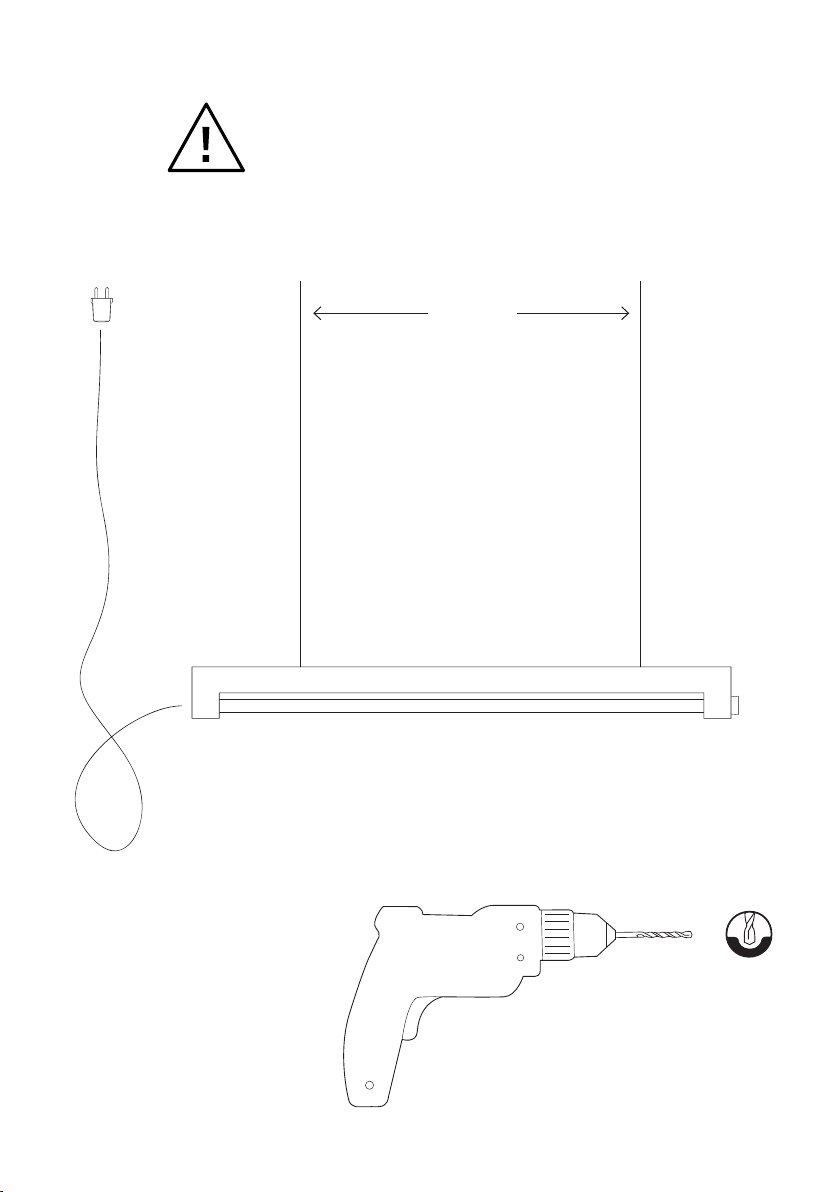

Drill two holes 650 mm apart.
[make sure to use the appropriate
plugs - not included]
STEP 1.
650 mm
9
650
1. 2.
C.
B.
A.
D. 3.

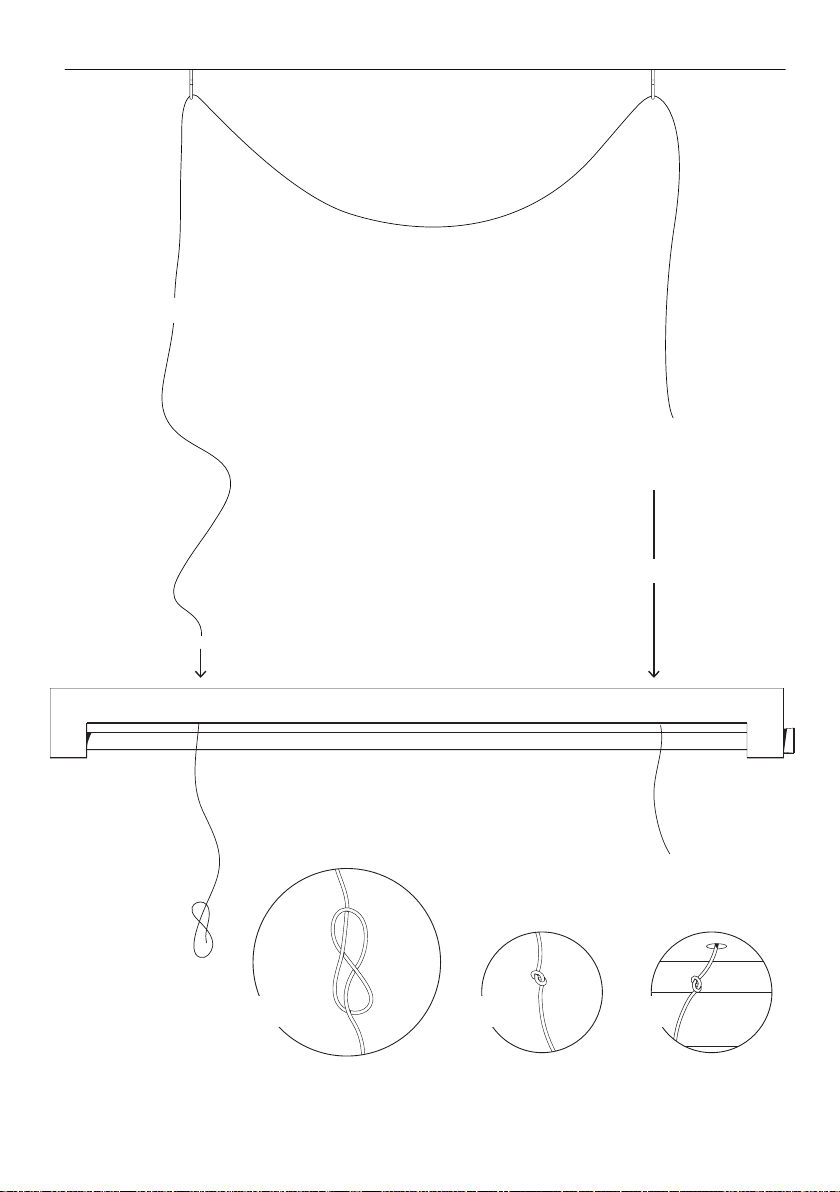

Step A. Screw in both eye-bolts in the
ceiling. Use appropriate mounting
method for your ceiling.
(plugs not included)
Step B. Guide the cotton cord
through the hooks.
Step C. Guide the cotton cord
through the holes in the wooden
xture.
Step D. Tie a knot to secure. Pull to
check if the knot stops the cord for
sliding though the hole.
Mounting on ceiling
10
1. 2. 3.
PLEASE NOTE! Always check if the cord is securely clamped
inside bottom and top slit in the wooden pen (gure 3).
Adjusting the height
Step 1. Clamp the wooden pen
at the bottom end on the cotton
cord.
Step 2. Wrap the cord around
the pen until reaching the desired
height.
Step 3. Fix the cord by clamping
the cord in the top end op the
wooden pen.
Step E. Levelling:
This is, and obviously so, a natural
material. It might occur that the
lamp is not perfectly horizontal the
rst try. To adjust, turn the knot in
step 3. (bottom right of this page)
a half or a quarter turn. This might
take a little tinkering.
