W-Tec 23793-1 Manuel utilisateur
Read the manual before use and keep it for future reference.
Regardless of use, neither the manufacturer nor the retailer is responsible for violations of
laws such as drink-driving.
The results are only indicative and do not serve as a criterion for the authorization of
various activities.
Powered by 2x AAA alkaline batteries
For the most accurate measurement, we recommend performing the test 2-3 times within 3
minutes between each test.
Range: 0.00 - 0.19% BAC & 0.0-1.9 g / l
Perform the test at least 20 minutes after using alcohol.
Do not eat or smoke for 20 minutes before the test.
23793-1 Alcohol tester W-TEC Beerster
1.
Mouthpiece
2.
Power button
3.
LCD display
4.
Battery placement
5.
Keychain

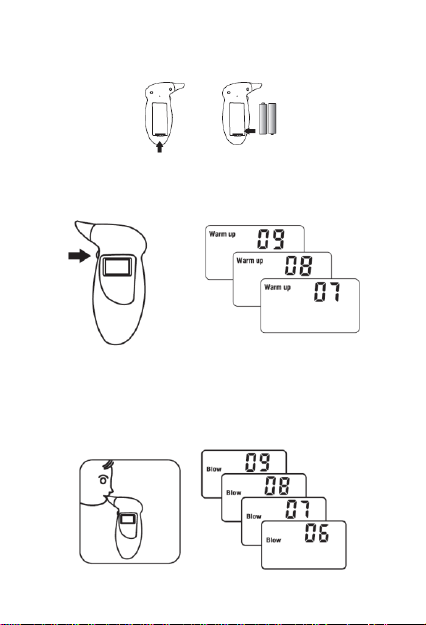

BATTERY REPLACEMENT
Remove the cover and insert 2x AAA alkaline batteries. Then reattach the cover.
USE
Hold down the power button for 1 second, the LED display will start, and a beep will sound.
"Warm up" and a countdown from 10 to 0 are displayed.
Note: It is always possible that the mouthpiece and sensor are clogged with dirt.
Sometimes it is necessary to turn the device on and off several times.
"Blow" and a countdown from 10 to 0 are displayed.
Take a deep breath and breathe into the device for about 5 seconds.
The result is displayed:
The display shows "Caution" and values from 0.02% BAC (0.2g / l) to 0.05% BAC (0.5g / l)
The display shows "Danger" and values from 0.05% BAC (0.5 g / l).
The result is displayed for about 10 seconds, then turns off.
MOUTHPIECE
To replace the mouthpiece, screw the new mouthpiececlockwise.
SPECIFICATIONS
Range:
0,00 % to 0,19 % BAC (0,0 –1,9 g/l)
Accuracy:
-0,01 % ~ + 0,02 % at 0,05% BAC
Power supply:
2x 1,5V AAA alkaline batteries
Operating time:
Loading: 10 seconds, response: 5 seconds
Clock accuracy:
±2 seconds / day
Dimension:
118 x 70 x 28 mm
