VYVO BioSense Manuel utilisateur
BioSense
health smartband 1

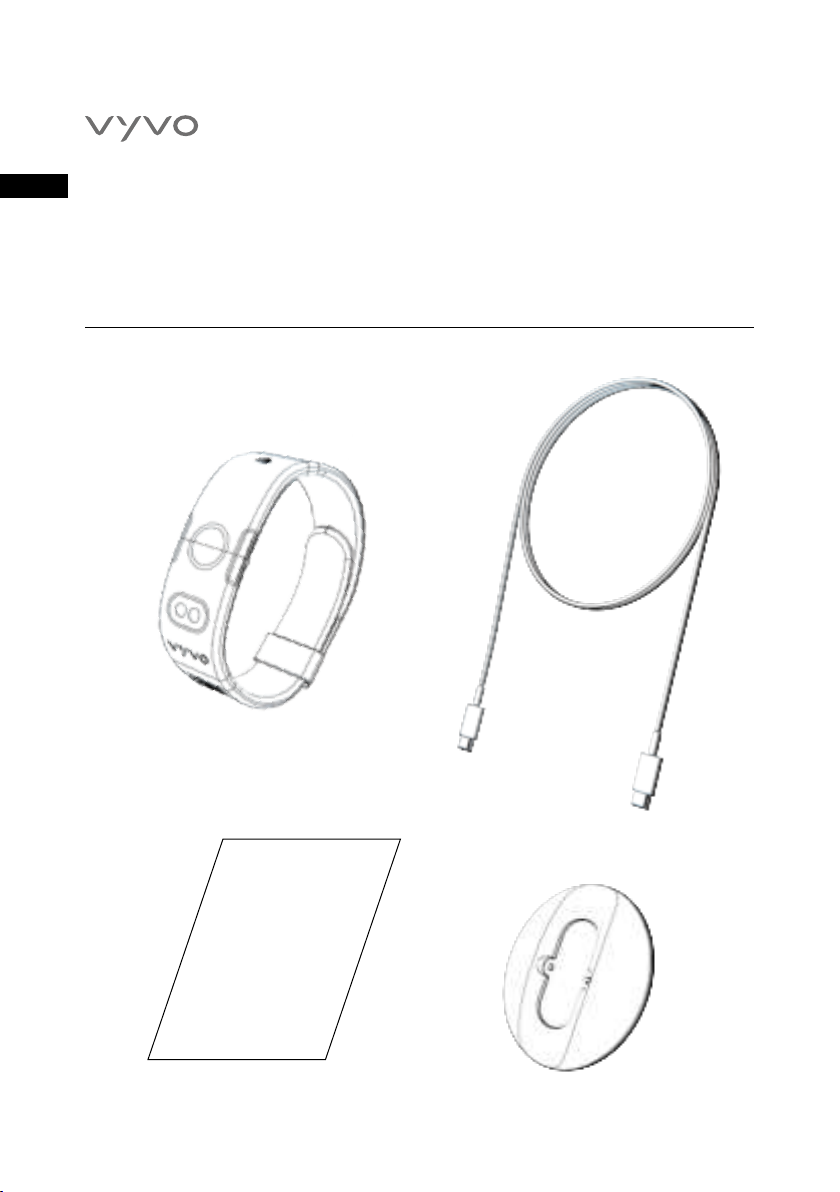

Packing List
The box contains the following items
BioSense
smartband
USB C cable
Charging BaseCard info
BioSense
health smartband
Input voltage: 5V DC.
Charging time: about 2 hours.
2
How to operate
1. Insert the USB C cable into the charger base socket.
2. Put the BioSense onto the charging base and align the metal contacts on the back of
the smartband with the gold pins on the charging base while placing. the device and the
charger will line up with magnets in the right direction.
3. Place the charger on the deck with the BioSense sideways
1
2
3
BioSense
health smartband 2
How to operate
4. Power On
Press and hold on the button to power on
5. Power Off
It will be functional only through the App
6. APP Download
Download the VYVO Smart App from the App Store, Google Play Store or VYVO App STO.
Note: To use “VYVO Smart App” on an iPad, you need to select “iPhone only” when down-
loading it from the App Store
7. Compatibility & Support
Support Android 5.0 or above, iOS 10.0 or above
8. Connection
After finishing the download, open the App and register an account, then complete the
connection process according to the operating instructions on the App
NOTE
In order to successfully connect a phone to the smartband, you need to turn on the Bluetooth
on the phone and connect to your device through the App
1
2
4
2
3
5
1
2
3
4
5
Power ON button
ECG & BIA electrodes
LED light
BP, SpO2, APG sensor
VYVO Pay chip inside
BioSense
health smartband 3
Introduction for important features
Heart rate monitoring
In order to monitor heart rate more accurately, please wear the smartband approximately one
finger away from the wrist bone.
NOTE
BioSense is only lor swimming. lf you wear BioSense lor diving, it may cause damage to the
device. Such damage is not within the scope of the warranty.
BioSense
health smartband 4
More information
Waterproofing instructions
The waterproof leveI of BioSense is IP68 (50m).
NOTE
1. Swim, shower and washing hands only under cold water.
2. BioSense does not have a waterproofing effect on seawater, acid and alkaline solution,
chemical reagents and other corrosive liquids. lf inadvertently encounter or contact with
corrosive liquid, please clean with clear water and dry the device. The damage caused due
to improper use or abuse of the devi ce is not within the scope of the warranty.
BioSense
health smartband 5
Tech Sheet
+$5':$5(DQG62)7:$5(VSHFLҩFDWLRQ
Process
description
1.Wristband material: liquid silica gel + PA two-color coating,surface drying pattern +
89PRGLҩFDWLRQEXLOWLQPDJQHWDGVRUSWLRQ
2.Heart electrode: stainless steel 316L + pvd gold
3.Bottom shell: PA embedded 2 pieces of 316L stainless steel + PVD + 2PCS POGO pin
Basic
VSHFLҩFDWLRQ
size ---
weight ---
color black/white
Hardware
VSHFLҩFDWLRQ
built-in storage RAM: 256KB,ROM: 1Mbit,external 8MB
APP iOS 10.0 or above,Android 5.0 or above
display ---
resolution ---
button touch button
Connection
bluetoth BLE 5.0
WIFI ---
NFC support
