VWR Avantor TubeRoller 5 Manuel utilisateur

Instruction manual

VWR® TubeRoller 5 and TubeRoller 10

EU cat. no 444-1339

444-1342

___

Version 01 Issue 07/2022

2vwr.com I Instruction manual VWR®TubeRoller 5 and TubeRoller 10

Legal address of Manufacturer

Europe

VWR International bv,

Researchpark Haasrode 2020

Geldenaaksebaan 464 B-3001

Leuven

+3216385011

be.vwr.com

UK Importer:

VWR International Ltd

Hunter Boulevard, Magna Park

Lutterworth, Leicestershire, LE17 4XN

uk.vwr.com

Country of Origin

Taiwan

Table of Contents

Warning

Safety information

Package Contents

Unpacking

Intended Use

Symbols and conventions

Specifications

Instructions for use

Troubleshooting

General maintenance

Accessories and spares

Technical Service

Warranty

Disposal

Warning

The VWR® TubeRoller 5 and VWR® TubeRoller 10 are for research use only. Not intended for medical, diagnostic, or therapeutic

use, human or otherwise.

3vwr.com I Instruction manual VWR®TubeRoller 5 and TubeRoller 10

Safety Information

Avoiding Electrical Shock

Please follow the guidelines below and read this manual in its entirety to ensure safe operation of the unit.

To avoid electrical shock:

Always plug the instrument into a properly grounded AC outlet.

Ensure that your hands, work area, and instruments are clean and dry before plugging the instrument into an

outlet.

Ensure that local voltage is within the voltage range of the instrument.

Avoiding Damage to the Instrument

Ensure there are no obstructions to the motion of the instrument prior to use.

Ensure that the total weight of the load is below the maximum weight specified.

Always place the instrument on a flat, level surface.

Package Contents

Description

Quantity

TubeRoller 5 or TubeRoller 10

UK Plugged Lead

EU Plugged Lead

Swiss Plugged Lead

Unpacking

Ensure all components are present prior to continuing. If any are missing, contact your VWR® representative.

Intended use

The VWR® TubeRoller 5 and TubeRoller 10 are intended for gentle, thorough mixing of a wide range of sample containers,

through a rolling motion alongside a gentle vertical rocking motion. Sample vessels are intended to lay flat on the rollers to be

mixed. Intended users of the VWR® TubeRoller 5 and TubeRoller 10 are clinical labs, doctor’s offices, and researchers needing

non-vigorous sample mixing.

For research use only. Not intended for any animal or human therapeutic or diagnostic use.

4vwr.com I Instruction manual VWR®TubeRoller 5 and TubeRoller 10

Symbols and conventions

The following chart is an illustrated glossary of the symbols that are used in this manual.

CAUTION This symbol indicates a potential risk and alerts you to

proceed with caution

Product Specifications

VWR® TubeRoller 5 (444-1339)

Speed Range 2 to 80 RPM, Variable

Operating Temperature 4°C to 40°C ambient temperature

Individual Roller Dimensions 3 x 32 cm

Vessels Accepted, Diameter 8 mm to 200 mm

Rolling Spacing 5 mm on 35 mm centers

Number of Rollers 5

Load Capacity 2 kg

Dimensions 45 x 18 x 9 cm

Weight 5 kg

Electrical 230V, 50-60 Hz

Warranty 2 Years

VWR® TubeRoller 10 (444-1342)

Speed Range 2 to 80 RPM, Variable

Operating Temperature 4°C to 40°C ambient temperature

Individual Roller Dimensions 3 x 32 cm

Vessels Accepted, Diameter 8 mm to 200 mm

Rolling Spacing 5 mm on 35 mm centers

Number of Rollers 5

Load Capacity 2 kg

Dimensions 45 x 18 x 9 cm

Weight 5 kg

Electrical 230V, 50-60 Hz

Warranty 2 Years

5vwr.com I Instruction manual VWR®TubeRoller 5 and TubeRoller 10

Overview

The VWR® Tube Rollers are designed for gentle yet complete mixing of a wide range of sample vessels, including Vacutainers™,

media bottles, blood tubes, centrifuge tubes, and roller bottles. With both models, speed is controlled digitally, and is variable

between 2 and 80 rpm.

In addition to the rolling motion, the VWR® Tube Rollers also feature a gentle 0.5 in (13mm) elevation function on the right-side

end of each roller. The tilting feature provides a heightened level of mixing homogeneity and uniformity without placing

unnecessary stress on samples.

VWR® Tube Rollers additionally feature an integrated timer, which is controlled digitally. The timer can be set from 1 minute to

100 hours, with an additional continuous operation mode. The VWR® Tube Rollers are the right choice for research laboratories,

clinical laboratories, and physician’s offices in need of a tube mixing solution.

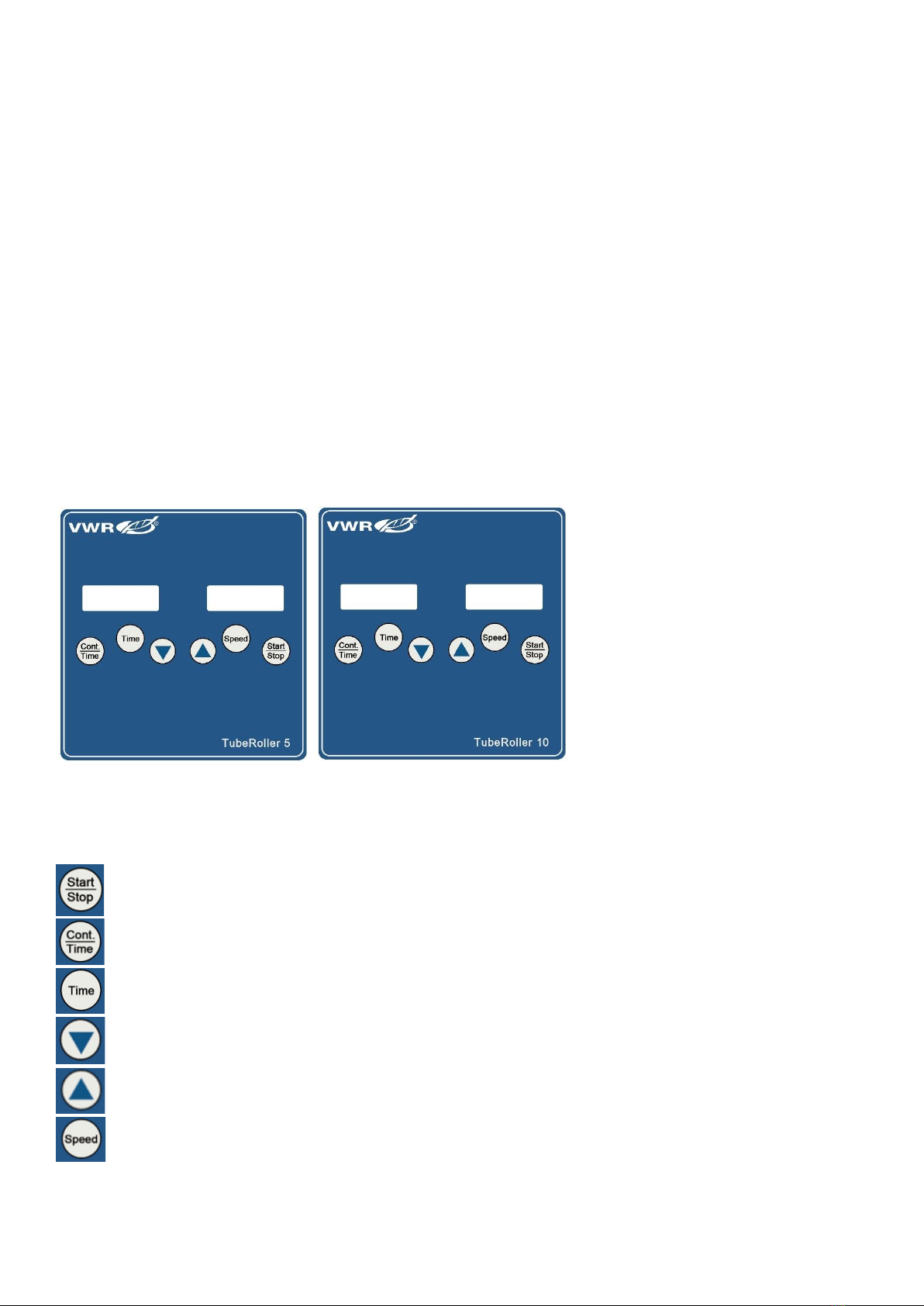

Description of Buttons and Switches

Main View

VWR® TubeRoller 5 VWR® TubeRoller 10

Operational keys

Key Functions

START|STOP Key: Used to start instrument run, or to stop instrument run during use.

CONT|TIME Key: Used to switch between continuous run mode and timed run mode.

TIME Key: In timed run mode, used to enter timer adjustment mode.

Down arrow key: Used during adjustment modes to reduce timer and speed.

Up arrow key: Used during adjustment modes to increase timer and speed.

SPEED Key: Used to enter speed adjustment mode.

6vwr.com I Instruction manual VWR®TubeRoller 5 and TubeRoller 10

Getting Started

Installing the VWR® TubeRoller 5 and TubeRoller 10

Place the roller on a clean, flat, stable surface. Prior to connecting the unit to power, ensure the power switch located on the

rear of the unit is in the OFF position. Plug the roller into a properly grounded outlet at the correct voltage. Always ensure that

there are no obstructions blocking the vertical rocking motion of the rolling platform.

Operation

Load the roller platform prior to powering the unit on. Ensure to load the unit from the center out, creating a balanced load

about the center line of the platform. Once the unit is loaded to satisfaction with a balanced load, power the unit on by pressing

the power switch to the ON position.

Enter time adjustment mode by pressing the “TIME” key. The timer display will begin flashing. Use the up arrow and down arrow

keys to adjust run time. Once finished, press the “TIME” key again to store the time value. Enter speed adjustment mode by

pressing “SPEED”. The speed display will begin flashing. Use the up arrow and down arrow keys to adjust speed. Once finished,

press the “SPEED” key again to store the speed setting. To switch to continuous operation, press the “CONT.|TIME” button. The

display should read “cont”. To switch back to timed run mode, press “CONT.|TIME” again. To start operation, press

“START|STOP”. The unit will run until time elapses, or continuously. Press “START|STOP” again to stop the run at any time.

Troubleshooting

Review the information in the table below to troubleshoot operating problems.

Problem

Cause

Solution

Unit is not powering on

Faulty outlet

Check outlet with other electronics known to work

Damaged fuse

Replace fuse

Rolling motion is stiff, not

fluid, or stops

Obstructions underneath

rollers

Clear obstructions

Unit stops rolling prior to

time end or during

continuous mode

Faulty motor

Return unit to manufacturer for service

Unit not running

Faulty components

Return unit to manufacturer for service

Repair and maintenance of VWR® TubeRoller 5 and TubeRoller 10

Routine maintenance of this unit only involves keeping the unit clean. No other routine maintenance or repair is

required. Cleaning can be done with a damp cloth. Avoid the use of solvents to avoid the risk of damage to the

housing or rollers.

Technical service

Web Resources

Visit the VWR website at www.vwr.com for:

• Complete technical service contact information

• Access to the VWR Online Catalogue, and information about accessories and related products

• Additional product information and special offers

7vwr.com I Instruction manual VWR®TubeRoller 5 and TubeRoller 10

Warranty

VWR warrants that this product will be free from defects in material and workmanship for a period of two (2) years from date

of delivery. If a defect is present, VWR will, at its option and cost, repair, replace, or refund the purchase price of this product to

the customer, provided it is returned during the warranty period. This warranty does not apply if the product has been damaged

by accident, abuse, misuse, or misapplication, or from ordinary wear and tear. If the required maintenance and inspection

services are not performed according to the manuals and any local regulations, such warranty turns invalid, except to the extent,

the defect of the product is not due to such non-performance.

Items being returned must be insured by the customer against possible damage or loss. This warranty shall be limited to the

aforementioned remedies. IT IS EXPRESSLY AGREED THAT THIS WARRANTY WILL BE IN LIEU OF ALL WARRANTIES OF FITNESS

AND IN LIEU OF THE WARRANTY OF MERCHANTABILITY.

Compliance with local laws and regulations

The customer is responsible for applying for and obtaining the necessary regulatory approvals or other authorisations necessary

to run or use the Product in its local environment. VWR will not be held liable for any related omission or for not obtaining the

required approval or authorisation, unless any refusal is due to a defect of the product.

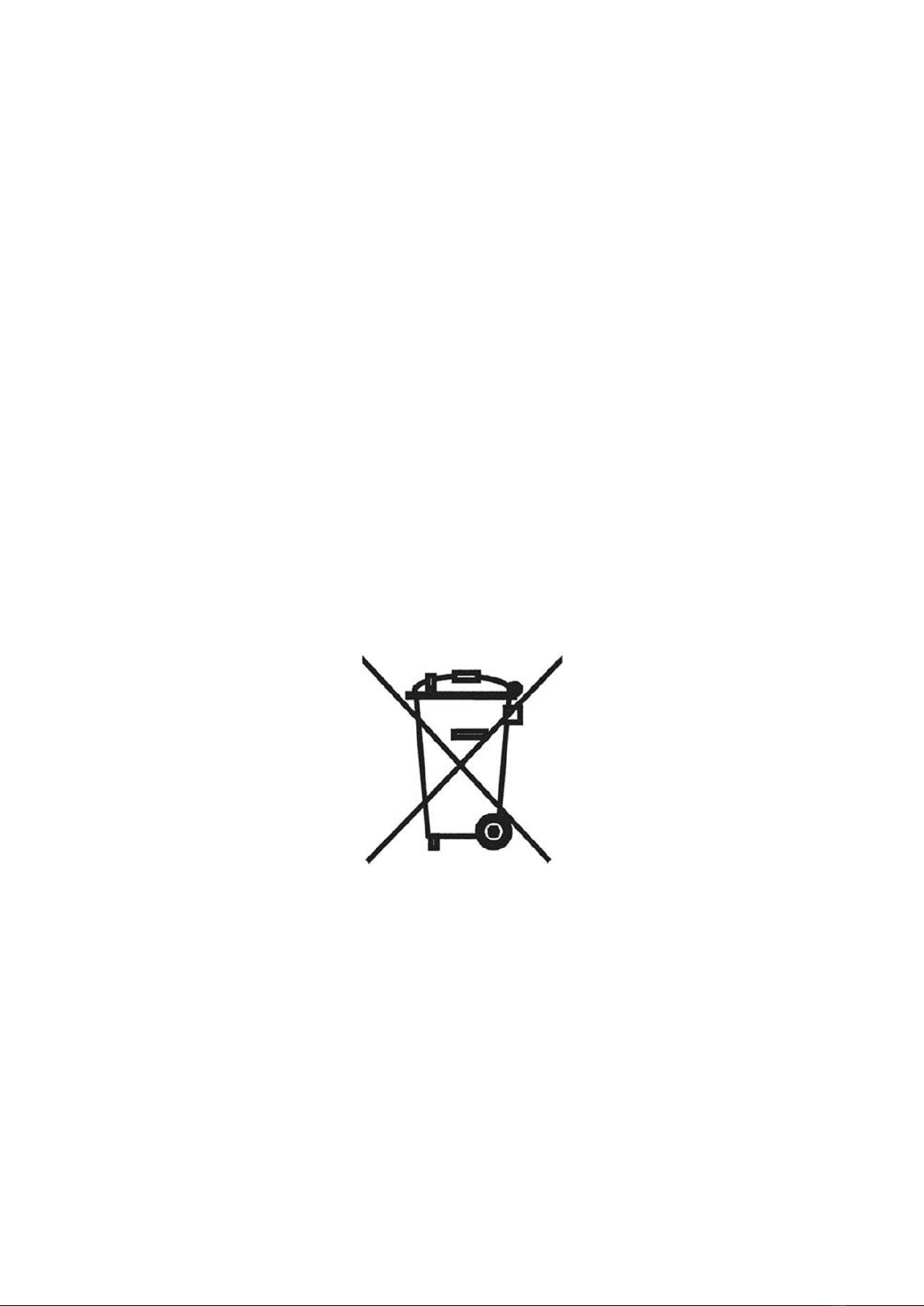

Equipment disposal

This equipment is marked with the crossed out wheeled bin symbol to indicate that this equipment must not be disposed of

with unsorted waste.

Instead it's your responsibility to correctly dispose of your equipment at lifecycle -end by handling it over to an

authorized facility for separate collection and recycling. It's also your responsibility to decontaminate the

equipment in case of biological, chemical and/or radiological contamination, so as to protect from health

hazards the persons involved in the disposal and recycling of the equipment.

For more information about where you can drop off your waste of equipment, please contact your local dealer from whom you

originally purchased this equipment.

By doing so, you will help to conserve natural and environmental resources and you will ensure that your equipment is recycled

in a manner that protects human health.
