VT540 / Vibration sensor
Product page: https://vutlan.com/analog-sensors/19-vt540-vibration.html
Function and purpose
Detects vibration. For installation on walls, windows, etc., the sensor controls vibration. For example, detects the breaking of
the window by an intruder if installed on the window glass.
Technical specifications
Feature Description
Sensor type Analog sensor
Dimensions 60×18×18 mm
Weight 60 g
Input RJ-12 / RJ-11 (6p4c)
Outputs RJ11 / RJ12 (6p4c)
Operating
temperature
-10 °C to +80 °C
Operating
humidity
5% to 95% (Non-Condensing)
Mounting Mounting bracket, sticker, and screws are included. Installed on the surface where possible vibration is
possible. E.g. windows, doors, etc.
Power
consumption
60mW
Max. distance m 150 m
HS Code 9025 11 800
Components Manufactured in E.U.
Daisy chain
possible
No

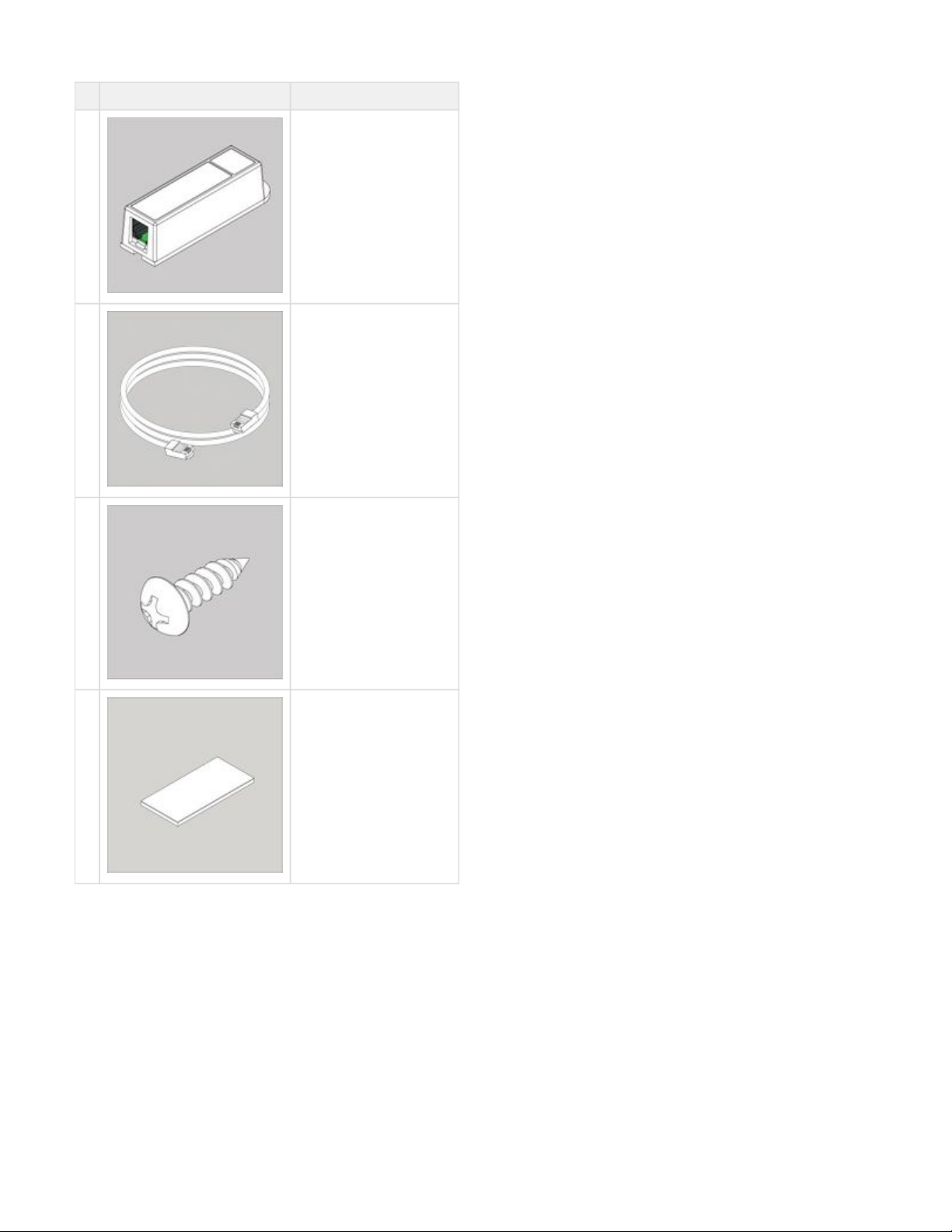

Package includes
Package content Description
1 Sensor
2RJ11 6P4C telephone cable
3Screw B4,2 x 16 1pc
4 Sticker 1pc
Drawing

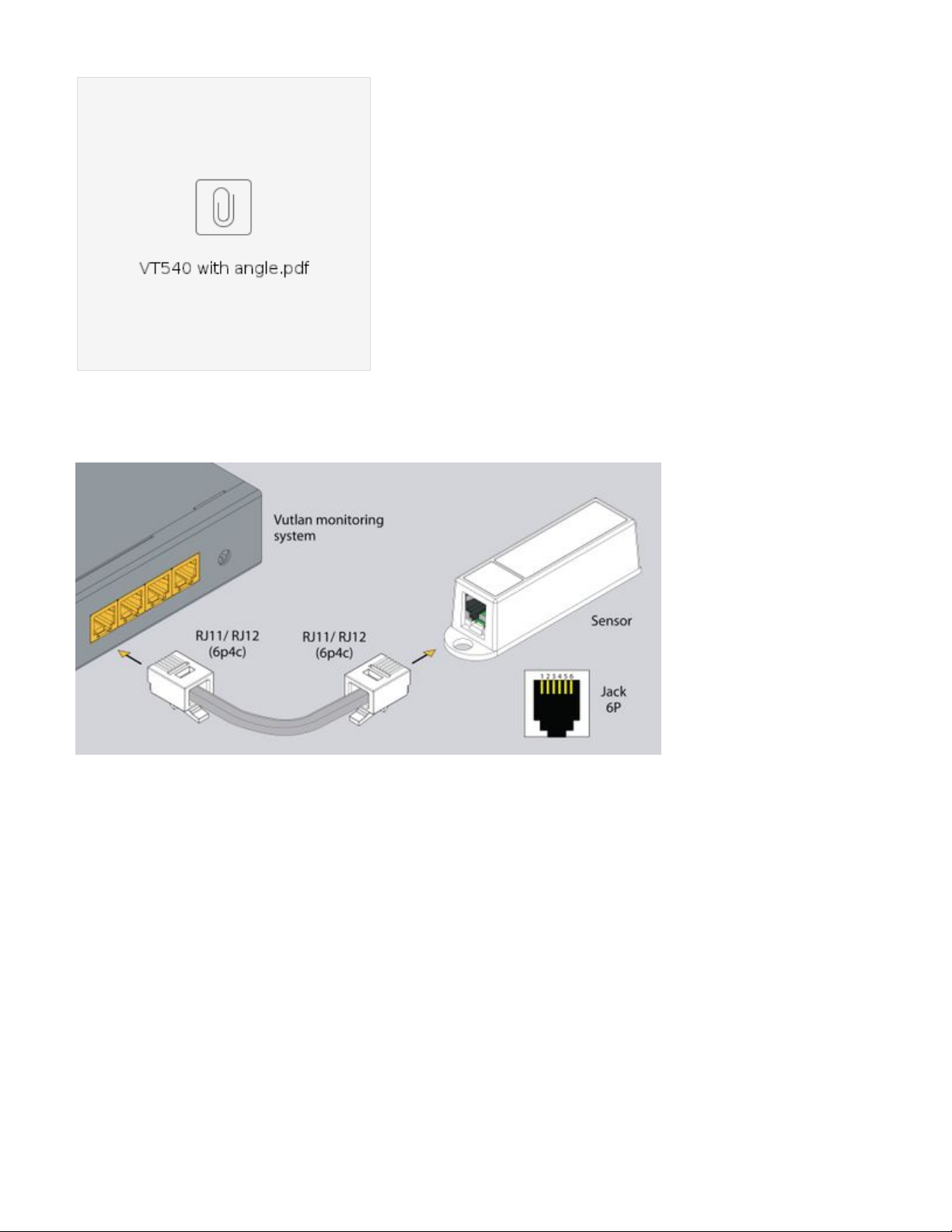

Connecting vibration sensor
The sensor uses a standard Vutlan analog for connecting to the monitoring unit. RJS5 RJ11 sensor cable
Installation using a sticker and a bracket
Option 1.
There's a round bump at the bottom of the plastic enclosure of the sensor. It is used for fastening when the sensor is mounted
together with the on walls using a screw. In the current example, it is not needed. If you are planning to mount a device
differently, do not follow this step.
Cut the round bump using a knife so that the bottom of a plastic enclosure will be flat.
Option 2.
a) Stick the mounting sensor to the surface using the sticker.
or
b) Stick a sensor to the surface using a screw.
Option 3.
Mount the sensor to the surface using a mounting bracket. The mounting bracket and the sensor can be either attached by the
stickers or together with screws and nuts.
Analog sensor connection
Connect the analog sensor by a supplied RJ-11 (6P4C) cable to any analog port "A1 .. A8" or "Sensor" port. The determination
of the sensor type and connection will occur automatically.
6P4C RJ11 cable wiring/pinouts
If strong electromagnetic interference is present, we recommend using a 3-pair cable CAN FTP for sensor connection!
1- Yellow, 2- Green, 3- Red, 4 - Black
Colors are true for this telephone cable. Both ends match the colors and pinouts (identical).
Please refer to the RJ connectors comparison table:
Daisy chain connection
Some of the analog sensors can be connected in a daisy chain. Please refer to the article "Chain connection of analog sensors".
Maximum cable length test
Model 50m 100m 120m 15
0m
200m
VT407 AC current converter ok
VT410 DC voltage monitor
VT420 Converter 4-20mA ok
VT500 Temperature sensor ok
VT501 Outdoor temperature sensor ok
VT510 Humidity sensor x
VT530 Access sensor ok
VT540 Vibration sensor ok
VT550 Wind velocity meter x
VT560 Smoke detector ok
VT570 PIR sensor ok
VT590 Spot water detector ok
VT591 Water leak sensor ok
Extending the number of analog sensors
Using CAN extension " " it is possible to increase the number of analog sensors connected to the VT408 / Sensor extension unit
monitoring unit up to 80 sensors.
Configuring the sensitivity of the sensor
The sensor is very sensitive. At times this may prove to be too sensitive. In this case, it is possible to lower the sensor's
sensitivity:
1) Unplug the sensor from the cable.
2) Open sensor cover using a flat screw.
3) Take the two-pin jumper header out. This will lower the sensitivity slightly.
4) Close the cover and plug the sensor back in.
If the sensitivity is still too high, Vutlan can produce a custom vibration sensor will a much lesser sensitivity on demand. In
this case, please contact the sales team.

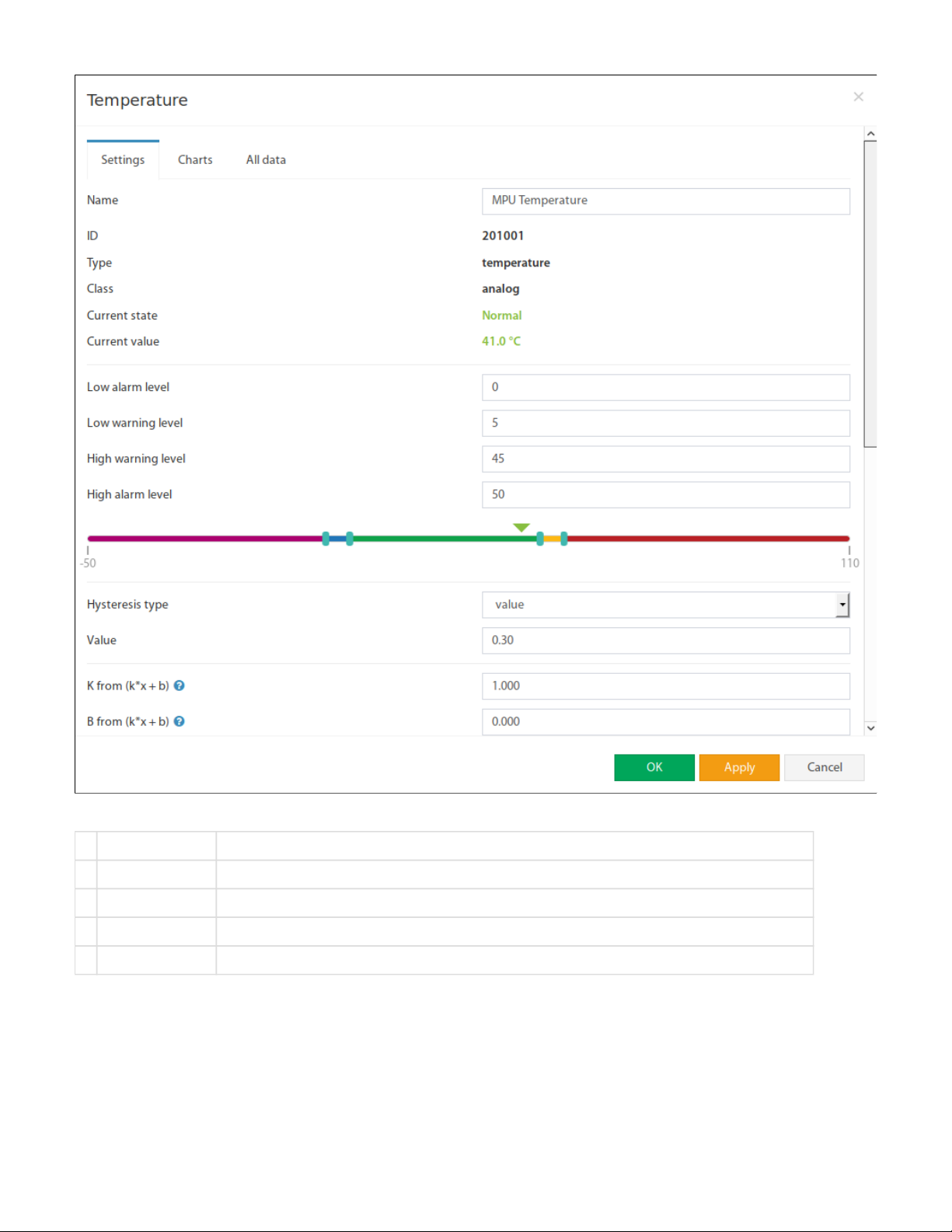

Sensor configuration
Settings tab
To configure a sensor, go to "Main menu" >> "System tree" and click on the sensor element in the tree. A modal window with
sensor properties will pop up. Change the needed settings and click "OK" or "Apply" at the bottom of the "Properties" window.
All sensors include:
1 Name The name is given by the system automatically. You can change it to anything you want.
3 ID System ID of the element.
4 Type Example: temperature, humidity, vibration.
5 Class Examples: analog, CAN, switch, discrete.
6 Hardware port The external port number on the device panel to which the sensor is connected (if the sensor is external).
All sensors have threshold controls:
