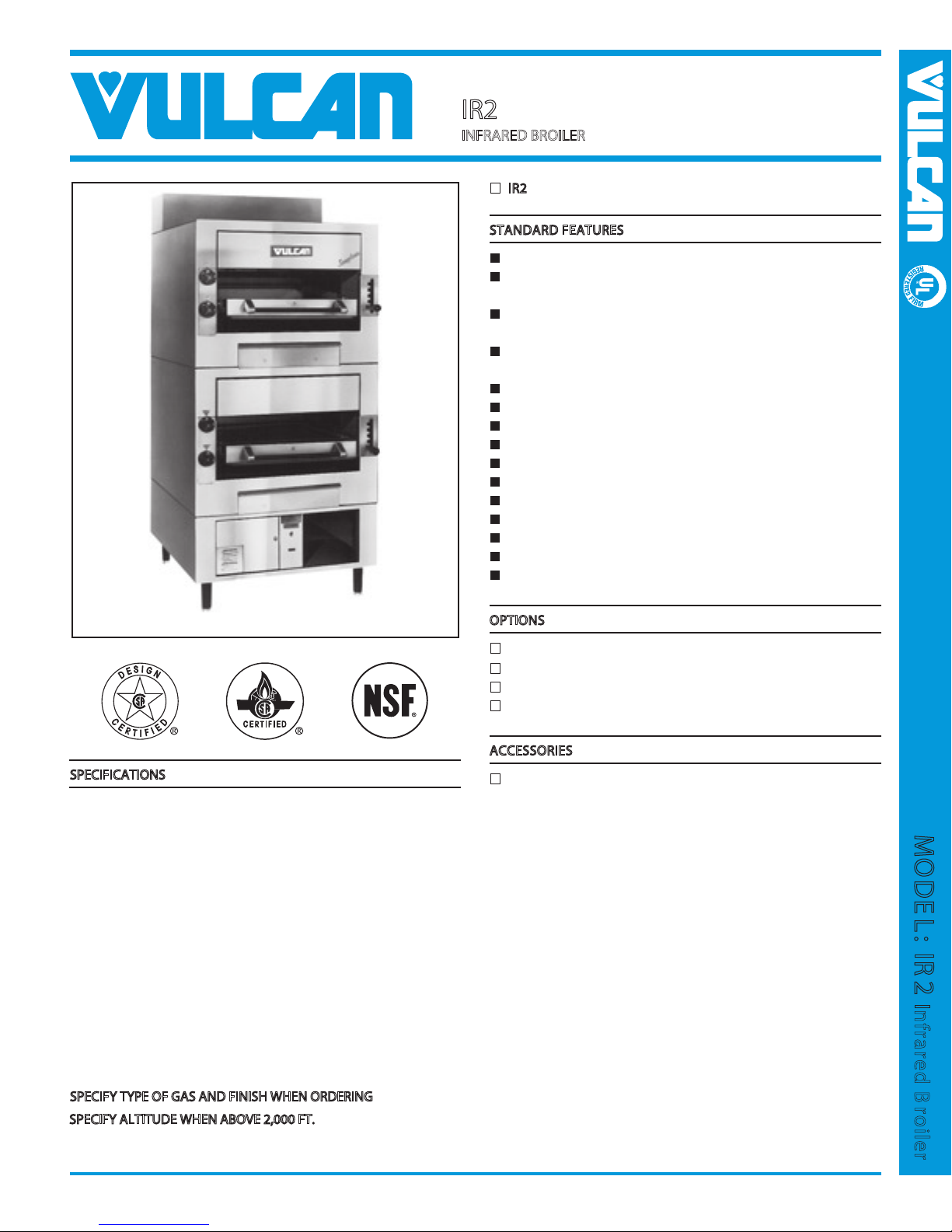

IR2

INFRARED BROILER

Model IR2

SPECIFICATIONS

Heavy-duty infrared broiler, Vulcan-Hart Model No. IR2. Stain-

less steel body and 6" adjustable legs. Power blower(s) mix

primary and secondary air with (natural) (propane) gas. Air and

gas mixture moves through overhead perforated ceramic tile

infrared generators. Four 20,000 BTU/hr. ceramic tile faced

burners reach approximately 1600°F through two innate heat

valves with high and low positions. 160,000 BTU/hr. input. Pilot

lights and pressure regulator. Spring balanced broiler area mea-

sures 25 1/2"w x 29 1/2"d. Grid is made of round cold rolled steel

bars and mounted on roller bearings. Insulated external handle

and adjustable to ve locking broiling levels.

Exterior dimensions:

36"w x 38 3/8"d x 80 1/2"h on 6" legs

CSA design certied. NSF listed.

SPECIFY TYPE OF GAS AND FINISH WHEN ORDERING

IR2 Double deck broiler on 6" legs

STANDARD FEATURES

Stainless steel body and legs.

High production infrared broiler with power blower supplied

primary and secondary air.

Reaches 1600°F broiling temperatures quickly and maintains

broiling eciency during peak hours under repeated loading.

Radiant infrared rays reduce broiling time up to 50% on many

products.

Quickpreheatingallowsbroilertobeturnedoinslowperiods.

Spring balanced 5 position grid for raising and lowering.

Porcelain enameled steel liners in broiler compartment.

Four foot 120V power cord.

Gas pressure regulator.

Grid area 700 sq. in.; 25 1⁄2" x 29 1⁄2".

Grid moves on roller bearings.

Cold rolled steel grid bars for marking.

Insulation between outer and inner walls.

Rear gas connection.

One year limited parts and labor warranty.

OPTIONS

Stainless steel nishing back panel.

IR2 - less legs on 15⁄8" base

Front ue deector

Second year extended limited parts and labor warranty.

ACCESSORIES

Quick disconnect gas hose.

SPECIFY ALTITUDE WHEN ABOVE 2,000 FT.

Printed On Recycled Paper

VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. 1-800-814-2028

502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602

NOTE: In line with its policy to continually improve its products, Vulcan-Hart Company reserves the right to change materials and

specications without notice.

F-31752 (05-06)

IR2

INFRARED BROILER

MODEL IR2

TOP VIEW

MODEL IR2

FRONT VIEW

MODEL IR2

SIDE VIEW

MODEL IR2

Overall Dimensions

)mm419("63htdiW

83htpeD 3⁄8" (975 mm)

08thgieH 1⁄2" (1727)

)gk594(.sbl0011.tW.phS.xorppA

Broiler Grid Overall

52htdiW 1⁄2" (648 mm)

92htpeD 1⁄2" (749 mm)

000,061latoTgnitaR.rh/UTB

)mm52(epip.dts"1)raer(noitcennoCsaG

Flue Collar 36" (914 mm) x 8" (203 mm) x 10 5⁄16" (261 mm)

IMPORTANT

1. An adequate ventilation system is required for commercial cooking

equipment. Information may be obtained by writing to the National

Fire Protection Association, Batterymarch Park, Quincy, MA 02269.

When writing refer to NFPA No. 96.

2. This broiler requires a 6" clearance at both sides and rear adjacent

to combustible construction.

3. A gas pressure regulator suitable for battery or single unit applications

must be furnished and installed. Nat. gas 6.0” W.C., pro. gas 10” W.C.
