Vox DelayLab Manuel utilisateur

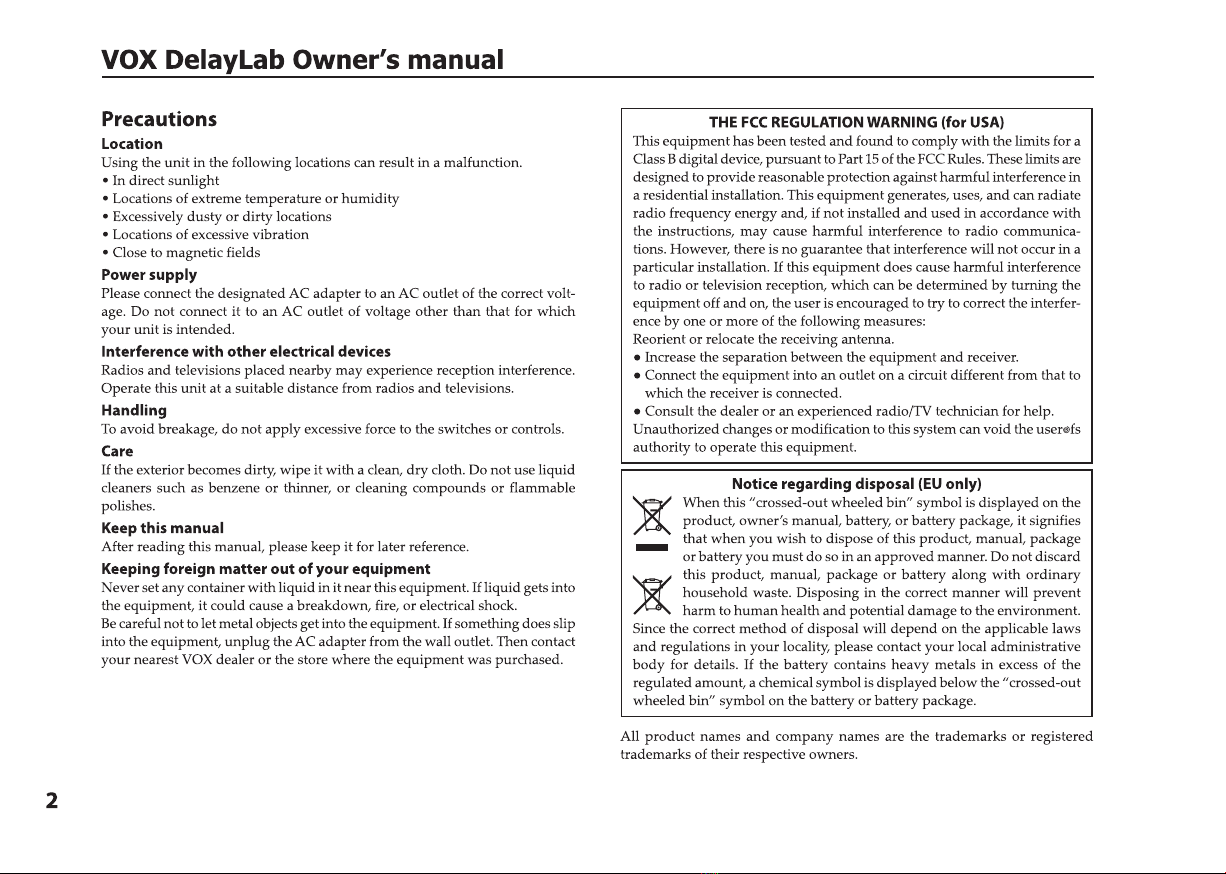

Table of contents

Introduction .........................4

Top and rear panels . . . . . . . . . . . . . . . . . . . 4

Top panel .................................4

Rear panel ................................6

Getting started .......................7

Installing the batteries (changing the

batteries) .................................7

Low-battery display . . . . . . . . . . . . . . . . . . . . . . . 7

Connecting ...............................7

Auto Power-Off function . . . . . . . . . . . . . . . . . . 9

Operating procedure . . . . . . . . . . . . . . . . . 9

Using delay effects ........................9

Saving edited effects . . . . . . . . . . . . . . . . . . . . . . 9

Using looper effects . . . . . . . . . . . . . . . . . . . . . . 10

Using a connected pedal . . . . . . . . . . . . . . . . . 11

Setting the bypass sound . . . . . . . . . . . . . . . . . 12

Seamless bypass .........................13

Seamless Program Change . . . . . . . . . . . . . . . 13

Constant Parameters . . . . . . . . . . . . . . . . . . . . . 13

Kill Dry function .........................14

Key Lock function ........................14

Setting the battery type . . . . . . . . . . . . . . . . . . 14

Effect list ............................15

Restoring the factory settings . . . . . . . .18

Troubleshooting . . . . . . . . . . . . . . . . . . . .19

Specifications .......................20

VOX DelayLab Owner’s manual

Introduction

Thank you for purchasing the VOX DelayLab effects pedal.

To take full advantage of this product and to ensure trouble-

free operation, please read this owner’s manual carefully

and use the product as directed. After you’ve read the

manual, keep it in a safe place for future reference.

Top and rear panels

Top panel

1 2 3 4 5 6 7

1. Display

The display normally shows the program number, and will

show the parameter value when editing an effect.

2. CATEGORY button

Press this button to select the various effect types.

Green: Standard

Orange: Vintage

Red: Custom

3. FINE button

Use this button to fine tune the delay time. When on, adjust

the last 2 digits in units of 1 millisecond. (1–100 ms)

4. SYNC button

Press

this button

to switch the delay time setting method.

When on (LED is on), set the delay time to the notes that are

synchronized to the tap tempo. When off (LED is off), set the

actual time to milliseconds.

5. WRITE button

Use this button to save the effect settings to a program.

)Page 9 “Saving edited effects”

6. CANCEL button

Press this button when you want to cancel an operation such

as saving a program.

You can disable the top panel buttons, knobs and selectors

by holding down this button for approximately two

seconds (Page 14 “Key Lock function”). To cancel the Key

Lock function, hold down this button once again for

approximately two seconds.

7. PEDAL ASSIGN button

Press this button to set the external expression pedal

settings.

When the parameter operation is set by the pedal, the LED

lights up red. Also, the LED lights up green when setting the

pedal settings.

)Page 11 “Using a connected pedal”

8. Type Selector knob

Use this knob to select the effect type.

9. Edit knobs

a. TIME knob

Use this knob to set the delay time.

b. FEEDBACK knob

Use this knob to set the delay feedback volume.

c. TONE/SPEED knob

The effect may vary according to the delay type. See the

Parameter chart (Page 82) to determine the function.

d. INTENSITY knob

The effect may vary according to the delay type. If the

Looper is selected, use this to set the loop level (loop

volume).

e. MIX knob

Use this knob to set the volume balance of the delay sound

and direct sound.

10. TAP/BANK UP (REC/PLAY/OVERDUB) switch

Use this switch to set the delay time. The interval used when

pressing the TAP/BANK UP switch two times will be set as

the delay time, and the LED will blink in green. When SYNC

is on, tempo (BPM) appears on the display and the LED

blinks in red.

Press and hold this switch for 2 seconds to select another

bank.

The bank that you are selecting will be blinking on the

display. The bank (1–10) switches each time the TAP/BANK

UP switch is pressed.

If the switch is pressed and held for 2 seconds again, the

switching of the bank is canceled.

When “LOOPER” is selected on the Type Selector knob, this

switch becomes the REC/PLAY/OVERDUB switch.

)Page 10 “Using looper effects”

VOX DelayLab Owner’s manual

11. Channel switch A (STOP/CLEAR), B (REVERSE)

and C (TRIGGER)

Use these switches to select a program A, B or C. The LED of

the selected channel lights up and is shown on the display.

Also, you can use this switch to turn an effect on or off

(bypass).

When “LOOPER” is selected on the Type Selector knob,

these switches become the looper operating switches.

Rear panel

1 2 3 4 5

1. CONTROL PEDAL jack

Use this jack to connect optional expression pedals such

as the KORG XVP-10 or EXP-2.

2. INPUT jack (L/MONO, R)

Use this jack to connect musical instruments such as a guitar.

When connecting in mono, connect to the L/MONO input

jack.

When a cable is connected to the INPUT (L/MONO)

jack, the power of the DelayLab turns on. When using

batteries, disconnect the cable from the INPUT jack to

increase the life of your batteries.

3. OUTPUT jack (L/MONO, R)

Connect this jack to your guitar amp or mixer to this jack.

When connecting in mono, connect to the L/MONO output

jack.

Do not connect headphones to the OUTPUT jack. The

headphones may be damaged.

TIP: Some effects will produce the best results when

connected in stereo.

TIP: Connect guitars, amplifiers or mixers to the SEND/

RETURN jacks according to your preferences. If

necessary, enable the KILL DRY function (Page 14).

4. DC 9V jack

Use this jack to connect the optional AC adapter here.

Using other AC adapters may result in a malfunction.

Connect the AC adapter to the main unit first before

connecting it to an electric outlet.

5. Cable hook

Wrap the AC adapter cable around this hook to prevent the

AC adapter from being accidentally disconnected.

Getting started

Installing the batteries (changing the

batteries)

Turn off the power before replacing the batteries.

Depleted batteries should be immediately removed

from the DelayLab. Leaving depleted batteries in

the battery compartment may cause malfunctions

(the batteries may leak). You should also remove the

batteries if you don’t expect to use the DelayLab for an

extended period of time.

Don’t mix partially-used batteries with new batteries,

and don’t mix batteries of differing types.

1. Detach the battery cover from the rear panel.

2. Insert six AA batteries, being sure to observe the correct

polarity (+/- orientation). Use alkaline or nickel-metal

hydride batteries.

3. Reattach the battery cover.

The included batteries are provided so that you can

verify that the unit is functioning correctly; their

lifespan may be shorter than normal.

Low-battery display

“Lo” appears on the display when the battery charge is low.

Settings that have not been saved will be lost if the the

batteries are low. Therefore, be sure to save the settings

if necessary. (Page 9 “Saving edited effects”)

Set the battery type so that the low-battery display will

function correctly. (Page 14 “Setting the battery type”)

Connecting

Let’s connect your guitar and amp to the DelayLab, and turn

on the power.

You must turn off the power before connecting anything.

VOX DelayLab Owner’s manual

Example of Mono connection

Example of Mono input/Stereo output connection

Example of Stereo connection Example of Send/Return connection

To an electrical outlet

AC adapter (sold separately)

Guitar Guitar amp

Pedal

DelayLab

Toanelectricaloutlet

AC adapter (sold separately)

Guitar Guitar amp

Pedal

Toanelectricaloutlet

AC adapter (sold separately)

Guitar Guitar amp

Pedal

Effector

Toanelectricaloutlet

AC adapter (sold separately)

Guitar Guitar amp

Send Return

DelayLab

Pedal

DelayLab DelayLab

Auto Power-Off function

The DelayLab has an Auto Power-Off function that

automatically turns off the power when four hours have

elapsed since the most recent user input.

If the auto power-off function is activated, power will not be

restored even if a switch or pedal is used. Reinsert the cable

into the INPUT (L/MONO) jack to turn on the power.

Even if an there hasn’t been any user input, the Auto

Power-Off function will not engage if there is audio

input present at the input jack.

Batteries are consumed even if the auto power-off

function is activated. To avoid consumption of the

batteries, disconnect the cable from the INPUT (L/

MONO) jack and turn off the power.

The Auto Power-Off function is enabled as the factory

default.

TIP: The setting to enable or disable the auto power-off

function is saved even when the power is turned off.

Enabling the auto power-off function

Press and hold the CATEGORY button and TAP/BANK UP

switch and connect a cable to the INPUT (L/MONO) jack.

Disabling the auto power-off function

Press and hold the FINE button and TAP/BANK UP switch

and connect a cable to the INPUT (L/MONO) jack.

Operating procedure

Using delay effects

1. Select the effect type with the Type Selector knob.

2. Select the category with the CATEGORY button.

3. If necessary, adjust the Edit knobs to reach your

preferred sound.

Saving edited effects

You can save (write) your preferred sounds.

If you switch to a different program or turn off the

power before saving, the changes you’ve made will be

discarded, and the settings will revert to their original

state.

1. Press the WRITE button. The save destination of the

program blinks on the display.

2. Select the save destination bank with the TAP/BANK UP

switch and select the save destination with the Channel

switches A–C.

3. Press the WRITE button again to start the save function.

After the save function is complete and “CP” appears

on the display, the program number appears. To cancel,

press the CANCEL button.

VOX DelayLab Owner’s manual

Do not disconnect the cable from the INPUT (L/

MONO) jack while saving an effect.

Using looper effects

This unit is equipped with three looper types which include

standard, vintage and custom. A delay effect can be applied

and recorded using each input sound.

If the Looper is selected, the TAP/BANK UP switch and

channel switch functions are switched off and the program

cannot be recalled with a Channel switch.

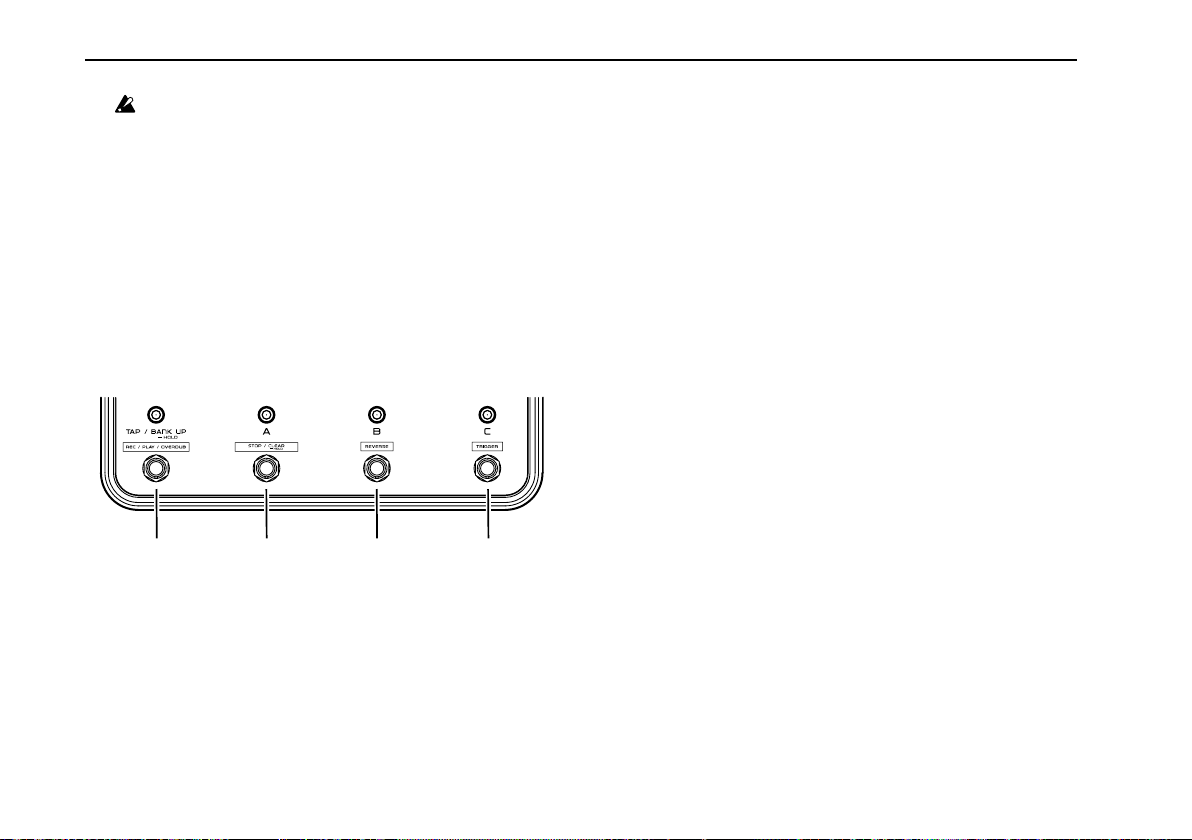

Channel switch function

a cb d

a. REC/PLAY/OVERDUB

Use to playback the looper recording and start overdubbing.

b. LOOP STOP/CLEAR

Use this function to stop or clear playback of a loop phrase.

c. REVERSE

Use this function to reverse playback of a loop phrase.

d. TRIGGER

Use this function to reset playback of a loop phrase to the

beginning of the recording.

Setting procedure

1. Select “LOOPER” on the Type Selector knob.

2. Press the CATEGORY button and select the looper type.

Green: Standard (digital delay)

Orange: Vintage (analog delay)

Red: Custom (space delay)

3. Adjust the tone quality and volume with the TIME knob,

FEEDBACK knob, TONE/SPEED knob or MIX knob.

4. To save an edited tone quality, press the WRITE button. If

the WRITE button is pressed while the display is blinking,

the save function will start. “CP” appears when the save

function is complete. To cancel, press the CANCEL button.

5. Adjust the playback volume of the loop phrase with the

INTENSITY knob.

TIP: If Custom is selected, the loop phrase sound

decreases each time overdubbing is performed.

TIP: You can assign the knob settings with the pedal.

Operating procedure

1. If the REC/PLAY/OVERDUB switch is pressed, recording

starts and the LED lights up red.

Autres manuels pour DelayLab

Table des matières

Autres manuels Vox Pédale musicale

Vox

Vox Valveronix ToneLab LE Manuel utilisateur

Vox

Vox JamVOX Manuel utilisateur

Vox

Vox ICE 9 Manuel utilisateur

Vox

Vox Tonelab ST Manuel utilisateur

Vox

Vox StompLab IIB Manuel utilisateur

Vox

Vox Dynamic Looper Manuel utilisateur

Vox

Vox Soundbox mini Manuel utilisateur

Vox

Vox Dual Wah Pedal Manuel utilisateur

Vox

Vox Tonelab Mode d’emploi

Vox

Vox Tonelab EX Manuel utilisateur

Vox

Vox Lil Looper Manuel utilisateur

Vox

Vox DelayLab Manuel utilisateur

Vox

Vox VC-12SV Manuel utilisateur

Vox

Vox Cooltron VibraVOX Manuel utilisateur

Vox

Vox Tonelab ST Manuel utilisateur

Vox

Vox Satchurator Manuel utilisateur

Vox

Vox StompLab IB Manuel utilisateur

Vox

Vox VC-4 Manuel utilisateur

Vox

Vox Tonelab ST Manuel utilisateur

Vox

Vox Cooltron Manuel utilisateur

Vox

Vox V847 Manuel utilisateur

Vox

Vox Tonelab LE Manuel utilisateur

Vox

Vox Pedal Manuel utilisateur

Vox

Vox Treble Booster Manuel utilisateur

Manuels Pédale musicale populaires d'autres marques

Behringer

Behringer ULTRA WAH UW300 Manuel utilisateur

Whirlwind

Whirlwind oc-bass Manuel utilisateur

Strymon

Strymon Lex-rotary Manuel utilisateur

Behringer

Behringer PB600 Manuel utilisateur

Lexicon

Lexicon MX200 Manuel utilisateur

Dunlop

Dunlop Hendrix 68 Shrine Octavio Fuzz Series Manuel utilisateur

Matthews Effects

Matthews Effects Whaler V2 Manuel utilisateur

Grid 1

Grid 1 Pedal Jeanie Manuel utilisateur

Amptweaker

Amptweaker tightboost Manuel utilisateur

Ibanez

Ibanez TS-808 Tube Screamer Overdrive Pro Manuel utilisateur

PuzzleSounds

PuzzleSounds DR. Q ENVELOPE FILTER Manuel utilisateur

BYOC

BYOC Analog Chorus Manuel

Dimavery

Dimavery EPVP-50 Manuel utilisateur

Tefi Vintage Lab

Tefi Vintage Lab GEGÈ Manuel utilisateur

Pro-MIDI

Pro-MIDI G25 Manuel utilisateur

DW 7000 Manuel utilisateur

FAMC

FAMC Liquid-Foot Jr. Series Manuel utilisateur

Dimavery

Dimavery EPOD-50 Overdrive Manuel utilisateur
