VOX electronics VF 3710 Manuel utilisateur

GBR

MAK

SVN

SRB

BOS

VF 3710

OPERATING INSTRUCTIONS FREEZER

UPUTSTVO ZA UPOTREBU FRIŽIDER

UPUTE ZA UPORABU ZAMRZIVAČ

NAVODILA ZA UPORABO ZAMRZOVALNA OMARA

УПАTСТВА ЗА РАКУВАЊЕ ЛАДИЛНИК

MANUAL DO USUÁRIO ZAMRZIVAČ

HRV

EN - 2 -

Index

BEFORE USING YOUR FREEZER.....................................................3

General warnings ........................................................................................3

Old and out-of-order fridges or freezer........................................................6

Safety warnings...........................................................................................6

Installing and operating your freezer ...........................................................7

Before using your freezer ............................................................................8

Information on No-Frost Technology ...........................................................8

USAGE INFORMATION.......................................................................9

Display and control panel ............................................................................9

Operating your freezer ................................................................................9

Temperature adjustment and activating ..............................................................9

The initial temperature value for Freezer Indicator is -18°C.................................9

Super freeze mode..............................................................................................10

Economy mode ...................................................................................................10

Screen saver mode .............................................................................................10

Function of child lock...........................................................................................11

Warnings about temperature adjustments.................................................. 11

Accessories ................................................................................................12

Making Ice Cubes................................................................................................12

Ice tray.................................................................................................................12

PLACING THE FOOD.........................................................................12

CLEANING AND MAINTENANCE .....................................................16

Defrosting ...................................................................................................16

Replacing LED lighting ...............................................................................16

TRANSPORTATION AND CHANGING OF INSTALLATION POSITION

Repositioning the door ...............................................................................17

BEFORE CALLING SERVICE............................................................17

Tips for saving energy ................................................................................19

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS ....20

EN FIRE Warning; Risk of re / ammable materials

EN - 3 -

BEFORE USING YOUR FREEZER

General warnings

WARNING: Keep ventilation openings, in the appliance

enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means

to accelerate the defrosting process, other than those

recommended by the manufacturer.

WARNING: Do not use electrical appliances inside the food

storage compartments of the appliance, unless they are of the

type recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: When positioning the appliance, ensure the

supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or

portable power supplies at the rear of the appliance.

WARNING: In order to avoid any hazards resulting from the

instability of the appliance, it must be xed in accordance with

the following instructions:

If your appliance uses R600a as a refrigerant (this information

will be provided on the label of the cooler) you should take care

during transportation and installation to prevent the cooler

elements from being damaged. R600a is an environmentally

friendly and natural gas, but it is explosive. In the event of a leak

due to damage of the cooler elements, move your fridge away

from open ames or heat sources and ventilate the room where

the appliance is located for a few minutes.

• While carrying and positioning the fridge, do not damage the

cooler gas circuit.

• Do not store explosive substances such as aerosol cans with

a ammable propellant in this appliance.

EN - 4 -

• This appliance is intended to be used in household and

domestic applications such as:

- staff kitchen areas in shops, ofces and other working

environments.

- farm houses and by clients in hotels, motels and other

residential type environments.

- bed and breakfast type environments;

- catering and similar non-retail applications.

• If the socket does not match the refrigerator plug, it must be

replaced by the manufacturer, a service agent or similarly

qualied persons in order to avoid a hazard.

• A specially grounded plug has been connected to the power

cable of your refrigerator. This plug should be used with

a specially grounded socket of 16 amperes. If there is no

such socket in your house, please have one installed by an

authorised electrician.

• This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if

they have been given supervision or instruction concerning

use of the appliance in a safe way and understand the hazards

involved. Children shall not play with the appliance. Cleaning

and user maintenance shall not be made by children without

supervision.

• Children aged from 3 to 8 years are allowed to load and

unload refrigerating appliances. Children are not expected

to perform cleaning or user maintenance of the appliance,

very young children (0-3 years old) are not expected to use

appliances, young children (3-8 years old) are not expected

to use appliances safely unless continuous supervision

is given, older children (8-14 years old) and vulnerable

people can use appliances safely after they have been

given appropriate supervision or instruction concerning use

EN - 5 -

of the appliance. Very vulnerable people are not expected

to use appliances safely unless continuous supervision is

given.

• If the supply cord is damaged, it must be replaced by the

manufacturer, an authorised service agent or similar qualied

persons, in order to avoid a hazard.

• This appliance is not intended for use at altitudes exceeding

2000 m.

To avoid contamination of food, please respect the

following instructions:

• Opening the door for long periods can cause a signicant

increase of the temperature in the compartments of the

appliance.

• Clean regularly surfaces that can come in contact with food

and accessible drainage systems.

• Store raw meat and sh in suitable containers in the

refrigerator, so that it is not in contact with or drip onto other

food.

• Two-star frozen-food compartments are suitable for storing

pre-frozen food, storing or making ice cream and making ice

cubes.

• One-, two- and three-star compartments are not suitable for

the freezing of fresh food.

• If the refrigerating appliance is left empty for long periods,

switch off, defrost, clean, dry, and leave the door open to

prevent mould developing within the appliance.

EN - 6 -

Old and out-of-order fridges or freezer

• If your old fridge has a lock, break or remove the lock before discarding it,

because children may get trapped inside it and may cause an accident.

• Old fridges and freezers may contain isolation material and refrigerant

with CFC or HFC. Therefore, take care not to harm environment when

you are discarding your old fridges.

Please ask your municipal authority about the disposal of the WEEE

reuse, recycle and recovery purposes.

Notes:

• •Please read the instruction manual carefully before installing and using your appliance.

We are not responsible for the damage occurred due to misuse.

• •Follow all instructions on your appliance and instruction manual, and keep this manual

in a safe place to resolve the problems that may occur in the future.

• •This appliance is produced to be used in homes and it can only be used in domestic

environments and for the specied purposes. It is not suitable for commercial or

common use. Such use will cause the guarantee of the appliance to be cancelled and

our company will not be responsible for losses incurred.

• •This appliance is produced to be used in houses and it is only suitable for cooling

/ storing food. It is not suitable for commercial or common use and/or for storing

substances except for food. Our company is not responsible for losses to be incurred in

the contrary case.

Safety warnings

• Do not connect your to the mains electricity supply using an extension

lead.

• Do not plug in damaged, torn or old plugs.

• Do not pull, bend or damage the cord.

• Do not use plug adapter.

•

• This appliance is designed for use by adults, do not allow children to play

with the appliance or let them hang off the door.

• Never touch the power cord/plug with wet hands as this could cause a

short circuit or electric shock.

• Do not place glass bottles or beverage cans in the ice-making

compartment as they can burst as the contents freeze.

• Do not place explosive or ammable material in your freezer. Place drinks with high

alcohol content vertically in the freezer and make sure that their tops are tightly closed.

• When removing ice from the ice-making compartment, do not touch it. Ice may cause

frost burns and/or cuts.

EN - 7 -

• Do not touch frozen goods with wet hands. Do not eat ice-cream or ice

cubes immediately after you have taken them out of the ice-making

compartment.

• Do not re-freeze frozen goods after they have melted. This may cause

health issues such as food poisoning.

• Do not cover the body or top of freezer with lace. This affects the performance

of your freezer.

• Secure any accessories in the freezer during transportation to prevent

damage to the accessories.

• When the door of the freezer is closed, a vacuum seal will form. Wait for about 1 minute

before reopening it.

• This application is optional for easy opening of the

door. With this application, a little condensation may

occur around this area and you may remove it.

Installing and operating your freezer

Before starting to use your freezer, you should pay attention to the following points:

• The operating voltage for your freezer is 220-240 V at 50Hz.

• We do not accept responsibility for any damages that occur due to ungrounded usage.

• Place your freezer where it will not be exposed to direct sunlight.

• Your appliance should be at least 50 cm away from stoves, gas ovens and heater cores,

and at least 5 cm away from electrical ovens.

• Your freezer should never be used outdoors or exposed to rain.

• When your freezer is placed next to a deep freezer, there should be at least

2 cm between them to prevent humidity forming on the outer surface.

• Do not place heavy items on the appliance.

• Do not place anything on your freezer, and install your freezer in a suitable

place so that at least 15 cm of free space is available above it.

• Use the adjustable front legs to make sure your appliance is level and stable. You can

adjust the legs by turning them in either direction. This should be done before placing

food in the freezer.

• Before using your freezer, wipe all parts with a solution of warm water and

a teaspoon of sodium bicarbonate, then rinse with clean water and dry.

Place all parts in the freezer after cleaning.

• Install the plastic distance guide (the part with black vanes at the rear)

by turning it 90° (as shown in the gure) to prevent the condenser from

touching the wall.

• The freezer should be placed against a wall with a free space not

exceeding 75 mm.

EN - 8 -

Before using your freezer

• When using your freezer for the rst time, or after transportation, keep it

in an upright position for at least 3 hours before plugging into the mains.

This allows efcient operation and prevents damage to the compressor.

• Your freezer may have a smell when it is operated for the rst time. This

is normal and the smell will fade away when your freezer starts to cool.

Information on No-Frost Technology

No-frost freezers differ from other static freezers in their operating

principle.

In normal freezers, the humidity entering the freezer due to opening the

door and the humidity inherent in the food causes freezing in the freezer

compartment. To defrost the frost and ice in the freezer compartment, you

are periodically required to turn off the freezer, place the food that needs

to be kept frozen in a separately cooled container and remove the ice

gathered in the freezer compartment.

The situation is completely different in no-frost freezers. Dry and cold air

is blown into the freezer compartment homogeneously and evenly from

several points via a blower fan. Cold air dispersed homogeneously and

evenly between the shelves cools all of your food equally and uniformly,

thus preventing humidity and freezing.

Therefore your no-frost freezer allows you ease of use, in addition to its

huge capacity and stylish appearance.

EN - 9 -

Display and control panel

USAGE INFORMATION

DEMO

1.Enables the setting of freezer to be

modied and super freeze mode to be

activated, if desired. The Freezer maybe

set to -16, -17, -18, -19, -20, -21, -22, -23,

-24 °C.

2.Enables the modes (economy, SF…) to

be activated if desired.

3.Freezer set value screen.

4.Super freezing indicator.

5.Super freeze mode symbol.

6.Child-lock symbol.

7.Economy mode symbol.

8.Alarm symbol.

Recommended Temperature Values for Freezer

When would it be adjusted? Inner Temperature

For minimum freezing capacity -16oC, -17oC

In normal usage -18oC, -19oC, -20oC, -21oC

For maximum freezing capacity. -22oC, -23oC, -24oC

Operating your freezer

Temperature adjustment and activating

The initial temperature value for Freezer Indicator is -18°C.

• Press the mode button once.

• When you press this button, the set value for freezer indicator

starts to ash.

• The value for freezer changes to a lower temperature when you

press this button with the indicator is ashing.

(-16°C, -17°C, -18°C, -19°C, -20°C, -21°C, -22°C, -23°C, -24°C).

• If you wait for 1 second without pressing any buttons after reaching the desired set

value, the set value is activated and your freezer operates at that value.

• If you continue to press the button after reaching -24°C , the temperature will restart

from -16°C.

EN - 10 -

Super freeze mode

How would it be used?

• Press the Freezer Set Button until SF is shown on the screen.

The buzzer will sound twice and the mode will be set.

• The Freezer temperature segment will show "SF".

While SF mode is selected

• The temperature of the Freezer and Super Freeze mode may be

adjusted. In this case, Super Freeze Mode continues.

• Economy and Holiday mode cannot be selected.

• Super Freeze mode can be cancelled in the same way that it was selected.

Economy mode

How would it be used?

• Push the “Mode button” until a circle appears around economy

symbol.

• If no button is pressed for 1 second, the mode will be set. The

circle will blink 3 times and the buzzer will sound twice.

• The freezer temperature segment will show "E".

• The circle of the Economy symbol and E will illuminate until the

mode nishes.

During this mode:

• The freezer may be adjusted. When Economy mode is cancelled, the selected setting

values will remain.

• Super freeze mode can be selected. Economy mode is automatically cancelled and the

selected mode is activated.

• To cancel, press on mode button.

Screen saver mode

How to use?

• This mode will be activated when you press the mode button for

5 seconds.

• If no button is pressed within 5 seconds when the mode is active,

the lights of the control panel will go out.

• If you press any button when the lights of control panel are off,

the current settings will appear on the screen, and then you can

maket the adjustment you want. If you do not cancel the screen

saver mode or press any button within 5 seconds, the control

panel will go off again.

• To cancel screen saver mode, press the mode button for 5 seconds again.

• When screen saver mode is active, you can also activate child lock.

• If you do not press any button for 5 seconds after activating child lock, the lights of the

control panel will go off. Then, you can view the previous settings and that child lock is

active by pressing any button.You can cancel child lock as described in the instructions

for that mode.

Table des matières

Langues :

Autres manuels VOX electronics Congélateur

VOX electronics

VOX electronics VF-2550 Manuel utilisateur

VOX electronics

VOX electronics VF-1200 Manuel utilisateur

VOX electronics

VOX electronics GF201F Manuel utilisateur

VOX electronics

VOX electronics IVF 1450 Manuel utilisateur

VOX electronics

VOX electronics FD627IX Manuel utilisateur

VOX electronics

VOX electronics GF100 Manuel utilisateur

VOX electronics

VOX electronics GF201 Manuel utilisateur

VOX electronics

VOX electronics VF-1550 Manuel utilisateur

VOX electronics

VOX electronics VF 1200F Manuel utilisateur

VOX electronics

VOX electronics VF-3200 Manuel utilisateur

VOX electronics

VOX electronics VF2500F Manuel utilisateur

VOX electronics

VOX electronics VF-1510 Manuel utilisateur

VOX electronics

VOX electronics VF 1550F Manuel utilisateur

VOX electronics

VOX electronics VF-1210 Manuel utilisateur

VOX electronics

VOX electronics IVF1450F Manuel utilisateur

VOX electronics

VOX electronics VF-2500 Manuel utilisateur

VOX electronics

VOX electronics VF 2510 Manuel utilisateur

VOX electronics

VOX electronics VF 2550F Manuel utilisateur

VOX electronics

VOX electronics VF2510F Manuel utilisateur

VOX electronics

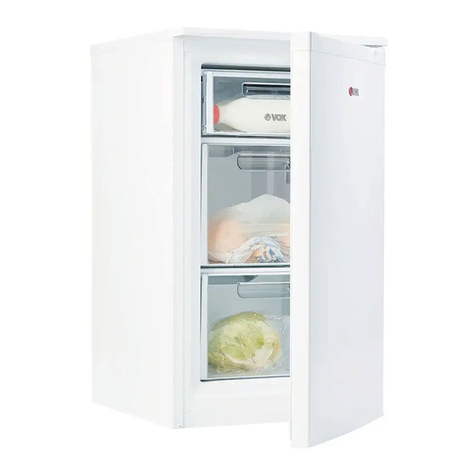

VOX electronics VF1210F Manuel utilisateur

Manuels Congélateur populaires d'autres marques

Siemens

Siemens GU..D SERIES Manuel utilisateur

Omcan

Omcan FR-CN-0155 Manuel utilisateur

Beko

Beko FNE290E24W Manuel utilisateur

Electrolux

Electrolux ARCTIS G 8 60 50-6I Manuel utilisateur

Electrolux

Electrolux EUF2042AOX Manuel utilisateur

Dometic

Dometic CoolFreeze CFX95DZ Manuel utilisateur

Electrolux

Electrolux EUF7000W1 Manuel utilisateur

Polar Electro

Polar Electro CT330 Manuel utilisateur

MPM

MPM MPM-145-SK Series Manuel utilisateur

SAF

SAF PRESTOTIG 200AC/DC Guide rapide

Zanussi

Zanussi ZFT11407WA Manuel utilisateur

AEG

AEG A63190GT Manuel utilisateur

AEG

AEG A81000TNW0 Manuel utilisateur

Matsui

Matsui MUC50S15E Manuel utilisateur

NEFF

NEFF G4344X8 Manuel utilisateur

Frigidaire

Frigidaire FV 1246 H Manuel utilisateur

Frigidaire

Frigidaire FFC13K1AW Manuel utilisateur

Electrolux

Electrolux EU 2400C Manuel utilisateur
