Vook VDT2304FD Manuel utilisateur

VOOK

VOOK premium DVR 1

DVR QUICK START GUIDE

VDT2304FD

VDT2308FD

VDT2316FD

4/8/16DVR Quick Start Guide

VOOK premium DVR 2

1. Install Hard Drive &DVD Writer

1.1 Install Hard Drive

Notice: 1. this series support eight SATA hard drives or support seven SATA hard drives

plus one DVD writer. Please use the hard drive the manufacturers recommend specially for

security and safe field.

2. Please calculate HDD capacity according to the recording setting. Please refer

to “Appendix B Calculate Recording Capacity”.

STEP1 Unscrew and Open the top cover

STEP2 Connect the power and data cables. Place the HDD onto the

bottom case as below.

Fig 1.1 Connect HDD

STEP3 Screw the HDD

Note: For the convenience to install, please connect the power and

data cables firstly, and then screw to fix.

1.2 Install DVD Writer

STEP1 Unscrew and Open the top cover, connect the power and data

cables. Place the DVD writer onto the bottom case as below.

Fig 1.2 Connect the DVD Writer

STEP2 Screw the DVD writer.

2. Connections

4/8/16DVR Quick Start Guide

VOOK premium DVR 3

2.1 Rear view for 4-ch DVR

Note: the USB port on rear panel can only connect to USB mouse.

Fig 2.1 Rear view for 4-ch DVR

1 Video out: Connect to monitor 2 Audio output, connect to the sound

box

Connect to high-definition display

device

4 CH Audio input

Video input channels from 1-4

Connect to HDD for backup (optional)

Loop out; for outputting 1-4ch

image independently

Connect to monitor as an AUX output

channel by channel. O

nly video

display, no menu show

9 MIC IN: talk 10 VGAoutput, connect to monitor

11 connect to USB mouse 12 Network port

13 Connect to external sensor1-4 14 4ch relay output. Connect to external

alarm

15 Grounding 16 Connect to speed dome

17 Connect to keyboard 18 Grounding

19 For cooling the device 20 POWER INPUT

21 Switch on/off

2.2 Rear view for 8-ch DVR

Fig 2.2 Rear view for 8-ch DVR

1 Video out: Connect to monitor 2 Audio output, connect to the sound box

3 Connect to high-definition display

device 4 8 CHAudio input

5 Video input channels from 1-8 6 Loop out; for outputting 1-8ch image

independently

4/8/16DVR Quick Start Guide

VOOK premium DVR 4

Connect to monitor as an AUX

output channel by channel. Only

video display, no menu show

MIC IN: talk

VGAoutput, connect to monitor

connect to USB mouse

11 Network port 12 Connect to HDD for backup (optional)

13 Connect to external sensor1-8 14 4ch relay output. Connect to external

alarm

Grounding

Connect to speed dome

17 Connect to keyboard 18 Grounding

19 For cooling the device 20 POWER INPUT

21 Switch on/off

2.3 Rear view for 16-ch DVR

Video out: Connect to monitor

Video input channels from 1-16

3 Loop out; for outputting 1-16ch

image independently 4 Connect to monitor as an AUX output

channel by channel. Only video display,

no menu show

16 CH Audio input

Audio output, connect to the sound box

MIC IN: talk

VGAoutput, connect to monitor

Connect to high-definition display

device

connect to USB mouse

Network port

Connect to HDD for backup (optional)

Connect to external sensor1-16

4ch relay output. Connect to external

alarm

15 Grounding 16 Connect to speed dome

Connect to keyboard

Grounding

For cooling the device

POWER INPUT

Switch on/off

3. Power on

STEP1 Step1: connect with the source power; switch on the power button

near the power port on the rear panel

STEP2 Step2: the device will be loaded, and the power indicator will

display blue

4/8/16DVR Quick Start Guide

VOOK premium DVR 5

STEP3 Step3: before start, a WIZZARD window will be pop-up and show

some information about time zone，time setup，network configuration, record

configuration and disk management. User can setup here and refer to the

concrete setup steps from the corresponding chapters. If users don’t want to

setup Wizard, please click Exit button to exit.

After the device power on, if there is no menu or only has live image display,

user can long press ESC button to switch.

Notice: this serial device can only display menu on VGA monitor or BNC monitor at one

time, if there is live image display without menu display, please check up whether other

device has menu display firstly, or long press ESC key to wait for login dialog box to

appear. Long press ESC key can switch the output between BNC and VGA.

4. Basic setup

4.1 Accessing the DVR menus

4.1.1 Login

Press the MENU button which will bring the LOGIN dialogue box and enter the

user name: admin and password: 123456

Fig 4.1 Login

4.1.2 Main menu setup

Click right mouse, or press ENTER button on the front panel can enter into the

main menu. Menu-System refer to Fig 4.2

Fig 4-2 Main menu setup

Basic configuration: user can set video system, menu language, audio, time

and authorization check.

Live configuration：User can set name/time display, picture color and hide

cameras.

Record configuration：User can set record quality, frame rate, resolution, time

stamp and recycle.

4/8/16DVR Quick Start Guide

VOOK premium DVR 6

Schedule configuration: users can set schedule for timer, motion detection,

and sensor alarm respectively.

Alarm configuration: users can set sensor type, alarm trigger and buzzer

alarm.

Network configuration: Users enable network function, and configure IP

address, DDNS, transmission video parameters here.

User configuration: Administrator can add, delete users, and change their

authorization

PTZ configuration: users can set protocol, baud rate, address, presets and

auto cruise track here.

Advanced configuration: users can reboot the device and import & export data

into or from mobile storage medium.

4.2 DVR recording modes

User need to install and format a HDD, and set all the recording parameters

before recording. There are four kinds of record modes.

4.2.1 Manual Recording

User can press REC button on the front panel after quitting system setup.

Press this button again to stop recording.

Or press REC button on remote controller, click again to stop.

Or click REC button on the tool bar with mouse, click again to stop.

4.2.2 Schedule Recording

Enter into main menu—schedule configuration (refer to Fig 4-3). Users can set

different schedule time for every day in one week. If user wants a special

schedule for one day can use Holiday function.

The column means the seven days of a week from Monday to Sunday, the row

means 24 hours of a day. Click the grid to do relevant setup. Blue means

checked area, gray means unchecked area.

Fig 4-3 Schedule record setup

4.2.3 Motion Detection Recording

4/8/16DVR Quick Start Guide

VOOK premium DVR 7

Motion detection recording: when there is a motion event detected, the camera

will be triggered to record and have an alarm out.

Enter into main menu-alarm configuration-motion configuration (refer to Fig

4-4), enable Detection first;

Fig 4-4 Motion detection interface

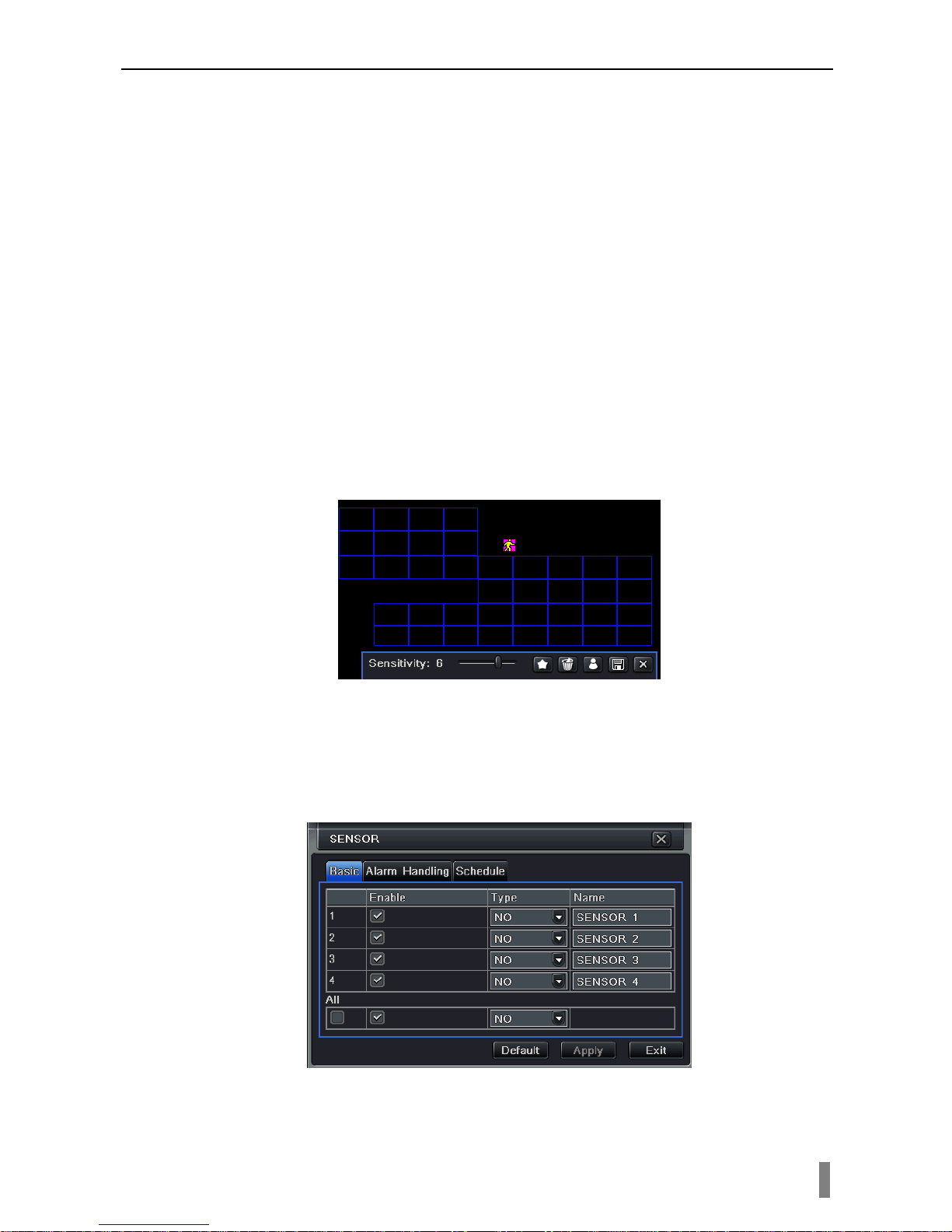

Enter Motion detection area (refer to Fig 4-5) to set Sensitivity and Detection

area.

Fig 4-5 motion detection area setup

4.2.4Alarm Recording

Enter into main menu-Alarm configuration-Sensor alarm (refer to Fig 4-6),

enable Detection first, setup the device type.

Fig 4-6 sensor alarm record

Enter into Trigger configuration, select alarm out and recording cameras and

linked PTZ; set Alarm out hold time and Buzzer hold time. Click OK to save

4/8/16DVR Quick Start Guide

VOOK premium DVR 8

settings.

4.3 Playback

This unit supports live record playback, time search and event search. It

displays full or 4 screens in playback.

4.3.1 Live playback

Click Play button to playback the record. Refer to Figure4-7. User can do

concrete operation by click the buttons on screen.

Fig 4-7 live playback

4.3.2 Time search

Enter into Search configuration, select Time search. If it recorded in a certain

day, the date will show highlight.

Select a date, press Search button, click the time grid to set the play start time

or input play record time manually. The selected time match the blue grid.

Click Play button. It will play from the time point where user set.

Click the relative buttons on the screen to do fast forward/rewind, pause, stop,

and change the screen mode and re-search.

Fig 4-8 time search

4.3.3 Event search

4/8/16DVR Quick Start Guide

VOOK premium DVR 9

Enter into Search configuration, select Event search (refer to Fig 4-9), and

choose a certain day in the event search interface.

Click Search button, the searched event information will displayed in the event

list box, user can select date, channel, tick off Motion, Sensor or All

accordingly.

Double click a video file to playback.

Fig 4-9 Event search

4.4 Back up

This unit supports backup by built-in SATA DVD Writer, with USB Flash and

USB HDD.

Install DVD Writer (refer to Chapter1.2), enter into Backup interface (refer to

Fig 3-10), set the start & end time, select channels, click Search button; the

searched data will be displayed in the data backup list box.

Press Backup button, it will begin to write video from HDD inside DVR to

backup device. Click Start button to start backup.

Fig 4-10 Backup setup

5. Remote Surveillance

4/8/16DVR Quick Start Guide

VOOK premium DVR 10

To making remote access, the DVR should be connecting to LAN or Internet.

There are three kind of method for remote accessing.

5.1 Using DHCP to get IP address automatically

Click the Menu button, enter into System—Network configuration (refer to Fig

5-1), enable DHCP in the both the DVR and the router.

Fig 5-1 Network configuration

Enter Video to set network video parameters like resolution, frame rate etc.

Open an IE browser on computer on the same LAN. Input the IP address of

the DVR in IE address blank and enter.

IE will download ActiveX automatically. Then a window pops up and asks for

user name and password.

Input name and password correctly (the default user name is admin and the

password is 123456), and enter. It will show the remote picture.

Note：If the ActiveX cannot be downloaded or installed, please refer to

Appendix A Q7 in the user manual.

5.2 Access DVR on WAN

Input IP address, Subnet, Gateway. If using DHCP, please enable DHCP in

both the DVR and router.

Enter Video to set network video parameters like resolution, frame rate etc.

Forward IP address and port number in Virtual Server setup of the router or

virtual server. Close firewall.

If users want to utilize dynamic domain name, need apply for a domain name

in a DNS server supported by the DVR or router. Then add to the DVR or

router.

Open IE browser, input IP address, or dynamic domain name and enter. If

HTTP port is not 80, add the port number after IP address or domain name.

IE will download ActiveX automatically. Then a window pops up and asks for

Autres manuels pour VDT2304FD

Ce manuel convient aux modèles suivants

Table des matières

Manuels DVR populaires d'autres marques

FLIR

FLIR M3100E Series Manuel utilisateur

VTRACKPRO

VTRACKPRO FPRO300 Manuel utilisateur

Swann

Swann NVR-7085 models Manuel utilisateur

XtendLan

XtendLan DVR-1670C Manuel utilisateur

urmet domus

urmet domus 1093/004AHD Manuel utilisateur

Holux

Holux M1 Manuel utilisateur

CMOS DOTCOM

CMOS DOTCOM ANX-1670 Manuel utilisateur

Whistler

Whistler D16VRS Manuel utilisateur

Defender Security

Defender Security 82-20235 Manuel utilisateur

MISUMI

MISUMI MP-WF100M Manuel utilisateur

Speco

Speco D8HU Manuel utilisateur

UST

UST DDR-E04AA Instructions d'utilisation

Consolidated

Consolidated Digital Video Recorder Manuel utilisateur

Mace

Mace DVR0404RW Guide de démarrage rapide

RCA

RCA RTD315W Manuel utilisateur

FSM

FSM Colibri Grande PRO Manuel utilisateur

Hauppauge

Hauppauge HD PVR 2 Manuel utilisateur

Identivision

Identivision ICR-PH161i PIONEER Manuel utilisateur
