Volvo 30756864 Manuel utilisateur

Instruction No

Version

Part. No.

30756865

1.2

30756864, 31373137

Electric engine heater, 230 V, 5

cyl. diesel

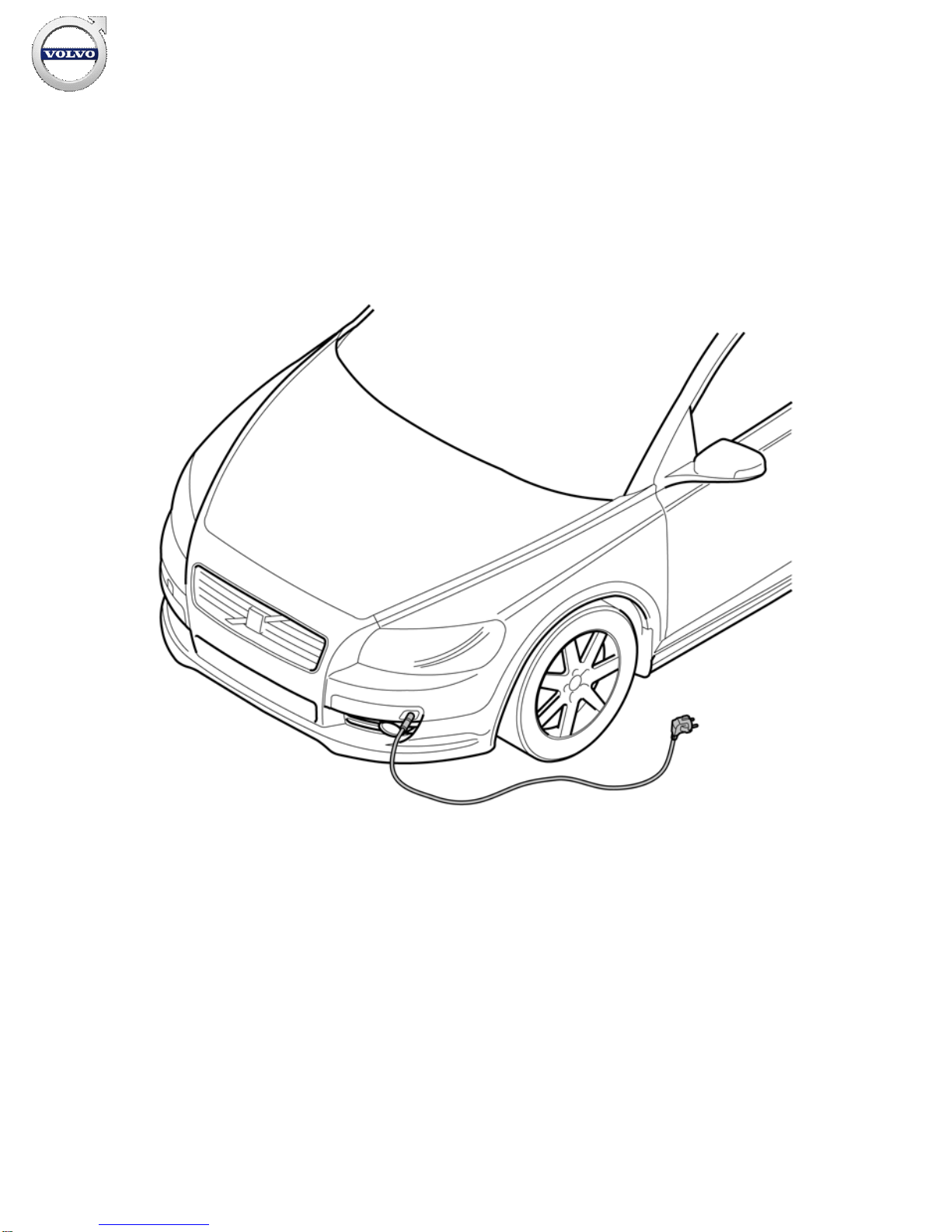

IMG-

247803

Instruction No

Version

Part. No.

30756865

1.2

30756864, 31373137

Electric engine heater, 230 V, 5

cyl. diesel

IMG-

247803

Installation instructions, accessories

Volvo Car Corporation Gothenburg, Sweden

Volvo Car Corporation

Electric engine heater, 230 V, 5

cyl. diesel

30756865

V1.2

Page 1 / 32

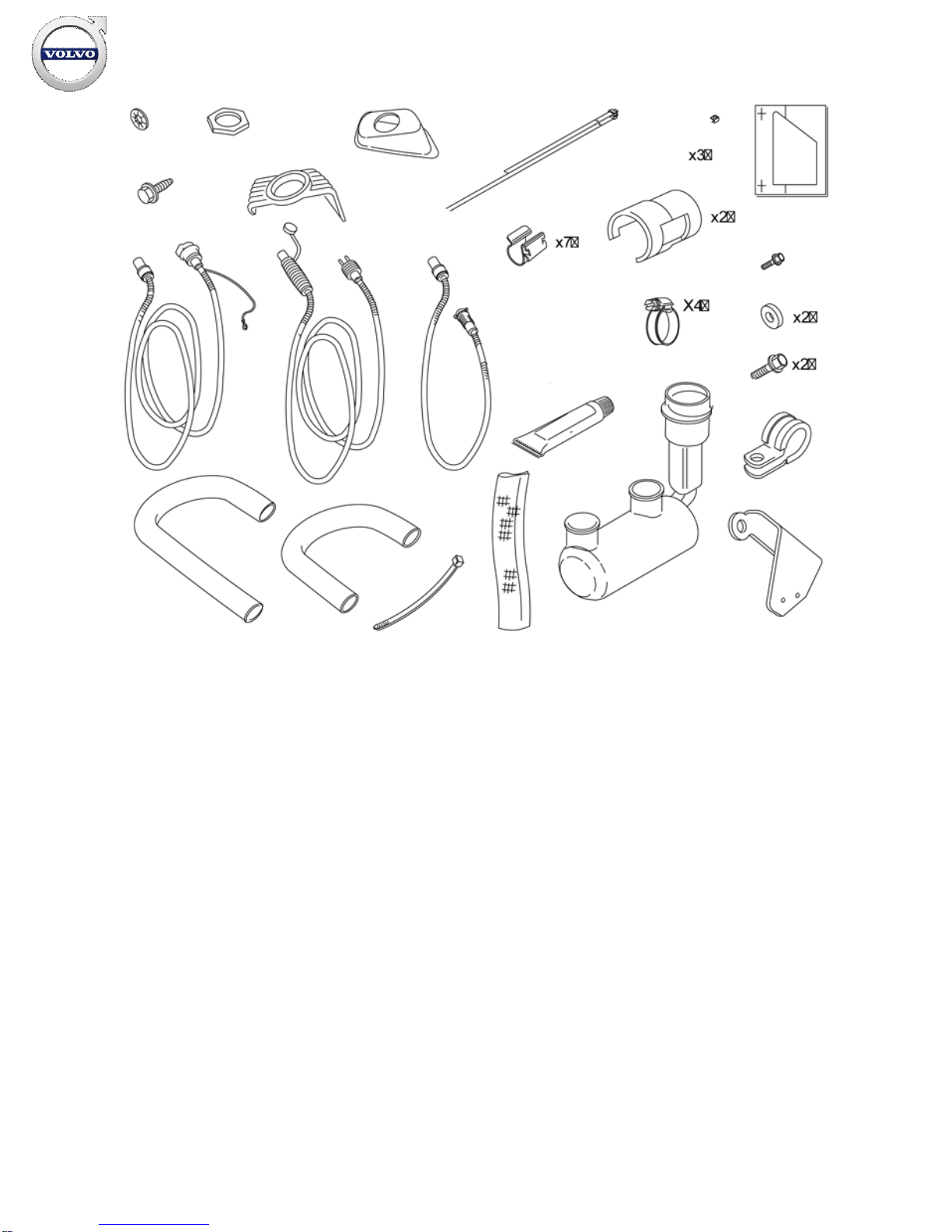

Equipment

A0000162

IMG-

239660

IMG-

239664

IMG-

239667

IMG-

332913

Installation instructions, accessories

Volvo Car Corporation Gothenburg, Sweden

Volvo Car Corporation

Electric engine heater, 230 V, 5

cyl. diesel

30756865

V1.2

Page 2 / 32

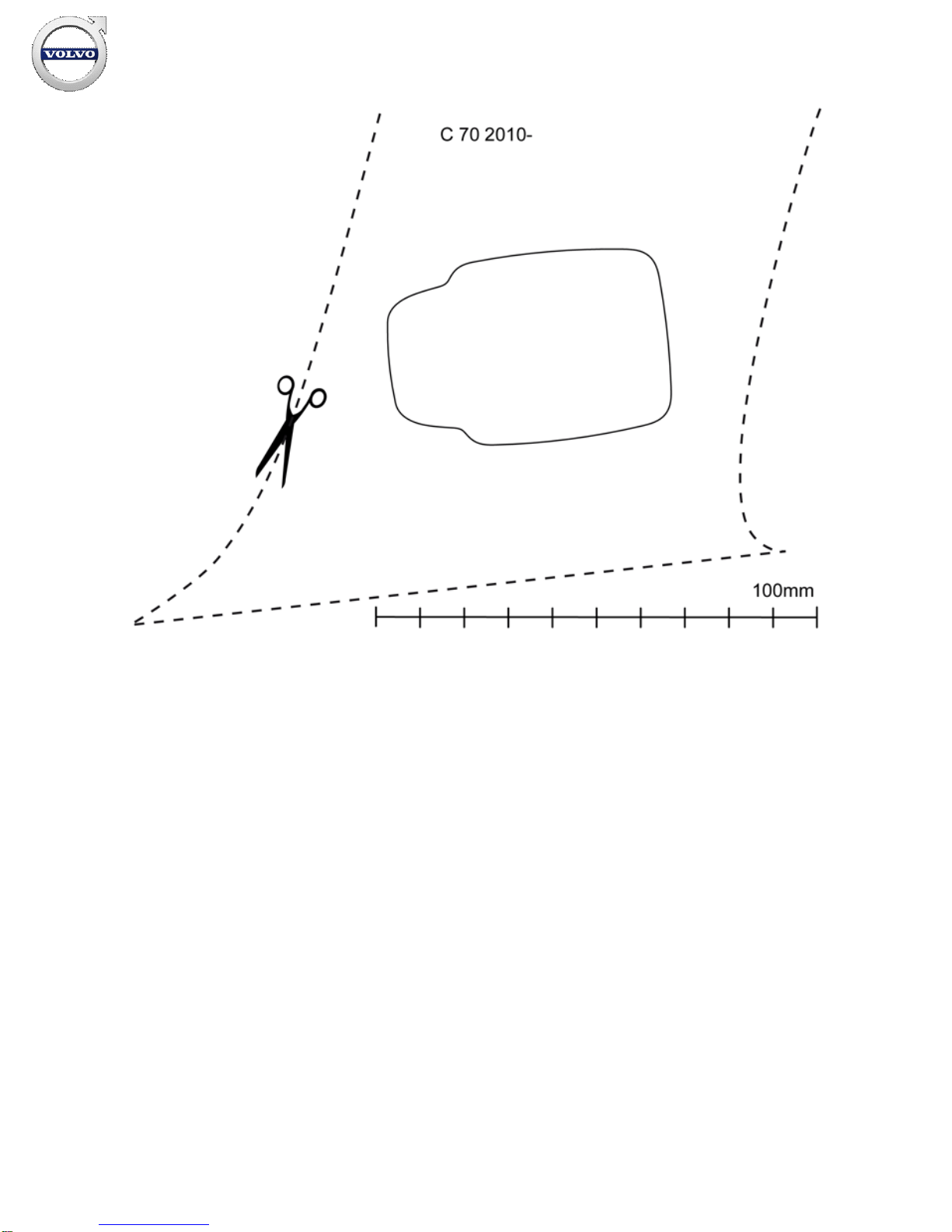

IMG-

333598

Installation instructions, accessories

Volvo Car Corporation Gothenburg, Sweden

Volvo Car Corporation

Electric engine heater, 230 V, 5

cyl. diesel

30756865

V1.2

Page 3 / 32

IMG-

364592

Installation instructions, accessories

Volvo Car Corporation Gothenburg, Sweden

Volvo Car Corporation

Electric engine heater, 230 V, 5

cyl. diesel

30756865

V1.2

Page 4 / 32

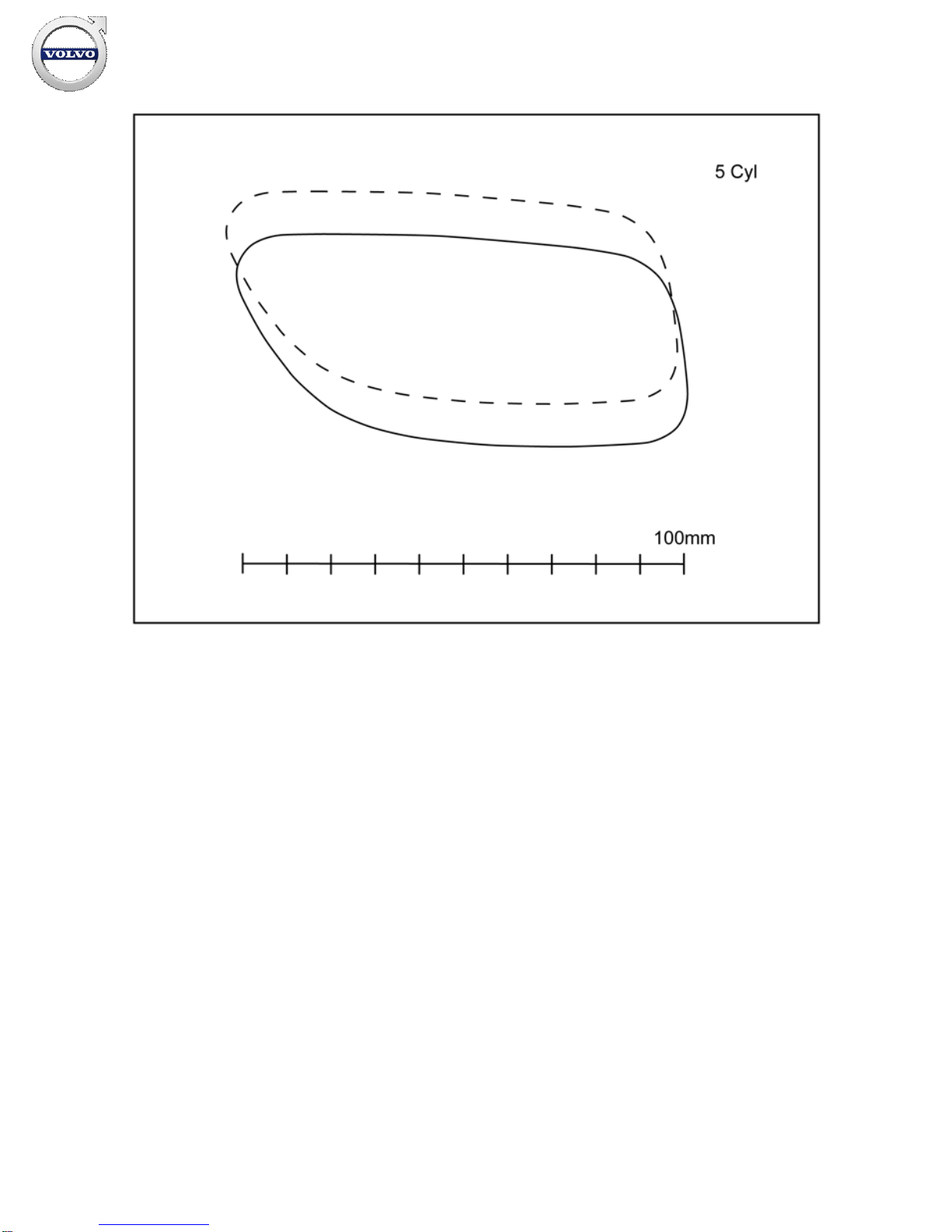

IMG-

265776

Installation instructions, accessories

Volvo Car Corporation Gothenburg, Sweden

Volvo Car Corporation

Electric engine heater, 230 V, 5

cyl. diesel

30756865

V1.2

Page 5 / 32

INTRODUCTION

Read through all of the instructions before starting installation.

Notifications and warning texts are for your safety and to

minimise the risk of something breaking during installation.

Ensure that all tools stated in the instructions are available

before starting installation.

Certain steps in the instructions are only presented in the form

of images. Explanatory text is also given for more complicated

steps.

In the event of any problems with the instructions or the

accessory, contact your local Volvo dealer.

IMG-

316263

Installation instructions, accessories

Volvo Car Corporation Gothenburg, Sweden

Volvo Car Corporation

Electric engine heater, 230 V, 5

cyl. diesel

30756865

V1.2

Page 6 / 32

J8000359

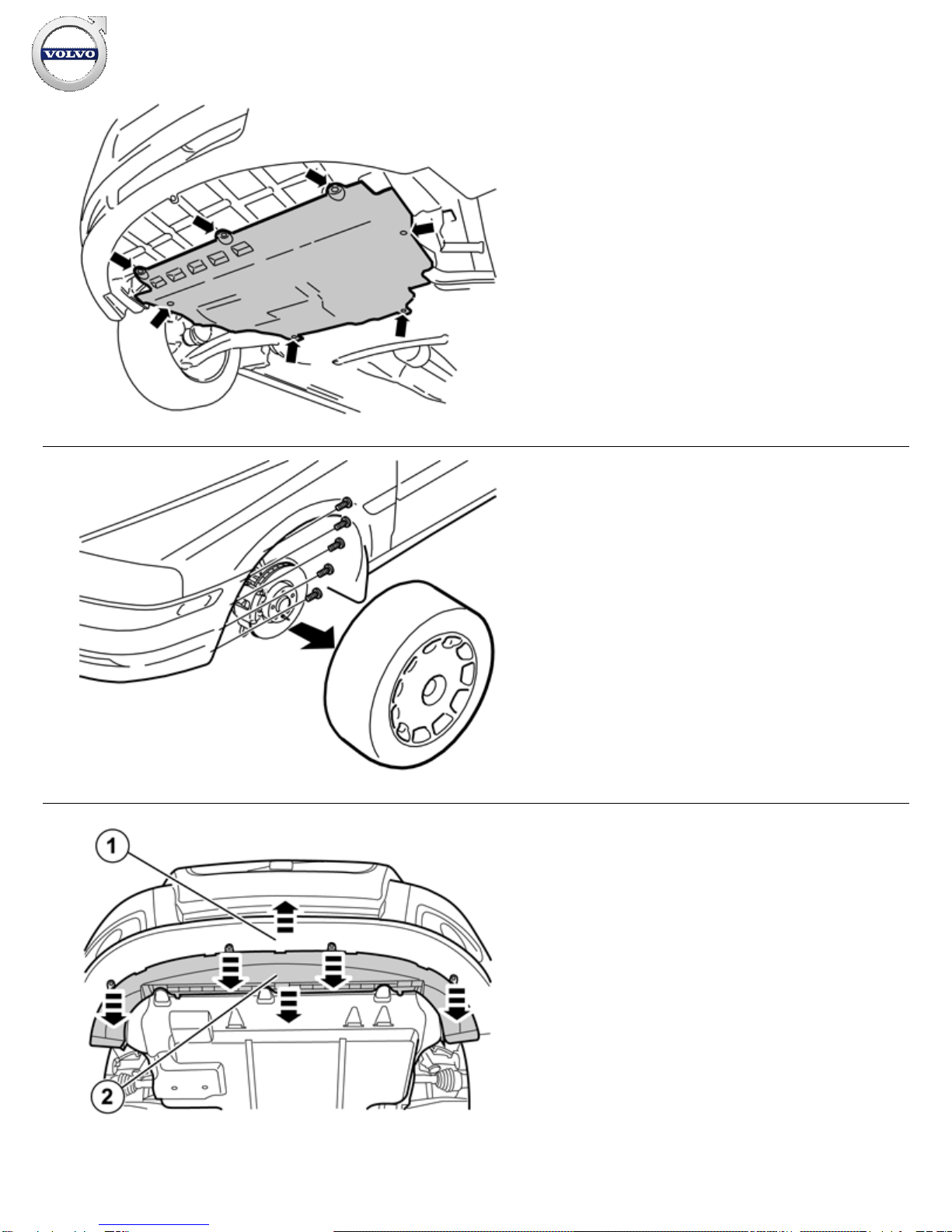

Applies to the S40/V50

Remove the seven screws from the engine splash guard.

J8601130

Remove the left front wheel.

Remove the five screws holding the bumper cover in the wing

liner on the left and right-hand sides.

IMG-

265763

Remove the four screws.

Installation instructions, accessories

Volvo Car Corporation Gothenburg, Sweden

Volvo Car Corporation

Electric engine heater, 230 V, 5

cyl. diesel

30756865

V1.2

Page 7 / 32

J8601087

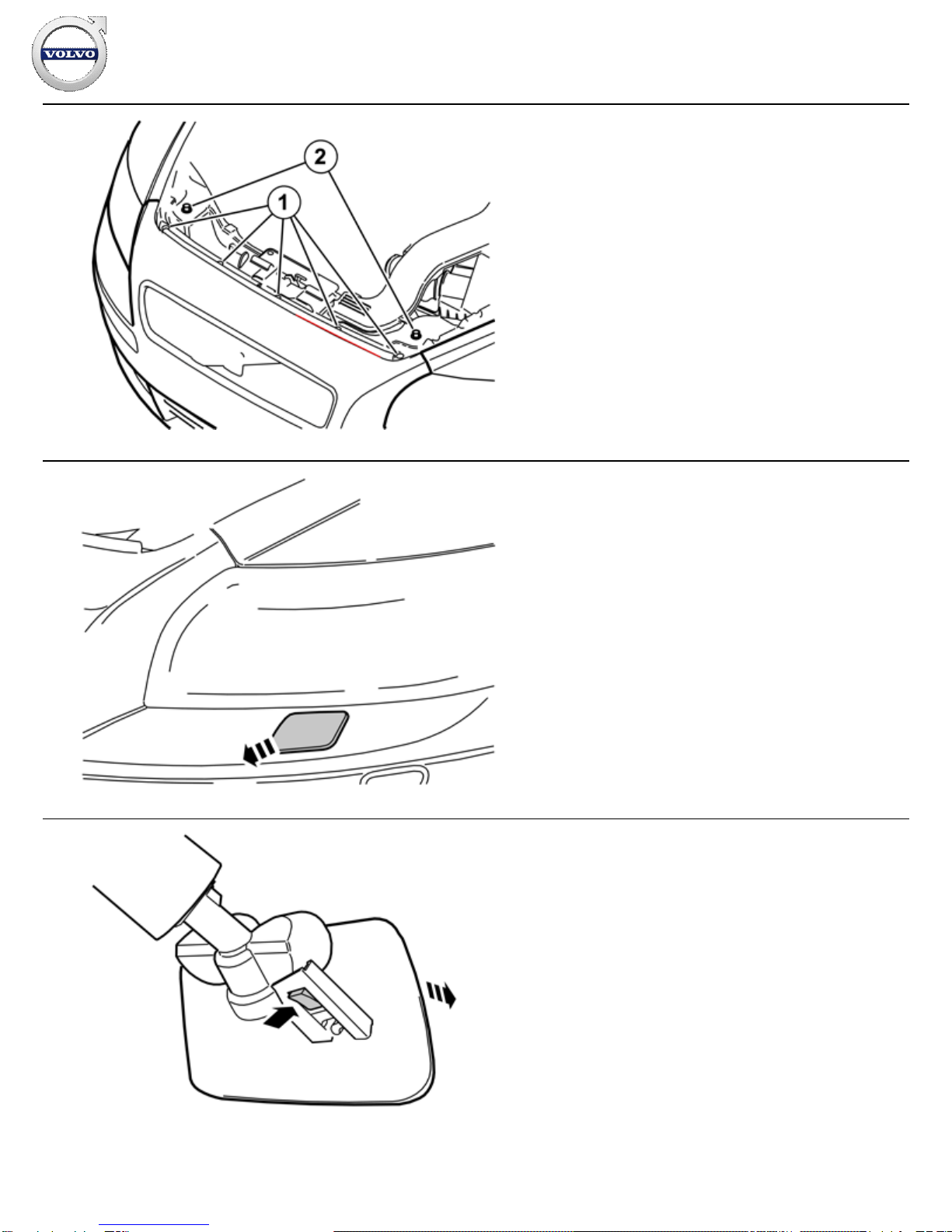

Push in the centre of the five clips (1). Remove the clips.

Remove the two screws (2).

J8601084

Remove the covers for the nozzles for the headlamp washers

on the right and left-hand sides. Carefully grip the cover. Pull the

cover out until the catch becomes accessible.

J8903376

Press the catch up. Remove the cover. Do not damage the

painted surfaces or the washer nozzles

Installation instructions, accessories

Volvo Car Corporation Gothenburg, Sweden

Volvo Car Corporation

Electric engine heater, 230 V, 5

cyl. diesel

30756865

V1.2

Page 8 / 32

J8601086

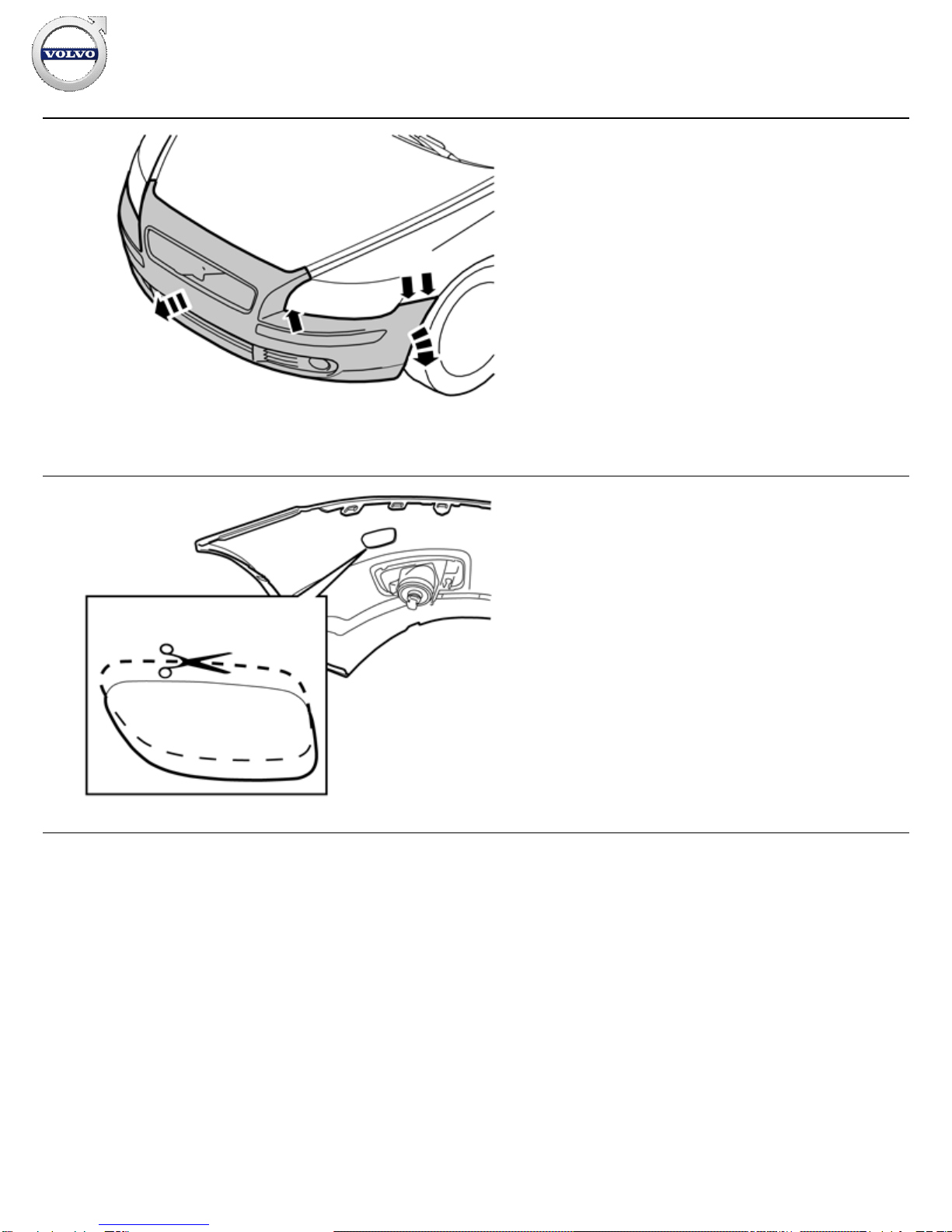

Detach the ends of the bumper shell on the left and right-hand

sides. Grasp the end of the bumper shell inside the fender liner.

Carefully pull the end of the bumper shell so that the two catches

on the inside release.

Remove the bumper cover and air baffle. Pull the bumper cover

and air baffle forwards until the remaining catches under the

lamps release.

Disconnect the connectors for the fog lamps and parking

assistance if applicable.

IMG-

265777

Cut out the template by cutting along the outer edges of the

dotted and solid line.

place the template with the dotted section on the existing marking

(perforation) on the bumper. Mark according to the new, slightly

recessed marking.

Cut off the upper dotted section of the template and finish the

new marking all the way around.

Installation instructions, accessories

Volvo Car Corporation Gothenburg, Sweden

Volvo Car Corporation

Electric engine heater, 230 V, 5

cyl. diesel

30756865

V1.2

Page 9 / 32

IMG-

265778

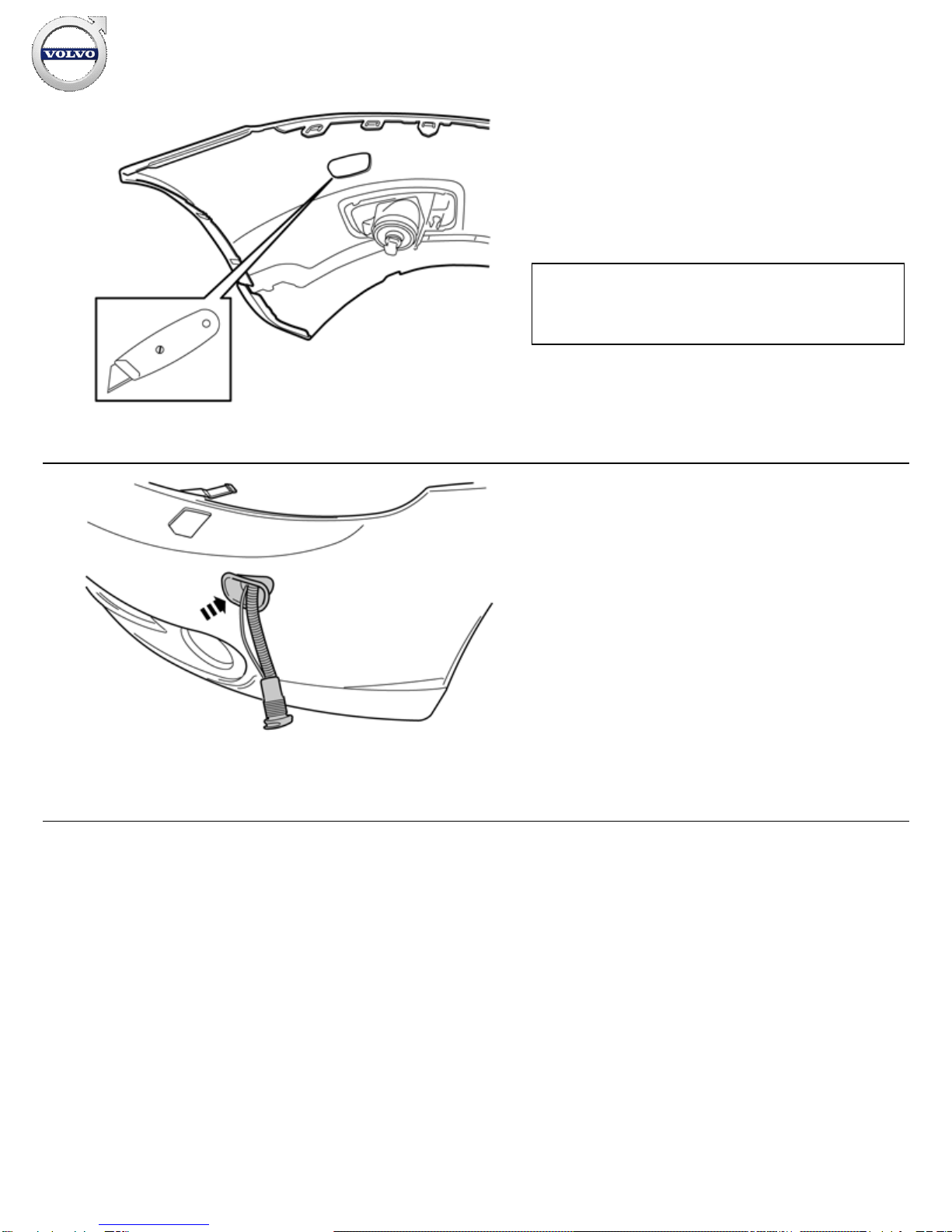

Using a sharp knife, first make a thin cut along the edges of the

new marking inside of the bumper cover. Then carefully cut out

the bumper cover hole.

Cut off the upper dotted section of the template and finish the

new marking all the way around.

Install the protective cover for the front engine block heater

socket from the kit. Check that it aligns. Adjust the hole using a

knife or file as necessary.

Smooth off the hole edges. Remove any swarf.

Warning!

Cut carefully. It is easy to slip with the knife and move outside

the markings.

IMG-

265779

Take the protective cover from the kit and press it into the hole

cut in the bumper cover.

Take the cable for the front engine block heater socket with

ground lead from the kit and thread them through the protective

cover.

Installation instructions, accessories

Volvo Car Corporation Gothenburg, Sweden

Volvo Car Corporation

Electric engine heater, 230 V, 5

cyl. diesel

30756865

V1.2

Page 10 / 32
