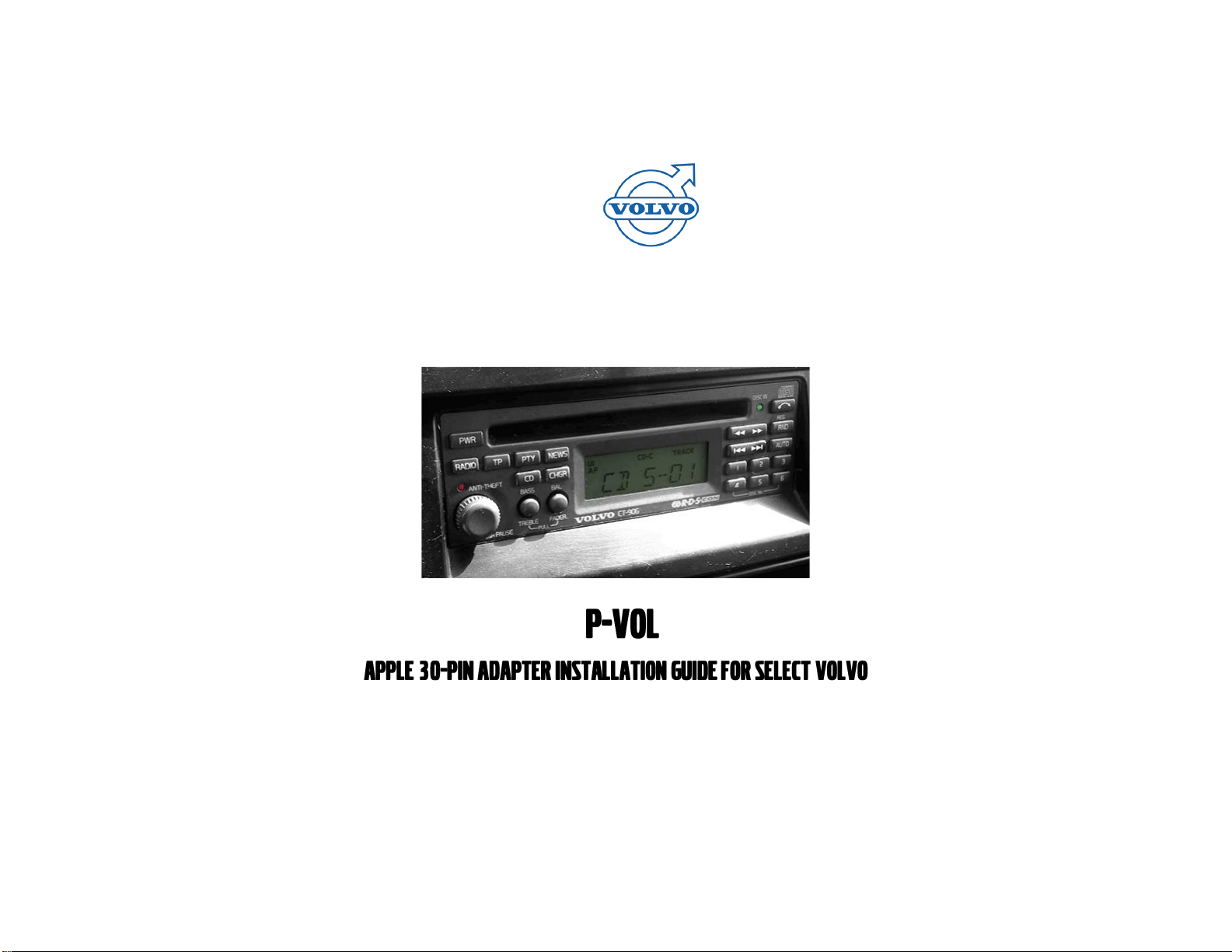

Volvo IP-VOL Manuel utilisateur

Courtesy of: DiscountCarStereo.com

Serving the internet community since 1995

Created March1, 2015

Revised: August 19, 2022

PRODUCT SAFETY & DISCLAIMER

READ ALL INSTRUCTIONS CAREFULLY BEFORE INSTALLING, FAILURE TO DO SO MAY CAUSE

PERSONAL INJURY OR DAMAGE TO PRODUCT AND/OR PROPERTY

•This installation guide is provided as a GENERAL installation guide, some vehicles vary and

may require additional steps. We do not accept responsibility for third party labor charges

or modifications. Exercise due-diligence when installing this product.

•We do not accept any responsibility for vehicle damage or personal injury resulting from

the installation of this product.

•Careless installation and operation can result in equipment damage.

Requirements:

Factory radio with “CD”, “CHG” button on faceplate

Introduction:

Many Volvo Owners with older SC, CT & CR changer controlling radios are having

a difficult time finding an easy an effective way of connecting and listening to

Apple iPod devices in their cars. Many are turned away, offered an FM Modulator

recommend replacing the radio, but if none of those options pique your interest,

we offer the iP-VOLV. The iP-VOL works in 1984-04 Volvo SC, CR and CT changer

controlling radios and the only requirement is disconnect the external CD

changer* (if present), but with the storage capacity of iPod devices, sacrificing

the CD changer should be an easy decision.

Installation:

Radio must be pulled from the dash to connect the adapter.

Although not critical, we recommend disconnecting the car battery. Keep in mind

that most Volvo radios are coded and will not operate without the code. Radio

code must be available for radio to operate upon reconnection.

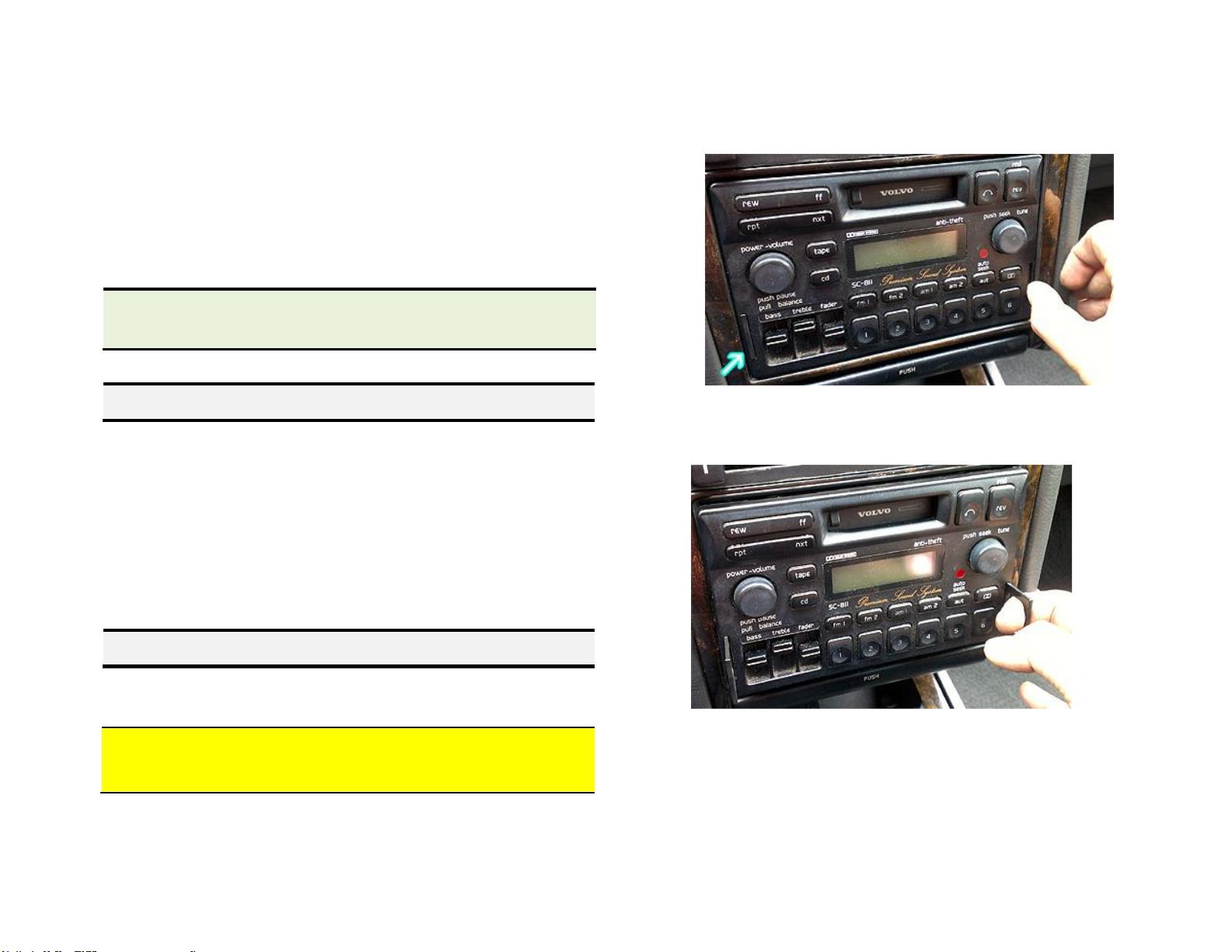

1. To remove “SC” radio, push in on the release tabs at the bottom

Left/Right of radio as seen in Fig. 1

Fig. 1

2. Once the tabs come out, place index fingers inside release tab ring and

pull outward as seen in Fig. 2

Fig. 2

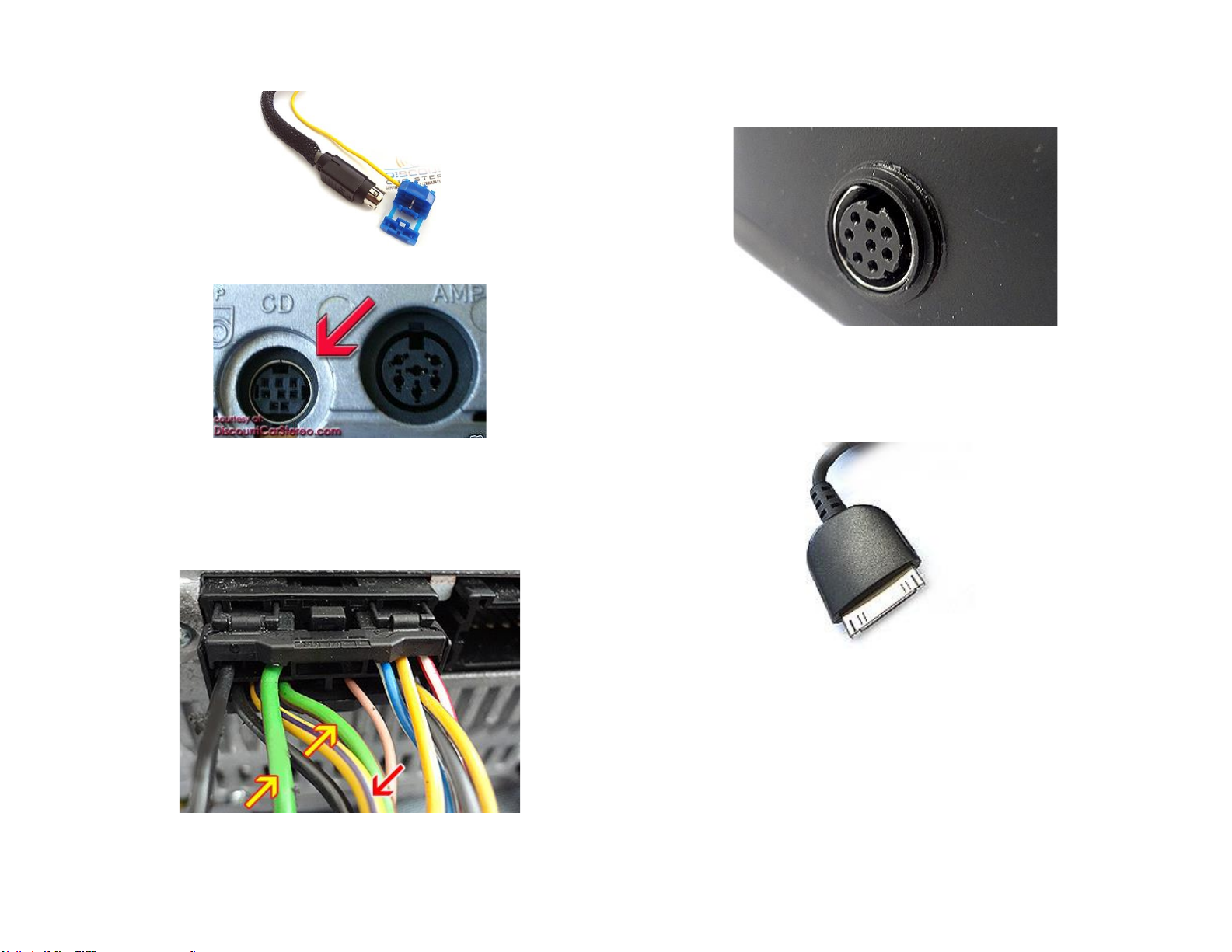

3. Connect the 8-pin plug (See Fig. 3) from adapter harness to the “CD”

changer port on radio (See. Fig. 4).

Factory CD changer (if present) must be disconnected.

Fig. 3

Fig. 4

Radio’s 8-pin changer port

4. Tap yellow wire (See Fig. 3) to either Green/Brown wire on radio

harness (See Fig. 5)

Fig. 5

Radio 14-pin plug

5. Connect 8-pin iPod cable end to Module 8-pin socket (See Fig. 6)

Fig. 6

8-pin socket

6. Route 30-pin dock connector end (See Fig. 7) to front of the dash or

location where iPod will reside (within 6 ft.)

Fig. 7

Apple 30-pin dock connector

Optional:

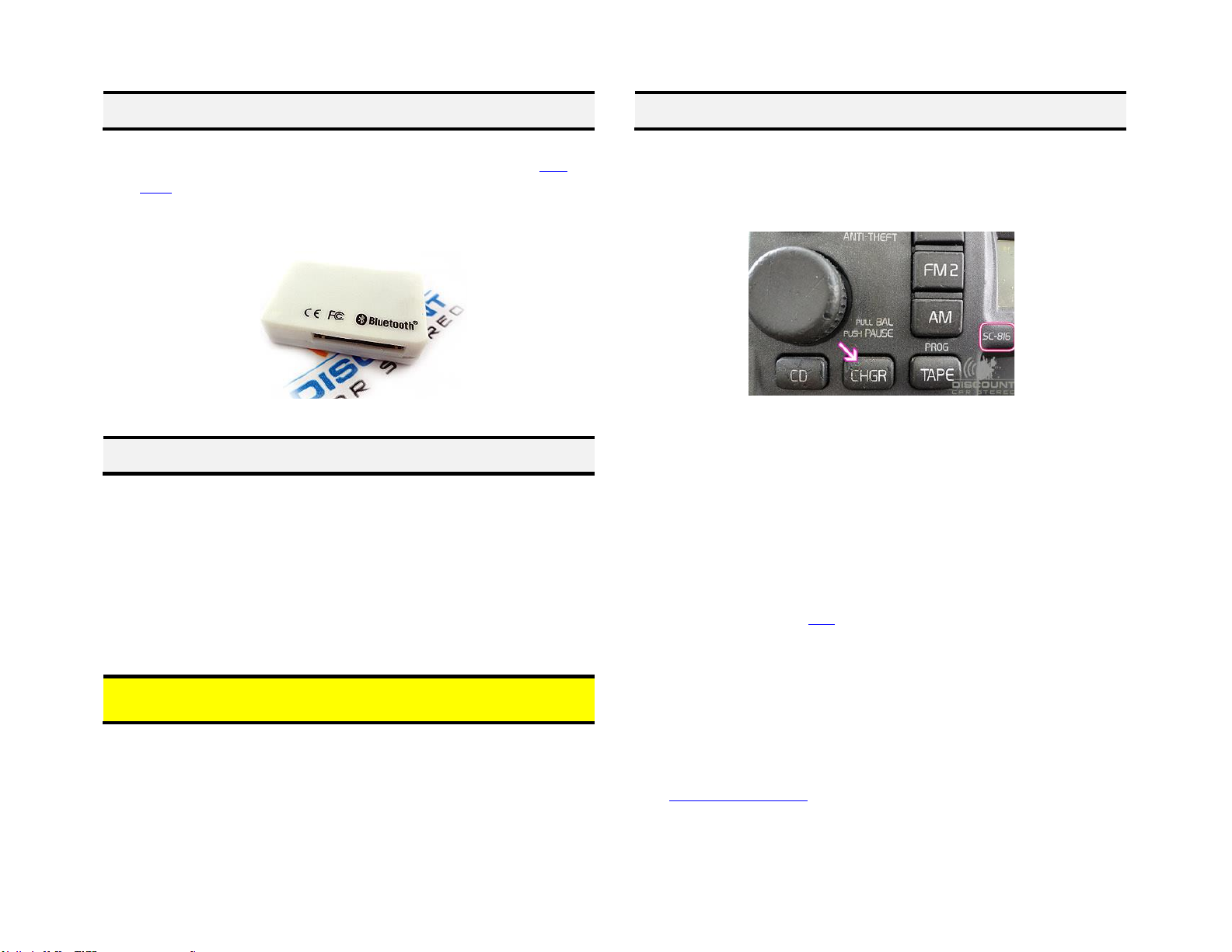

Want to play a Bluetooth device through the adapter? Purchase our A2D-

DOCK (See Fig. 11) and stream music from any Bluetooth enabled device

including Smartphone, Kindle, Tablet, Laptop etc. Just plug this device to the

30-pin dock connector, pair A2DP device and enjoy!!

Fig. 11

Operation:

Reconnect battery and enter radio code

1. Turn the radio “ON”

2. Press the “CHGR”button to enter CD changer mode

3. Connect your Apple device to dock connector

4. Apple device should begin charging

5. Play test track. Track will play on car speakers.

6. Use radio volume control button to set the playback level.

Warning! Playlist and Track selection is *NOT* possible from the GM radio. You

must use the audio devices built-in controls to access audio files.

7. If correct operation is confirmed go ahead and reinstall radio

Frequently ask questions and troubleshooting

1. Does the IP-VOL work all Volvo radios

NO;the iP-VOL works only on Volvo SC, CT and CR changer controlling

radios. Radio model numbers are printed on radio face.

2. Can I use the radio buttons to control the Apple device

NO; Use Apple device built-in controls to navigate and access music.

3. Can I use the radio buttons to navigate the Apple device menu

NO; this adapter is not capable of browsing apple menus (i.e., Search by

Artist, Song, and Playlist etc.). You must use the Apple device built-in

controls to navigate its menus.

4. I’m getting alternator whine on the car speaker which was not present

prior to installing this adapter. What can be done to fix?

In most cases this can be fixed by installing a noise filter. The NF5A is a 5A

noise filter is available here.

* External or remote CD changer refers to optional changer installed under seat, hatch, trunk

etc. (CD changer built-into the head unit remains functional)

email support@discountcarstereo.com

Other products and companies referred to herein are trademarks or registered trademarks of their respective

companies or mark holders.
