Void Digidrive V2 Manuel utilisateur

Digidrive V2

User Manual

Manual 2.1

Digidrive V2

User Manual

0.0…………………………………………………………………...Quick Start

This quick start guide offers a simple way to set the Digidrive V2 up

in a practical application.

NOTE: make sure you know the limitations of your loudspeakers

before setting up a system with the Digidrive V2. Also, ensure that

the unit and all power amps are powered off before making any

connections to/from the Digidrive. Always make sure that power

amps are the last units turned on, and the first units turned off.

0.1..…………………………………………………………Connections

 Ensure power is off to the device and power amplifiers,

connect the output signal from the sending device

(mixer) via XLR to Input A (mono signal), or Input A + B

(stereo signal).

 Connect appropriate connections from the output XLR

connectors to the power amplifier(s), depending on the

routing configuration suitable to the loudspeaker

system. Eg:

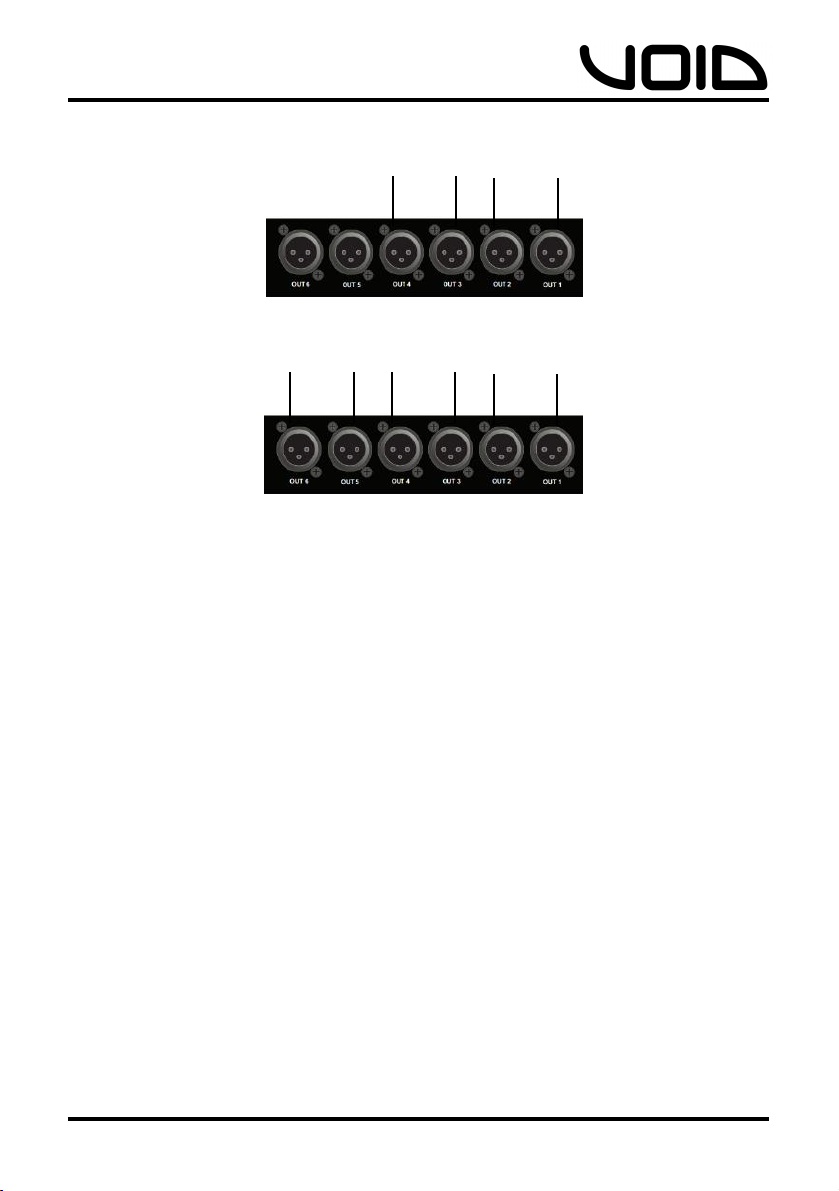

 1-way – Outputs 1+2 (full range of frequencies)

 2-way – Outputs 1+2 (LF), Outputs 3+4 (HF)

 3-way – Outputs 1+2 (LF), Outputs 3+4 (MF),

Outputs 5+6 (HF)

NOTE: There are many more routing options than the examples

above, but these options are basic configurations for beginners.

All

frequencies

to amp

1-way

Digidrive V2

User Manual

 Once all connections are made, you are ready to begin

the set up of the system.

NOTE: For this example, the routing used will be for a 3-way system,

using only the Digidrive V2 unit.

0.2...………………………………………………………..Step-by-step

1. Power up the sending device (mixing desk), then power

up the Digidrive V2, make sure the power amplifiers are

off before powering either of the other units up.

2. On the Digidrive V2, press the Menu button until the

routing page is displayed, and scroll through with the

control wheel until routing is Stereo 3-way, then press

Exit to return to the main page.

3. Now, use the CH Select +/- buttons to scroll through to

Out 1. Use Page – to get to the Link page, ensure link is

On (if channel display is Out 12 then link is on already).

Repeat this for Outputs 3/4 and 5/6.

to amp

MHF

to amp

2-way

to amp

3-way

Digidrive V2

User Manual

4. For the crossovers for each linked output channel, scroll

through channel pages until LowPass is displayed.

Using the control wheel, and control wheel button, set

the desired frequency and filter type and check the LPF

is enabled.

5. For the HPF, scroll across one page to HighPass and

repeat the process.

6. Now the crossovers are set, scroll through the

remaining pages to set the values for the rest of the

settings (EQ, Limiter, Delay) for each output channel.

There are multiple parameters to some settings, use the

control wheel button to change between them.

7. To store the program, press the Menu button until Save

is displayed. Use the control wheel button to select, and

choose the name of the preset. Use Exit to backspace,

and press Menu again for saving no/yes.

8. When the preset/program has been finalised and saved,

power up the power amplifiers. Now the system is ready

to go.

NOTE: alternatively, setting up a preset can be made beforehand on

the Live Link software and synced with the Digidrive V2 unit. This

allows the user to simply connect the unit to a laptop with Live Link,

plug in the appropriate connections, turn each bit of equipment on

in the correct order and the system is ready to go.

Digidrive V2

User Manual

Digidrive V2

User Manual

Digidrive V2

User Manual

Contents…………………………………………………………………………..

0.0...Quick Start………………………………………………………………..2

0.1...Connections………………………………………………………2

0.2...Step-By-Step……………………………………………………..3

1.0...Introduction to Digidrive V2…………………………………………..8

2.0...Features…………………………………………………………………..9

3.0...Front Panel……………………………………………………………...10

4.0...Rear Panel………………………………………………………………11

5.0...Turning on the Digidrive V2………………………………………….12

6.0...Operating the Digidrive V2…………………………………………..13

6.1...Channel Select………………………………………………….13

6.2...Input Menus……………………………………………………..13

6.3...Output Menus…………………………………………………..15

6.4...System Menus…………………………………………………..16

7.0...Live Link Control Interface…………………………………………..17

7.1...Minimum System Requirements…………………………….19

7.2...Installing Live Link……………………………………………..19

7.3...Connecting the Digidrive V2…………………………………19

7.4...Starting Live Link………………………………………………20

Digidrive V2

User Manual

7.5...Using Live Link………………………………………………….20

7.6...Digidrive V2 Control Window………………………………..20

7.6.1...Main……………………………………………………..21

7.6.2...Xover……………………………………………………21

7.6.3...Input A-D……………………………………………….22

7.6.4...Output 1-6……………………………………………..23

7.7...Upgrade………………………………………………………….24

8.0...Specifications………………………………………………………….25

9.0...Block Diagrams………………………………………………………..26

10.0...Menu Structure...…………………………………………………….30

11.0...Service…………………………………………………………………31

11.1...Worldwide Service…………………………………………...31

11.2...Warranty Registration……………………………………….32

11.3...Environmental………………………………………………...32

12.0...Warranty……………………………………………………………….33

Digidrive V2

User Manual

1.0………………………………………………Introduction to Digidrive V2

The Void Acoustics Digidrive V2 is a full 4 input, 6 output digital

loudspeaker management system, designed specifically for live

sound, touring, fixed installations, stage and theatre productions,

bar and club and conference applications. Through matrix mixing,

any input can be routed to any output at any level, using high quality

24 bit A/D and D/A converters with the latest 64 bit processors,

allowing unparalleled bandwidth from 5Hz to 45kHz. Inputs A & B

are analogue, C & D being digital AES/EBU which can handle clock

speeds of up to 192kHz.

Each input and output on the Digidrive V2 includes a 6/12/18/24dB

HPF and LPF that can be set anywhere between 20Hz – 20kHz as

Bessel, Butterworth or Linkwitz-Riley filter types. There is also

control of 10 EQs per Input/Output channel with filter types bell,

allpass, notch or high/low shelf.

Connected via USB or Ethernet to a Windows/Mac OSX PC, the

Digidrive v2 can be controlled from the front panel or through the

purposely designed Live Link software, and can be set up with an IP

address on a network in order to run multiple devices.

Shipping contents:

- Digidrive V2 unit

- User manual

- USB cable

- Live Link software CD

- Power cable

NOTE: Be sure to check for any missing items or damage when

opening the box. If this does occur, please immediately contact the

Void distributor where the product was purchased from, or contact

Void directly.

Digidrive V2

User Manual

2.0……………………………………………………………………...Features

 4 Inputs (2x Analogue, 2x Digital AES/EBU) & 6 Outputs with

matrix mixing.

 64-bit DSP

 High quality 24-bit A/D & D/A converters

 USB/Ethernet interface for remote control/configuration on a

 10 EQ bands per Input/Output channel

 Accurate control of delay, level, polarity and limiters

 Full range of crossover control parameters

 Ability to program & store up to 100 preset.

 Security lock

 CPU and DSP upgrades via PC

Digidrive V2

User Manual

3.0……………………………………….…………………………..Front Panel

1. USB Port – standard Type-B female socket.

2. Peak Level LED – shows the current peak of the signal: SIG,

-6dB, Limit, Clip. Input’s Limit = Max. headroom. Output Limit =

threshold of limiter.

3. Menu & Control Keys –

4. LCD – shows information about the unit

5. Copy – *WILL BE AVAILABLE IN A FIRMWARE UPDATE*

6. Paste – *WILL BE AVAILABLE IN A FIRMWARE UPDATE*

7. Control Wheel – gives velocity sensitive control over

parameter values. There is also a button click to allow

changing parameters.

8. Mute – mutes/un-mutes the corresponding output channel.

When a channel is muted, a red LED will light up.

- CH SELECT Previous channel

CH SELECT + Next channel

- PAGE Previous page

PAGE + Next page

MENU System information

EXIT Return to main menu, backspace
