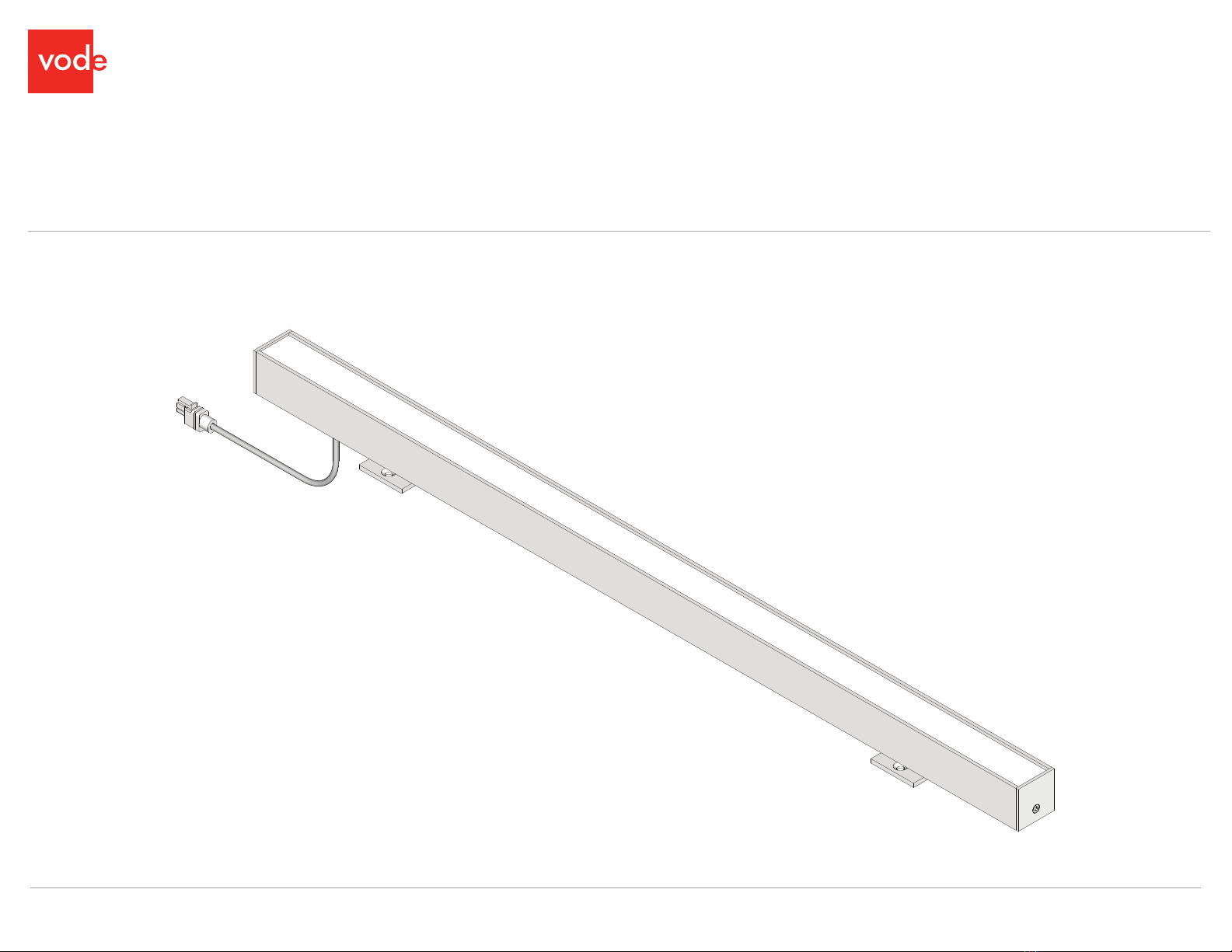

My fixture will not turn on:
Check all wiring is correct and all connections are fastened properly.
If all wiring is correct, remove fixture and connect it to a known working driver.
If the fixture lights up, then the problem is with the installed driver or wiring:
1) Check line voltage to driver is present.
2) Check driver wiring (see Vode Driver Guide for details) and check wiring to
fixture.
3) Check driver and dimming system are compatible (see Vode Dimmer
Guide and the dimmer manufacturer's website).
If fixture still doesn't light up, check that all dimming wires are installed
correctly. Reversed polarity on any driver will cause the entire system to not
work, (see Vode Driver Guide for wiring details).
The fixture is not dimming properly:
Check all wiring is correct and all connections are fastened properly.
Check driver wiring (see Vode Driver Guide for details). Make sure driver is
compatible with dimming controls (see Vode Dimmer Guide and the dimmer
manufacturer's website).
Trouble Shooting Guide
For any help with installation or technical information,
contact Vode Tech Service at 707-996-9898.
Listed to UL standards for damp location by a Nationally Recognized Testing
Laboratory (NRTL) recognized by OSHA
Operating Temperature: 32°F to 104°F (0°C to 40°C).
Input Voltage: 120v - 277v, 50/60hz.
Power Type: Class 2 (<60v) constant current driver.
Dimming curve is factory preset to linear. Logarithmic is available upon
request. See Vode Driver Guide for specific details and wiring diagram.
Unless specified, one driver per rail will be supplied.
5 Year Limited Warranty. All material and component parts manufactured by
Vode are guaranteed to be free from defects of material and/or workmanship
for a period of 5 years from date of sale. Product must be installed according
to Vode installation instructions and accepted trade practices. Power supplies
and other auxiliary equipment is not covered under Vode warranty but may be
covered by separate OEM warranty.
Appendix
Important Notes
Remote DistanceDriver
72’ (21.9 m)
32’ (9.8 m)
16’ (4.88 m)
Zipper board: Standard / Low Output: 30' (9.14 m),
High Output: 15' (4.57 m)
Button board: Standard / Low Output: 15' (4.57 m)
High Output: 10' (3.05 m)
EldoLED
Philips
OSRAM
Lutron
Note: All Vode remote drivers come in a 1/16” (0.8mm) formed steel, zinc chromate
plated power supply housing with six (6) knockouts for 1/2" NPT fittings. Power
supply housing dimensions: 1.9” (48.3 mm) x 1.9” (48.3 mm) x 24.5” (622.3 mm)
Remote Driver Distance
For other wiring questions, see Vode Driver Guide.
-
-
-
-
-
-
-
-
BoxRail | 907
