ViziT BVD-342 Manuel utilisateur

BVD-342

Doorstation BVD-342 with four-digit LED indicator and backlighted keypad is intended for joint operation

with Control Unit BUD-302(M) in multi-apartment doorphones VIZIT, and provides duplex intercom, keypad

codes, TM-keys (iButton) and RF-keys controller's functions.

The following versions of BVD-342 are available:

Abbreviations used in the models names:

R- RF-keys reader, T- TM-keys reader

Content of doorphone system, its features, order of programming and operation are fully described in

BUD-302(M) operating instruction.

SPECIFICATIONS

Capacity: up to 100 subscribers

Operating voltage, VDC 15

Power consumption, W max 5

Dimensions, mm 87x171x24

Weight, kg 0.6

Operating conditions

- ambient temperature range from -40 up to +50°C;

- relative humidity of air up to 98% at 25 °C.

PARTS LIST

Doorstation BVD-342 1 pc.

Mounting kit 1 pc.

Operating instruction 1 pc.

Package 1 pc.

The rest of equipment needed for multi-apartment doorphones VIZIT is available upon request.

SAFETY INSTRUCTIONS

The doorstation does not contain voltage above 18 VDC.

Connect the grounding wire of the doorstation to the protective ground

To avoid damage do not make any connections or repair when the power is on.

INSTALLATION

ATTENTION!

To maximize the reliability of this product, do not expose it to rain, snow and direct sun rays!

Fix the doorstation on a door or on a wall using the screws supplied. Drive the gags (from the mounting

kit) into mounting holes.

Perform all connections according to the examples of wiring diagrams on Figures 2, 3and 4.

Recommended wires cross-sections are given in BUD-302 operating instruction.

The first wire in the cable is marked with different colour.

Name model

BVD RT-342

BVD-342R

BVD-342T

Reader

RFID TM

2 openings for screws

Frame of the

doorstation

82.5

159

170

5.5

Opening for cable

Abbreviations used on Figures 2 - 4:

GND - GROUND;

SP+, SP- - Speaker;

+E - Doorstation power;

MIC - Mic Amp Output;

RX, TX - BVD-342 - BUD-302 Digital Data;

+DL, -DL - Door Lock;

OP - OPEN;

LN - Intercom line;

Ek - Power of commutators;

SEL - SELECT.

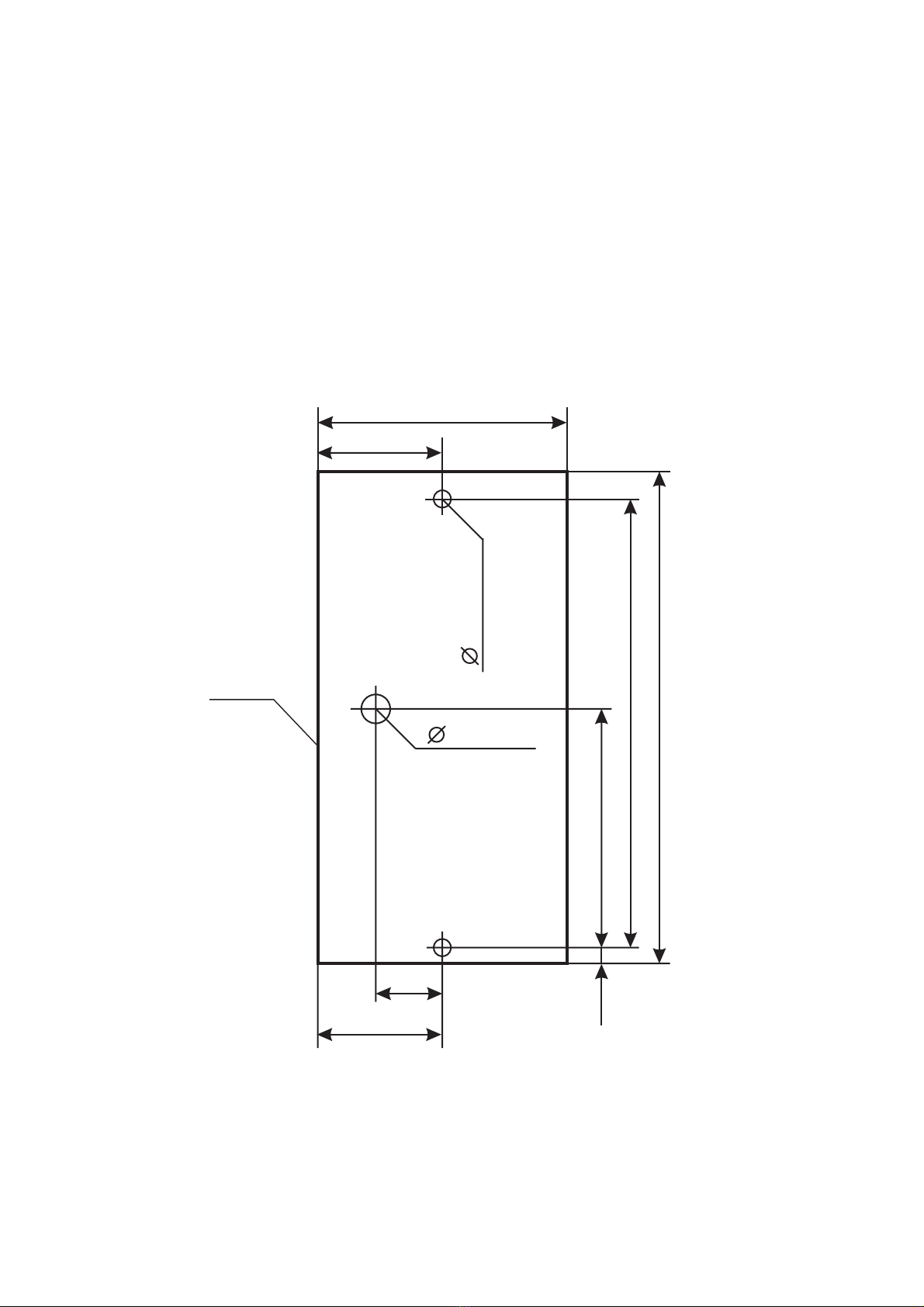

Figure 1. Mounting drawing

Dimensions are given in millimeters

SP-

Control unit

BUD-302

+DL

-DL

SP+

GND

MIC

DSD

1362

LINE

GND

SEL

to commutators

SP+ 2

SP- 3

MIC 5

GND 1

+E 4

RX 6

TX 7

Doorstation

-3BVD 42x

Colour Button

for exit

Electromagnetic

lock VIZIT-ML400

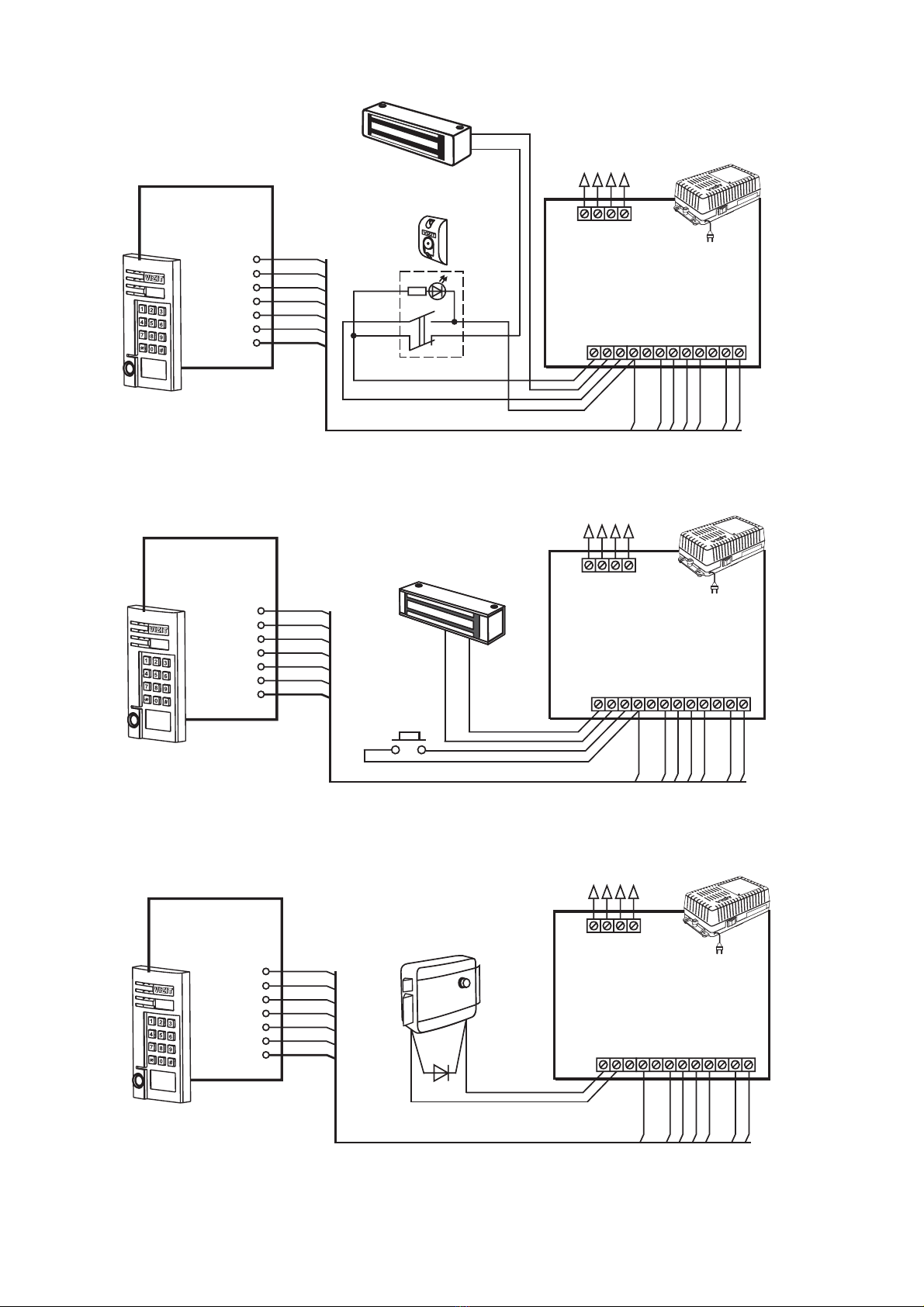

Figure 3 - Wiring diagram: doorstation BVD-342 with control unit BUD-302,

electromagnetic lock VIZIT-ML400 and button with N.O. contacts for exit.

SP-

Control unit

BUD-302

+DL

-DL

SP+

GND

MIC

DSD

1362

LINE

GND

SEL

to commutators

SP+ 2

SP- 3

MIC 5

GND 1

+E 4

RX 6

TX 7

Doorstation

-3BVD 42x

Colour

Electromechanical

lock

Imax=1.5 A

1N4007

Figure 4 - Wiring diagram: doorstation BVD-342 with control unit BUD-302

and electromechanical lock.

SP-

Control unit

BUD-302

+DL

-DL

SP+

GND

MIC

DSD

RED

GREEN WHITE

BLACK

BLUE

Electromagnetic

lock VIZIT-ML400

Button

“EXIT 300”

LINE

GND

SEL

to commutators

SP+ 2

SP- 3

MIC 5

GND 1

+E 4

RX 6

TX 7

Doorstation

-3BVD 42x

Colour

Figure 2 - Wiring diagram: doorstation BVD-342 with control unit BUD-302,

electromagnetic lock VIZIT-ML400 and EXIT 300 button.
