Vizio E3D320VX Manuel utilisateur

E3D320VX / E3D420VX / E3D470VX

QUICK START GUIDE

THEATER 3D™LCD HDTV WITH VIZIO INTERNET APPS®

PACKAGE CONTENTS

Cleaning ClothRemote Control with

Batteries

User Manual and

Quick Start Guide

VIZIO 3D LCD HDTV with Stand

Power CordSafety Cable

(E3D420VX and E3D470VX only)

1 Pair

Basic Theater 3D Glasses

1 Pair

Premium Theater 3D Glasses

USING THE REMOTE

Power/Standby: Turn the TV on or off.

Input: Change the input device.

App Launcher: Launch the VOD (VIZIO On-Demand), Netﬂix, or

VUDU App.

A/V Controls: Control external device (CEC-enabled devices only).

Info: Display the Info Window.

CC: Open the Closed Captioning menu.

Menu: Display the on-screen menu.

Exit: Close the on-screen menu.

Arrow: Navigate the on-screen menu and episode guide.

OK: Select highlighted menu option.

Guide: Display the episode guide (digital channels only).

Back: Go to the previous on-screen menu options.

VIA Shortcuts: Control VIZIO Internet Apps.

Channel Up/Down: Change the channel. With each press of the button,

the channel will increase or decrease by one.

Volume Up/Down: Increase or decrease the loudness of the TV’s audio.

V Button: Start VIA Internet Apps.

Mute: Turn the sound off or on. When mute is activated, the

TV’s audio is turned off.

Last: Return to the channel last viewed.

Number Pad: Use the number pad to manually enter a channel.

Dash (-): Use with number pad to manually enter a digital

sub-channel. (For example, 18-4 or 18-5.)

3D: Activate 3D content.

QWERTY Keypad: Enter letters and numbers.

Power/Standby

A/V Controls

Info

Arrow

Channel Up/Down

Last

Number Pad

Mute

Volume Up/Down

Exit

Input

GuideBack

V Button

Dash (-)

VIA Shortcuts

App Launcher

QWERTY Keypad

Arrow VIA Shortcuts

Battery Compartment

INSTALLING THE BASE

Place the TV screen-down on a clean, ﬂat surface. To prevent

scratches or damage to the screen, place the TV on a soft

surface, such as carpet, rug, or blanket.

VIZIO RECOMMENDS

Though your TV has a stand included, it can also be mounted

on a wall. VIZIO recommends the XMT1200 Ultra Slim Tilt

Universal Wall Mount. This easy-to-install wall mount

supports 37” to 60” HDTVs up to 120 pounds and features:

• A built-in bubble level and is less than 2” thin

•Tilts up to 15° downward – perfect for mounting above

eye level

•Includes $10,000 insurance and 1-year warranty

Visit www.VIZIO.com to purchase online.

Align the stand with the holes on the back of the TV.

Using a philips-head screwdriver, attach the base to the TV by

inserting and tightening the 6 included screws.

Move the TV with attached stand into an upright position and

place on a ﬂat, level, and stable surface.

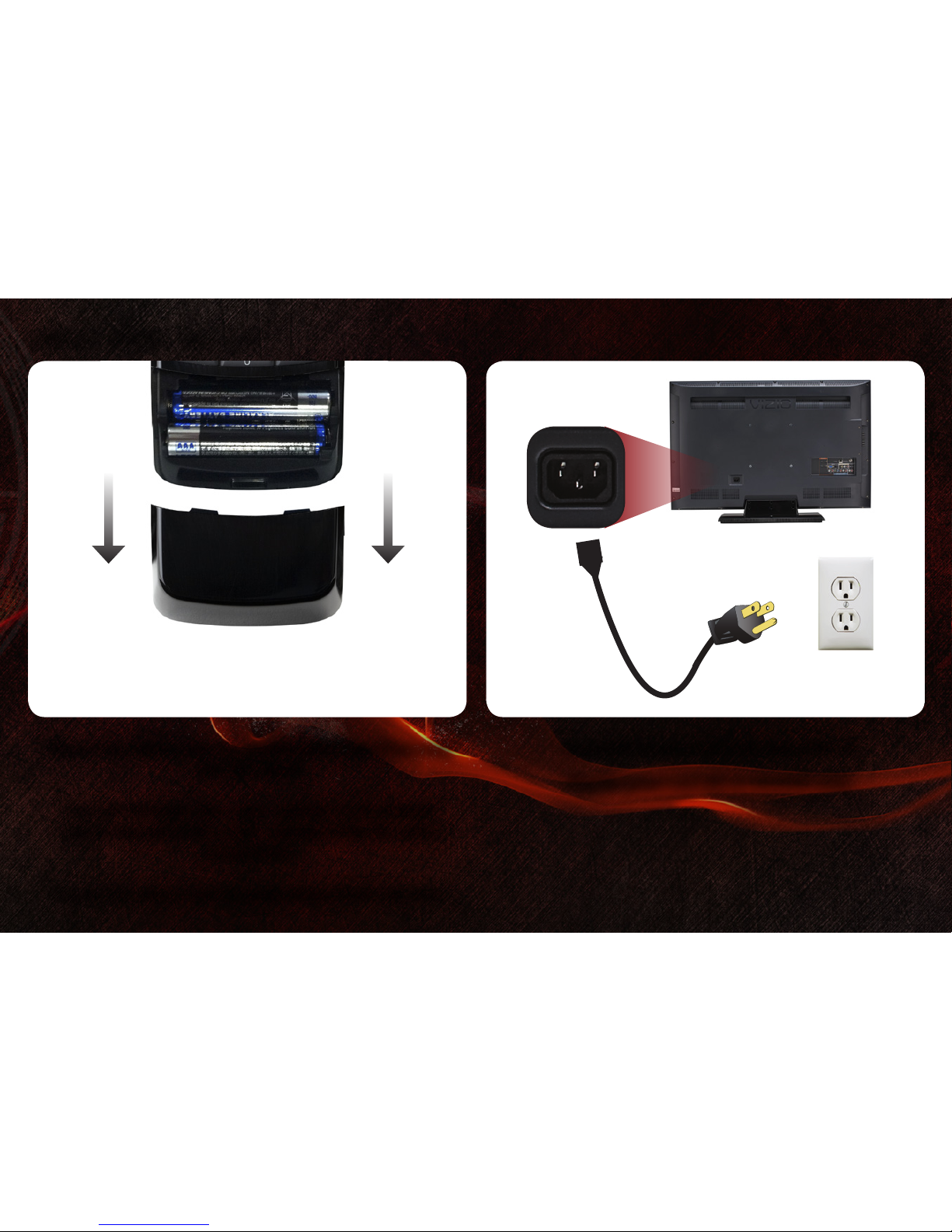

Remove the battery cover by pressing gently and sliding away

from the remote.

Insert the batteries. The +and -symbols on the batteries

must correspond to the +and -symbols inside the battery

compartment.

Replace the battery cover by gently sliding it back into place.

FIRST-TIME SETUP

Connect the power cord to the back of the TV.

Plug the power cord into an electrical outlet.

If you have an external antenna or a cable connection that

extends from a wall outlet, connect it to the TV with an

RF/Coaxial cable.

If you have a high-speed internet connection and would like to

connect the TV with an ethernet cable, connect it to the back of

the TV as shown.

Turn the TV on by pressing the Power/Standby button on the

remote.

The Setup App is displayed.

Use the Arrow buttons on the remote to highlight

Home Mode Setup and press OK.

Use the OK and Arrow Up/Down buttons on the remote to read

and accept the Terms of Service and Privacy Policy for Yahoo! TV

Widgets.

When you are ﬁnished, highlight Next and press OK.

Select the name of your wireless network from the list of

available networks and press OK.

Enter your network key using the on-screen keyboard, then

highlight Connect and press OK.

If the TV is connected to your network with

an ethernet cable, you will not see this screen.

Enter your First Name, Last Name, Phone Number, ZIP Code, and

E-mail Address using the on-screen keyboard.

Highlight Next and press OK.

Answer the on-screen questions about your TV connection using

the Arrow and OK buttons on the remote.

When you have ﬁnished the channel scan, highlight Exit to Live

TV and press OK.

The First-Time Setup is complete.

CONNECTING YOUR DEVICES

Ensure your device has one of the above ports.

Turn your device and the TV off.

Connect your devices using the connection chart on the next

page. This chart shows the most common connections. If you

would like to see additional connection options, see

Connecting

Your Devices

in the user manual.

HDMI

Component

Composite AV

VIZIO RECOMMENDS

To get the best high-resolution picture and sound on your new

VIZIO 3D TV, connect your devices with an HDMI cable.

VIZIO High Speed HDMI Cables are manufactured to produce

the best picture on VIZIO TVs and feature:

•1080p and for full HD video and future Ultra-HD video

•Great ﬂexibility for thin wall mounts

•Stays securely connected at sharp angles

•Limited lifetime warranty

Visit www.VIZIO.com to purchase online.
