VIZIO

MODELS XVT3D500CM •XVT3D580CM

QUICK START GUIDE

CINEMAWIDE™THEATER 3D™HDTV

WITH VIZIO INTERNET APPS®

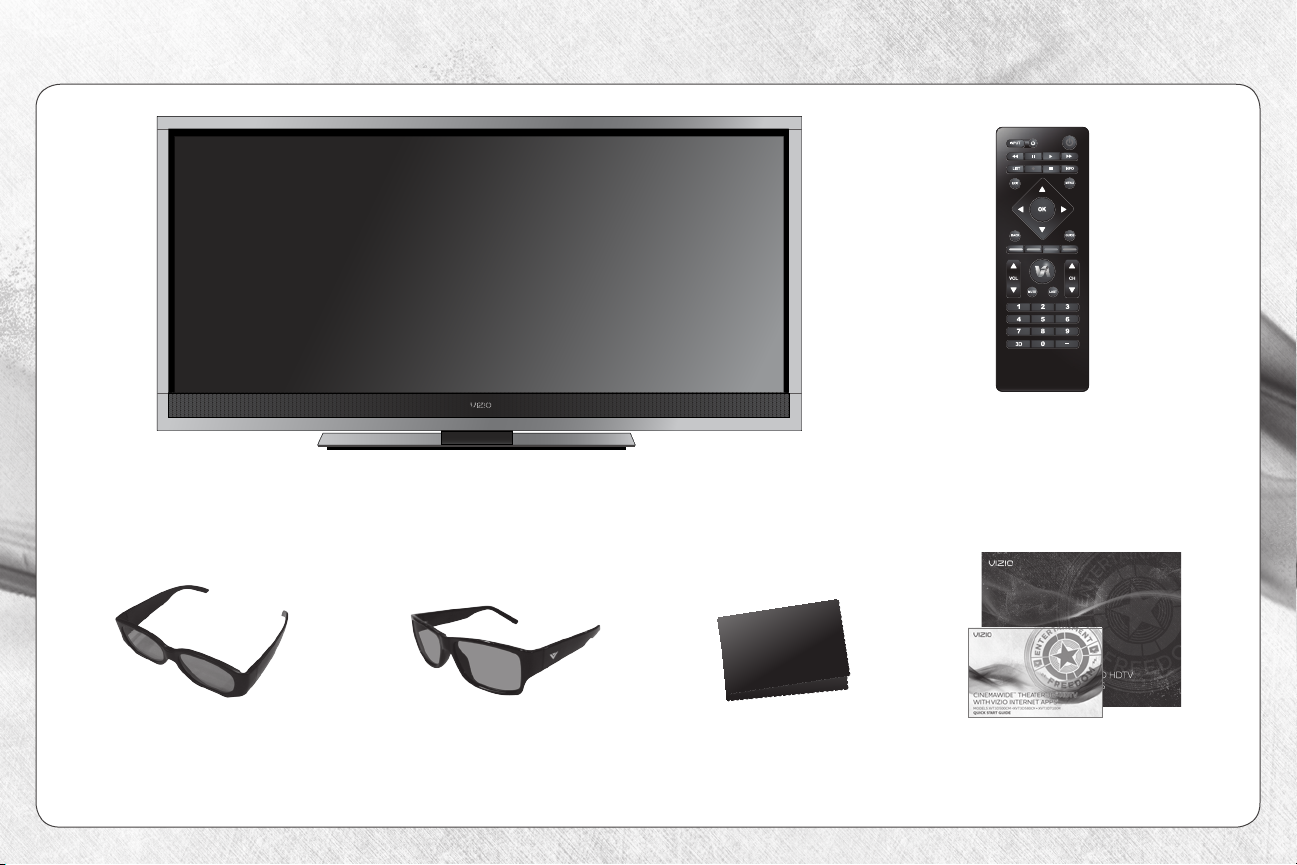

PACKAGE CONTENTS

Quick Start Guide and

User Manual

Remote Control

with Batteries

VIZIO CinemaWide Theater 3D HDTV with Stand

Premium Theater 3D

Glasses (2 pairs)

Basic Theater 3D

Glasses (2 pairs)

Cleaning Cloth

VIDEO

ARC

DIGITAL

AUDIO

OUT

COMPOSITE [GOOD]

HDMI [BEST]

AUDIO

OUT

USB 2

USB 1

ETHERNET RGBPC

COMPONENT (BETTER) PC AUDIO DTV/TV

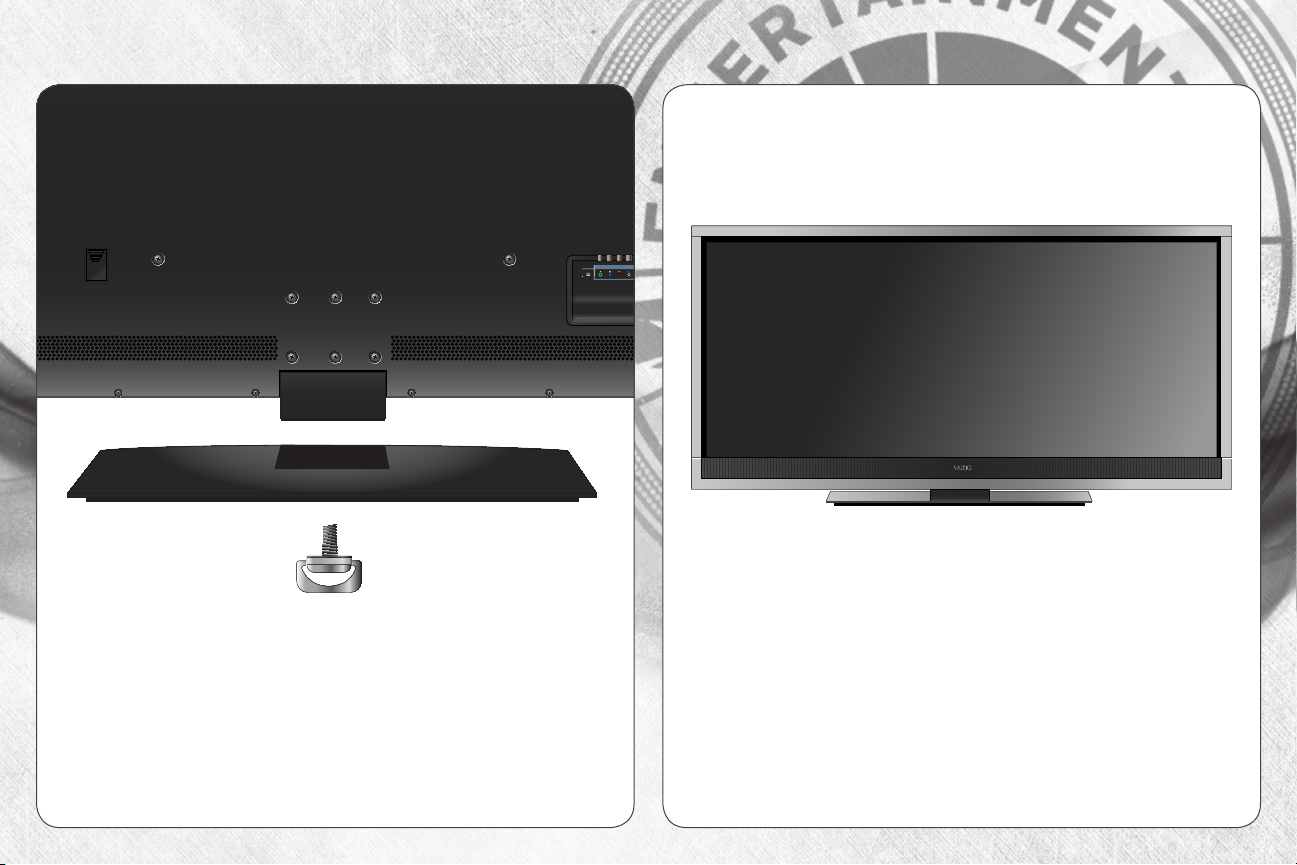

Place the TV screen-down on a clean, ﬂat surface. To

prevent scratches or damage to the screen, place the

TV on a soft surface, such as carpet, rug, or blanket.

Tighten the six (6) thumbscrews into the base.

Place the TV on a stable, level surface.

INSTALLING THE BASE

USING THE REMOTE

INPUT

Change the currently-displayed input.

ARROW

Navigate the on-screen menu.

EXIT

Close the on-screen menu.

CLOSED CAPTIONS

Open the closed caption menu

A/V CONTROLS

Control USB photo slideshow and V.I.A. apps.

Change the 3D mode.

NUMBER PAD

Manually enter a channel.

VOLUME UP/DOWN

Increase or decrease loudness of the TV audio.

BACK

Go to the previous on-screen menu

POWER

Turn TV on or oﬀ.

Display the on-screen menu.

INFO

Display the info window.

DASH

Use with number pad to manually

enter a digital sub-channel. (For

example, 18-4 or 18-5.)

CHANNEL UP/DOWN

Change the channel.

GUIDE

Display the info window.

LAST

Return to the channel last viewed.

MUTE

Turn the sound oﬀ or on.

V.I.A.

Open the VIZIO Internet Apps dock.

V.I.A. SHORTCUT BUTTONS

Control VIZIO Internet Apps.

SLIDE OUT REMOTE

ARROW

Navigate the on-screen menu.

SHIFT

Press and hold while pressing

another key to enter a capital letter.

ALT

Press and hold while pressing another key to

enter a blue character. For example, press A LT

and Sto enter a #character.

V.I.A. SHORTCUT BUTTONS

Control VIZIO Internet Apps

FIRST-TIME SETUP

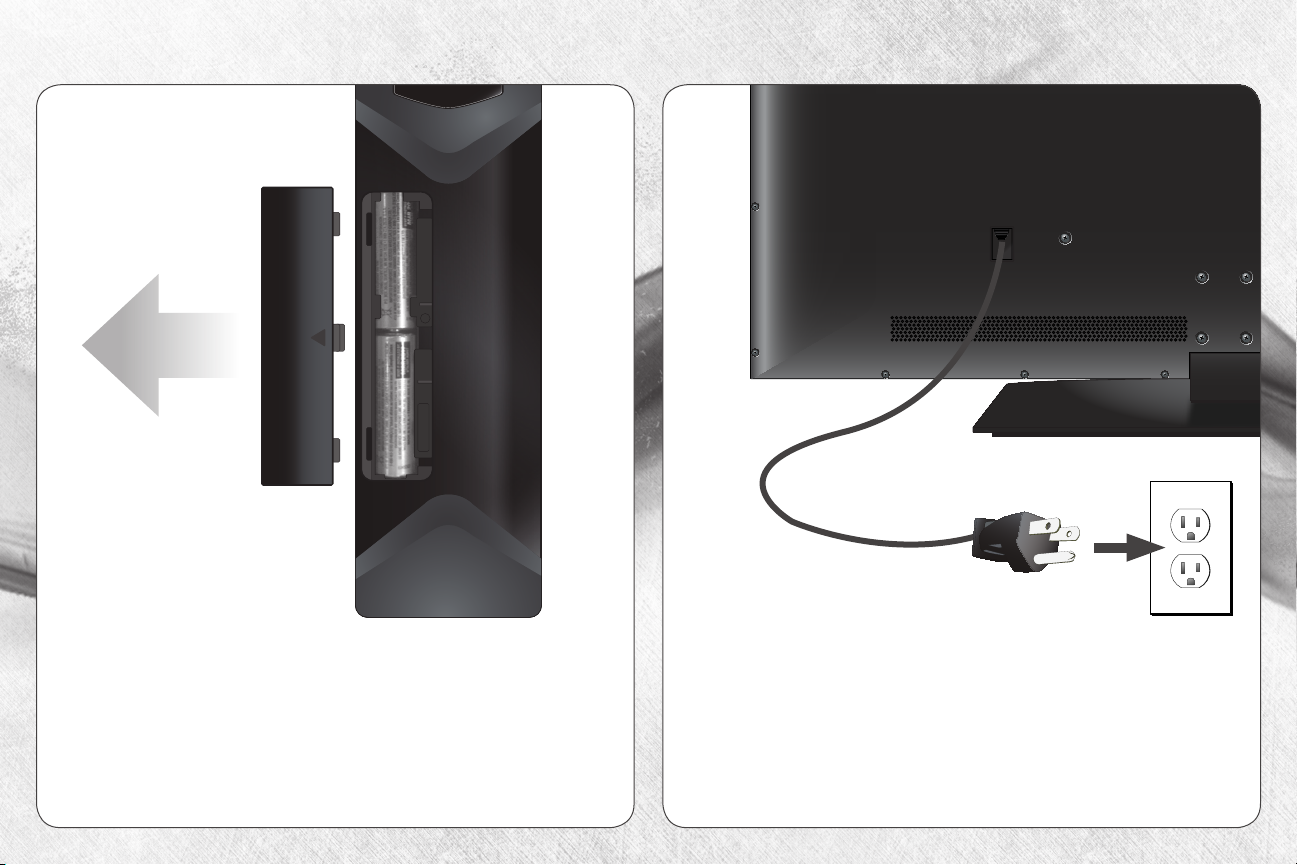

Remove the battery cover by pressing gently on the

arrow and sliding away from the remote.

Insert the included batteries.

Gently slide the battery cover back into place.

Plug the power cord into an electrical outlet.

3 4

If you have an external antenna or a cable connection

that extends from a wall outlet, connect it to the TV

with an RF/Coaxial cable.

If you have a high-speed internet connection, connect

an Ethernet cable from your modem or router to the

back of the TV as shown.

Turn the TV on by pressing the Power button on the

remote.

The Setup App is displayed.

Use the Arrow buttons on the remote to highlight

Home Mode Setup and press OK.

Ethernet

Cable

Coaxial

Cable

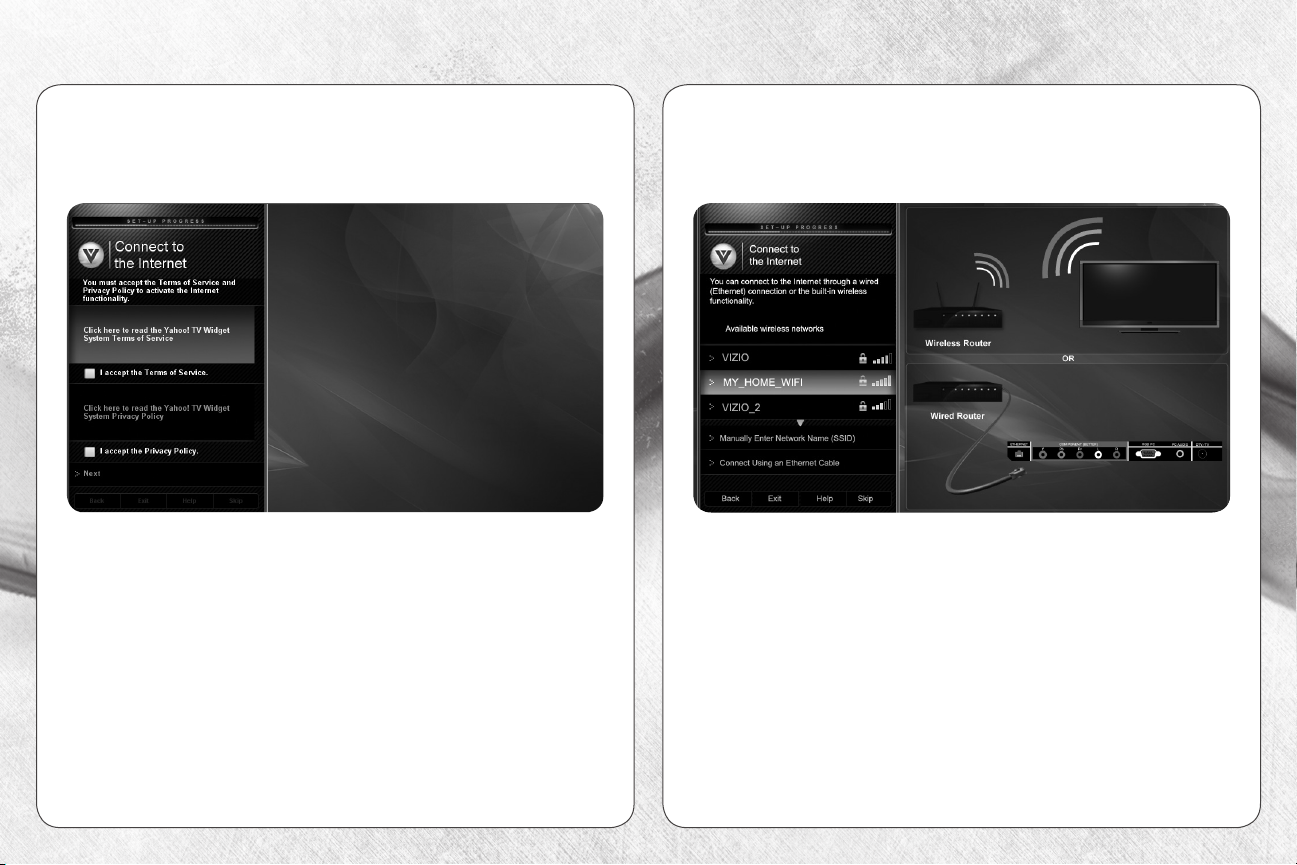

Use the OK and Arrow Up/Down buttons on the

remote to read and accept the Terms of Service and

When you are ﬁnished, highlight Next and press OK.

Select the name of your wireless network from the list

of available networks and press OK.

Enter your network key using the on-screen keyboard,

then highlight Connect and press OK.

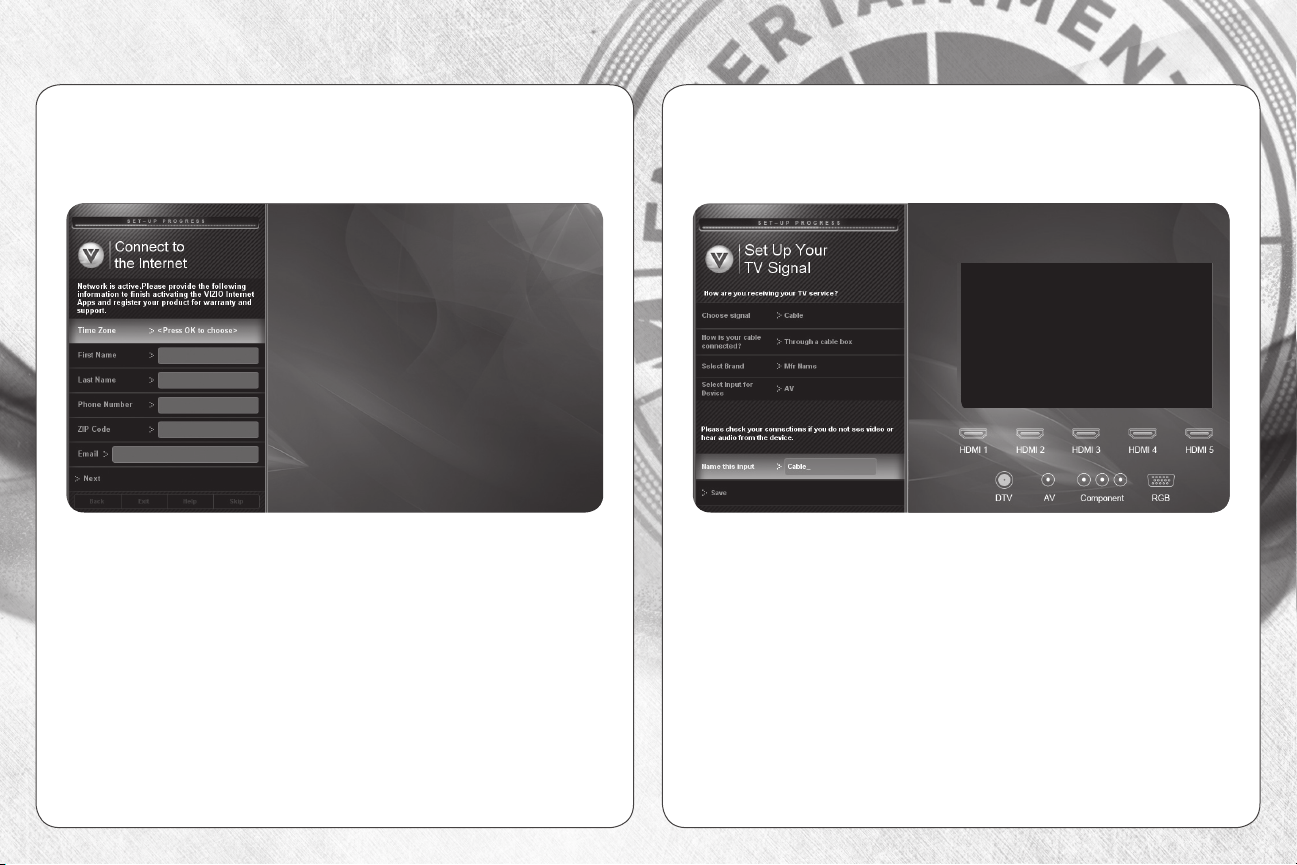

Enter your First Name, Last Name, Phone Number,

ZIP Code, and E-mail Address using the on-screen

keyboard.

Highlight Next and press OK.

Answer the on-screen questions about your TV

connection using the Arrow and OK buttons on the

remote.

When you have ﬁnished the channel scan, highlight

Exit to Live TV and press OK.

The First-Time Setup is complete.

CONNECTING YOUR DEVICESCONNECTING YOUR DEVICES

BACK OF TV

Match colored

connectors

to colored ports.

Match colored

connectors

to colored ports.
