FD8133V/8134V Fixed Dome
Network Camera
EN - 1
English
Power off the Network Camera as
soon as smoke or unusual odors are
detected.
Contact your distributor in the event of
occurrence.
Keep the Network Camera away
from water. If the Network Camera
becomes wet, power off immediately.
Do not place the Network Camera
around heat sources, such as a
television or oven.
Refer to your user's manual for the
operating temperature.
Keep the Network Camera away from
direct sunlight.
Do not place the Network Camera in
high humidity environments.
Contact your distributor in the event of
occurrence.
Warning Before Installation
EN - 2
Do not place the Network Camera on
unsteady surfaces.
Do not touch the Network Camera
during a lightning storm.
Do not disassemble the Network
Camera.
Do not drop the Network Camera.
Do not insert sharp or tiny objects
into the Network Camera.
Replacing or failing to properly
install the waterproof components,
e.g., cables or cable glands, will void
our IP65/66/67 warranty.
EN - 3
English
Software CD
FD8133V or FD8134V
Alignment Sticker
D
r
i
l
l
h
o
l
e
Cable hole
Cable hole
Drill hole
RJ45 Female/Female Coupler /
Screwdriver/ Screws / Clamp Core
Power Adapter
5
0
0
0
2
4
7
0
1
G
Package Contents
1
Quick Installation Guide /
Warranty Card
EN - 4
Hardware Installation
3
Physical Description
2
Lens IR LEDs (8 units, distance 10m)
(FD8134V only)
Reset Button
General I/O Terminal Block
Status LED
Light Sensor
MicroSD/SDHC
Card Slot
Black Cover
Ethernet 10/100
RJ45 Plug
Power Cord Socket
First, follow the instructions below to remove the dome cover.
Dome Cover
Record the MAC address before
installing the camera.
Network Camera
Model No: FD8134V
Made in Taiwan
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
(1)This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Pat. 6,930,709
RoHS
V I
MAC:0002D107258A
EN - 5
English
A
A
D
r
i
l
l
h
o
l
e
Cable hole
Cable hole
Drill hole
D
r
i
l
l
h
o
l
e
Cable hole
Cable hole
Drill hole
1. Attach the alignment sticker to the ceilling/wall.
2. Through the two circles on the sticker, drill two pilot holes into the
ceilling/wall.
3. The Network Camera can be mounted with the cable routed
through the ceiling/wall or from the side. If you want to feed the
cable through the ceiling/wall, drill a cable hole A as shown in the
above picture.
4. Hammer the supplied plastic anchors into the holes.
5. Align the two holes on each side of the camera base with the two
plastic anchors on the ceilling/wall, insert the supplied screws to
corresponding holes and secure them with a screwdriver.
Wall Mount
Ceiling Mount
With idiot-proof mechanism design and very compact size, this Network Camera is very
easy for user to install in diverse indoor environment.
Tilt Adjustment Screw
Then remove the black cover as shown below.
EN - 6
General Connection (without PoE)
Network Deployment
4
+ : Digital input
- : Digital input
POWER C
OLLIS
ION
LINK
RE
CEIVE
PARTITION
12345
2
3
Ethernet Switch
1
1. If you have external DI devices, make the connection from general I/O terminal block.
2. Use the supplied RJ45 female/female coupler to connect the Network Camera to a
switch.
Use a Category 5 Cross Cable when Network Camera is directly connected to PC.
3. Connect the supplied power cable from the Network Camera to a power outlet.
6. Buckle the supplied clamp core onto the cable to against the EMI radiation.
5 cm
The clamp core should be away
from the device at least 5 cm.
EN - 7
English
POWER COLLISION
LINK
RECEIVE
PARTITION
12345
Power over Ethernet (PoE) (FD8134V only)
POWER COLLISION
LINK
RECEIVE
PARTITION
12345
PoE Switch
When using a non-PoE switch
Use a PoE power injector (optional) to connect between the Network Camera and a
non-PoE switch.
PoE Power Injector
(optional)
When using a PoE-enabled switch
This Network Camera is PoE-compliant, allowing transmission of power and data via a
single Ethernet cable. Follow the below illustration to connect the Network Camera to a
PoE-enabled switch via Ethernet cable.
Non-PoE Switch
EN - 8
IMPORTANT!
Although the camera and the cable gland on the camera's end are waterproof, the cable
molding at the other end is not waterproof.
Measures should be taken to prevent water from leaking in through the cable-end
molding, such as the use of expanding foam sealant, putties, and so on. Note that the
cable gland on the camera should also be securely fastened to attain its waterproof
functionality.
Waterproof Not Waterproof
Cable Molding
EN - 9
English
Network Camera
Model No: FD8134V
Made in Taiwan
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
(1)This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Pat. 6,930,709
RoHS
V I
MAC:0002D107258A

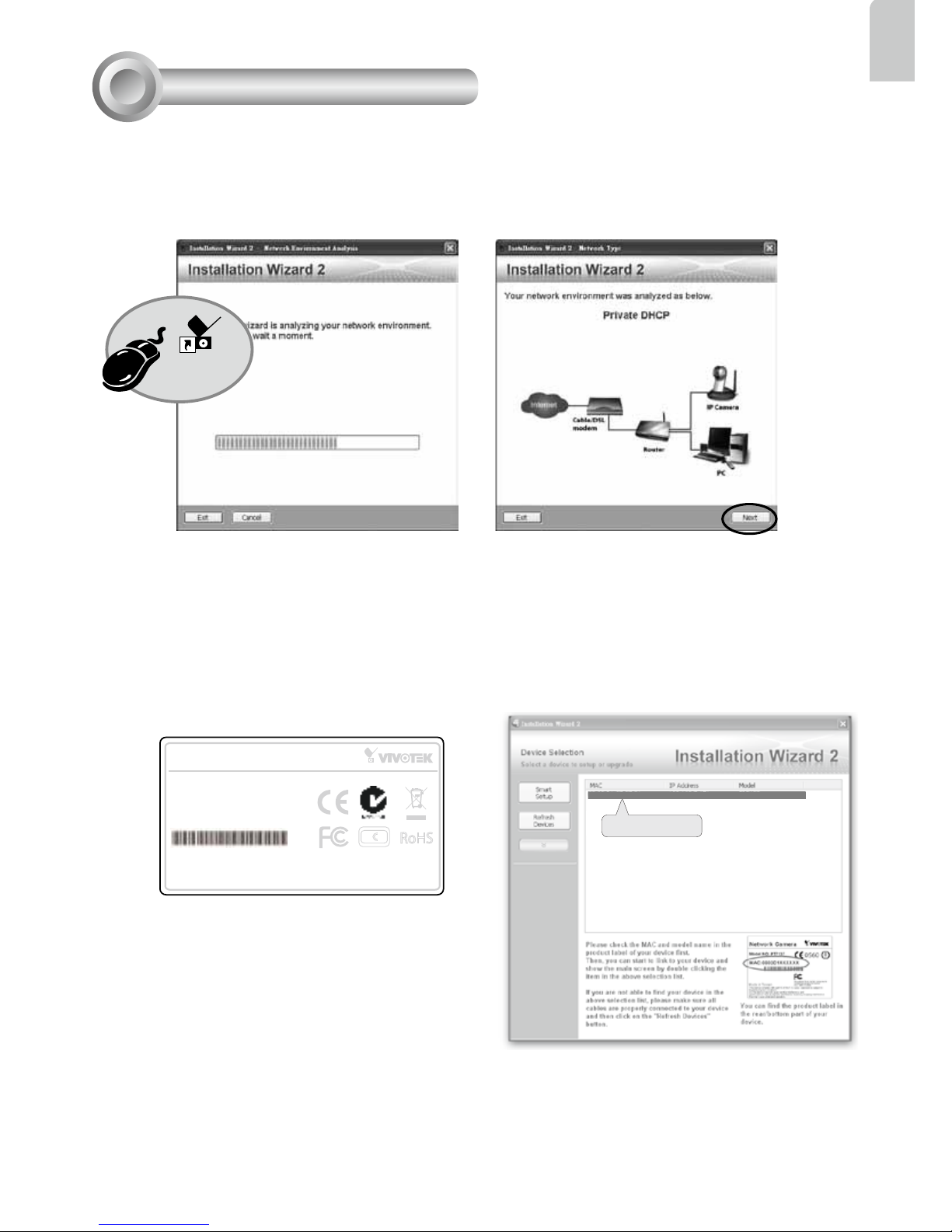

1. Install “Installation Wizard 2” from the Software Utility directory on the software CD.
2. The program will conduct an analysis of your network environment. After your network is
analyzed, please click on the “Next” button to continue the program.
3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network
Cameras on the same LAN.
4. After searching, the main installer window will pop up. Click on the MAC that matches the
one labeled on the bottom of your device to connect to the Network Camera via Internet
Explorer.
0002D107258A
00-02-D1-07-25-8A 192.168.5.151 FD8134
Installation
Wizard 2
Assigning an IP Address
5
