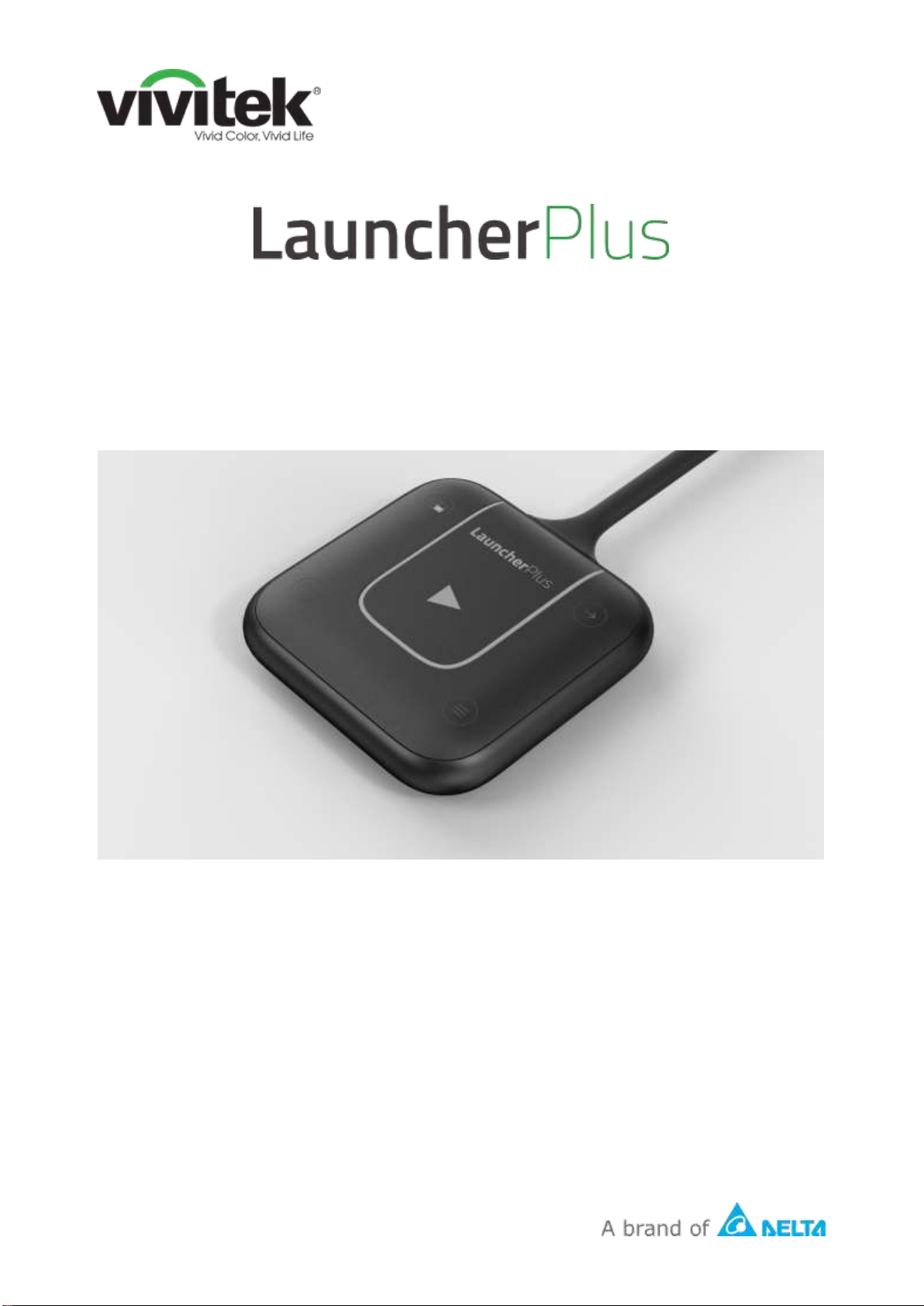

Vivitek LauncherPlus WQL-400 Manuel utilisateur

WQL-400

User Manual


 LauncherPlus User Manual
Copyright © 2017 Vivitek. Vivitek is a trademark of Delta Electronics, Inc. Page 2
Table of Contents
The Device .......................................................................3
Button Behavior........................................................................ 3
When the LauncherPlus is connected but not projecting (Main button LED is solid red)..................3
When the LauncherPlus is projecting (Main button LED is solid blue)..............................................3
When the LauncherPlus is projecting to a quadrant (Corner button LED is solid blue).....................4
When the LauncherPlus is paused (Main button LED is solid red)....................................................4
LED Behavior............................................................................ 4
During the pairing process:...................................................................................................................4
After Pairing: .........................................................................................................................................4
Installation (Pairing)........................................................6
NovoConnect Device in Hotspot mode .................................. 6
Via the NovoConnect Device’s USB Port .............................................................................................6
Via your PC’s USB Port ........................................................................................................................8
NovoConnect Device in Wi-Fi mode....................................... 9
Via the NovoConnect Device’s USB Port .............................................................................................9
Via your PC’s USB port ......................................................................................................................10
NovoConnect Device with a Wired Connection................... 12
Via the NovoConnect Device’s USB Port ...........................................................................................12
Via your PC’s USB Port ......................................................................................................................14
Usage .............................................................................15
Additional Settings........................................................17
Connection Settings............................................................... 17
Password Lock ....................................................................... 18


LauncherPlus User Manual

The Device

The LauncherPlus features a main button in the center of the device along with four

corner buttons, all with corresponding LED indicators, whose behavior is described

below.

Button Behavior

When the LauncherPlus is connected but not projecting

(Main button LED is solid red)

Button

Action

Behavior

Main Button

Press

Starts projecting

Corner Buttons

N/A

When the LauncherPlus is projecting

(Main button LED is solid blue)

Button

Action

Behavior

Main Button

Press

Pauses projection

(the NovoConnect device returns

to the main screen)

Press and hold for 3 seconds

Disconnects the LauncherPlus

Corner Buttons

Press

Projects the computer’s screen

onto the corresponding quadrant

of the display

LauncherPlus User Manual

When the LauncherPlus is projecting to a quadrant

(Corner button LED is solid blue)

Button

Action

Behavior

Main Button

Press

Projects the computer’s screen

onto the display in full screen

mode

Press and hold for 3 seconds

Disconnects the LauncherPlus

The Selected

Corner Button

Press

Pauses projection

(the NovoConnect device returns

to the main screen)

An Unselected

Corner Button

Press

Switches projection of the

computer’s screen to the

corresponding quadrant of the

display

When the LauncherPlus is paused

(Main button LED is solid red)

Button

Action

Behavior

Main Button

Press

Projects the computer’s screen

onto the display in full screen

mode

Press and hold for 3 seconds

Disconnects the LauncherPlus

Corner Buttons

Press

Projects the computer’s screen

onto the corresponding quadrant

of the display

LED Behavior

During the pairing process:

LED

Definition

Main Button LED

Corner Button LEDs

Flashing Blue

(All) Flashing Blue

The LauncherPlus has been plugged

into a PC.

Solid Red

N/A

The LauncherPlus has been paired to a

NovoPro, but is not projecting.

After Pairing:

LED

Definition

Main Button LED

Corner Button LEDs

Solid Blue

N/A

The LauncherPlus is projecting in full

screen mode

LauncherPlus User Manual

N/A

(Single) Solid Blue

The LauncherPlus is projecting in the

corresponding button’s quadrant

N/A

(Single) Flashing

Blue

The LauncherPlus is switching

projection mode

Solid Red

N/A

Projection is paused

LauncherPlus User Manual

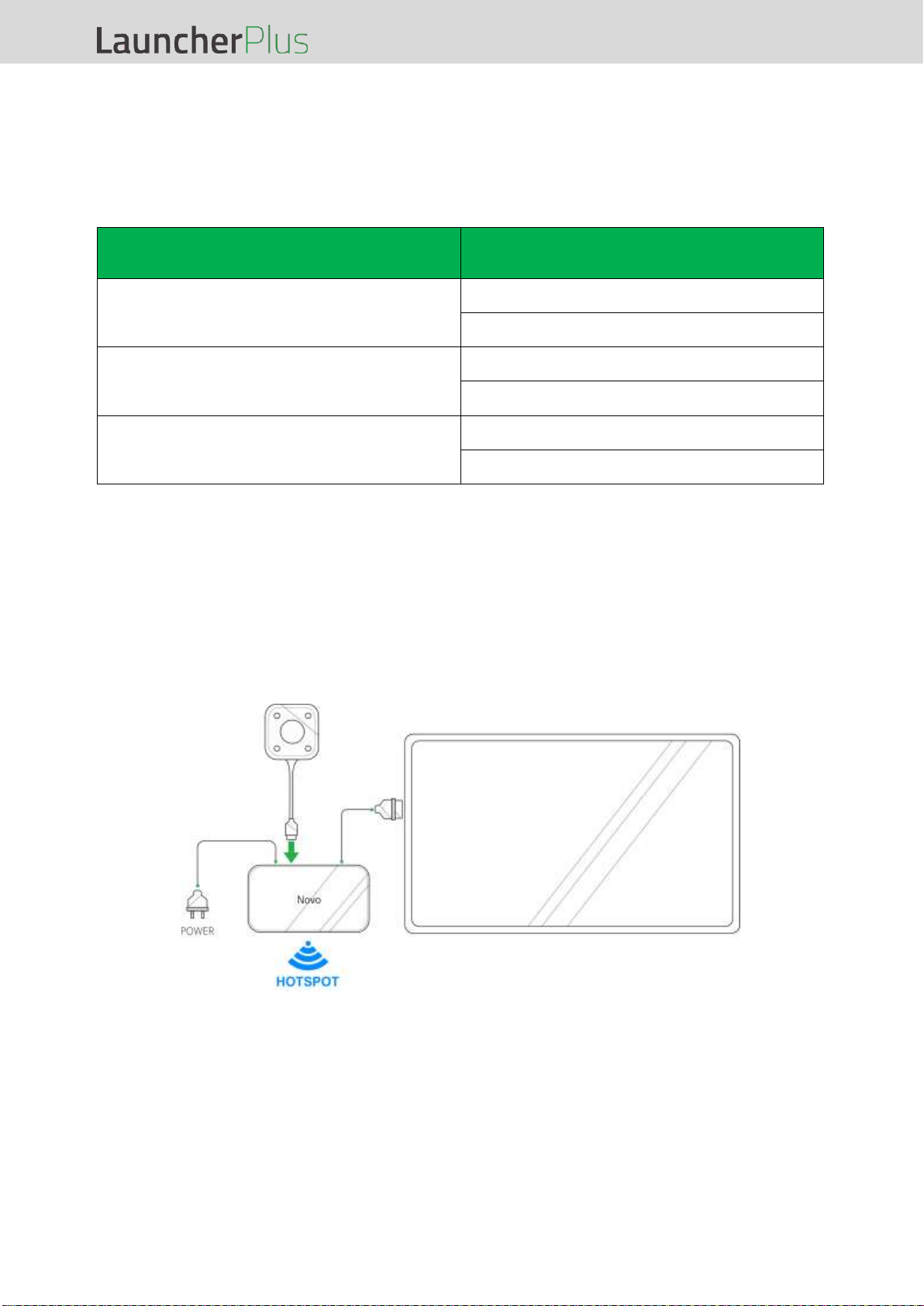

Installation (Pairing)

There are various ways to pair the LauncherPlus to a NovoConnect device based on the

network setting of the NovoConnect device. The table below outlines the various

settings and their respective pairing methods:

NovoConnect Device’s Network

Connection Type

Pairing Method

Hotspot

Via the NovoConnect device’s USB Port

Via the PC’s USB Port

Wi-Fi

Via the NovoConnect device’s USB Port

Via the PC’s USB Port

Wired

Via the NovoConnect device’s USB Port

Via the PC’s USB Port

The sections below describe the instructions for each pairing method.

NovoConnect Device in Hotspot mode

Via the NovoConnect Device’s USB Port

1. Connect the LauncherPlus to the NovoConnect device.

NOTE: The NovoConnect device must be powered on and connected to a display.

LauncherPlus User Manual

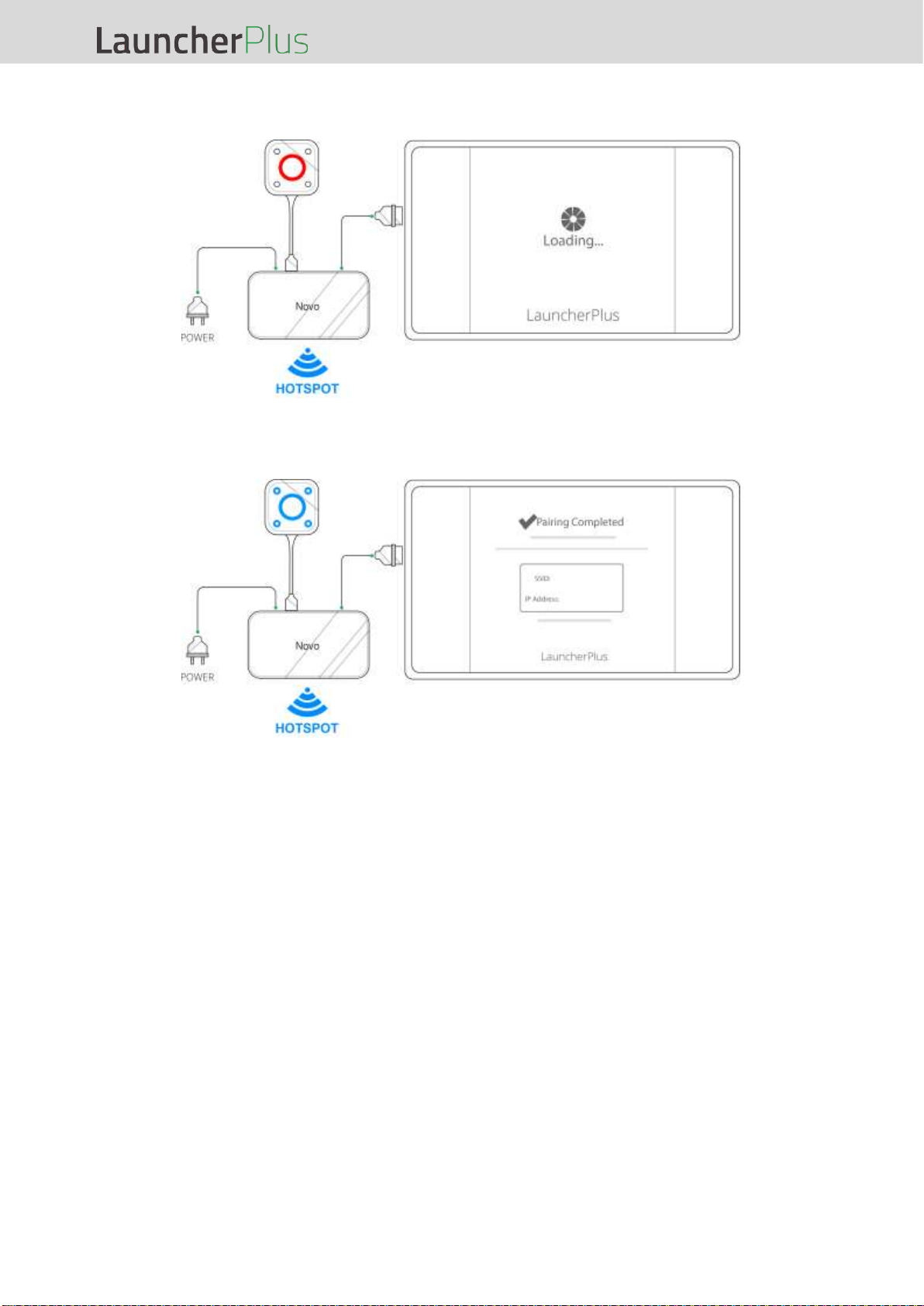

2. The main button on the LauncherPlus lights up red and a Loading…screen is

shown on the display.

3. Wait for the main and corner buttons on the LauncherPlus to light up blue and the

Pairing Completed screen to be shown on the display.

4. The pairing process is complete. Proceed to the Usage section to begin using the

LauncherPlus.

LauncherPlus User Manual

Via your PC’s USB Port

Before pairing via the PC’s USB port, ensure that the PC features a working Wi-Fi

connection with WEP, WPA/WPA2, or 802.1x encryption.

1. Connect the LauncherPlus to your PC’s USB port. The LauncherPlus will check to

see if its software package is already stored in the PC. If the software package is not

stored in the PC, the PC will begin retrieving its software.

2. Once the software is ready, the LauncherPlus will begin scanning for NovoConnect

devices.

3. A list of scanned NovoConnect devices will appear. Select the NovoConnect device

you want to connect to from the list.

4. Once you have selected the NovoConnect device, the pairing process will be

complete. Proceed to step #3 of the Usage section to begin using the LauncherPlus.

LauncherPlus User Manual

NovoConnect Device in Wi-Fi mode

Before pairing, ensure that the NovoConnect device is powered on and features a

working Wi-Fi connection with WEP, WPA/WPA2, or 802.1x encryption.

Via the NovoConnect Device’s USB Port

1. Connect the LauncherPlus to the NovoConnect device.

2. For WEP, WPA/WPA2 Wi-Fi Connections: A prompt will appear asking for the Wi-

Fi password. Enter the Wi-Fi password.

For 802.1x Wi-Fi Connections: A prompt will appear asking for the Wi-Fi login and

password. Enter the Wi-Fi login and password.

LauncherPlus User Manual

3. Once you have entered the Wi-Fi connection login and/or password, wait for the

main and corner buttons on the LauncherPlus to light up blue and the Pairing

Completed screen to be shown on the display.

NOTE: If a pairing failure prompt appears re-enter the login and/or password.

4. The pairing process is complete. Proceed to the Usage section to begin using the

LauncherPlus.

Via your PC’s USB port

Before pairing via the PC, ensure that the PC features a working Wi-Fi connection with

WEP, WPA/WPA2, or 802.1x encryption.

1. Connect the LauncherPlus to your PC’s USB port. The LauncherPlus will check to

see if its software package is already stored in the PC. If the software package is not

stored in the PC, the PC will begin retrieving its software.
