Vivitar DVR 4K v3 Fiche d'information produit
Read me before use!
Keep manual and all relevant information for future reference.
110*150mm 105克铜版纸黑白印刷 骑马订
封面1+空白1+内页16+空1+封底1
DVR 4K (v3)
Friendly Tips:
1. The camcorder supports a SD memory card up to 256GB.
We recommend a branded class-10 SD/SDHC card which is required to be formatted in
the camcorder before first-time use.
2. This camcorder is equipped with one lithium battery. Please install the battery correctly
before using the camera for the first time, otherwise the camera will not charge and will
not boot.
this video will help you:
https://www.youtube.com/watch?v=cClakxJfRxY&feature=youtu.be
WARNING
To reduce the risk of fire or electric shock,
1. ) Do not expose the unit to rain or moisture.
2.) Do not place objects filled with liquids, such as vases, on the apparatus.
Do not expose the batteries to excessive heat such as sunshine, fire or the like.
Do not ingest battery, chemical burn hazard.
The remote control contains a coin/button cell battery. If the coin/button cell battery is
swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
Keep new and used batteries away from children. If the battery compartment does not close
securely, stop using the product and keep it away from children.
If you think batteries might have been swallowed or placed inside any part of body, seek
immediate medical attention.
CAUTION
If the battery is mishandled, the battery pack can burst, cause a fire or even chemical burns.
Observe the following cautions.
Do not disassemble.
Do not crush and do not expose the battery pack to any shock or force such as hammering,
dropping or stepping on it.
Do not short circuit and do not allow metal objects to come onto contact with the battery
terminals.
Do not expose to high temperature above 60°C (140°F) such as in direct sunlight or in a car
parked in the sun.
Do not incinerate or dispose of in fire.
Do not handle damaged or leaking lithium ion batteries.
Keep the battery pack out of the reach of small children.
Keep the batter pack dry.
Replace the battery with the specified type only. Otherwise, burst, fire or injury may result.
Dispose of used batteries according to the instruction.
Use a nearby wall outlet(wall socket) when usin the AC Adapter/Battery charger. If any
malfunction occurs, disconnect the plug from the wall outlet (wall socket) immediately to
disconnect from the power source. If you use the product with a charge lamp, note that the
product is not disconnected from the power source even when the lamp turns o .
Do not use the AC adapter/Battery charger placed in a narrow space, such as between a wall
and furniture.
If static electricity or electromagnetism cause data transfer to discontinue midway (fair), restart
the application or disconnect and connect the communication cable (USB, etc.) again.
About the camera
System requirement
Users can ransfer videos and photos to computers with the following configurations:
Intel Pentium 2.0GHz or higher/ Microsoft Windows XP or higher operating system 2GB RAM
40GB above available disk memory/ Standard USB interface / 1GB GPU or higher 1920x1080
pixel or higher resolution.
Parts and controls
UP
WiFi
DOWN

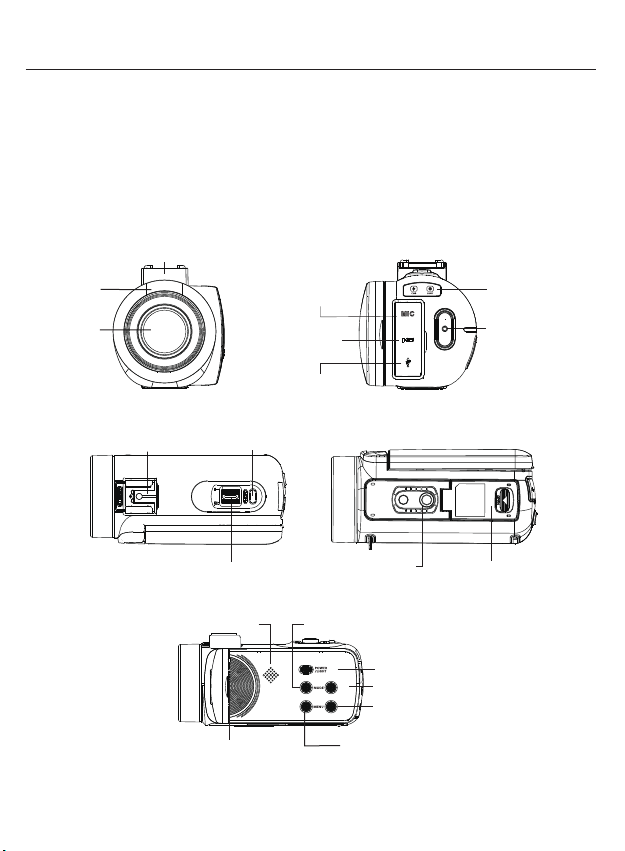

Front side view Back side view
Top side view Bottom side view
Left side view
Hot shoe
IR light
Lens
Extenal
MIC Jack
HDMI output
interface
Type-C USB
interface
Charge/Busy
indicator
Rec/Stop
button
Hot shoe Photo shutter
Zoom in/out Tripod hole Battery/memory
card slot cover
Built-in speaker Mode button
Power / OK / IR light button
UP / Wi-Fi button
Down button
Menu buttonBuilt-in MIC
Packaging contents:
1. ) 4K Digital camcorder
2.) Rechargeable lithium battery
3.) Camera bag
4.) USB cable
5.) HDMI cable
6.) Remote controller
7.) Lens cover
8.) Installation manual

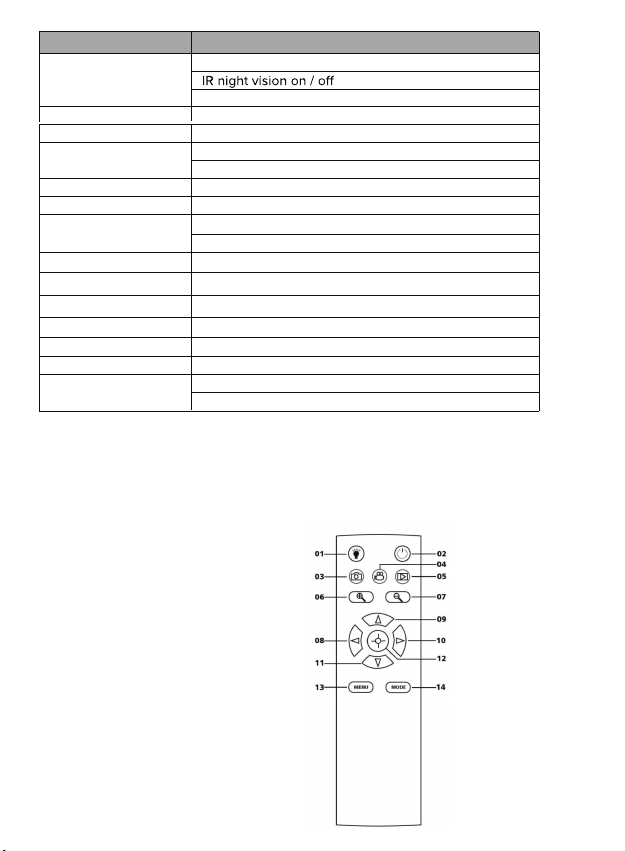

Remote Controller
Users can controll the camcorder by
remote controller. Expect as instruction
of power on, the remote control can
accomplish all other instructions.
Note:
This remote control uses CR2025 or
CR2032 3V button batteries, max.
distance is around 20 meters.
It can remotely control the camera from
a 360-degree angle.
Note: Pull out the insulating paper at the
bottom of the remote control before use.
Insert the insulating paper when not in
use to avoid battery power loss.
01. Night vision button
02. Power button
03. Photo button
04. Video button
05. Playback
06. Zoom in button
07. Zoom out button
08. Left
09. Up
10. Right
11. Down
12. Ok button
13. Menu button
14. Mode button
Buttons/ Indicators Functions
POWER
Power on / off
Confirm
MODE
Open/close mode menu
ME NU
Set shooting menu and system menu
UP Upward
Turn on/off WIFI
DOW N
Downward
W/T
Digital zoom out / in
Take photo
Pause of recording
Shoot video button
Shoot start / end
Indicator light BUSY
Working indicator light
Indicator light CHG
Charging indicator light
Hot shoe Base for installing handle, microphone and fill light
MIC interface External microphone interface(3.5mm)
HD TV HDMI cable interface
USB USB cable charging
Connect the computer with USB cable

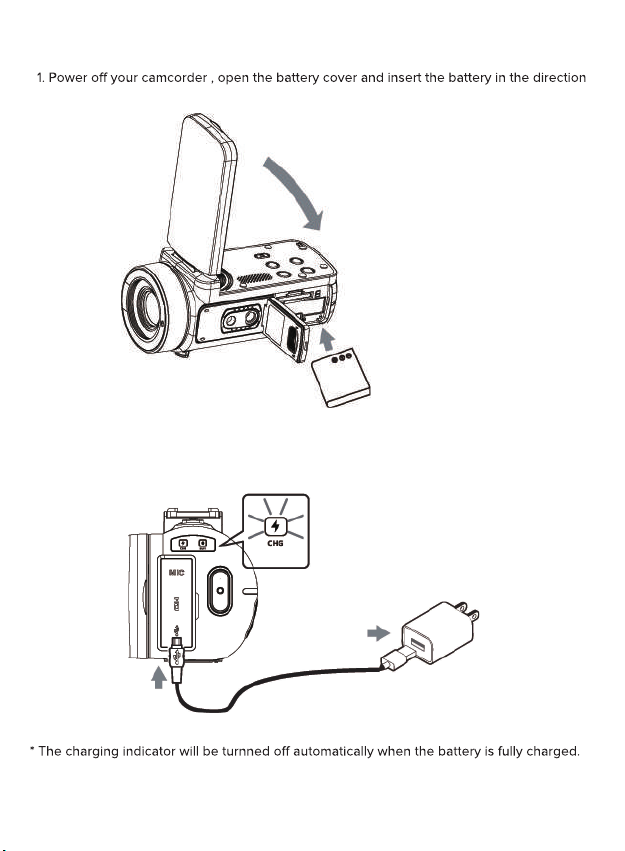

Charging the battery
as the shown of following picture, then close the battery cover.
2. You can use supplied USB cable to charge your camcorder via a adapter(5V/1A~5V/2A)
or connect to PC directly.
* The charging indicator will be turnned on in red when the battery is in charging.
Normally it takes around 4-6 hours to full charging of the battery.
When the battery is fully charged, the battery life is around 70 minutes for recording
(Reference test data based on turn o the Wi-Fi).
charging
indicator

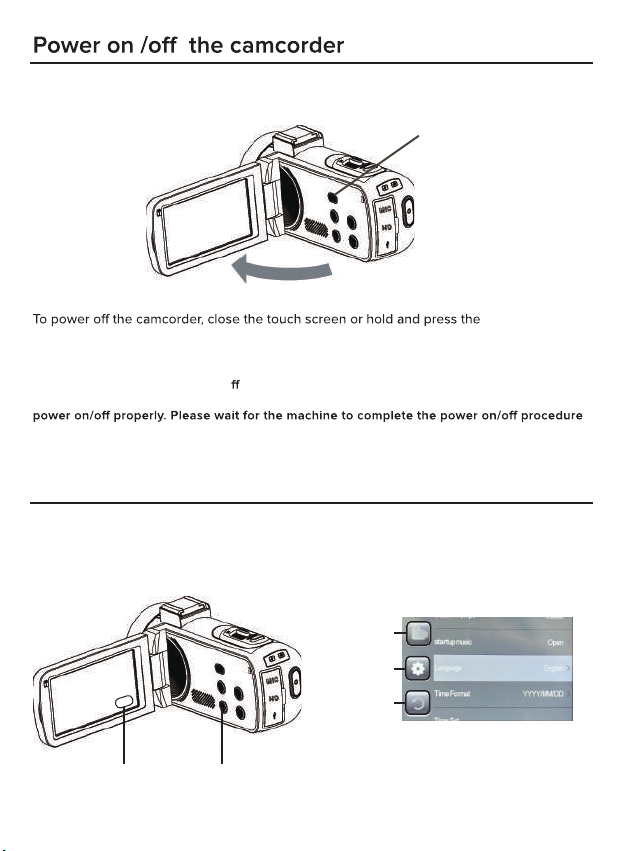

Open the touch screen, the camcorder will be powered on automatically.
You can also power on the camcorder by pressing the Power/OK/IR Night button.
Power/OK/IR Night
button for 3 seconds.
Notes:
open/close the touch screen twice in this reaction time, it may cause the camcorder can not
before operating the machine again.
Power button
Set the camcorder
You can make custom settings of the camcorder.
After power on the camcorder, tap the Menu icon of the screen or press the Menu button to
open the menu.
It takes 5 seconds to power on/o the camcorder by openning the touch screen. If you
MENU
Tap the screen OR Press the MENU button
Menu Section
Submenu
for current mode
System settings
Exit the menu
Available system settings:
Sub-menu Menu content
Image Rotation Turn On/Turn Off (Press OK to switch)
Wi-Fi Turn On/Turn Off (Press OK to switch)
Wi-Fi Information Tap to open the Wi-Fi name and password of
camcorder
Reset Wi-Fi Confirm /Cancel
Light Source Frequency Auto/50Hz/60Hz
LED Indicator (Night vision) Turn On/Turn Off (Press OK to switch)
Auto Screen Saver Turn Off/30s/1min/2min
Auto Power Off Turn Off/3min/5min/10min
Button prompt Sound High/Middle/Low/Turn Off
Startup Music Open/Close
Language
Simplified Chinese/traditional
Chinese/English/Japanese/Korean/Russian/German/
French/Italian/Spanish/Portuguese/Thai
Time Format YYYY/MM/DD MM/DD/YYYY DD/MM/YYYY
Time Set Set up the time of the camcorder
Hour/minute/second
Date Set Set up the time of the camcorder
year/month/day
Format (SD Card) Format/Cancel
Device Info Product firmware version
Factory Reset Confirm/Cancel
Insert and format the memory card
A class 10 or higher speed memory card is recommended to normal use.

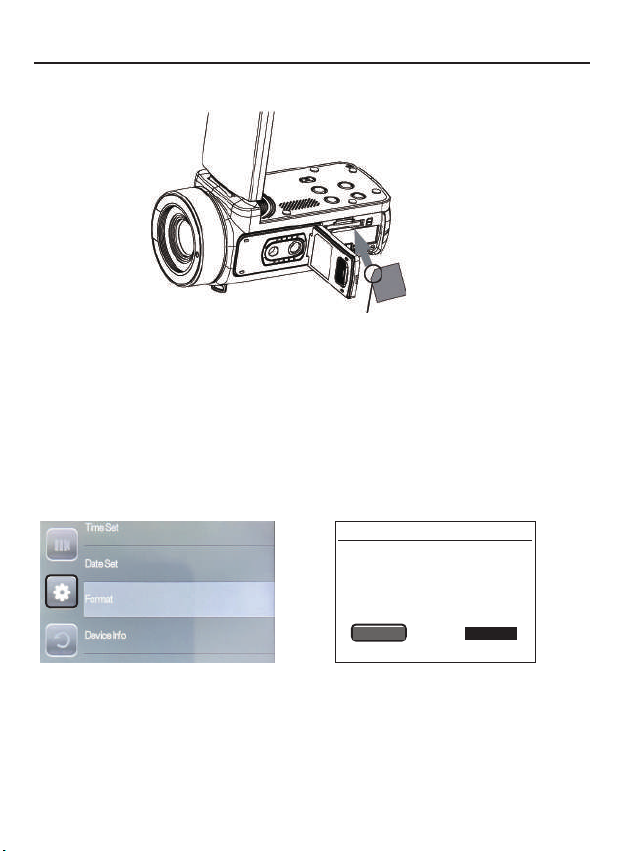

1. Open the battery cover, and insert the memory card until hear the “click” sound.
Insert the card with the noted
corner in the direction as illusrated.
2. To remove the memory card, open the cover and push the memory card it will be popup
automatically.
Format the memory card
It is recommended to format the memory card before the first use.
Note:
If the memory card is not native format, the screen will pop-up a prompt: ” Card error..“, please
format the memor card as above operation.
Formatting the memory card will earse all the data stored on it and the data will be irrecoverable.
Save your important data on PC before formatting.
To format the memory card, tap the Menu icon of the screen or press Menu button to open
the menu. Then tap the System settings icon to open the system settings.
Press Up/Down button or slide down of the screen until to “Format”, then tap Format or press
Power/OK/Night vision button to get the submenu. Select “Format” to format the memory card.
SD Card
Storage Space: xxG/xxG
Format Cancel
Using the camcorder
After power on the camcorder, video capture mode is the default mode.

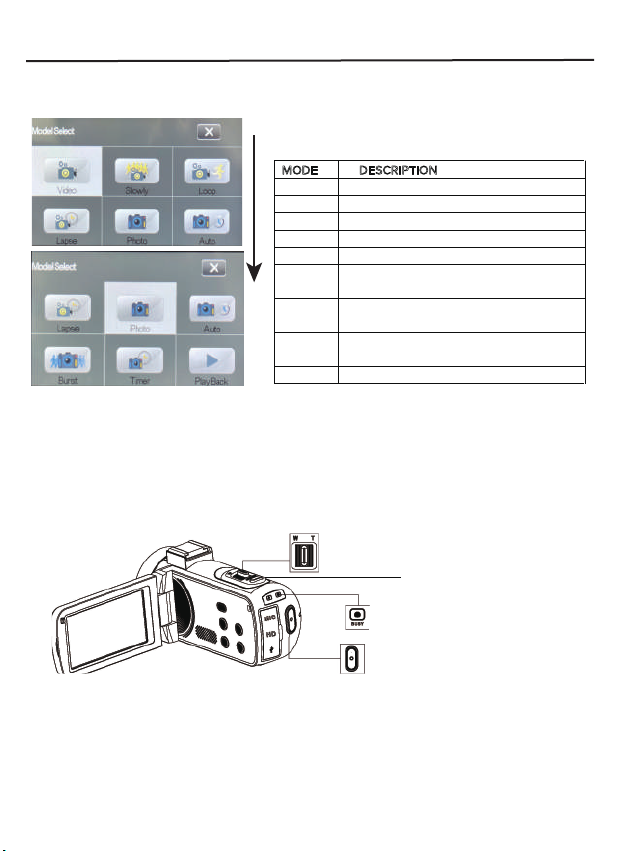

Press the Mode button or tap the Mode icon of the screen to choose the desired mode.
Slide down
for more options
M
ODE DESCRIPTION
Video Normal recording mode
Slowly Slow motion shooting
Loop Recording infinite loop
Lapse Fast action shooting
Photo Take a single photo normally
Auto Automatically cycle take photos after a
specified number of seconds
Burst Take a specified number of photos in
succession
Timer Take a single photo after a specified
number of seconds
PlayBack Play the video or photo
The camcorder supports to do the related settings while the camcorder is in diferent models.
After choose your desired mode, then tap “Menu” icon of the screen or press Menu button to
open the menu and select the desired settings according.
Press the Photo Shutter button to take a photo, the photo will be saved in to the memory
card automatically.
Press the Record/Stop button to start a video recording, press again to stop the recording;
you also can press Photo Shutter to pause/continue the recording.
Zoom in/out button
Busy indicator
The light flashes while in recording.
Record/Stop recording
Press to start recording, press again
to stop the recording.
Photo shutter button
Note: The camcorder can not take a photo in video mode.
IR Night vision
Short press the Power/IR light/OK button, the camcorder will turn on the IR night, press again
to turn o the IR lights.
Mic interface
The camcorder supports an external microphone with a 3.5mm connector.
Note: This connector does not support headphone access.
