DVR-200

User Manual

English

040507TP

FCC STATEMENTFCC STATEMENT

FCC STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation

Note: This equipment has been tested and found to comply with the limits for Class B digital devices,

pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Use of shielded cable is required to comply with Class B limits in Subpart B of Part 15 of the FCC rules.

Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If

such changes or modifications should be made, you could be required to stop operation of the equipment.

SAFETY PRECAUTIONS

Do not use this DV camera if it is emitting smoke (or an unusual odor), becomes unusually hot to be

touched, produces a peculiar noise, or exhibits any other abnormal conditions.

Do not expose the DV camera to moisture and make sure no water gets into the DV camera.

Do not touch the power plug during a thunderstorm if you are using the AC power adapter. This may cause an

electrical shock.

Do not use the DV camera if any foreign objects have entered the DV camera.

Do not place the DV camera in an unstable location such as on a wobbly table or sloping surface.

Do not insert or drop metallic or other foreign objects into the camera through access points such as the SD

memory card slot.

Do not attempt to modify this DV camera.

Never operate this DV camera in any way while driving a vehicle.

Do not cover or wrap the DV camera or the AC power adapter with a cloth or quilt. Always use the DV camera and

its accessories in well-ventilated locations.

Handle the DV camera carefully and do not bump the DV camera into any hard object.

Do not move the DV camera while it is switched on. (If you are using the AC power adapter, unplug the adapter

from the AC power outlet after you have switched off the camera.) Ensure that any connector cords or cables to

other devices are disconnected before moving the DV camera.

When leaving the DV camera unused for long periods, such as during a vacation, always unplug the DV camera

from the power source (batteries or AC power adapter) for safety.

Handling the USB and AV cables on this product may expose you to lead, a chemical known to the State of

California to cause birth defects or other reproductive harm. Wash hands after handling.

CONTENTS

INTRODUCTION ........................................... 5

Overview.................................................................... 5

Package contents ..................................................... 6

Optional accessories ................................................ 6

GETTING TO KNOW YOUR DIGITAL VIDEO

CAMERA ....................................................... 7

Front view .................................................................. 7

Rear view ................................................................... 8

LCD monitor information ........................................... 9

LED indicators and audible tones ............................ 12

GETTING STARTED ...................................... 13

Installing the batteries............................................... 13

Using an AC power adapter

(optional accessory) ................................................. 14

Attaching the hand strap .......................................... 14

Inserting an SD memory card

(optional accessory) ................................................. 15

Turning on your digital video camera ....................... 16

Setting the date and time.......................................... 16

CAPTURING STILL IMAGES ......................... 17

Basic settings ............................................................ 17

Digital zoom (Preview) ....................................... 17

Self-timer............................................................. 18

Flash ................................................................... 19

Image resolution and quality.............................. 20

Number of recordable images ........................... 21

RECORD MODE ............................................ 22

Recording video clips ............................................... 22

Viewing video clips ................................................... 23

PLAYBACK MODE ........................................ 24

Viewing images ......................................................... 24

Zoom playback.......................................................... 25

Displaying thumbnail images ................................... 26

Slide show display .................................................... 27

Deleting video clips and images .............................. 28

Delete one video clip/image at a time ............... 28

Delete all video clips/images at once................ 29

Protecting video clips/images .................................. 30

Protecting one video clip/image ........................ 30

Removing protection from

video clips and images ...................................... 30

Playback Menu..........................................................46

Protect .............................................................46

Delete all..........................................................47

Slide show .......................................................47

Copy to card ....................................................47

CONNECTING YOUR DITIGITAL VIDEO CAMERA

TO OTHER DEVICES ........................................... 48

CAMERA SPECIFICATIONS ......................... 49

APPENDIX................................................... 50

Error messages ........................................................50

SYSTEM CONNECTIONS ...........................31

USB Driver for Windows 98 users ........................ 31

Installing PhotoSuite.............................................. 32

Installing PhotoVista .............................................. 33

Installing WinDVD Creator SVCD.......................... 34

MENU OPTIONS ........................................ 35

Record menu ......................................................... 35

Image size ...................................................... 36

Image quality .................................................. 36

Video quality ................................................... 36

Exposure ......................................................... 36

White balance................................................. 38

ISO .................................................................. 39

Setup Menu ............................................................ 40

Format............................................................. 41

Beep................................................................ 41

Speaker ........................................................... 42

LCD brightness ............................................... 42

Power off.......................................................... 43

Reset to default................................................ 43

Date type ......................................................... 44

Date setup ....................................................... 44

Date imprint ..................................................... 44

Video out frequence ........................................

Light frequency................................................ 45

Language ........................................................ 45

INTRODUCTION

Overview

Your new digital video camera is a miniature camcorder that will capture motion video as well as 2 megapixel still

images.

Using the 1.5" TFT color image LCD monitor, you can record images and then review them in detail.

64MB internal (built-in) memory lets you capture and store video and images without the need for an additional

memory card. However, you may wish to expand the memory capacity of your camera (up to 512 MB) by purchasing

a Secure Digital (SD) memory card.

Video clips and images that you have captured can be transferred to your computer using the USB cable. A USB

driver is required only for Windows 98 users. Windows Me/2000/XP users may simply plug their camera directly

into a USB port on their PC and begin transferring images to your computer. If you have a memory card, you may

also wish to purchase an SD card reader for your PC. A card reader makes downloads even faster and more

efficient.

You can enhance and retouch your images and videos on your computer using the provided editing software, or

other software you may already own.

You may share your images and videos with your friends via e-mail, in a report, or on a website. The possibilities

are endless.

When shooting digital still images, an automatic flash sensor detects the shooting (lighting) conditions and determines

whether the flash should be used for your digital still images. This feature helps ensure that your still images turn

out right.

We truly hope you enjoy your new DV camera!

Package contents

Carefully unpack your new DV camera and ensure that you have the following items. In the event that any item is

missing or damaged, promptly contact Vivitar Customer Service.

Digital video camera Camera strap

User’s manual Camera pouch

USB cable Software CD-ROM

AV cable

Optional accessories

SD memory card

AC power adapter

2 x AA alkaline batteries

Note:

The product and accessories that come with your camera may be different from those described in this manual.

This is due to the fact that different retailers often specify slightly different product inclusions and accessories

to suit their market requirements, customer demographics, and geographical preferences. Products often

vary between retailers especially with accessories such as batteries, chargers, AC adapters, memory cards,

cables, carrying cases/pouches, and language support. Occasionally a retailer will specify a unique product

color, appearance, and internal memory capacity. Contact your dealer for precise product definition and

included accessories.

For drivers, revisions to this manual, and manuals in other languages please updates, refer to our website.

GETTING TO KNOW YOUR DIGITAL VIDEO CAMERA

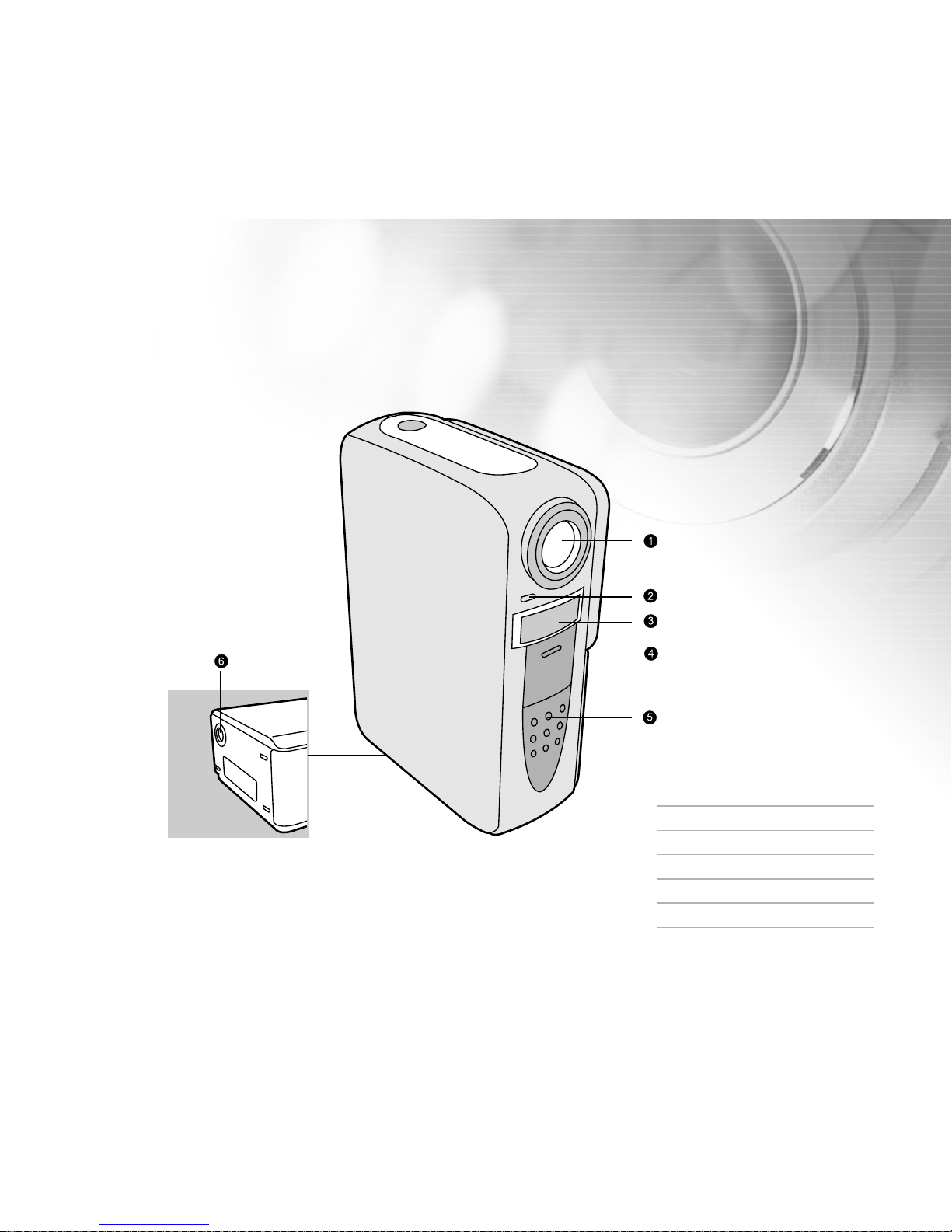

Front view

1. Lens

2. Microphone

3. Flash

4. Self-timer LED

5. Battery/SD card cover

6. Tripod socket

1. LCD monitor

2. Speaker

3. Power/Menu button

4. Arrow (up)

Flash

5. Arrow (right)

TZoom in

6. Arrow (down)

Self-timer

7. Arrow (left)

WZoom out

8. Record/ Stop

9. System LED indicator

10. OK OK

Digital zoom

11. Still-Image shutter

12. Delete

13. Playback

Pause

14.A/V OUT (Audio/Video Out)

jack

15.USB connector

16.DC-in connector

17.Strap eyelet

Rear view

LCD information

These indicators are displayed when recording

still-images or video clips:

1. Zoom state

2. Sound level

(applies to video only)

Low sound level

Mild sound level

Medium sound level

High sound level

Fully sound level

Mute

3. Battery level

Full battery power

Fairly consumed

Nearly exhausted

Virtually no battery power

4. Memory Card indicator

5. Flash mode

Auto flash (Auto 1)

Auto flash (Auto 2)

Flash off

6. Self-timer indicator

(still images only)

7. White balance

Automatic (no icon)

Daylight

Shade

Fluorescent-1

Fluorescent-2

Lamp (incandescent)

8. EV compensation

9. Still-Image resolution

Large 1600 x 1200

Medium 800 x 600

10. Possible number of shots

remaining

11. Still image mode icon

12. Image/ Video quality

Super fine

Fine

Normal

13. Recordable movie time

available

14. Record mode icon

Table des matières

Autres manuels Vivitar caméscope

Vivitar

Vivitar DVR-510 Manuel utilisateur

Vivitar

Vivitar DVR 943HDv2 Manuel utilisateur

Vivitar

Vivitar DVR 969HD Manuel utilisateur

Vivitar

Vivitar 78056N Manuel utilisateur

Vivitar

Vivitar 979HD Manuel utilisateur

Vivitar

Vivitar DVR-510 Manuel utilisateur

Vivitar

Vivitar DVR 794SHD Manuel utilisateur

Vivitar

Vivitar DVR 942HDV2 Manuel utilisateur

Vivitar

Vivitar DVR 699HD Manuel utilisateur

Vivitar

Vivitar DVR 558HD Manuel utilisateur

Vivitar

Vivitar DVR 378 Manuel utilisateur

Vivitar

Vivitar DVR 410V2 Manuel utilisateur

Vivitar

Vivitar DIGITAL HELMET DVR 480 Manuel utilisateur

Vivitar

Vivitar DVR 910HD Manuel utilisateur

Vivitar

Vivitar DVR 32490V2 Manuel utilisateur

Vivitar

Vivitar iTwist DVR 614HD Manuel utilisateur

Vivitar

Vivitar DVR 880HDV3 Manuel utilisateur

Vivitar

Vivitar DVR 695HD Manuel utilisateur

Vivitar

Vivitar DVR 506 Manuel utilisateur

Vivitar

Vivitar DVR-840XHD Manuel utilisateur

Vivitar

Vivitar DVR 859HD Manuel utilisateur

Vivitar

Vivitar DVR 947HD Manuel utilisateur

Vivitar

Vivitar DVR 550 Manuel utilisateur

Vivitar

Vivitar VIVITAR 615HD Manuel utilisateur

Manuels caméscope populaires d'autres marques

Toshiba

Toshiba CAMILEO Z100 Manuel utilisateur

Panasonic

Panasonic NV-VS40B Manuel utilisateur

Canon

Canon RC 260 Manuel utilisateur

Sony

Sony Handycam DCR-DVD7E Manuel utilisateur

Brinno

Brinno TimeLapse TLC200 Manuel utilisateur

JVC

JVC GR-SXM68AC Guide de démarrage rapide

Panasonic

Panasonic AG-HMC152EN Manuel utilisateur

Insignia

Insignia NS-DCC5HB09 - Camcorder - 720p Manuel utilisateur

MYDLINK

MYDLINK DCS-6100LH Manuel utilisateur

Sony

Sony video Hi8 Handycam CCD-TR555 Manuel utilisateur

SECURECOM

SECURECOM V-5014B Manuel utilisateur

Panasonic

Panasonic HDC-SD100 Manuel utilisateur

Sharper Image

Sharper Image U-VIDEO Manuel utilisateur

JVC

JVC AA-V15EG Manuel utilisateur

Canon

Canon LEGRIA HV40 Manuel utilisateur

Sony

Sony Handycam DCR-VX2000 Manuel utilisateur

RCA

RCA CC616 Manuel utilisateur

Panasonic

Panasonic NVM40 Manuel utilisateur
