Vivitar 840XHD Manuel utilisateur

DVR 840XHD

Digital Video Camcorder

Owner‟s Manual

Windows and the Windows logo are registered trademarks of Microsoft Corporation.

All other trademarks are the property of their respective companies.

Table of Contents

Introduction...............................................................................................................2

Key Features ............................................................................................................2

What your digital video camera includes.......................................................................3

Computer System Requirements for Windows XP..........................................................4

Computer System Requirement for Windows Vista ........................................................4

A Quick Look at your Digital Video Camcorder ..............................................................5

Preparing Your Camera for Use...................................................................................7

Inserting an SD Memory Card .....................................................................................8

Software Installation: Snap „n Share Pro and Video Express ...........................................9

Software Installation...................................................................................................9

Camera Buttons and Functions .................................................................................17

DVR Functions and Menu Control..............................................................................18

Camera Playback Modes..........................................................................................53

Connecting to a High Definition TV to view images.......................................................73

Connecting to a non High Definition TV to view images ................................................74

Transferring Images to your PC using the software ......................................................75

Manually transfer media to your Digital Camera...........................................................83

Everything you need to get the most of your media and MORE......................................84

Video Express application.........................................................................................88

Technical Support....................................................................................................96

Sakar Warranty Card ...............................................................................................96

Technical Specifications ...........................................................................................98

Trouble Shooting.....................................................................................................99

Introduction

Thank you for purchasing the DVR 840XHD Digital Video Camcorder. With your

camera you can shoot high resolution H.264 video clips and take individual photos.

In addition, 128 MB built-in memory allows you to take pictures and short movies

without a memory card. However a SD compatible memory card of up to 8GB

should to be inserted in order to expand the memory of your DVR camera.

You can also connect it to an HDTV via the provided HDMI cable, and easily

playback recorded high-definition videos directly on the wide screen HDTV.

Key Features

5 Digital Video resolutions –1440x1080 Pixels (HD), 1280x720p (HD), 848x480p

(WVGA), 640x480p (VGA) and 320x240 (QVGA).

8 mega-pixels camera with choice of 3 digital camera resolutions- High

3200x2400 (8M), Standard 2592x1944 (5M) and Low 2048x1536p (3M)

3" TFT LCD

5 X Optical Zoom Lens

Supports external SD memory card up to 8GB

Built-in Microphone

Snap „n Share Pro software application can be used to download the photos and

videos from your camera with the touch of a button

Edit, add text, clipart and more on your digital photos

Produce colorful movies to upload, copy to CD/DVD and much more with Video

Express software.

What your digital video camera includes

Digital Video Camcorder

USB cable

AV cable

HDMI Cable

Power Adapter

Lithium-ion Rechargeable Battery

Snap n Share Pro Software installation CD

Quick Start Guide

Built-in wrist strap

Computer System Requirements for Windows XP

To be able to download photos and videos to your PC you will need the following

minimum configuration:

Pentium 4 Processor (or above), 2.6 GHZ., with Windows XP Service Pack 2

512 MB RAM, 200MB free disk space.

Available USB Interface

CD-ROM Driver

Recommended screen resolution 1024 X 768 pixels or higher.

16-bit color or higher display adaptor.

Windows Media Player 9 (or above) as default media player

Computer System Requirement for Windows Vista

To be able to download photos to your PC you will need the following minimum

configuration:

Windows Vista

800MHz processor and 512 MB of system memory

20GB hard driver with at least 15GB of available space

Support for Super VGA graphics

Available USB Interface

CD-ROM driver

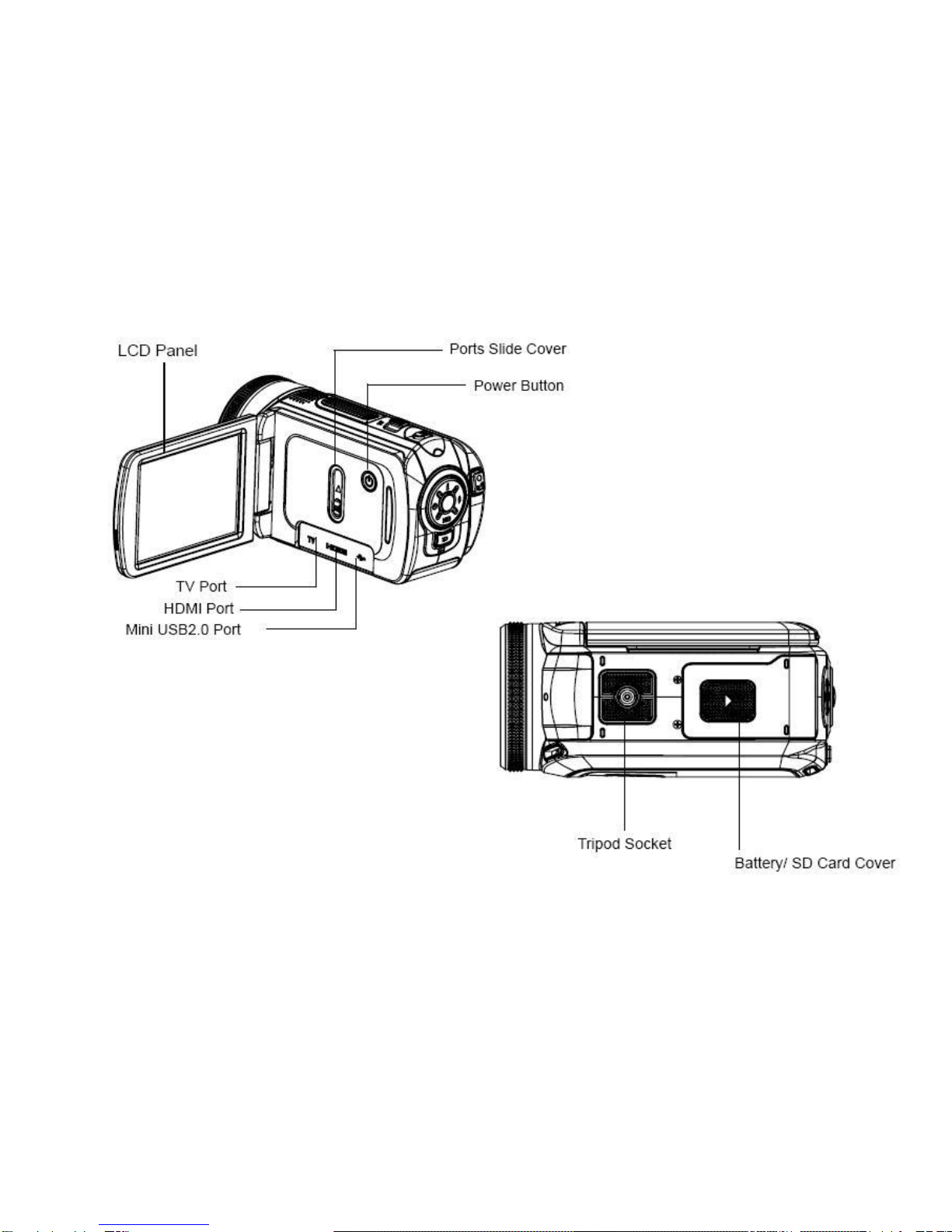

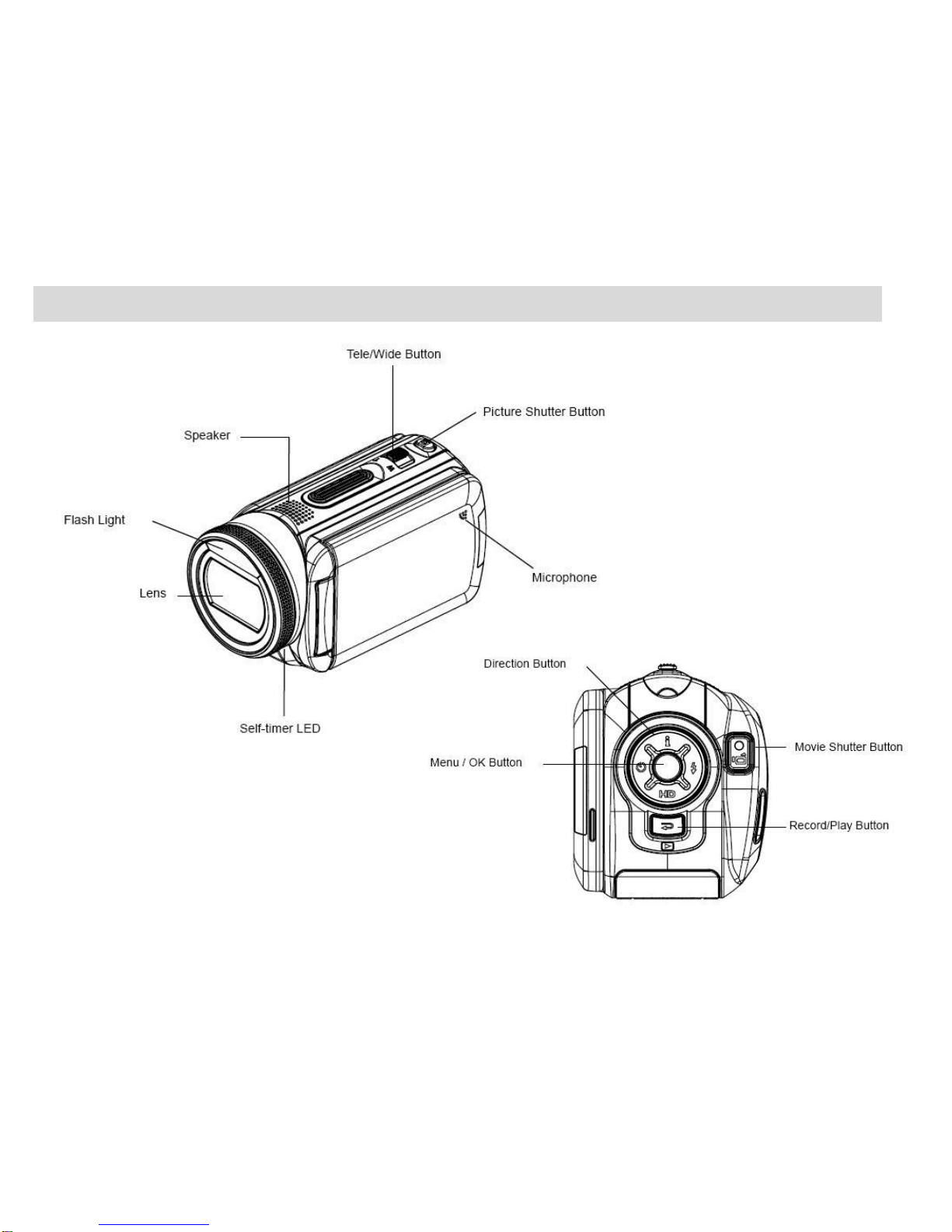

A Quick Look at your Digital Video Camcorder

Preparing Your Camera for Use

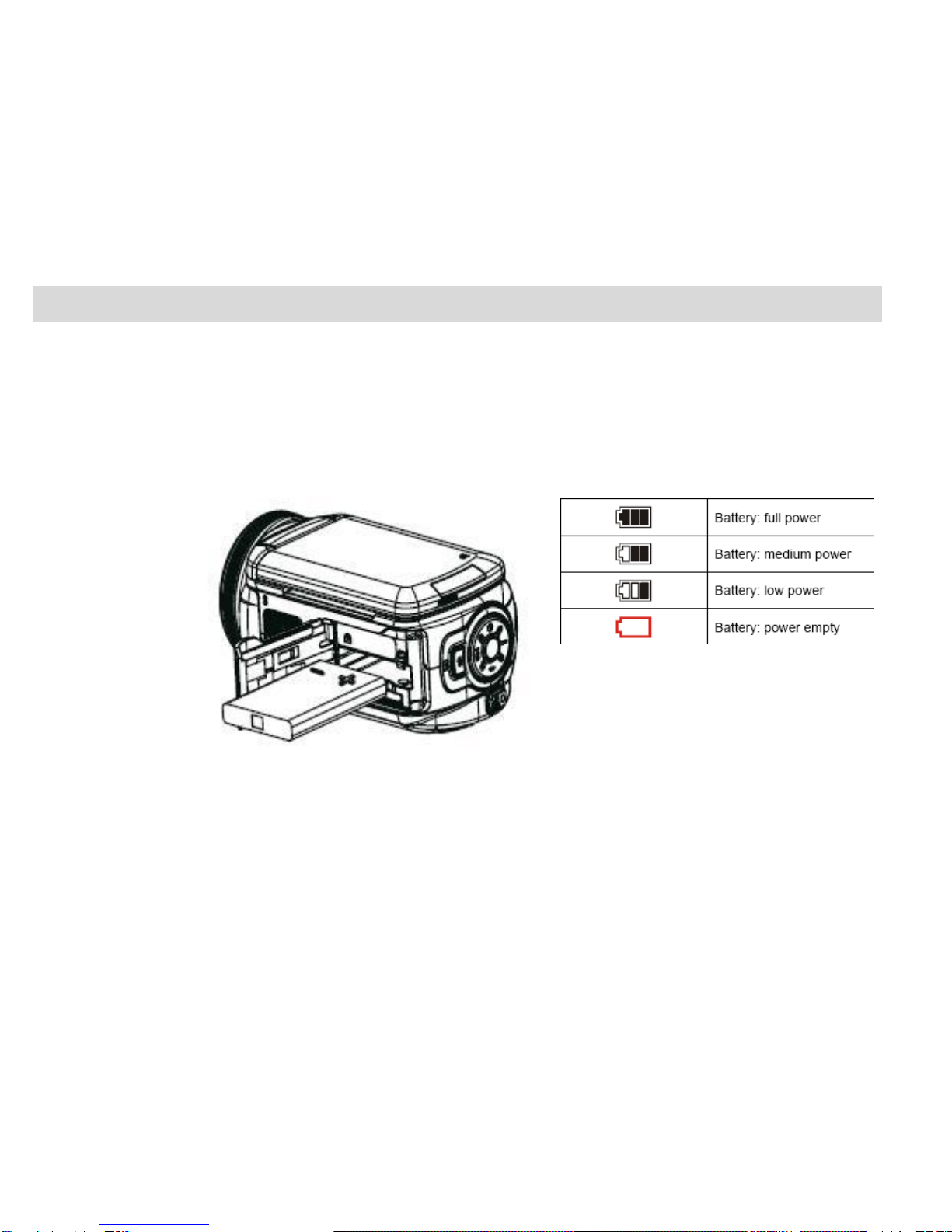

Battery Installation

Your DVR camcorder requires a Lithium-ion rechargeable battery (included in packaging).

Open the battery compartment on the bottom of the camera.

1. Insert the batteries in accordance with the polarity (+ and - ) as indicated.

2. Close the battery cover.

Note: You must ONLY use the supplied AC charger to recharge the battery. The

camera should be Off while charging. Allow the battery to fully charge first. This should

take approximately 6 hours.

The battery cannot be charged by connecting the camera via the USB cable to the

USB port of your computer.

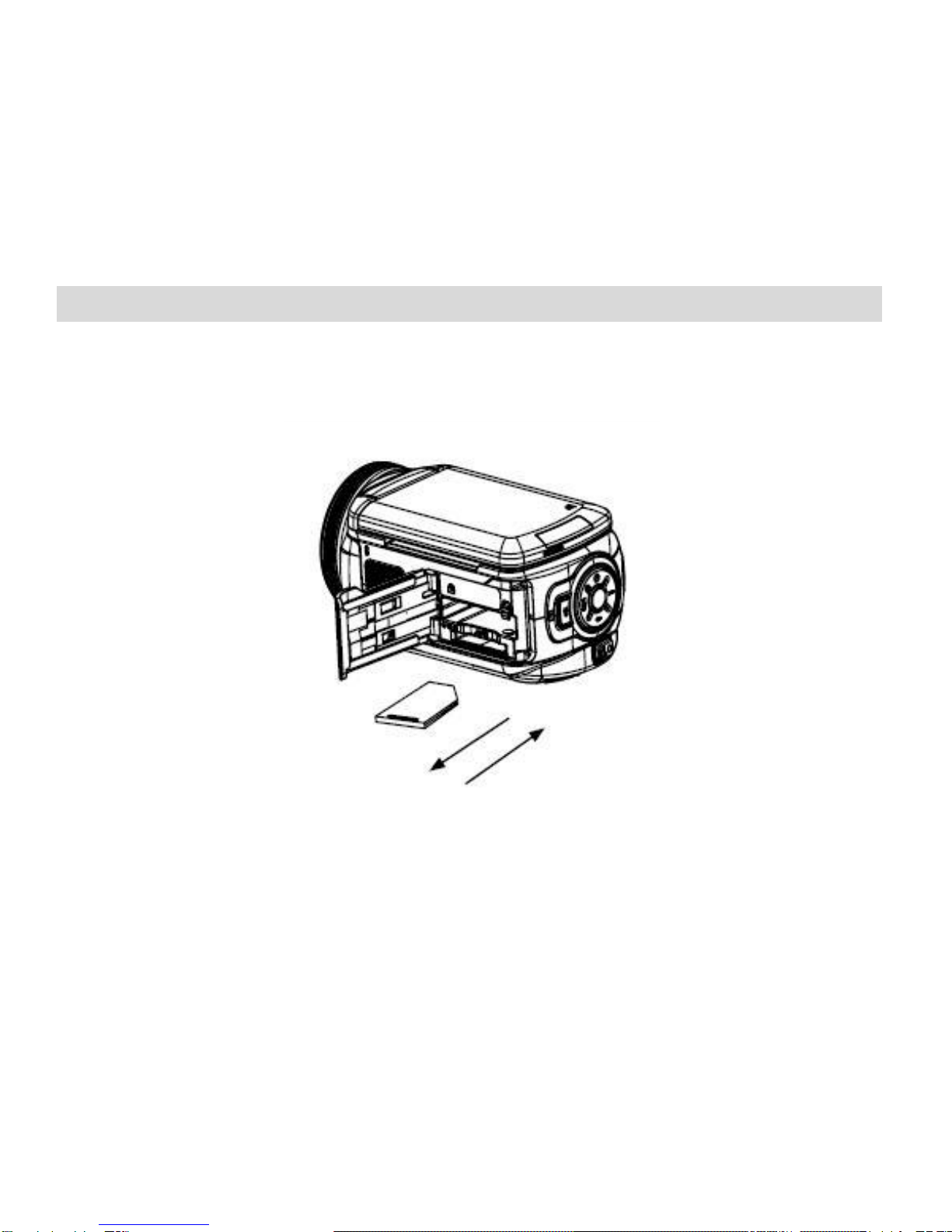

Inserting an SD Memory Card

An SD compatible memory card of up to 8GB (not included) should be inserted into your

DVR camera. SD Memory cards expand the amount of memory thus allowing an increase

in the number of movies and photos that can be captured before transferring them to your

computer.

1. Locate the SD card slot in the battery compartment on the bottom of the camera.

2. Insert the SD memory card correctly in the direction shown.

3. Press the memory card until you hear a “Click”sound.

Note: After you insert an SD memory card, the icon will appear on the LCD, indicating

that your SD memory card has been installed successfully, and the media you capture will

now be stored on the card and not in the internal memory.

This product supports SD cards of up to 8GB.

Formatting will delete all data on the SD Memory Card including protected data.

Do not remove the SD memory Card during formatting as this may damage the card

and render it unusable.

Be sure to format the card with the camera.

Software Installation: Snap „n Share Pro and Video

Express

Follow the step by step instructions that appear on your computer screen

during the installation process.

Software Installation

1. Insert the CD into your CD-Rom drive.

2. Wait for the computer to automatically recognize and open the first stage
