Vitek VT-TNR414P Manuel utilisateur
QUICK START GUIDE
FEATURES:
● 4, 8, 32, and 64 Channel Stand-alone Real-time IP Network Video Recorders
● Full 8 Megapixel Real-time recording & playback
● 4K HDMI & VGA Video Outputs
● H.265 / H.264 Video Compression
● Plug and Play & Auto configuration for many leading ONVIF compliant IP Camera models
● Internal PoE Switch (VT-TNR414P, VT-TNR818P, and VT-TNR3216P)
● 1 Gigabit LAN
● Pentaplex: Live Display / Record / Playback / Backup / Remote Access
● Supports SATA2/SATA3 HDD
● Applications for iOS® & Android®
● Remote Viewing over the Internet via Web Browser or LAN
● Mac OS® Client & CMS Central Management Software Included
● Supports both Dynamic and Static IP Addresses
● Web-based remote configuration
● Control locally via Front Panel Controls, USB Mouse, or with the Included IR Remote control
VT-TNR Series
Transcendent Series 4, 8, 32, and 64 Channel 5
MegaPixel H.265 Real Time Network Video
Recorders with 4K HDMI Output
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates
are available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
3. Rear Panel Connections
1. Notes
● Please read this instruction carefully for correct use of the product and preserve it for reference purposes.
● This manual is suitable for 8/16 CH Network Video Recorder. All the examples and pictures used here are for
reference only.
● There may be several technically incorrect places or printing errors in this manual. The updates will be added into
the new version of this manual. The contents of this manual are subject to change without notice.
● To prevent electric shocks and risk of fire hazards, only use the power source that Vitek provided with your NVR.
2. Check Package Contents
Please confirm that the device and all accessories are included in the package. If there is any damage, shortages
or defects, please contact your dealer immediately.
SETUP & CONFIGURATION:
1) Transcendent Series NVR
2) IR Remote Control
3) Quick Start Guide
4) Power Supply
5) Rack Ears (32 & 64 Channel Models)
6) HDD Screws
7) SATA Cables
8) USB Mouse
VT-TNR414P Rear Panel Connections
VT-TNR818P Rear Panel Connections
VT-TNR3216P Rear Panel Connections
VT-TNR6480 Rear Panel Connections
4. System Startup
● Please make sure all the connections are done properly before you power on the unit. Proper startup and
shutdown are crucial to expending the life of your device
● Startup:
① Connect the output display device to the VGA/HDMI interface of the NVR.
② Connect the mouse and power. The device will boot and the power LED will turn blue.
③ A WIZARD window will pop up (you should select the display language the first time you use the NVR). Refer to
3.1 Startup Wizard for details.

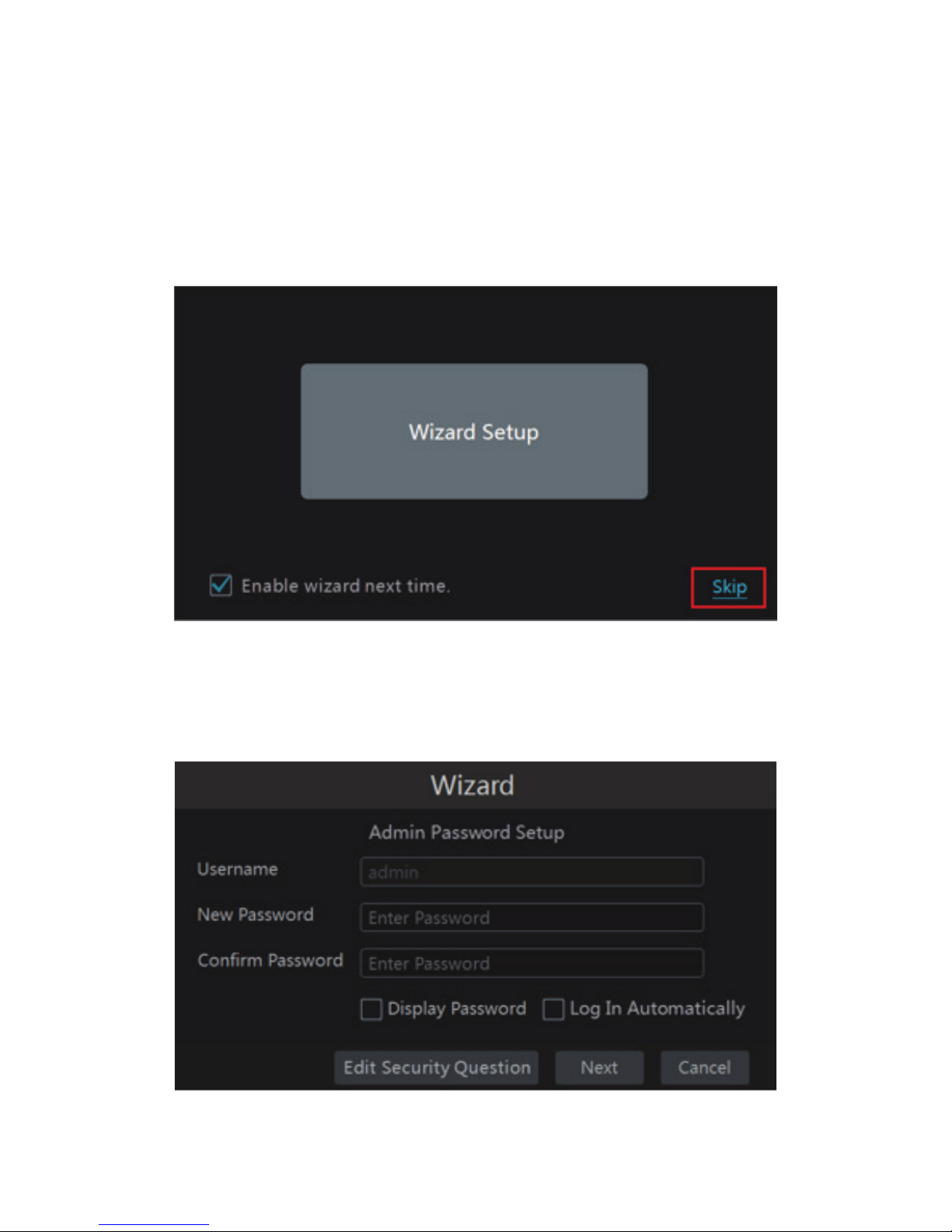

Click “Wizard Setup” to start wizard. The setting steps are as follows.
System Login:
Set your own password or use the default when you use the wizard for the first time (the default username of the
system is admin and the default password of admin is 123456); select the login username and enter the correspond-
ing password next time.
Click “Edit Security Question” to set questions and answers for password security of admin. If you forget the pass-
word, please refer to Q4 in Appendix A FAQ for details. Click “Next” to continue or click “Cancel” to exit the wizard.
Date and Time Configuration:
● The date and time of the system needs to be set up if you use the wizard for the first time. Refer to the following
figure. Set the time zone, system time, date format and time format. The DST will be enabled by default if the time
zone selected includes DST. Click “Next” to continue.
Network Settings:
● Check “Obtain an IP address automatically” and “Obtain DNS automatically” to get the IP address and DNS
automatically (the DHCP function of the router in the same LAN should also be enabled), or manually input them.
Input the HTTP port, RTSP port and Server port (please see 11.1.2 Port Configuration for details). Click “Next” to
continue.
Note:
If you use the NVR with the PoE network ports, the online state of the internal Ethernet port will be shown on the
interface. Refer to the picture below. Please refer to 11.1.1 TCP/IPv4 Configuration for detail introduction of the
internal Ethernet port.
QRCode:
● You can scan the QRCode through the mobile client which is installed on a mobile phone or Tablet to log into the
mobile client instantly. Please refer to 12.1 Mobile Client Surveillance for details.
Add Camera:
● Click “Refresh” to refresh the list of online IP cameras which are in the same local network with NVR and then click
to add the searched camera. Click “Add All” to add all the cameras in the list. Click to delete the added
camera. Click “Delete All” to delete all the added cameras.
to add the searched camera. Click “Add All” to add all the cameras in the list. Click to delete the added
to add the searched camera. Click “Add All” to add all the cameras in the list. Click to delete the added
● Click to edit the found IP camera as shown on the below left. Input the new IP address, subnet mask, gateway,
username and the password of the camera. Click “OK” to save the settings.
● Click to edit the added camera as shown on the above right. Input the new camera name, IP address, port,
username and the password of the camera. You can click “Test” to test the effectiveness of the input information.
Click “OK” to save the settings. You can change the IP camera name only when the added camera is online. Click
“Next” to continue.
● Click to edit the found IP camera as shown on the below left. Input the new IP address, subnet mask, gateway,
● Click to edit the added camera as shown on the above right. Input the new camera name, IP address, port,
Disk Settings:
● You can view the disk number, disk capacity of the NVR and serial number, R&W status of the disk. Click “Format-
ting” to format the disk. Click “Next” to continue
28492 CONSTELLATION ROAD VALENCIA, CA 91355
WWW.VITEKCCTV.COM
Version 1.0
June 2016
Record Settings:
● Two record modes are available: Auto and Manual.
● Auto: Select one auto mode in the interface as shown below and then click “OK” button to save the settings. See
7.1.1 Mode Configuration for details.
